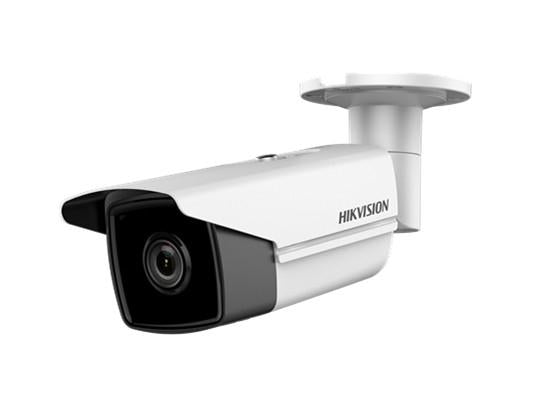

HikVision HIK-DS-2CD4A25FWD-IZ-2.8 Outdoor Bullet Camera

Model: HIK-DS-2CD4A25FWD-IZ-2.8

Who This Is For

For installers and security integrators who need a high-performance outdoor bullet camera that holds its own in genuinely difficult lighting conditions - entrance gates with headlight wash, loading docks with mixed shadow and fluorescent spill, or perimeter fences that face direct morning sun. The Hikvision DS-2CD4A25FWD-IZ delivers 1080p at up to 50fps with a 2.8-12mm motorised varifocal lens, so the focal length can be tuned precisely after the camera is mounted without removing or repositioning the housing. Combined with 120dB WDR, 0 Lux IR performance out to 50 metres, and IP67 weatherproofing, this is a camera specified when the site has real environmental variables to contend with - not a budget placeholder. It suits commercial sites, industrial premises, warehouses, and any outdoor run where backlight and low-light performance are non-negotiable from day one of operation.

What This Camera Actually Does

Who Buys This Model

• Security integrators on commercial fitouts: Sites requiring a camera that handles backlit entrances without constant tuning - the 120dB WDR and motorised lens make commissioning faster and post-install call-backs less likely.
• Industrial and warehouse operators: Facilities with mixed lighting across large floor areas or loading docks, where 50m IR range and IP67 weatherproofing cover both interior and exterior transition zones from a single mount point.
• Property managers on larger commercial sites: Perimeter coverage with onboard intrusion and line crossing detection means the camera contributes to alarm generation without requiring a separate analytics server for every channel.
• Installers needing ONVIF compatibility: Sites running third-party VMS platforms that require ONVIF conformance - this camera supports ONVIF, PSIA, CGI, and ISAPI, so integration into existing infrastructure is straightforward.

Honest Assessment

The DS-2CD4A25FWD-IZ earns its place on a spec sheet through a combination of features that genuinely matter on difficult outdoor sites: 120dB WDR that handles backlight without manual intervention, a motorised lens that removes the need to re-climb after final cabling, and onboard analytics that reduce VMS processing load. The 50m IR range is practical for most commercial approaches, and IP67 weatherproofing means it stands up to Australian outdoor conditions without additional housing. At 1850g it is a heavier mount than entry-level bullets, so bracket selection and wall substrate matter during planning. This model available through Security Australia records in H.264 only - sites requiring H.265 or H.265+ compression for storage efficiency should evaluate a current-generation Hikvision model before committing. For applications demanding identification-range detail beyond 50 metres, a longer IR variant or a model with the optional 8-32mm lens would serve better.

Before You Buy

Quick Fit Check

• Good match if: Your site has strong backlight at the coverage point - vehicle headlights, sun-facing entrances, or mixed indoor/outdoor transitions - where 120dB WDR is needed to maintain usable subject detail throughout the day.
• Good match if: The mounting height or cable routing makes post-install lens adjustment difficult, and the motorised 2.8-12mm varifocal removes the need to reposition the camera to correct framing after cabling is complete.
• You may need a different model if: Storage efficiency is a primary constraint on the project - this camera encodes in H.264 only, and sites with many channels or limited NVR storage would benefit more from a current H.265-capable bullet camera available in the Security Australia range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The installation involves high-contrast lighting at the coverage point and you need motorised lens adjustment without returning to the mount - the 120dB WDR and 2.8-12mm motorised varifocal address both challenges in a single housing.
• You may need a different model if: Storage efficiency across many channels is the primary constraint - this camera encodes in H.264 only, and a current-generation H.265 outdoor bullet camera will use significantly less storage capacity for the same resolution and retention period.
• Pairs well with: A PoE managed switch with per-port power monitoring and an NVR or VMS with ONVIF support, to take advantage of the camera's onboard analytics and ANR failover storage capability.

Common Questions

1. Does this camera work with a standard PoE switch, or does it need PoE+?

   Standard PoE is sufficient. The DS-2CD4A25FWD-IZ draws a maximum of 11W, which sits within the 15.4W budget of IEEE 802.3af PoE. You do not need a PoE+ (802.3at) switch for this model - standard PoE ports on managed and unmanaged switches are compatible, though confirming per-port power allocation on shared-budget switches is still recommended.

2. Will this camera handle direct sun or vehicle headlights without washing out?

   Yes. The 120dB WDR is specifically designed to process high-contrast scenes where strong light sources and dark foreground subjects appear in the same frame. Vehicle headlights at a gate or direct sun on a east-facing entrance are the exact scenarios this rating addresses - the camera maintains usable detail in both zones rather than exposing for one and losing the other.

3. How do I adjust the lens after the camera is installed?

   The motorised varifocal lens adjusts electronically. Zoom and focus are controlled through the camera's web browser interface or Hikvision client software - no physical access to the housing is required once cabling is complete. This is particularly useful when the camera is mounted at height where returning with a ladder is impractical.

4. Does this camera support onboard recording if the network goes down?

   Yes. The camera supports ANR (Automatic Network Replenishment) with a Micro SD/SDHC/SDXC card installed (up to 64GB). During a network outage, footage is written to the SD card and automatically synchronised back to the NVR once the connection is restored. NAS storage via NFS or SMB/CIFS is also supported as an alternative network storage path.

5. What analytics does this camera run onboard without a separate server?

   The camera processes line crossing detection, intrusion zone detection, scene change detection, audio exception detection, motion detection, tampering alarms, and storage exception alerts natively. These events can trigger recordings, email alerts, or alarm outputs without requiring VMS-side analytics processing, which reduces load on the recording server.

6. Is this camera compatible with third-party VMS platforms?

   Yes. The DS-2CD4A25FWD-IZ supports ONVIF, PSIA, CGI, and ISAPI, which covers the integration requirements of the majority of enterprise and commercial VMS platforms used in Australian installations. Contact Security Australia if you need to confirm compatibility with a specific VMS version before ordering.

Downloads & Resources

No downloads available for this product.
