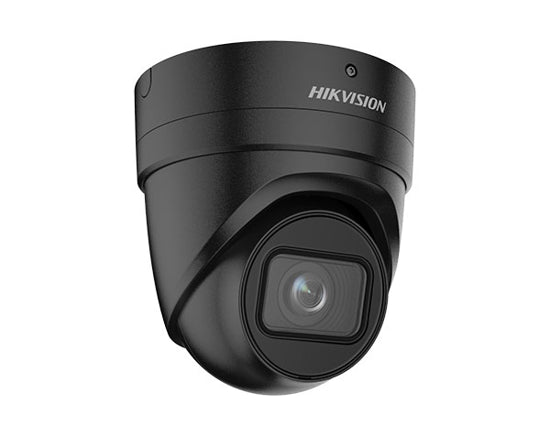

Hikvision DS-2CD2H86G2T-IZS 8MP Acusense Motorised VF Turret CCTV Camera IR 2.8-12mm

Model: DS-2CD2H86G2T-IZS

Who This Is For

For installers and property managers who need genuine 4K detail at a variable focal length without committing to a fixed lens during the quoting stage, the DS-2CD2H86G2T-IZS is a turret camera built for outdoor positions where coverage distance is not yet locked in. The 2.8-12mm motorised varifocal lens means the focal point can be dialled in remotely after mounting - useful on eaves and soffits where repositioning would otherwise require returning with a ladder. AcuSense deep learning filters detections to humans and vehicles only, which matters on sites where trees, animals, or passing cars have historically flooded the NVR with motion events. The IK10 vandal rating and IP66 weatherproofing make this suitable for exposed corners, car parks, and school exteriors where the housing will take contact or heavy rain. At 8MP, there is enough pixel density to zoom into licence plates or faces in post-event review, even at wider focal lengths.

What This Camera Actually Does

Who Buys This Model

• Security Installers on Commercial Sites: The motorised varifocal lens lets installers finalise focal length remotely after cabling, which speeds up multi-camera deployments on retail centres, office buildings, and warehouses where precise coverage zones are confirmed on-site rather than at quote stage.
• School and Childcare Facility Managers: IK10 vandal resistance and AcuSense human classification make this a practical choice for external perimeters where cameras are exposed to contact and where alert fatigue from false motion events is a genuine operational problem.
• Body Corporate and Strata Managers: The combination of 8MP resolution and 120dB WDR suits car park entries and foyer exteriors where lighting is mixed and post-event review for insurance or police purposes requires identifiable detail in the recorded footage.
• Small Business Owners Replacing Analogue Systems: The PoE powering option, H.265+ compression for reduced storage demand, and IP66 rating make this a manageable upgrade for sites moving from older coaxial systems to IP, where minimising cable runs and server storage overhead matters.

Honest Assessment

The DS-2CD2H86G2T-IZS does several things well in one housing: the motorised lens removes a common installation headache, 8MP gives genuine post-event forensic value, and AcuSense classification substantially reduces nuisance alerting on busy outdoor sites. The 120dB WDR and DarkFighter low-light performance mean the camera handles most Australian outdoor lighting conditions without manual tuning. The IK10 rating adds meaningful physical durability for exposed locations. Where this camera reaches its limits: the 30m IR range is adequate for driveways and walkways but is not the right tool for open car parks needing 60m-plus coverage - a bullet or PTZ camera with extended IR would serve those areas better. It also does not offer active deterrence such as a built-in strobe or siren; sites requiring on-camera warning responses should consider a TiOC variant instead. Available through Security Australia, this model sits in the mid-to-upper tier of the 2CD2 series and reflects that positioning in both price and capability.

Before You Buy

Quick Fit Check

• Good match if: You need to finalise camera coverage zones after mounting - the motorised 2.8-12mm lens lets you dial in the exact field of view from the NVR without returning to the camera position.
• Good match if: Your site generates too many false motion alerts - AcuSense deep learning filters detections to humans and vehicles only, which directly reduces notification fatigue on busy outdoor perimeters.
• You may need a different model if: Your site requires active on-camera deterrence such as a strobe light or alarm siren when an intruder is detected - a TiOC turret camera with built-in white light and speaker would be more appropriate for that use case.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4K resolution with a remotely adjustable focal length - no other turret in this price tier combines motorised zoom with AcuSense classification and IK10 vandal protection in the same housing.
• You may need a different model if: Your priority is maximum IR range beyond 30m - a bullet camera with 60m or 80m IR would provide better night-time coverage on long driveways, open yards, or approach roads where the turret's range falls short.
• Pairs well with: An AcuSense-compatible Hikvision NVR, which surfaces the human and vehicle classification metadata in the interface for smart search, event filtering, and thumbnail previews without needing to scrub through full recordings manually.

Common Questions

1. Does the motorised lens mean I can adjust the zoom after the camera is mounted?

   Yes. The 2.8-12mm motorised varifocal lens is controlled via the camera's web interface or a compatible NVR interface, so you can change the focal length and refocus remotely once the camera is physically installed and connected. This is particularly useful on high eave or roofline positions where re-accessing the mount after cabling would require additional labour.

2. Will this camera reduce false motion alerts compared to a standard motion detection camera?

   Yes, when AcuSense is configured correctly. The DS-2CD2H86G2T-IZS uses deep learning on-camera to classify detected objects as human or vehicle before generating an alert. Standard motion detection triggers on any pixel change including animals, headlight reflections, and moving foliage. AcuSense eliminates most of those categories, which makes a measurable difference in notification volume on outdoor sites with variable activity.

3. Does this camera work on a standard PoE switch?

   Yes. The DS-2CD2H86G2T-IZS supports IEEE 802.3af PoE, which is the standard output on most NVR PoE ports and managed PoE switches. A single Cat5e or Cat6 cable carries both data and power up to 100m per segment. If you are using a 12V DC power supply as an alternative, that is also supported.

4. How much does H.265+ actually reduce storage compared to older cameras?

   Significantly. H.265+ can reduce storage requirements by up to 80% compared to H.264, according to Hikvision's published figures. In practice the saving depends on scene complexity and motion frequency, but even conservative estimates mean a camera running H.265+ will consume far less NVR storage per day than a comparable H.264 camera at the same resolution, which extends how many days of footage a given hard drive can hold. The team at Security Australia can help size storage capacity based on your channel count and retention requirements.

5. Is this camera suitable for outdoor use in extreme Australian summer heat?

   Yes. The operating temperature range is -40°C to +60°C, which covers even the most extreme roof-mounted positions during Australian summer. The IP66 rating also protects the housing from the heavy rain associated with tropical and subtropical storm seasons, making it suitable across a wide range of Australian climates from tropical Queensland to alpine Victoria.

6. Does the IK10 rating mean this camera is genuinely vandal-proof?

   IK10 means the housing is rated to withstand a 20-joule impact - the highest level in the IEC 62262 standard. That covers deliberate strikes from blunt objects and incidental contact in active environments like school grounds or loading areas. It does not make the camera indestructible, but it substantially increases the housing's resistance to tampering compared to an unrated outdoor camera.
