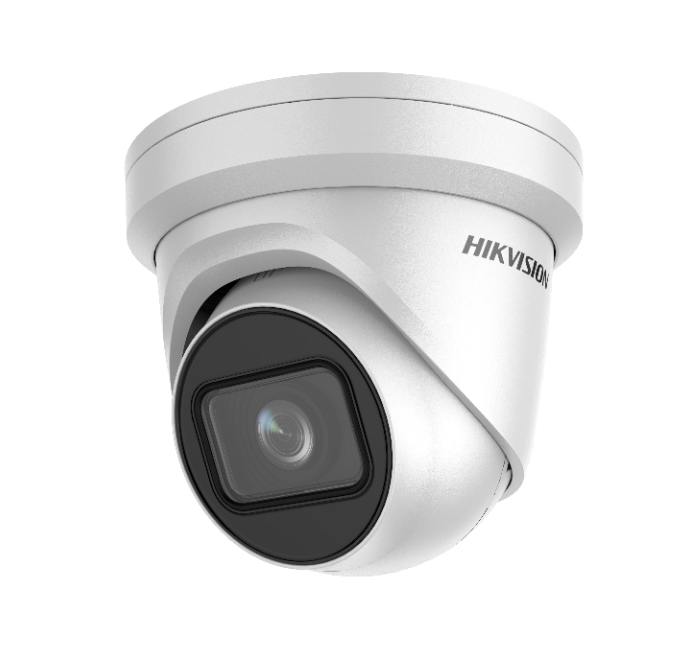

Hikvision DS-2CD2H85G1-IZS 8MP Outdoor Motorised VF Turret CCTV Camera IR 2.8-12mm

Model: DS-2CD2H85G1-IZS

Who This Is For

When getting the zoom right without ladder trips is the priority, a motorised varifocal lens changes the install entirely. The DS-2CD2H85G1-IZS suits installers and security-conscious property owners who need 8MP detail at variable distances - whether that's a narrow driveway entry, a wide car park approach, or a retail forecourt where the camera position is fixed but the scene keeps changing. The 2.8-12mm motorised lens adjusts remotely, so focal length and framing can be dialled in from the NVR or laptop without touching the camera. At 8MP resolution with 120dB true WDR, it handles scenes with strong backlight - roller doors with sun behind them, building entries facing east. The IK10 vandal rating and IP67 weatherproof housing make it appropriate for exposed outdoor positions. It fits eave, soffit, and junction-box wall mounts equally well, giving installers real flexibility on approach angles.

What This Camera Actually Does

Who Buys This Model

• Security Installers on Commercial Sites: The motorised lens means focal length is set remotely during commissioning - no repositioning the camera after it's sealed to the eave or junction box. That saves time on multi-camera installs where fine-tuning each view is part of the scope.
• Retail and Hospitality Managers: Sites needing both wide-area coverage and zoom capability at a single fixed point - a shopfront covering both the footpath and the counter interior - benefit from the 115 to 35 degree FOV range without a second camera.
• Industrial and Warehouse Operators: The IK10 rating and -30°C to +60°C operating range suit exposed positions on external walls, loading dock overhangs, and unheated storage buildings where temperature swings are significant.
• Property Managers on Multi-Tenancy Buildings: Two-way audio and line crossing detection support entry point monitoring where the operator needs both visual and audio contact with visitors and wants alert-based notification rather than constant live monitoring.

Honest Assessment

The DS-2CD2H85G1-IZS earns its place in commercial installs primarily because of the motorised varifocal lens combined with 8MP resolution - that pairing lets one camera cover what might otherwise need 2 fixed-lens units at different focal lengths. The 120dB WDR genuinely handles high-contrast scenes, and the IK10 plus IP67 rating means exposed outdoor positions are a legitimate use case rather than a risk. H.265+ compression reduces the storage load meaningfully at 8MP, which matters when planning NVR capacity across multiple channels.

Where it falls short: the 30m IR range is practical for standard residential and light commercial approaches but will not cover long driveways or open perimeters beyond that distance - a bullet camera with longer IR reach would serve those scenarios better. At approximately 2.5kg, it is heavier than most turrets; surface and mounting hardware need to be rated accordingly. Available through Security Australia, this camera suits defined mid-range outdoor positions rather than wide-area or long-range surveillance applications.

Before You Buy

Quick Fit Check

• Good match if: You need to fine-tune the camera's viewing angle remotely after mounting - the motorised 2.8-12mm lens adjusts from the NVR or web browser without any physical access to the camera.
• Good match if: Your install location faces mixed lighting - vehicle headlights, backlit doorways, or open sky next to shaded zones - where the 120dB true WDR will balance the frame rather than blow out bright areas.
• You may need a different model if: Your primary requirement is long-range IR coverage beyond 30 metres - an outdoor bullet camera with extended IR illumination is a better fit for long driveways, perimeter fences, or open yard approaches.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8MP resolution with a remotely adjustable focal length - the motorised 2.8-12mm lens eliminates on-site fine-tuning after mounting, which is a practical advantage on elevated or hard-to-reach installs.
• You may need a different model if: Your site requires IR coverage significantly beyond 30 metres - an outdoor bullet camera with extended IR illumination will serve long driveways, open yards, and perimeter fence lines more effectively than this turret.
• Pairs well with: A Hikvision PoE NVR with H.265+ decoding support, which maximises the compression efficiency of this camera and reduces the storage footprint of 8MP continuous recording across multiple channels.

Common Questions

1. Does this camera work on a standard PoE switch?

   Yes. The DS-2CD2H85G1-IZS is powered by IEEE 802.3af PoE, which is the standard found on most PoE switches and NVRs with built-in PoE ports. A single Cat5e or Cat6 cable carries both data and power to the camera. No separate power supply is required when using PoE, though a 12VDC supply is also supported if your installation requires it.

2. How does the motorised lens actually get adjusted - do I need to be at the camera?

   No. The motorised varifocal lens adjusts remotely through the camera's web interface or a compatible Hikvision NVR. You set the zoom level and trigger autofocus from a laptop or the NVR screen. This means the camera can be mounted, sealed, and cabled before the field of view is finalised - a practical advantage when the camera is on a high eave or external bracket.

3. Will this camera record in colour at night, or does it switch to black and white IR?

   In low ambient light, the camera records in colour down to 0.007 Lux before switching to black and white infrared mode. Once IR activates, footage is monochrome but remains detailed up to 30 metres. If your site has any ambient lighting - streetlights, signage, or security lighting - the camera will maintain colour footage for longer into the evening.

4. Is the IK10 rating confirmed, and what does that mean for this installation?

   Yes, IK10 is confirmed. IK10 is the highest impact resistance rating in the IEC 62262 standard, indicating the housing withstands 20 joules of impact - equivalent to a 5kg object dropped from 400mm. For outdoor camera positions that are accessible to the public or in areas with deliberate tampering risk, this rating provides meaningful housing durability beyond the standard turret housing.

5. Does this work for two-way audio with visitors at a gate or entry?

   Yes. The DS-2CD2H85G1-IZS has both a built-in microphone and a built-in speaker, enabling two-way audio through a compatible Hikvision NVR or the Hik-Connect app. An operator at a desktop or mobile device can hear and speak to someone in the camera's field of view. This is suitable for light-duty entry point communication, though it is not a replacement for a dedicated video intercom in high-use access control applications.

6. How much storage does an 8MP camera actually use, and how does H.265+ help?

   At 8MP, bitrate is higher than 2MP or 4MP cameras, but H.265+ intelligent compression reduces that significantly compared to standard H.264. H.265+ analyses scene content and lowers bitrate during static or low-activity periods, which for an outdoor camera with defined active hours can reduce storage consumption by 50-70% versus H.264 at the same resolution. A Hikvision NVR with H.265+ decoding is required to take full advantage of this - check your NVR compatibility before configuring. If you need guidance on storage sizing, the team at Security Australia can assist with channel planning.

7. What is the difference between line crossing detection and standard motion detection on this camera?

   Standard motion detection triggers on any pixel change in the frame - wind, rain, lighting shifts, and passing headlights all generate alerts. Line crossing detection on the DS-2CD2H85G1-IZS uses onboard analytics to define a virtual line and trigger only when a subject crosses it in a specified direction. This significantly reduces nuisance alerts on outdoor cameras, particularly at perimeter positions or entry points where ambient movement is constant but directional crossing is the meaningful event.
