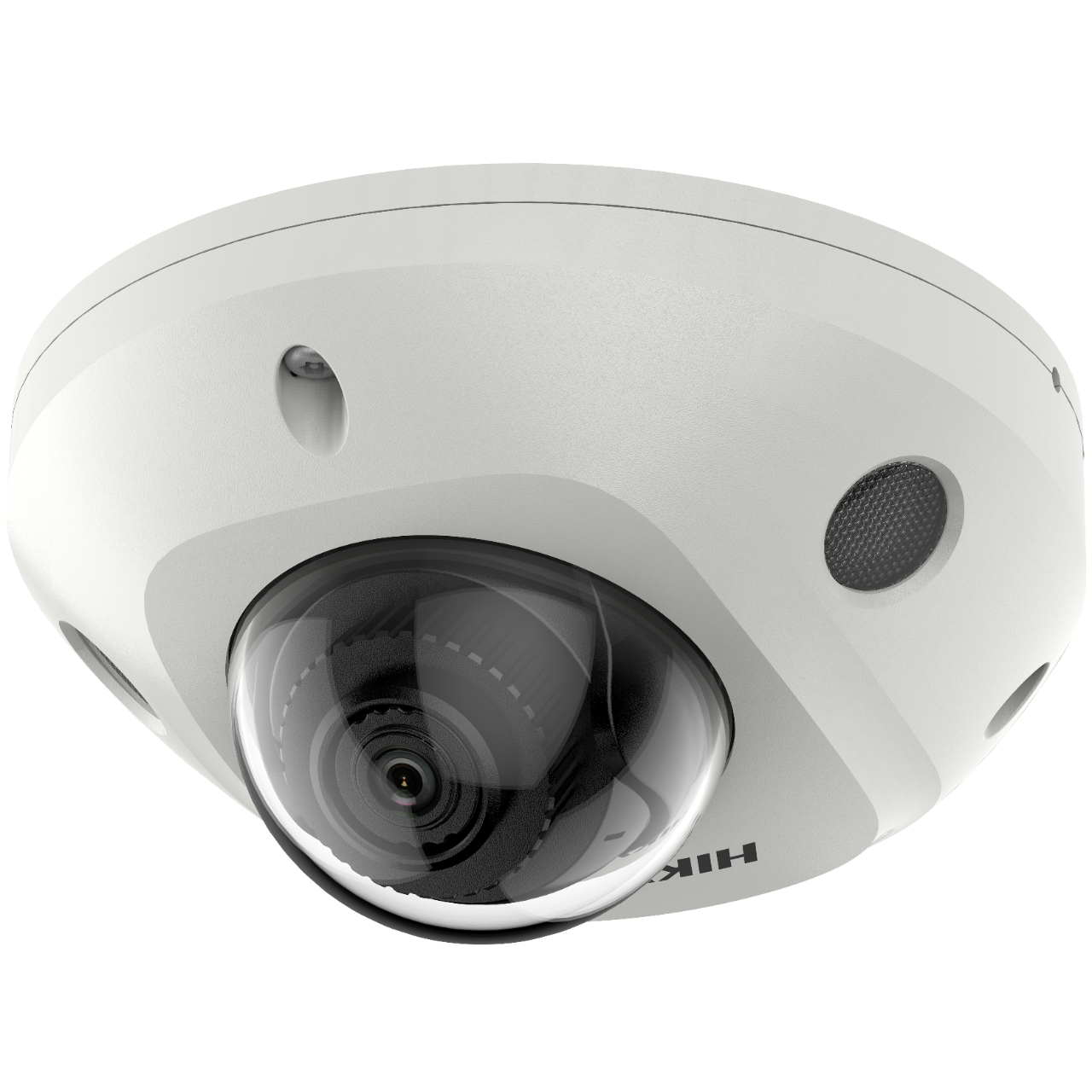

Hikvision DS-2CD2546G2-IWS (replaces DS-2CD2555-IWS) 4MP Outdoor Mini Dome Camera WIFI
- Sku: DS-2CD2546G2-IWS
- Vendor: SecurityAustralia
$398.00 AUD
$326.00 AUD
Tax included.
Shipping calculated at checkout.
Quick Buying Summary
Hikvision DS-2CD2546G2-IWS (replaces DS-2CD2555-IWS) 4MP Outdoor Mini Dome Camera WIFI
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features
- High Quality Imaging: Captures high-resolution 4 MP images for clear surveillance.
- Excellent Low-Light Performance: Powered by Darkfighter technology to enhance visibility in low-light conditions.
- Advanced Target Classification: Focuses on human and vehicle classification based on deep learning for improved alarm accuracy.
- Wide Dynamic Range: 120 dB WDR technology ensures clear imaging in high-contrast lighting situations.
- Efficient Compression: Supports H.265+ compression technology to optimize storage and bandwidth usage.
- Audio/Alarm Interface: The -S variant includes audio and alarm interfaces for integrated functionality.
- Wi-Fi Connection: The -W model allows for easy wireless installation and connectivity.
- Durable Design: Rated IP67 for water and dust resistance and IK08 for vandal-proofing.
Code/SKU: DS-2CD2546G2-IWS
Quick Specs:
- Image Sensor: 1/3" Progressive Scan CMOS for superior image capture.
- Max. Resolution: 2688 × 1520 for high-quality video.
- Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR for nighttime monitoring.
- Shutter Speed: 1/3 s to 1/100,000 s for versatile exposure settings.
Accessories
Select options before adding this product to cart.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Hikvision DS-2CD2546G2-IW: Advanced Outdoor Mini Dome Camera
The Hikvision DS-2CD2546G2-IW is a high-performance outdoor mini dome camera designed to deliver exceptional 6MP video resolution and enhanced security capabilities. This camera utilizes advanced AcuSense technology to accurately distinguish between humans and vehicles, significantly reducing false alarms.
Its compact design allows for discreet installation in a variety of environments, ensuring effective surveillance without drawing unnecessary attention. Equipped with infrared capabilities, this camera provides reliable night monitoring up to 30 meters.
Supporting H.265+ video compression technology, the DS-2CD2546G2-IW effectively reduces bandwidth and storage needs, allowing for efficient monitoring and data management. With various smart features, it enhances security operations overall.
Features:
- High-Resolution Imaging: Achieves a maximum 6MP resolution for capturing detailed video with exceptional clarity, making it ideal for various surveillance needs, from residential areas to commercial premises effectively.
- AcuSense Technology: Utilizes advanced AI algorithms to differentiate between human and vehicle targets, significantly reducing false alarms while providing accurate notifications and improving overall monitoring efficiency for security purposes.
- Infrared Night Vision: Equipped with infrared LEDs that provide visibility up to 30 meters in complete darkness, ensuring reliable surveillance capability during nighttime without sacrificing image quality or detail.
- Compact Design: The mini dome form factor allows for inconspicuous installation in various settings, optimizing surveillance coverage while maintaining aesthetics in sensitive environments without compromising on performance.
- Flexible Video Compression: Supports H.265+, H.265, H.264+, and H.264 compression technologies, which optimize bandwidth and storage needs while maintaining high video quality, enabling prolonged recordings without significant data loss.
- WDR Technology: Compatible with 120dB wide dynamic range (WDR), the camera captures clear images in challenging lighting conditions, effectively balancing bright and dark areas for improved visibility and detail.
- Built-in Microphone: Includes an integrated microphone to enable audio recording alongside video surveillance, providing an extra layer of monitoring detail that enhances situational awareness in the monitored environment.
- Weatherproof Rating: With an IP67 rating, the camera is protected against dust and water, ensuring robust operation in outdoor environments and maintaining consistent performance against various weather conditions.
Functions:
Advanced Event Detection:
This camera features intelligent event detection capabilities that allow users to receive alerts for specific activities, improving operational awareness and prompt incident response through enhanced notification systems.
Efficient Remote Access:
Supports remote viewing and management through Hikvision’s applications, enabling users to monitor live feeds and access recorded footage from anywhere, increasing flexibility and overall surveillance effectiveness.
User-Friendly Interface:
The intuitive control interface allows for easy adjustments and configurations, enabling users to navigate camera settings quickly while maintaining optimal functionality without extensive technical experience needed.
Seamless Integrations:
Designed for compatibility with various Hikvision products, this camera allows for straightforward integration into existing systems, enhancing the surveillance capabilities and making expansions easier for users.
Data Security:
With strong security protocols in place, the camera ensures that all transmitted data remains secure and protected from unauthorized access, maintaining confidentiality and integrity of surveillance information.
Dynamic Activity Monitoring:
Advanced analytics allow for effective monitoring of moving objects, giving users insights into foot traffic and other relevant activities, assisting in security management and resource allocation during operations.
Comprehensive Warranty:
The DS-2CD2546G2-IW is backed by a limited warranty, assuring users of its quality, reliability, and support from Hikvision, enhancing user confidence in their choice of surveillance equipment.
Technical Specifications
| Model | DS-2CD2546G2-IWS |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2560 x 1440 (4MP) |
| Minimum Illumination | Color: 0.002 Lux @(F1.2, AGC ON); 0 Lux with IR |
| Lens | Fixed Lens, typically 2.8mm |
| Field of View | Horizontal: 97°, Vertical: 54° |
| IR Range | Up to 30 meters with EXIR technology |
| Wide Dynamic Range (WDR) | 120 dB |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Support | Built-in microphone for audio monitoring |
| Smart Features | AcuSense technology for advanced detection |
| Storage Support | microSD/SDHC/SDXC slot, up to 256 GB |
| Protection Rating | IK08 (vandal-resistant), IP67 (weatherproof) |
| Power Supply | 12V DC or PoE (802.3af) |
| Operating Temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Weight | Approx. 600 g (1.32 lb) |
| Dimensions | Φ 110 mm × 85 mm (Φ 4.33" x 3.35") |
| Camera | Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|---|
| Max. Resolution | 2688 × 1520 | |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR | |
| Shutter Time | 1/3 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360° | |
| Lens | ||
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5% 4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7% | |
| Lens Mount | M12 | |
| Iris Type | Fixed | |
| Aperture | F1.4 | |
| Depth of Field | 2.8 mm: 1.6 m to ∞ 4 mm: 2.1 m to ∞ | |
| DORI | 2.8 mm: D: 64 m O: 26 m R: 13 m I: 6 m 4 mm: D: 77 m O: 31 m R: 16 m I: 8 m | |
| Illuminator | ||
| Supplement Light Type | IR | |
| Supplement Light Range | Up to 30 m | |
| Smart Supplement Light | Yes | |
| IR Wavelength | 850 nm | |
| Video | ||
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. | |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| H.265 Type | Main Profile | |
| Bit Rate Control | CBR/VBR | |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream | |
| Audio | ||
| Audio Type | -IS/IWS: Mono sound | |
| Audio Compression | -IS/IWS: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | |
| Audio Bit Rate | -IS/IWS: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) | |
| Audio Sampling Rate | -IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | |
| Environment Noise Filtering | -IS/IWS: Yes | |
| Network | ||
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets | |
| Simultaneous Live View | Up to 6 channels | |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user | |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface | |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported | |
| Client | iVMS-4200, Hik-Connect, Hik-Central | |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ | |
| Wi-Fi | ||
| Encryption Mode | -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK | |
| Wi-Fi Protocol | -W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM | |
| Frequency Range | -W: 2.4 GHz to 2.4835 GHz | |
| Channel Bandwidth | -W: 20/40 MHz | |
| Modulation | -W: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM | |
| Transfer Rate | -W: 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: up to 300 Mbps | |
| Wireless Range | -W: Up to 80 m (The performance varies based on actual environment) | |
| Image | ||
| Image Parameters Switch | Yes | |
| Image Settings | Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser | |
| Day/Night Switch | Day, Night, Auto, Schedule | |
| Wide Dynamic Range (WDR) | 120 dB | |
| SNR | ≥ 52 dB | |
| Image Enhancement | BLC, HLC, 3D DNR | |
| Interface | ||
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 512 GB | |
| Built-in Microphone | Yes | |
| Audio | -IS/IWS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium | |
| Alarm | -IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA) | |
| Reset Key | Yes | |
| Event | ||
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception | |
| Smart Event | Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) Scene change detection | |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email | |
| Deep Learning Function | Face Capture | |
| General | ||
| Power | -IS: 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W -IWS: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W | |
| Material | Base: aluminum, cover: plastic | |
| Dimension | Ø110 mm × 57.4 mm (Ø 4.3" × 2.3") | |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") | |
| Weight | Approx. 380 g (0.8 lb.) | |
| With Package Weight | Approx. 620 g (1.4 lb.) | |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter | |
| Approval | RF -W: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)) EMC FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) Safety UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013) IK8 (IEC 62262:2002) | |
