  • HikVision DS-2CD2542FWD-IS 4MP with Mic Outdoor Mini Dome Camera
Free Shipping
  • HIK-2CD2542FWDI4

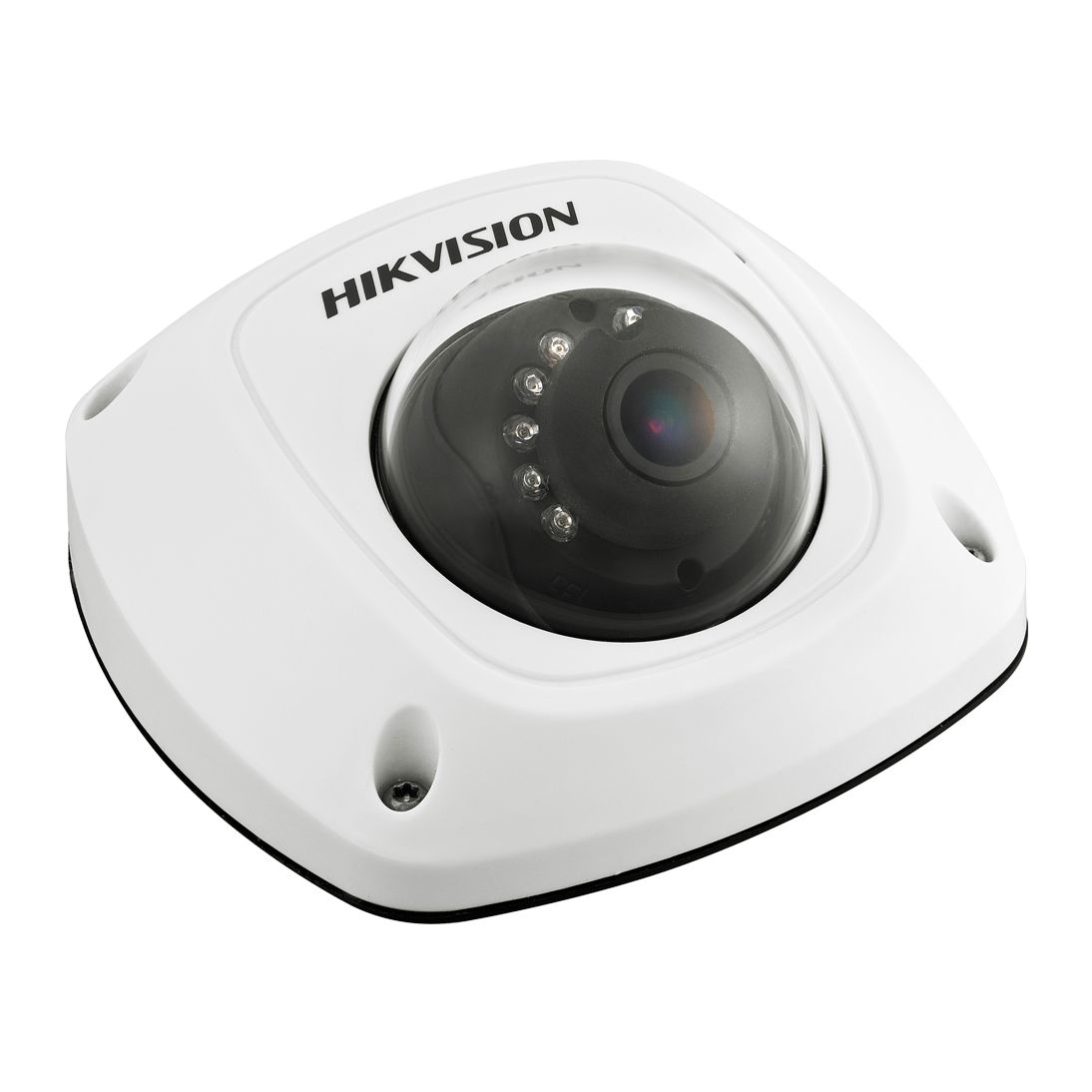

HikVision DS-2CD2542FWD-IS 4MP with Mic Outdoor Mini Dome Camera

  • Sku: DS-2CD2542FWD-IS
  • Vendor: SecurityAustralia
$334.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
The DS-2CD2542FWIS2 is a vandal proof mini IR network dome camera with a built-in microphone, that produces an exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 10m visibility at night and with a 4 or 2.8mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.

NOTE - we are  short stock on the 4MP. Click to view our 6MP versions of the same camera.

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

The DS-2CD2542FWIS is a vandal proof mini IR network dome camera with a built-in microphone, that produces an exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 10m visibility at night and with a 4 or 2.8mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want. Features:
  • Up to 4-megapixel high resolution
  • Full HD1080p Real-time video
  • 2.8mm or 4mm fixed lens
  • 120dB Wide Dynamic Range
  • Back Light Compensation, 3D Digital Noise Reduction
  • DC12V & PoE powered
  • Supports H.264, H.264+ Technology
  • Infrared LED- Up to 10m IR range
  • 3-axis camera adjustment
  • Built-in Microphone
  • Audio and Alarm I/O
  • IP66 & IK08 Rating
Specifications:
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm, 4mm @ F2.0
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Angle of adjustment Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360°
Compression Standard
Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Dual Streams Support
Audio Compression G.711/G.722.1/G.726/MP2L2  *only for –S models
Audio Bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)  *only for –S models
Max. Resolution 2688×1520
Frame Rate 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis, Tampering alarm, Network
disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication 1 RJ45 10M/100M Ethernet port
Interface
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Alarm interface 1x alarm I/O *only for –S models
Audio interface Built-in microphone and 1x audio output  *only for –S models
Reset Yes
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
11b: 17±1.5dBm @ 11Mbps
Transmit Output Power 11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
11b: -90dBm @ 11Mbps (Typical)
Reception Sensitivity 11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters  *The performance varies based on actual environment.
General
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140°F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
IR Range Approx. 10 meters
Ingress Protection IP66
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK08
Dimensions 99.3×96.7×52.8 mm
Weight 600 g (1.32 lbs)

Key Features

Trusted Brand Partner & Security Equipment Wholesaler

  • Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
  • Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

What This Product Does

The DS-2CD2542FWIS2 is a vandal proof mini IR network dome camera with a built-in microphone, that produces an exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 10m visibility at night and with a 4 or 2.8mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.

NOTE - we are  short stock on the 4MP. Click to view our 6MP versions of the same camera.

Not sure if this suits your site?

Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.

Specifications

Specifications

Image Sensor:1/3" Progressive Scan CMOS
Min. Illumination:0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Lens:2.8mm, 4mm, 6mm @ F2.0, angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount:M12
Adjustment Range:Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.264/MJPEG/H.264+
H.264 code profile:Main Profile
Video bit rate:32Kbps~16Mbps
Audio Compression:-S: G.711/G.722.1/G.726/MP2L2
Audio bit rate:64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Dual Stream:Yes
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:Yes, zone configurable
ROI:Support
Network
Network Storage:NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacymask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface
Audio:1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1x alarm I/O *only for –S models
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes
Wi-Fi Specification (-W)
Wireless Standards:IEEE802.11b, 802.11g, 802.11n
Frequency Range:2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:20/40MHz Support
Modulation Mode:802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
Security:64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate:11b: 11Mbps11g: 54Mbps11n: up to 150Mbps
Wireless Range:50m(depend on environment)
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:Max. 5W
Impact Protection:IK08 Protection Level
Weather Proof:IP67
IR Range:10 meters
Dimensions:99.3×96.7×52.8 mm
Weight:600 g (1.32 lbs)
NOTE：:"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t supportthe 802.1X protocol.
