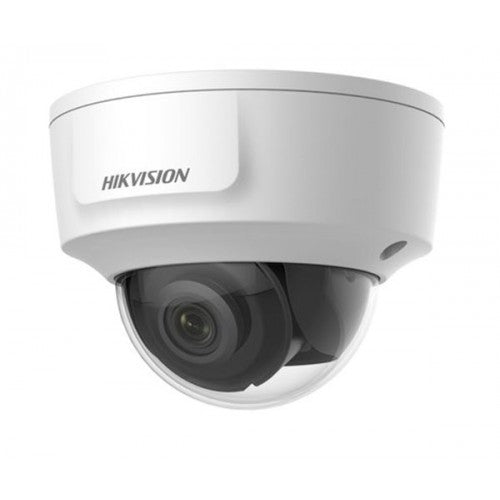

4K HDMI Fixed Dome Network Camera
The DS-2CD2185G0-IMS 8MP Dome Camera from HIKVISION features a 1/2.5" progressive scan CMOS sensor and fixed lens to capture images at a resolution of up to 8MP at 20 fps (50 Hz). With a built-in IR-cut filter this camera can capture clear images in complete darkness at a distance of up to 30 meters. The camera supports H.265, H.264 and MJPEG compression formats with simultaneous dual streaming. There are inputs and outputs for audio components as well as an alarm system and an RJ45 port provides Ethernet connectivity. A Wide Dynamic Range of up to 120dB allows the camera to capture images under varied lighting conditions, including backlight and low light. The camera is ONVIF-compliant for use in a large range of locations. With the IP42-rated weather-resistant, this camera is suitable for outdoor applications.
Key Features
Code/SKU: DS-2CD2185G0-IMS
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens | |
| Lens Type | 2.8/4/6 mm |
| FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°; 4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°; 6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59° |
| Aperture | F2.0 |
| Lens Mount | Φ12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 20fps (3840 × 2160), 25fps (3072 × 1728, 1920 × 1080, 1280 × 720); 60Hz: 20fps (3840 × 2160, 3072 × 1728, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | No |
| H.265+ | No |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | G722.1/G.711/G726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator, and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| Audio | 1 input (line in/mic in, terminal block), 1 output (two-core terminal block), mono sound |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| Video Output | 1 HDMI™, type D, female plug (-M) |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Event | |
| Smart Event | Line crossing detection, intrusion detection |
| Face Detection | Yes |
| General | |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions | IR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing); IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W |
| Camera Dimension | Camera: Φ 119 × 90 mm (Φ 4.7" × 3.5") |
| Camera Weight | Camera: Approx. 520 g (1.1 lb.); With package: Approx. 750 g (1.7 lb.) |
| Approval | |
| Protection | IK10 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2185G0-IMS Outdoor Dome CCTV Camera, 30m IR, 2.8mm HDMI Video Out
The Hikvision 4K HDMI Fixed Dome Network Camera (DS-2CD2185G0-IMS) is a high-performance camera designed for clear and detailed imaging. It features an 8 MP resolution for crisp image quality and utilizes H.265+ compression technology to efficiently reduce bandwidth and storage needs. The camera also excels in challenging lighting conditions with its 120 dB True WDR (Wide Dynamic Range) technology, providing clear images even against strong backlight.
Its HDMI output allows direct HD live view, and it is designed to withstand harsh environments with its vandal-proof IK10 rating and robust full-metal construction. The camera is equipped with an IR illuminator, providing up to 30 meters of visibility in total darkness. Available with 2.8mm, 4mm, and 6mm lens options, it offers flexible field-of-view configurations to suit different installation needs. Additionally, its 1/2.5" Progressive Scan CMOS sensor ensures excellent low-light performance with a minimum illumination of 0.028 Lux in color mode.
Features
| Video | |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 20fps (3840 × 2160), 25fps (3072 × 1728, 1920 × 1080, 1280 × 720); 60Hz: 20fps (3840 × 2160, 3072 × 1728, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | No |
| H.265+ | No |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | G722.1/G.711/G726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
