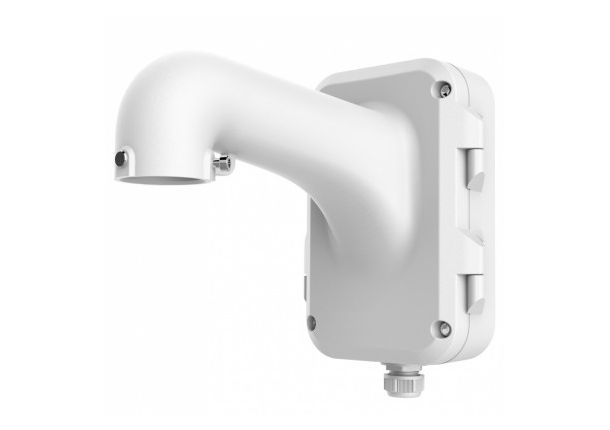

Hikvision DS-1604ZJ WHITE Version Wall Mount Bracket with Junction Box to suit HIK-2DF8836xx Series

Model: DS-1604ZJ

Who This Is For

Property managers specifying mounting hardware for Hikvision speed dome installations will find the DS-1604ZJ a purpose-built solution for the HIK-2DF8836xx camera series. Designed for wall-mounted outdoor deployments where cable routing and wiring protection matter, this aluminium alloy bracket integrates a junction box to keep connections enclosed and weatherproofed at the mount point. It suits commercial buildings, facility perimeters, and elevated outdoor positions where an installer needs a clean, secure termination point rather than exposed wiring behind a standalone arm. The white finish blends into rendered or painted building facades, and with a maximum load capacity of 10 kg, it accommodates the weight demands of full-size speed dome units without compromise. The dual cable outlet options - bottom and back - give installers flexibility around conduit routing, and the included safety rope hook means working at height is handled with the right safeguards in place from the start.

What This Bracket Actually Does

Who Buys This Model

• Security installers completing HIK-2DF8836xx speed dome deployments: The DS-1604ZJ is designed specifically for this camera series, giving installers a bracket and junction box combination that mates correctly without adapters or custom fabrication.
• Commercial facility managers specifying outdoor PTZ positions: Buildings requiring perimeter speed dome coverage at wall-mounted positions benefit from the weatherproof junction box keeping wiring connections enclosed and maintenance-ready at the bracket level.
• Installers working on elevated or roofline positions: The built-in safety rope hook makes this bracket the practical choice where WHS requirements or site protocols call for camera retention during installation at height.
• Projects with varied conduit routing requirements: Sites where cabling may run surface-mount or through-wall benefit from the choice between bottom and back outlet without needing a different bracket for each scenario.

Honest Assessment

The DS-1604ZJ does what a purpose-built bracket should - it combines the mounting arm and junction box into one assembly, removes a separate installation step, and provides a clean weatherproof cable termination point at the wall. The aluminium alloy construction and corrosion-resistant surface treatment make it a durable long-term outdoor fixture, and the 10 kg load rating is appropriate for the HIK-2DF8836xx speed dome series. The dual cable outlet options address a real installer pain point on varied sites. What this bracket will not do is fit other speed dome series outside the HIK-2DF8836xx range - if your project uses a different Hikvision PTZ series or a third-party speed dome, a different bracket model is required. It is also a wall-mount-specific solution; pole, corner, or ceiling applications will need the appropriate bracket variant. Available through Security Australia as part of the Hikvision accessories range.

Before You Buy

Quick Fit Check

• Good match if: You are wall-mounting a HIK-2DF8836xx series speed dome outdoors and want the cable junction box integrated into the bracket rather than as a separate enclosure.
• Good match if: Your installation site has variable conduit routing - the bottom and back outlet options let you adapt to the actual cable path on site without sourcing a different bracket.
• You may need a different model if: Your speed dome camera falls outside the HIK-2DF8836xx series, or your mounting position is a pole, parapet, or corner - a pole mount, parapet bracket, or corner adapter bracket would be the appropriate product type for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are installing a HIK-2DF8836xx series speed dome on a wall and want an all-in-one bracket and junction box solution with dual cable outlet options and a built-in safety rope hook.
• You may need a different model if: Your mounting position is a pole, corner, or ceiling - a pole mount bracket, corner adapter, or pendant mount is the appropriate product type for those configurations.
• Pairs well with: HIK-2DF8836xx series speed dome PTZ cameras, outdoor-rated PoE+ network switches, and weatherproof conduit fittings for cable entry management.

Common Questions

1. Will this bracket fit any Hikvision speed dome, or only the HIK-2DF8836xx series?

   Only the HIK-2DF8836xx series. The DS-1604ZJ is dimensioned and specified for that camera series specifically. Using it with other Hikvision speed dome ranges or third-party speed domes is not confirmed by the manufacturer, and the mounting interface may not align correctly. Always confirm your camera model number before purchasing the bracket.

2. Does the junction box actually protect cable connections from rain, or is it just a cover?

   Yes, the bracket has a waterproof design intended to protect the internal junction box and wiring connections from weather exposure. This makes it suitable for permanent outdoor installations where the cable termination point would otherwise be vulnerable to rain ingress. It is not simply a cosmetic cover.

3. Can I route the cable out through either the bottom or the back of the bracket?

   Yes. The DS-1604ZJ supports both bottom and back outlet options. You choose the routing path that suits your site - back outlet for surface-run conduit along the wall, or bottom outlet where cabling drops through a wall cavity or runs down from below the bracket position.

4. What is the maximum camera weight this bracket will support?

   10 kg (22 lb.). This is the confirmed maximum load capacity of the DS-1604ZJ. The bracket itself weighs 2,150 g, so account for both the bracket and camera weight when assessing your wall fixings and anchor point requirements, particularly on masonry or lightweight cladding surfaces.

5. What is the safety rope hook for - is it just for installation or permanent use?

   It is primarily an installation safety feature. The hook allows an installer to attach a retention lanyard or safety rope to the camera body during mounting at height, keeping the camera unit secured to the bracket while cabling is connected inside the junction box. This is particularly relevant for elevated positions where dropping a camera creates a safety risk. It is part of the bracket's permanent structure but its primary function is during the installation process. The DS-1604ZJ is stocked by Security Australia as part of the Hikvision accessories range.

6. Is the white finish durable enough for long-term outdoor use?

   Yes. The aluminium alloy construction includes a surface spray treatment designed for corrosion resistance and durability in outdoor conditions. The white finish is applied as part of this surface treatment process, not a standard paint coat, making it appropriate for ongoing exposure to sun, rain, and coastal environments over the long term.
