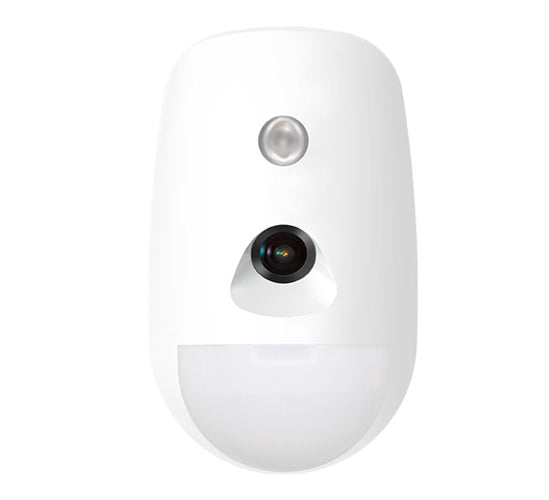

Hikvision AX PRO Series DS-PDPC12P-EG2-WB Wireless PIRCAM Detector with Image Verification

Model: DS-PDPC12P-EG2-WB

Who This Is For

Property managers specifying wireless alarm upgrades who are tired of chasing false alarm callouts will find the DS-PDPC12P-EG2-WB a practical solution to a persistent problem. This AX PRO Series wireless PIRCAM detector combines passive infrared motion sensing with image verification - meaning when motion triggers the detector, it also captures a still image so the monitoring centre or app user can visually confirm whether an actual intrusion has occurred before dispatching a response. With a 12-metre detection range, 85.9-degree field of view, 52 detection zones, and pet immunity up to 30 kg, it suits indoor and outdoor perimeter positions on residential properties, small commercial sites, and light industrial buildings where wireless deployment is preferred over cabling. IP65-rated and built with digital temperature compensation, it holds up in covered outdoor locations through Australian seasonal extremes.

What This Detector Actually Does

Who Buys This Model

• Alarm installers on AX PRO systems: The DS-PDPC12P-EG2-WB is a native AX PRO Series peripheral, making it the natural choice for installers already deploying Hikvision AX PRO wireless alarm panels who want to add verified detection zones without adding wiring runs.
• Property managers with monitoring contracts: Sites on professionally monitored alarm systems benefit directly from image verification - the monitoring centre sees a still image before dispatching, which reduces false alarm penalties and response delays.
• Pet owners requiring overnight arming: The 30 kg pet immunity threshold means households with large dogs can arm their alarm while animals move freely indoors without generating constant alerts through the night.
• Renovation and tenanted properties: The wireless format and straightforward mounting mean this can be repositioned between tenancies or added to existing alarm systems without chasing cables through finished walls.

Honest Assessment

The DS-PDPC12P-EG2-WB does two things well: it meaningfully reduces false alarm responses through visual verification, and it does so without cabling - both practical advantages in retrofits and in properties where running cable is cost-prohibitive. The 52 detection zones, IP65 rating, and 30 kg pet immunity add up to a detector that handles most residential and light commercial environments without constant fine-tuning. The anti-masking feature adds a layer of tamper integrity that standard PIR-only detectors don't offer. Where this won't serve you: if you need full video recording, night vision footage, or continuous surveillance rather than event-triggered still images, a CCTV camera system is the right category. This detector captures stills on trigger - it is not a recording device. It also requires a compatible Hikvision AX PRO wireless panel; it will not pair with third-party alarm systems. The DS-PDPC12P-EG2-WB is available through Security Australia for AX PRO system builds and panel upgrades.

Before You Buy

Quick Fit Check

• Good match if: You are expanding an existing Hikvision AX PRO wireless alarm system and want to add zones with visual verification capability without running new cable.
• Good match if: The site has pets up to 30 kg and the system needs to stay armed overnight - the pet immunity threshold covers most domestic breeds without requiring zone bypassing.
• You may need a different model if: You need continuous or recorded video footage rather than event-triggered still images - a dedicated IP camera with local or cloud recording is the appropriate product type for that requirement.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site runs on a Hikvision AX PRO wireless alarm panel and you want to reduce false alarm responses by giving the monitoring centre or app user a still image to assess before actioning an alert.
• You may need a different model if: You need recorded video footage, night vision image capture, or continuous surveillance rather than event-triggered stills - a standalone IP camera with NVR recording is the appropriate product type for those requirements.
• Pairs well with: A Hikvision AX PRO wireless alarm panel (required for operation), and optionally a compatible NVR system at the same site if full video recording of the same zones is also needed.

Common Questions

1. Will this detector work with my existing alarm panel?

   No - not unless your panel is a Hikvision AX PRO wireless series. The DS-PDPC12P-EG2-WB uses Hikvision's proprietary encrypted wireless protocol and will only pair with a compatible AX PRO panel. It will not register on non-Hikvision systems, older Hikvision wired panels, or third-party alarm controllers.

2. Does this detector record video footage?

   No. The DS-PDPC12P-EG2-WB captures still images on motion trigger - it does not record or store video. The captured image is transmitted to the Hik-Connect app or monitoring centre for visual verification of the event. If recorded video is a requirement, a separate IP camera connected to an NVR is the appropriate addition.

3. Does it work outdoors?

   Yes, in covered outdoor positions. The IP65 rating protects against dust ingress and direct water jets, making it suitable under eaves, carports, or covered entry points. It is not rated for direct rain exposure or full outdoor mounting without overhead shelter.

4. Will my 28 kg dog trigger this detector?

   No. The pet immunity threshold is 30 kg, so a 28 kg animal moving through the detection zone should not trigger an alarm. Pet immunity is calibrated by heat signature mass - larger animals with larger heat profiles are filtered out. Animals above 30 kg may trigger the detector.

5. What is the white light filter rating and why does it matter?

   The white light filter is rated to 6500 lux. This means ambient sunlight, interior lighting, or vehicle headlights up to that intensity will not cause the image sensor to overexpose and generate a false trigger. For detectors positioned near windows, glass doors, or lit driveways, this rating directly affects how many nuisance alarms the site produces during daylight hours.

6. How does the anti-masking feature actually work?

   The detector monitors its own sensor lens for obstruction. If someone attempts to cover, spray, or block the sensor, the unit generates a tamper alert through the AX PRO panel before any intrusion event occurs. This alert is treated as a separate event type from a standard motion alarm, so the monitoring centre or app user can identify that the detector itself has been interfered with. For sites on professional monitoring, this provides an early warning before a breach is completed. The DS-PDPC12P-EG2-WB is stocked by Security Australia as part of the AX PRO wireless detector range.

7. How many of these detectors can be added to one AX PRO panel?

   This depends on the specific AX PRO panel model installed at the site. The detector itself supports 52 detection zones internally. The total number of wireless peripherals supported is determined by the panel's zone capacity - check the panel's specifications for the maximum wireless device count before planning a multi-zone deployment.

Downloads & Resources

No downloads available for this product.
