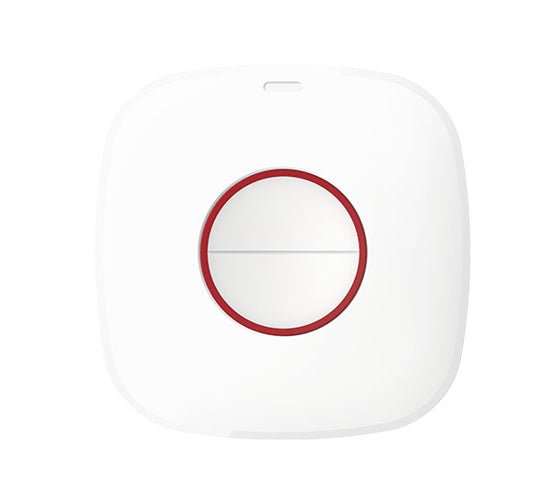

Hikvision AX PRO Series DS-PDEB2-EG2-WB Wall-mounted Wireless Emergency Dual Button

Model: DS-PDEB2-EG2-WB

Who This Is For

When fast, cable-free emergency alerting is the priority, the Hikvision AX PRO DS-PDEB2-EG2-WB Wall-mounted Wireless Emergency Dual Button fills a specific gap in AX PRO alarm system builds. It is aimed at installers and specifiers adding dedicated panic or duress points to existing Hikvision AX PRO installations - covering scenarios where a keypad or app-based trigger is not practical or fast enough. Think aged care facilities needing bedside or bathroom call points, reception desks in medical or legal offices where staff require a discreet duress button, or residential installs where a household member needs a fixed, easy-to-reach emergency trigger. The two independently programmable buttons let the panel distinguish between alarm types - for example, medical versus duress - without adding a second device. Wireless operation on 433 MHz with an 800 m open-area range means it can be placed well away from the panel without cable runs.

What This Device Actually Does

Who Buys This Model

• Aged care and disability service providers: Installing fixed emergency call points in bedrooms, bathrooms, or common areas where residents need a simple, wall-mounted trigger that sends a distinct alert to monitoring staff without requiring phone or app access.
• Medical and allied health practices: Adding a discreet duress button at reception or in consultation rooms within an AX PRO system, using one button for medical emergency and the other for staff duress - two alert types, one device.
• AX PRO installers expanding existing systems: Specifying additional wireless emergency points for clients who need panic coverage in areas not included in the original installation, taking advantage of the 800 m range to avoid new cable runs.
• Residential users with AX PRO panels: Mounting a fixed emergency button in a bedroom or near an entry point for elderly or at-risk household members who need a reliable, always-available alert point separate from a keyfob or mobile device.

Honest Assessment

The DS-PDEB2-EG2-WB does two things well: it provides a wall-fixed, cable-free emergency trigger with a genuinely long battery life, and it gives installers two independently programmable alert types in a single compact unit. The 800 m open-area RF range is practical for most building layouts, and front-and-rear tamper protection adds a layer of integrity that basic panic buttons often lack. The signal strength indicator also helps with commissioning rather than leaving the installer guessing. Where this device has clear limits - it is an indoor-only accessory and is exclusively compatible with Hikvision AX PRO series panels. It will not operate with third-party alarm systems or non-AX PRO Hikvision panels. If the existing installation is not on the AX PRO platform, a different emergency button designed for that system is required. The DS-PDEB2-EG2-WB is supplied by Security Australia as part of the broader AX PRO accessory range.

Before You Buy

Quick Fit Check

• Good match if: You are adding a fixed wall-mounted emergency or duress point to an existing Hikvision AX PRO system and need 2 independently triggered alert types without running new cable.
• Good match if: The installation location is difficult to wire back to the panel - the 800 m open-area RF range and battery operation remove the cabling constraint entirely.
• You may need a different model if: The site runs a non-AX PRO alarm panel - this device will not pair with other systems, and a compatible wireless emergency button for that specific platform would be the appropriate choice.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fixed, wall-mounted wireless emergency point with 2 independently configurable alert types that integrates directly into a Hikvision AX PRO panel without additional cabling.
• You may need a different model if: The site requires a portable or wearable emergency trigger - a wireless keyfob or personal pendant panic button would be a more appropriate device type for mobile or person-worn applications.
• Pairs well with: Hikvision AX PRO wireless alarm panels, AX PRO wireless PIR detectors, and AX PRO door/window contact sensors to form a complete wireless alarm system without cable infrastructure.

Common Questions

1. Will this emergency button work with any Hikvision alarm panel?

   No. The DS-PDEB2-EG2-WB is compatible exclusively with Hikvision AX PRO series panels. It uses the AX PRO proprietary two-way 433 MHz RF protocol and will not pair with other Hikvision alarm panel lines or third-party systems. Before purchasing, confirm the installation is running an AX PRO platform and that available wireless zones remain on the panel.

2. Can the 2 buttons be set to trigger different alarm types?

   Yes. Each button is independently programmable at the AX PRO panel, allowing 2 distinct responses from a single device. A common configuration is one button for medical emergency and one for duress or intruder alert - useful in aged care, reception, and medical environments where both alert types are needed at a single location.

3. Does this button work in a commercial building with concrete internal walls?

   It depends on the specific layout. The 800 m transmission range is measured in open area - concrete and masonry walls will reduce effective range. The built-in signal strength indicator allows the installer to test actual RF performance at the intended mounting position during commissioning, before finalising the install. If the signal is marginal, repositioning closer to the panel or adding a wireless repeater within the AX PRO system may be required.

4. How long does the battery last and what type does it use?

   The battery is rated up to 3 years under normal operating conditions using a single CR2450 coin cell. When the battery level drops, the device sends a low battery notification to the AX PRO panel so maintenance can be scheduled before the device stops working. CR2450 cells are widely available, and replacement is straightforward without tools.

5. What happens if someone tries to remove or tamper with the button?

   A tamper alert is triggered at the AX PRO panel. The DS-PDEB2-EG2-WB has both front-cover tamper detection and rear-wall separation tamper detection, meaning both removing the cover and pulling the unit off the wall are detected and reported. This is important for commercial or semi-public installations where the device could be interfered with.

6. Is there any wiring involved in installing this device?

   No. The DS-PDEB2-EG2-WB is fully wireless and battery powered. Mounting involves fixing the unit to the wall surface and pairing it to the AX PRO panel via the 433 MHz RF link. There is no data or power cable required at the button location. The device is available through Security Australia as part of the AX PRO accessory range.

7. Does pressing the button give the user any confirmation the alert was sent?

   Yes. LED indicators on the device provide immediate visual feedback when a button is pressed, confirming activation. Because the transmission is two-way RF, the device communicates with the panel bidirectionally - the LED confirmation reflects that the alert signal has been transmitted rather than simply that the button was physically pressed.
