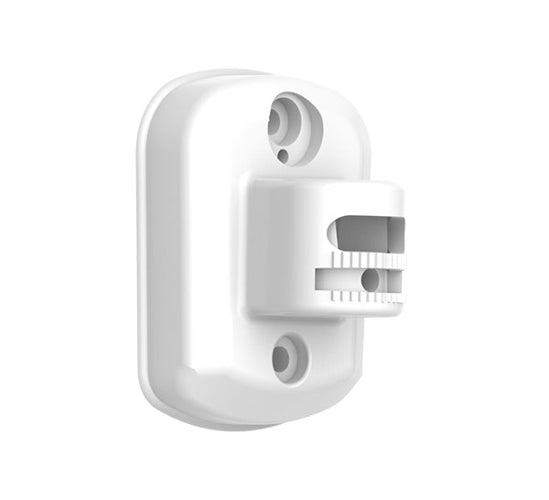

Hikvision AX PRO DS-PDB-IN-Wall bracket for PIR

Model: DS-PDB-IN-Wall

Who This Is For

Property managers specifying Hikvision AX PRO alarm systems who need a clean, low-profile solution for wall-mounting PIR detectors will find the DS-PDB-IN Wall Bracket a straightforward addition to their installation plan. Where a standard flat wall surface doesn't allow a PIR detector to be angled correctly for the intended coverage zone, this bracket introduces the positional flexibility needed to correct that without running conduit, adding junction boxes, or altering the wall surface. It is purpose-built for the AX PRO series, so the fit and finish align with the existing detector housings rather than requiring workarounds. Installers specifying retail spaces, strata apartments, small commercial offices, or light industrial sites where AX PRO wireless detectors are already in use will find this bracket reduces installation time and removes coverage gaps caused by awkward wall geometry.

What This Bracket Actually Does

Who Buys This Model

• Alarm Installers: Technicians commissioning AX PRO wireless alarm systems who encounter wall positions that require an angled PIR mount to achieve the intended detection zone without repositioning the entire cable or wireless path.
• Strata and Facility Managers: Building managers coordinating upgrades to common areas such as lift lobbies, stairwells, and corridors where PIR placement must work within existing architectural constraints.
• Small Business Owners Self-Installing AX PRO: Business owners who have purchased AX PRO detectors and need the correct bracket to mount them on a side wall at the recommended detection angle rather than relying on adhesive tape or makeshift solutions.
• Security Consultants Specifying Retrofit Projects: Consultants adding PIR coverage to existing buildings where the only available wall surface requires the detector to be angled outward to cover the target zone properly.

Honest Assessment

The DS-PDB-IN Wall Bracket does one thing well: it gives AX PRO PIR detectors a stable, angled wall-mount position that would otherwise be difficult to achieve cleanly. For installers working with the AX PRO platform regularly, keeping a few of these in the kit bag removes a common site problem without any on-the-fly fabrication. The durable plastic construction is adequate for the load it carries and suited to standard indoor and covered outdoor environments. What this bracket will not do is extend the detection range of the PIR, compensate for incorrect detector placement in high-traffic masking zones, or suit PIR models outside the AX PRO series. It is also not a corner bracket - for 90-degree corner installations a different mounting accessory would be more appropriate. Available through Security Australia as a standalone accessory, it is straightforward to order alongside the detectors themselves rather than sourcing separately.

Before You Buy

Quick Fit Check

• Good match if: You are installing Hikvision AX PRO PIR detectors and the only practical wall position requires the detector to face at an angle rather than straight ahead - this bracket provides that offset in a factory-matched housing.
• Good match if: Your client or building management requires a clean, low-profile installation with no visible improvised mounting hardware - the DS-PDB-IN keeps the detector flush and intentional-looking on the wall surface.
• You may need a different model if: You need to mount the PIR in a corner to cover 2 directions simultaneously - a dedicated corner bracket accessory from the AX PRO range is the more appropriate solution for that geometry.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a wall-surface angled mount for an AX PRO PIR detector and want a factory-matched bracket that fits the housing correctly without modification or improvisation.
• You may need a different model if: Your installation requires a 90-degree corner mount to cover 2 adjoining spaces from a single detector position - a dedicated AX PRO corner bracket accessory is better suited to that requirement.
• Pairs well with: Hikvision AX PRO wireless PIR detectors and the broader AX PRO hub and keypad system for a consistent, integrated wireless alarm installation.

Common Questions

1. Will this bracket work with any Hikvision PIR detector, or only the AX PRO series?

   Only AX PRO series PIR detectors. The DS-PDB-IN is engineered to the housing dimensions of the AX PRO detector range. Older Hikvision DS-PD series detectors or third-party PIR models use different housing profiles and will not clip or mount correctly to this bracket without modification.

2. Does this bracket change the detection angle of the PIR, or just its wall position?

   It changes the physical orientation of the detector on the wall, which in turn changes where the detection zone is directed. The bracket itself does not alter the internal optics or lens of the PIR - what it does is allow you to aim the existing detection pattern toward the area you need to cover rather than being constrained by a flat-on wall mount position.

3. Can this bracket be used outdoors?

   Yes, in covered outdoor locations. The durable plastic construction handles standard environmental exposure under an eave, awning, or covered entry. It is not rated for direct exposure to rain or full outdoor conditions - for unprotected exterior walls, check that the PIR detector itself carries the appropriate IP rating for that environment.

4. Does installing this bracket require any additional tools or hardware beyond standard wall fixings?

   No. The DS-PDB-IN installs using standard wall fixings into the surface, and the AX PRO detector clips or mounts onto the bracket using the same mechanism as a standard flat-wall installation. No specialist tools, additional adapters, or custom hardware are required. The bracket is designed for straightforward installation by both professional installers and experienced end users.

5. Is this bracket sold individually or in multipacks?

   This is sold as a single unit through Security Australia. For larger projects requiring multiple mounts, order the quantity needed at the time of purchase alongside your AX PRO detectors to ensure you have the correct number on-site before installation begins.

6. Will this bracket affect the wireless signal range of the AX PRO PIR detector?

   No. The DS-PDB-IN is a mechanical mounting accessory only. It has no electronic components and introduces no interference with the wireless communication between the detector and the AX PRO hub. Signal range remains determined by the detector's own wireless specifications and the site RF environment.

Downloads & Resources

No downloads available for this product.
