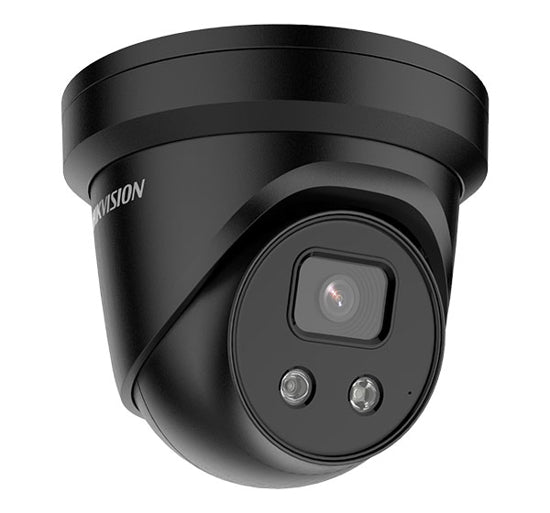

The Hikvision DS-2CD2366-ISU/SL is a 6MP outdoor AcuSense Gen 2 turret camera. Empowered by deep learning algorithms, Hikvision's AcuSense technology can distinguish people and vehicles from other moving objects, such as falling leaves or small animals. Originally created to prevent false alarms, AcuSense technology offers users several other key benefits such as advanced analytics, active deterrence, and timely alerts. The analytic alert feature generates alarm events that are searchable when reviewing recorded footage for specific incidents, saving time and money. The inclusion of two-way audio allows customizable warnings to be played when an event takes place or automatically trigger the built-in alarm siren and strobe light.
Key Features:
This camera offers exceptional surveillance capabilities with advanced motion detection and a 30m infrared range. Suitable for both residential and commercial environments, it provides reliable and accurate monitoring.
| Camera | |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°; 6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | |
| DORI | 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m; 6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-In Microphone | Yes |
| Built-In Speaker | Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light |
| Deep Learning Function | |
| Face Capture | Yes |
| General | |
| Power | 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, max. 9.7 W |
| Material | Metal except for trim ring |
| Dimension | Ø138.3 mm × 112.1 mm (Ø5.5" × 4.4") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight | Approx. 820 g (1.8 lb.) With Package Weight: Approx. 1150 g (2.5 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | |
| 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| General Function | |
| Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker | |
| Approval | |
| EMC | FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision Acusense DS-2CD2366G2-ISU/SL IP LIVEGUARD 6MP With Warning & Strobe Turret Network Camera
Enhance your security infrastructure with the Hikvision DS-2CD2366G2-I2, an innovative 6MP outdoor turret camera that utilizes advanced AcuSense technology. This camera is expertly designed to deliver top-tier surveillance through deep learning algorithms that can accurately distinguish between human and vehicle targets, effectively minimizing false alarms triggered by irrelevant moving objects such as leaves or animals. With high-definition 6MP resolution, every detail is captured with remarkable clarity, making this camera ideal for various security applications in both residential and commercial settings. The inclusion of a built-in microphone allows for real-time audio monitoring, adding an extra layer of security. Engineered to perform exceptionally well in different lighting conditions, the DS-2CD2366G2-I2 ensures continuous, reliable monitoring day and night. Its durable construction, coupled with IP67-rated weatherproofing, ensures that the camera can withstand harsh outdoor environments, providing consistent security coverage.
Enhanced Analytics and Alerts
Stay ahead with the DS-2CD2366G2-I2’s advanced analytics and alert system. The camera not only minimizes false alarms but also provides active deterrence and precise notifications, ensuring you are always informed about critical events.
Exceptional Low-Light Performance
Designed for superior performance in low-light conditions, this camera features a 2.8mm fixed lens and a larger image sensor, delivering clear, sharp images even in minimal light (down to 0.003 lux). With a 30m IR range, it guarantees detailed nighttime surveillance.
Comprehensive Features
Equipped with H.265/+ compression technology, infrared illumination, 120dB wide dynamic range, and edge video analytics, the DS-2CD2366G2-I2 offers versatility and cost-effectiveness for various security needs.
Wide Viewing Angles
The 2.8 mm lens provides a horizontal FOV of 105.1°, vertical FOV of 53.4°, and diagonal FOV of 128.6°, ensuring extensive coverage and minimizing blind spots.
Key Features:
Functions:
Acusense Technology
Utilizes deep learning algorithms to focus on human and vehicle detection, significantly reducing false alarms from non-threatening moving objects.
Hik-Connect App
Provides remote access for real-time viewing, playback, and system management from your mobile device, enhancing convenience and control.
High Efficiency Video Coding (H.265+)
Reduces bandwidth and storage requirements while maintaining high video quality, making it efficient and cost-effective.
Wide Dynamic Range (WDR)
120 dB WDR technology ensures clear images in environments with strong lighting contrasts, enhancing overall image quality.
IP67 Protection
Designed to be dust-tight and withstand powerful water jets, ensuring reliable performance in harsh outdoor conditions.
Technical Specifications
| Feature | Details |
|---|---|
| Resolution | 6 MP (3072 × 2048) @ 20fps |
| Lens Options | 2.8 mm, 4 mm, 6 mm |
| Compression | H.265, H.265+, H.264+, H.264 |
| Wide Dynamic Range | 120dB |
| Noise Reduction | 3D Digital Noise Reduction |
| Power Supply | DC12V & PoE (802.3af) |
| IR Range | 30m |
| On-board Storage | Up to 256 GB |
| Weatherproof Rating | IP67 |
Transform your security system with the Hikvision DS-2CD2366G2-I2. Enjoy unmatched clarity, advanced analytics, and dependable performance to safeguard your premises effectively. Invest in this state-of-the-art surveillance solution today and experience peace of mind with continuous, high-quality monitoring.
