Hikvision 6MP 8CH CCTV Kit: 6x Black Liveguard Acusense Turret Cameras with Strobe, Audio, Smart Light + 8CH PoE NVR 4TB (DS-2CD2366G2H-IS2U-SL-BLK, DS-7608NI-M2/8P)

Model: 6x DS-2CD2366G2H-IS2U-SL-BLK / DS-7608NI-M2/8P

Who This Is For

When active deterrence rather than passive recording is the priority, this kit changes the approach entirely. The Hikvision 6MP 8CH Liveguard AcuSense Kit pairs 6 black turret cameras with built-in strobe lights, audio output, and smart supplemental lighting against an 8-channel PoE NVR loaded with 4TB of storage. It is aimed at residential and small commercial installers who need a system that responds to intrusions in real time - triggering a visible strobe flash and audible warning the moment AcuSense classifies a human or vehicle target. The all-black camera finish suits modern facades, dark soffits, and commercial exteriors where a low-profile deterrent aesthetic matters. With PoE powering every camera over a single Cat6 run and 4TB already installed, this is a complete, functional system from the moment cabling is done.

What This System Actually Does

Who Buys This Model

• Residential installers on premium home jobs: Clients who have had prior break-ins or near-misses and want a system that actively confronts intruders rather than just recording them. The strobe and audio response is the selling point.
• Small business owners in retail or hospitality: Bottle shops, convenience stores, and cafes needing a fully deterrent-capable outdoor system that can be installed without a large-scale commercial budget.
• Property developers and strata managers: New builds or medium-density residential projects where the all-black turret aesthetic suits modern cladding and the PoE NVR simplifies the cabling plan across multiple camera positions.
• Industrial light facilities and warehouses: Sites where after-hours perimeter intrusions are a recurring issue and a visible, audible deterrent on detection is preferred over a passive monitoring approach.
• Security integrators spec-ing a complete solution: Installers who need a single-box order covering cameras, NVR, and storage - with 2 spare channels already available for future expansion without swapping the recorder.

Honest Assessment

This kit genuinely delivers on active deterrence. The combination of AcuSense classification with Liveguard strobe and audio output means the system is doing something useful at the point of detection - not just logging it. At 6MP, the image quality is strong enough to capture usable identification detail across wide outdoor scenes, and the smart white light ensures colour footage rather than IR greyscale when it matters. The all-black finish is a practical choice for modern facades that would look worse with a white dome or bullet camera mounted on them. The 4TB of pre-installed storage and 2 spare NVR channels also make this a genuinely expandable system rather than a closed kit. Where it has limits: if pan-tilt-zoom coverage or licence plate capture at a controlled entry is the primary requirement, a PTZ or dedicated ANPR camera type will serve those scenarios better. This system is available through Security Australia with the NVR and cameras sold as a matched, pre-configured bundle.

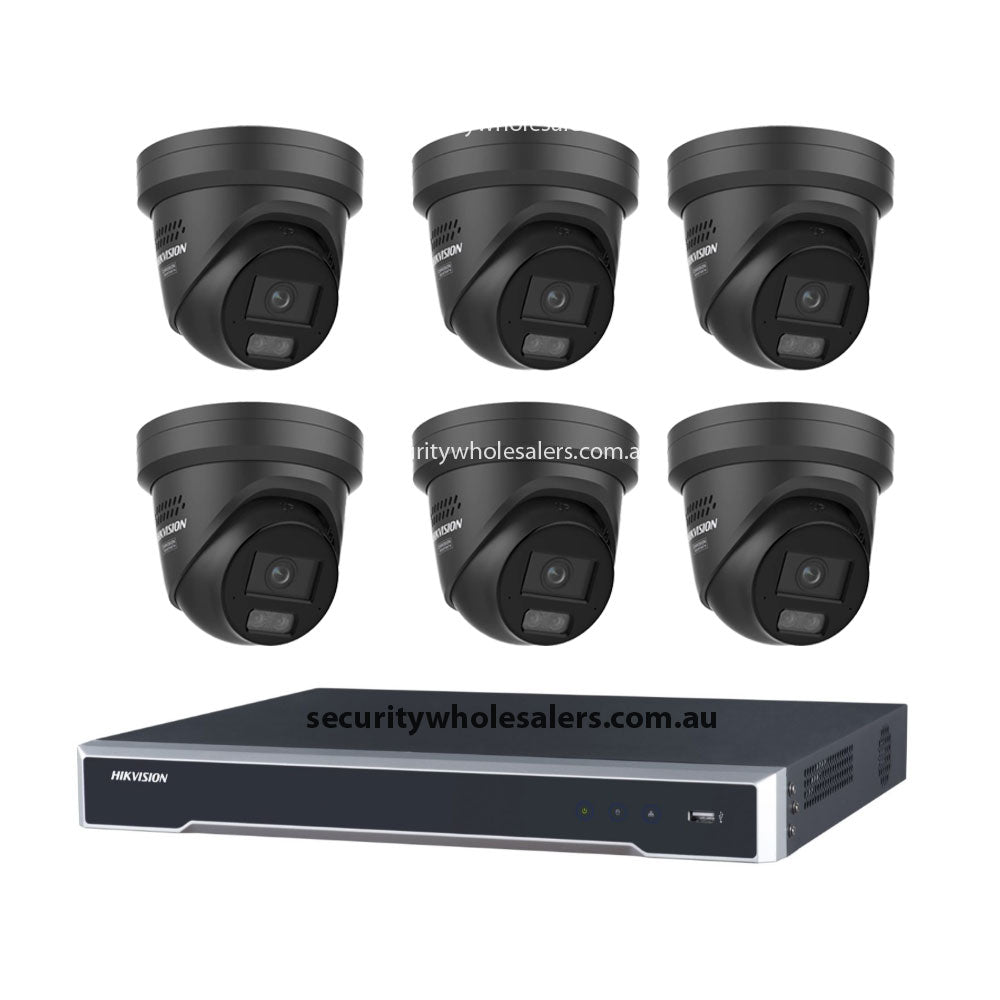

Complete Package Contents

• 6 x Hikvision DS-2CD2366G2H-IS2U-SL-BLK - 6MP AcuSense Liveguard Turret Camera, Black, Strobe, Audio, Smart White Light
• 1 x Hikvision DS-7608NI-M2/8P - 8-Channel PoE NVR, 4TB HDD pre-installed

Before You Buy

Quick Fit Check

• Good match if: You are covering residential or small commercial perimeters where after-hours human or vehicle intrusion is the specific threat, and the client wants a system that visibly and audibly responds to a detection event rather than silently recording it.
• Good match if: The install site has a modern aesthetic where white cameras would look out of place - the all-black turret housing blends cleanly against dark soffits, charcoal cladding, and commercial fascia without standing out visually.
• You may need a different model if: The primary requirement is continuous wide-area tracking across a large open carpark or facility - a PTZ camera system with auto-tracking capability will cover that scenario more effectively than fixed turrets.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The installation requires active deterrence - a system that responds to a classified human or vehicle target with a visible strobe and audible warning rather than silently recording. No other standard fixed turret kit in this channel count includes Liveguard alongside AcuSense classification at 6MP.
• You may need a different model if: The site requires continuous pan-tilt coverage across a large open area - a PTZ system with auto-tracking and optical zoom will serve that requirement more effectively than a fixed 6-camera turret layout.
• Pairs well with: A Hikvision-compatible PoE switch if the NVR is located in a centralised comms room and additional cable run lengths require mid-span power injection, or a Hikvision DS-KV series video intercom at the main entry for complete access and surveillance integration.

Common Questions

1. Will the strobe and audio fire every time something moves in front of the camera?

   No. The Liveguard strobe and audio deterrence is linked to AcuSense detection, not standard motion. AcuSense classifies targets as human or vehicle before triggering the alarm linkage, so general movement from foliage, small animals, and lighting changes does not activate the strobe or audio output. This is the core advantage of pairing active deterrence with AI classification rather than standard motion detection.

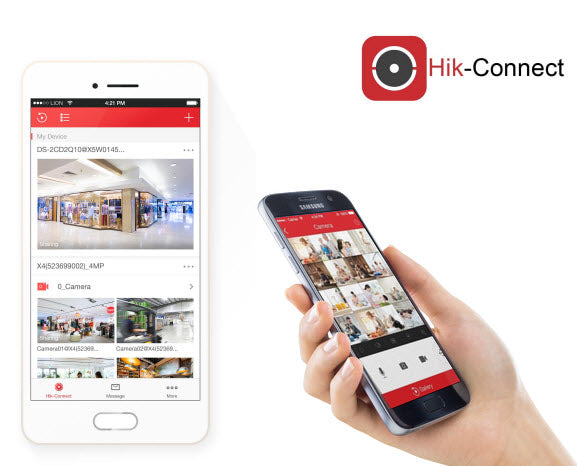

2. Does this system work with the Hik-Connect app for remote viewing?

   Yes. Both the DS-2CD2366G2H-IS2U-SL-BLK cameras and the DS-7608NI-M2/8P NVR are compatible with Hik-Connect for remote live view, playback, and push notifications. The NVR acts as the registration point for the system, so all 6 cameras appear under a single device on the app rather than requiring individual camera registrations.

3. Can I add more cameras to this kit later?

   Yes. The DS-7608NI-M2/8P has 8 PoE channels and this kit uses 6, leaving 2 ports available for additional cameras without replacing the NVR. The NVR also supports additional storage if the 4TB installed HDD reaches capacity, depending on available drive bays. Additional cameras simply connect to the spare PoE ports and are added through the NVR's channel management interface.

4. Does this system capture colour footage at night or does it switch to black and white?

   It captures colour at night. The DS-2CD2366G2H-IS2U-SL-BLK includes a smart white light that activates on detection, illuminating the scene with visible light rather than relying solely on infrared. This produces full-colour footage at night when the white light is active, which is useful for capturing clothing colours, vehicle colours, and scene detail that IR greyscale footage cannot provide.

5. What does the AcuSense classification actually distinguish between?

   AcuSense classifies detected targets as either human or vehicle. It does not identify individuals by face or read licence plates - those require separate ANPR or facial recognition camera types. The purpose of AcuSense in this context is accurate alarm filtering: the system only triggers notifications and deterrence responses when the AI confirms the target is a person or vehicle, not a cat, a swaying tree, or headlights passing on a nearby road.

6. How much recording time does 4TB provide with 6 cameras at 6MP?

   Storage duration depends on recording mode, frame rate, compression level, and scene activity. At 6MP with H.265+ compression across 6 cameras on continuous recording, 4TB typically provides between 7 and 14 days of footage. Switching to event-based recording triggered by AcuSense detection rather than continuous recording will extend that duration considerably. Security Australia recommends confirming your specific retention requirement before settling on a recording schedule.

7. Is the strobe deterrence feature legal to use in Australia?

   Yes, in the context of security camera deterrence on private property. The Liveguard strobe is designed as a short-burst deterrent flash rather than a sustained high-intensity strobe, and its use on private residential or commercial perimeters is not restricted under Australian security legislation. However, cameras positioned where the strobe faces directly into a public road or adjacent properties should be angled or scheduled to avoid potential issues with neighbours or road safety. Local council guidelines may apply in specific areas, so confirm placement angles during site assessment.

Cabling Considerations

• Cable Type: Cat6 recommended for all runs. Cat5e is sufficient for runs under 50m in stable temperature environments, but Cat6 reduces error risk in outdoor conduit where temperature cycling can affect cable performance over time.
• Max Cable Run: 100m per PoE run from the NVR PoE port to the camera. Runs beyond 80m should use Cat6 and be tested for signal integrity before finalising camera positioning.
• PoE Notes: All 8 ports on the DS-7608NI-M2/8P are PoE-enabled. The total PoE power budget is shared across all active ports. Confirm the per-port power draw of the DS-2CD2366G2H-IS2U-SL-BLK against the NVR's total PoE budget, particularly when the strobe and white light are active, as these draw additional current during deterrence events.
• Wiring Tips: Run all camera cables in UV-rated outdoor conduit where exposed to direct sunlight. Use weatherproof RJ45 connectors or termination boots at external camera junction points. Label each cable at both ends before patching to the NVR to simplify future fault diagnosis and channel reassignment.
