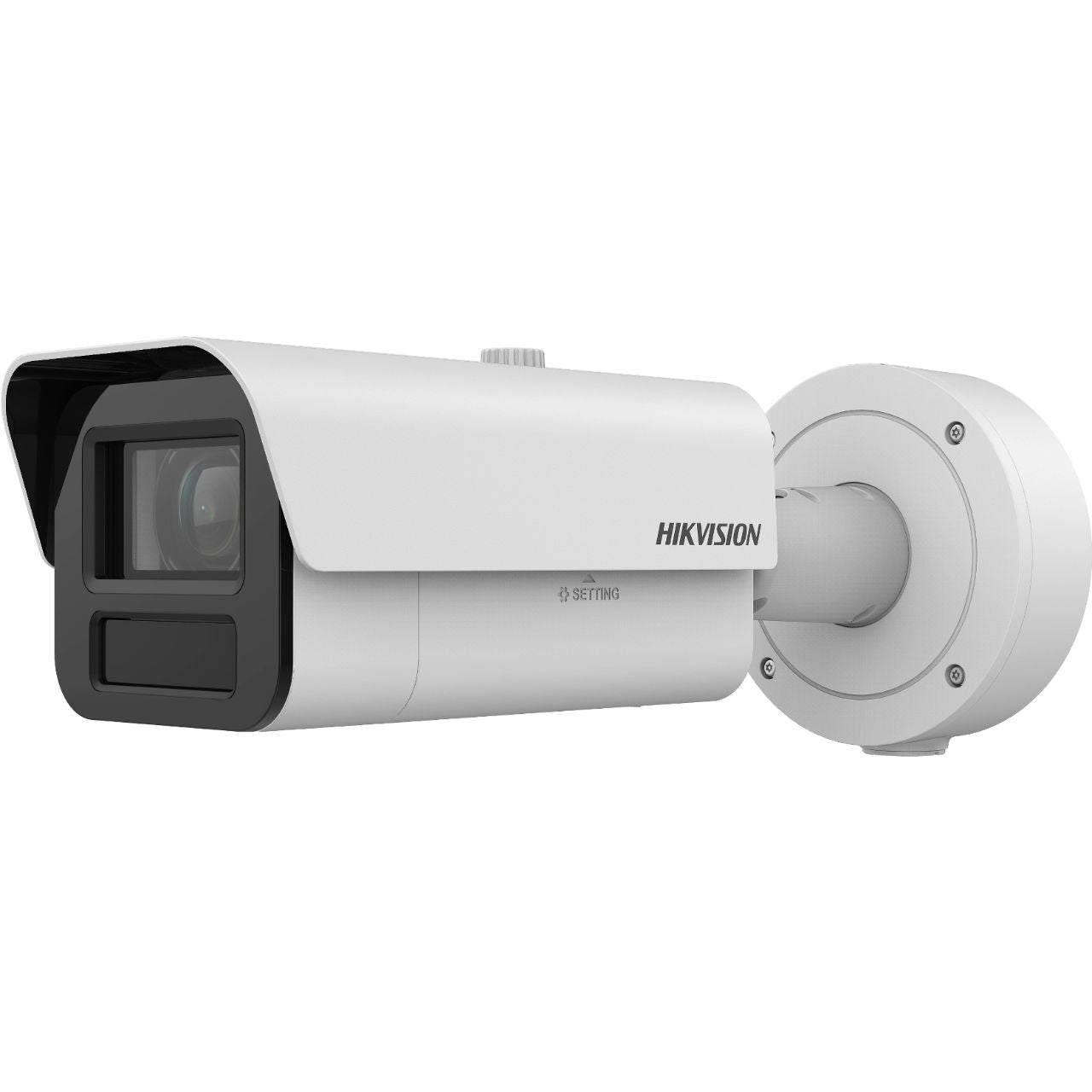

Hikvision iDS-2CD7A45G0-IZH 4MP Outdoor Motorised DeepInView VF Bullet Camera 4.7-118mm 25x Zoom

Model: iDS-2CD7A45G0-IZH

Who This Is For

For security integrators and site managers who need to cover long distances from a single fixed camera position, the Hikvision iDS-2CD7A45G0-IZH is a motorised varifocal bullet camera built around a 4.7-118mm lens delivering 25x optical zoom. That range makes it suited to perimeter lines at industrial facilities, long vehicle approaches, rail corridors, port access roads, and open car parks where a standard fixed lens simply cannot reach far enough to capture usable detail. The DeepInView platform pairs DarkFighter low-light performance with onboard human and vehicle analytics, so the camera is working actively rather than just recording. With IP67 weather resistance and an IK10 vandal rating, it handles exposed mounting positions - on poles, gantries, and building fascias - without requiring an additional housing. It is a deliberate choice for professionals specifying high-zoom fixed bullet cameras on projects that demand both reach and intelligence from the same unit.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Teams: Specifying coverage for long fence lines, loading dock approaches, or external yard areas where a single camera needs to cover 80-150m+ and still produce actionable footage.
• Access Control Integrators: Deploying at controlled gate entries where onboard LPR needs to operate alongside a boom gate or intercom system - the motorised zoom allows precise lane framing during commissioning.
• Transport and Infrastructure Projects: Covering rail platforms, bus depots, or road corridors where the distance between camera mounting point and the zone of interest makes a standard fixed lens unsuitable.
• Commercial Property Managers: Monitoring large open car parks or external hardstand areas with minimal camera positions, using the 25x zoom to cover distant zones that would otherwise require multiple cameras.
• Installers on High-Risk Perimeter Projects: Working in locations where the camera will face physical interference - the IK10 rating and IP67 housing reduce the need for additional protective enclosures and simplify the install.

Honest Assessment

The iDS-2CD7A45G0-IZH does three things well simultaneously: long-range optical reach, active analytics, and all-weather construction in a single bullet housing. The 25x motorised zoom and 4.7-118mm range are genuinely useful on sites where distance is the primary challenge - industrial perimeters, open car parks, and vehicle approach roads. DarkFighter low-light performance and 140dB WDR are confirmed hardware-level capabilities, not software post-processing, which gives them practical value in high-contrast outdoor conditions. Onboard LPR and human/vehicle classification reduce the burden on the NVR and operator alike.

Where this camera is not the right tool: it is a fixed-position motorised bullet, not a PTZ. Once the zoom and focus are set during commissioning, the camera does not track moving targets or sweep a scene - if active pan and tilt control is required, a PTZ camera from the Security Australia range would be the appropriate category. The 4MP sensor also means this is not the right choice where the highest possible resolution on a very wide scene is needed - a multi-sensor or panoramic camera would serve that application better.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a long vehicle approach, gate lane, or perimeter fence line from a fixed mounting point and require a usable image at 80m or beyond - the 25x optical zoom and 118mm maximum focal length are designed for exactly this.
• Good match if: The site has high-contrast lighting conditions such as a gatehouse entry with direct sun or headlight exposure - the 140dB WDR retains detail in both shadow and highlight areas in the same frame.
• You may need a different model if: Your requirement is for a camera that can actively pan, tilt, and track a moving target across a wide area - a PTZ camera is the correct product type for that application and is available across multiple categories on the site.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fixed-position camera with genuine long-range optical reach - 25x zoom and a 4.7-118mm lens range are not common in standard bullet cameras and are specifically suited to sites where distance between camera and target is the defining challenge.
• You may need a different model if: The requirement is for a camera that actively follows moving targets across a scene - a PTZ camera with motorised pan and tilt is the correct product type for continuous tracking applications, and offers a wider range of patrol and preset functions that a fixed bullet cannot replicate.
• Pairs well with: A compatible Hikvision NVR with DeepInView analytics support, which allows centralised management of the camera's LPR logs and human/vehicle detection events across a multi-camera system.

Common Questions

1. Does this camera support PoE, or does it need a separate power supply?

   Yes. The iDS-2CD7A45G0-IZH supports PoE, so a single Cat5e or Cat6 cable carries both data and power to the camera. However, given the motorised lens mechanism and processing load of DeepInView analytics, confirm the PoE budget of your switch or NVR before deployment - a PoE+ capable switch is recommended to ensure adequate power delivery, particularly when the motorised zoom is actively being adjusted during commissioning.

2. Will this camera work in near-complete darkness without IR illuminators?

   Not without some ambient light. DarkFighter technology is highly capable in low-light conditions and will extract colour detail from very low ambient light levels such as distant streetlights or vehicle headlights, but it is not a thermal or starlight-class sensor that produces usable imagery in true zero-lux darkness. The camera does include infrared for complete darkness conditions - IR kicks in when ambient light drops below the DarkFighter threshold, producing monochrome imagery. For sites with zero ambient lighting, plan your IR coverage distance in relation to the zoom level in use.

3. Does the onboard LPR work at all vehicle speeds, or is it limited to slow-moving or stationary vehicles?

   The onboard LPR on the iDS-2CD7A45G0-IZH is best suited to controlled or slow-speed approaches - gate lanes, car park entries, and access roads where vehicles are decelerating or queuing. It is not a free-flow highway ANPR system. For reliable reads, the vehicle should be approaching at low speed, the plate should be framed at an appropriate pixel width for the zoom level in use, and the approach angle should be within a reasonable tolerance of the camera axis. High-speed or wide-angle free-flow LPR requires a dedicated ANPR camera platform designed for that specific application.

4. What is the effective detection and recognition distance at maximum zoom?

   At 118mm (maximum focal length), the narrow field of view concentrates resolution on a small area at long range, which is why this camera is suited to monitoring specific zones - vehicle lanes, gate entries, or defined points along a fence line - rather than wide-area detection. Effective human recognition distance at maximum zoom will significantly exceed what is achievable with a standard 2.8mm or 4mm fixed lens from the same mounting position. The exact DORI distances (Detection, Observation, Recognition, Identification) are determined by the combination of 4MP sensor resolution and focal length - for project-level distance planning, consult the Hikvision DORI calculator or request a site assessment through Security Australia.

5. How does the motorised zoom work - is it remote-controlled or set manually during install?

   Both. The motorised lens can be adjusted remotely via the camera's web interface, SADP tool, or a compatible NVR interface, which means zoom and focus can be set and refined from a laptop without physical access to the camera after mounting. This is practically useful on pole or gantry installations where reaching the camera post-install is difficult. Once set, the zoom and focus position is retained and does not need to be re-adjusted unless the field of view requirement changes.

6. Does this camera pan and tilt - can I reposition it remotely to follow an incident?

   No. The iDS-2CD7A45G0-IZH is a fixed bullet camera - it does not pan, tilt, or track. The motorised zoom adjusts the focal length within the fixed field of view, but the camera housing does not move. If your requirement includes the ability to remotely direct the camera to follow a target or sweep a scene during a live incident, a PTZ camera is the correct product type for that application.

7. Does H.265+ compression make a meaningful difference to storage requirements on a project like this?

   Yes, noticeably. H.265+ applies scene-adaptive compression on top of the H.265 codec baseline, which reduces bitrate significantly compared to H.264 for static or low-movement scenes - typical for perimeter monitoring during off-peak hours. On a long-range camera covering a gate or fence line that is inactive for most of the recording window, H.265+ can reduce storage consumption by 50-70% compared to H.264 recording at equivalent quality, which directly affects NVR storage sizing and channel bandwidth planning.
