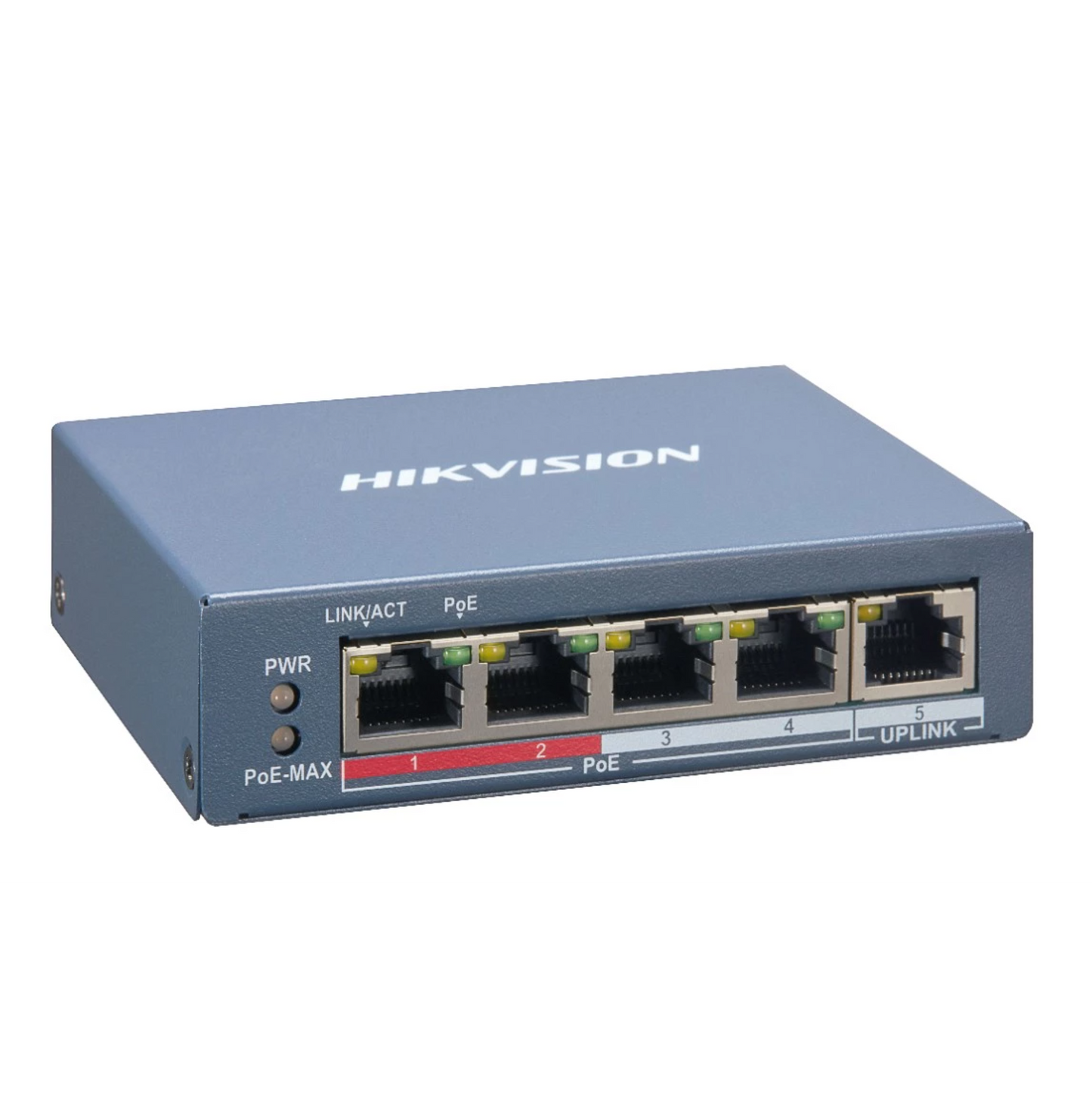

Hikvision DS-3E1105P-EI 4 Port Smart POE Switch

  • Sku: DS-3E1105P-EI
  • Vendor: SecurityAustralia
$60.80 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch
  • 4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.
  • IEEE 802.3at/af standard for PoE ports.
  • Network topology management, alarm push, network health monitor.
  • 6 KV surge protection for PoE ports.
  • AF/AT camera can reach up to 300 m in extend mode.
Baseline_Datasheet-of-DS-1105P-EI-Smart-Managed-4-Port-100-Mbps-PoE-Switch

Need help choosing?

Click to ask a question - same day response (~2 hours during business hours)

Free shipping Enjoy free shipping when your order exceeds $100. Fast dispatch Orders are dispatched within the next business day. Best local support in Aus We back all products with manufacturer warranty support. Official Australian stock Genuine products with local warranty support.

Product Overview

Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch
  • 4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.
  • IEEE 802.3at/af standard for PoE ports.
  • Network topology management, alarm push, network health monitor.
  • 6 KV surge protection for PoE ports.
  • AF/AT camera can reach up to 300 m in extend mode.

Network Parameters

  • Port Number4 × 100 Mbps PoE RJ45 ports, and 1 × 100 Mbps network RJ45 port.
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • Working ModeStandard mode (default), Extend mode
  • StandardIEEE 802.3, IEEE 802.3u, and IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table2 K
  • Internal Cache768 Kbits
  • Switching Capacity1 Gbps
  • Packet Forwarding Rate0.744 Mpps

Operation Management

  • Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
  • Port ConfigurationSupport rate, flow control, and switch configuration

General

  • Dimension (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.76” × 3.47” × 1.09”)
  • Storage Temperature-40°C to 85°C (-40°F to 185°F)
  • Power Source65 W
  • Net Weight0.22 kg (0.49 lb)
  • Power Consumption In Idle65 W
  • ShellMetal material, fan-free design
  • Operating Temperature0°C to 40°C (32°F to 104°F)
  • Operating Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 1.35 A
  • Max. Power Consumption 65 W

Key Features

Trusted Brand Partner & Security Equipment Wholesaler

  • Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
  • Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

What This Product Does

Hikvision DS-3E1105P-EI 4 Port Fast Ethernet Smart POE Switch
  • 4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.
  • IEEE 802.3at/af standard for PoE ports.
  • Network topology management, alarm push, network health monitor.
  • 6 KV surge protection for PoE ports.
  • AF/AT camera can reach up to 300 m in extend mode.
Baseline_Datasheet-of-DS-1105P-EI-Smart-Managed-4-Port-100-Mbps-PoE-Switch

Not sure if this suits your site?

Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.

Downloads

Get Product Help

Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.

Shipping & Warranty

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
