  • Sku: DS-9632NI-M8
  • Vendor: SecurityAustralia

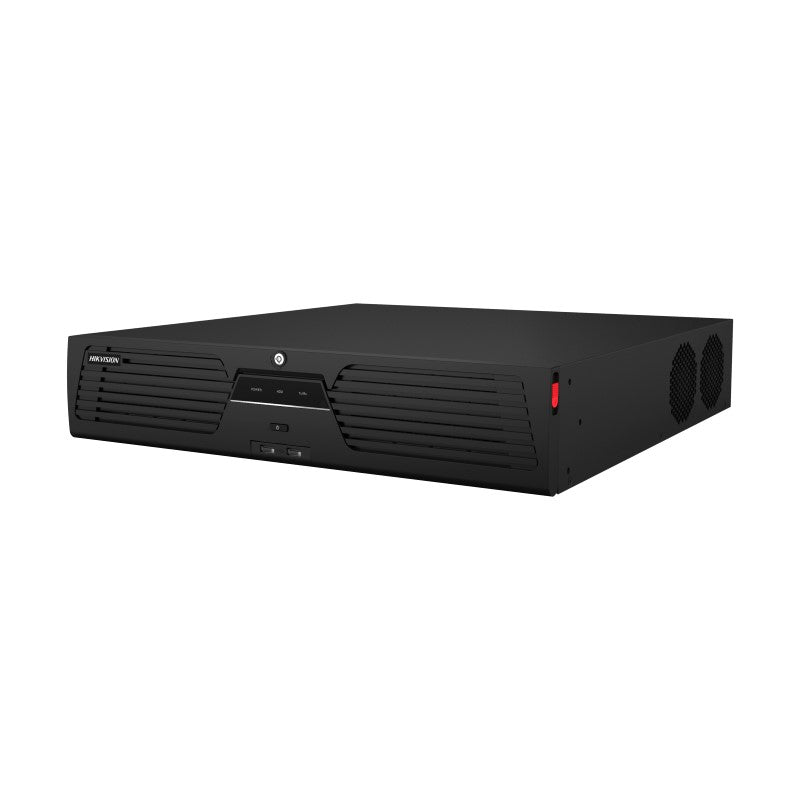

Hikvision DS-9632NI-M8 32ch M-Series NVR, 320Mbps, 8K, VGA/HDMI, 8 Bay, 3RU, No HDD

$2,660.00 AUD
$2,650.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

32-ch 2U 8K NVR

The DS-9632NI-M8 is compatible with a variety of camera types, including special features for people counting and ANPR (Automatic Number Plate Recognition). For storage, it supports up to 112TB, allowing it to store vast amounts of footage, crucial for long-term surveillance in large facilities like malls, airports, and office buildings. Additionally, it features H.265+ compression for efficient bandwidth and storage utilization.

Key Features

  • Up to 32-ch IP camera inputs
  • Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
  • Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
  • Up to 8-ch IP speakers can be connected

Code/SKU: DS-9632NI-M8
Quick Specs:

  • Chassis: 2U chassis
  • Dimension (W × D × H): 445 × 465 × 93 mm (17.5" × 18.3" × 3.7")
  • Weight: ≤ 10 kg (without HDD, 22 lb.)

Specifications

Video and Audio
IP Video Input 32-ch
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output 1920 × 1080/60 Hz
VGA 2 Output 1920 × 1080/60 Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol ONVIF(Version 2.5), RTSP
RAID
RAID Type RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface 1 RS-485 (full-duplex), 1 RS-232
SATA 8 SATA interfaces supporting hot-plug
eSATA 1 eSATA interface
Capacity Up to 16 TB capacity for each disk
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V 12 VDC, 1 A power output
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 50 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 2U chassis
Dimension (W × D × H) 445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")
Weight ≤ 10 kg (without HDD, 22 lb.)
Certification
Obtained Certification CE, FCC
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-9632NI-M8 32ch M-Series NVR, 320Mbps, 8K, VGA/HDMI, 8 Bay, 3RU, No HDD

$2,660.00 AUD
$2,650.00 AUD
 per

The Hikvision DS-9632NI-M8 is a 32-channel, 2U 8K NVR designed for large-scale, high-resolution video surveillance needs. It supports up to 32 IP camera inputs with decoding capabilities for multiple resolutions, including 2 channels at 32 MP, 8 channels at 8 MP, or 32 channels at 1080p. This NVR can handle up to 320 Mbps of incoming bandwidth and 400 Mbps of outgoing bandwidth, making it ideal for data-intensive environments.

It supports dual HDMI and VGA outputs, with resolutions up to 8K or dual 4K for sharp, detailed video playback across large displays. The device is compatible with a variety of camera types, including special features for people counting and ANPR (Automatic Number Plate Recognition). For storage, it supports up to 112TB, allowing it to store vast amounts of footage, crucial for long-term surveillance in large facilities like malls, airports, and office buildings. Additionally, it features H.265+ compression for efficient bandwidth and storage utilization. The DS-9632NI-M8 is part of Hikvision's M-Series, which focuses on delivering ultra-high-definition data and advanced video management capabilities​.

Features

Professional and Reliability

  • H.265+ compression reduces storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Stream over TLS encryption for secure stream transmission
  • Double verification support for playback and downloading

HD Video Output

  • Independent HDMI and VGA outputs
  • HDMI video output up to 8K or dual 4K resolution

Storage and Playback

  • 8 SATA interfaces for HDD connection (up to 14 TB capacity per HDD)
  • 1 eSATA interface for HDD connection
  • 16-channel synchronous playback

Smart & POS Function

  • Support for multiple VCA (Video Content Analytics) events
  • Configurable smart functions, including VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
  • POS information overlay on live view and playback; POS-triggered recording and alarm

Network & Ethernet Access

  • 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Smooth streaming technology
  • Web access support without plug-in
Technical Specifications
Video and Audio
IP Video Input 32-ch
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
HDMI 2 Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output 1920 × 1080/60 Hz
VGA 2 Output 1920 × 1080/60 Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
