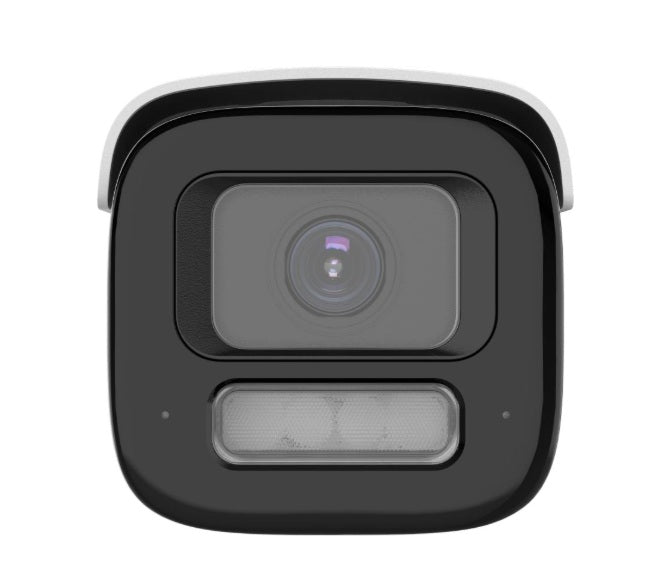

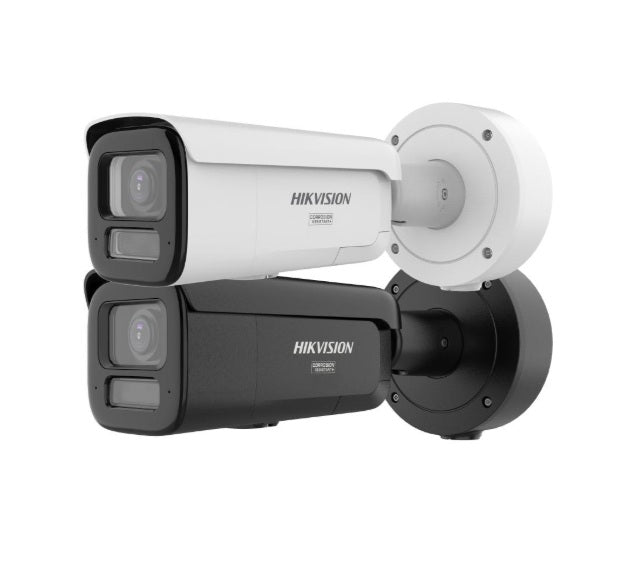

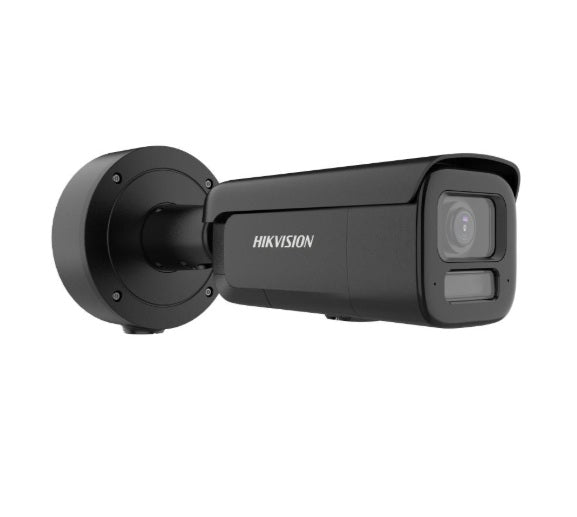

Hikvision 12MP DeepinView DS-2CD36C7G3-LIZSU/SL(Y) Dual Illumination Motorised Varifocal Bullet Camera

Model: DS-2CD36C7G3-LIZSUY-SL

Who This Is For

For security integrators and commercial site managers who need to cover long outdoor approaches with enough resolution to support evidential-quality footage and active deterrence in a single camera - the Hikvision 12MP DeepinView DS-2CD36C7G3 Dual Illumination Motorised Varifocal Bullet is built around that brief. The motorised varifocal lens means the installer can dial in the exact field of view during commissioning without swapping optics, which is practical on perimeter fences, car parks, loading docks, and industrial driveways where the standoff distance is rarely predictable until you are on-site. The dual illumination system pairs long-range IR with a white-light strobe for active deterrence, so the camera is not simply recording intrusions - it is responding to them. At 12MP, subject detail holds up at the far end of the zoom range, which is where most varifocal bullet cameras lose usable resolution.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Managers: Specifying perimeter coverage for warehouses, manufacturing yards, and logistics centres where long approach distances require a varifocal lens and high resolution to produce usable footage from the fence line.
• Commercial Integrators on Complex Commissions: Installers who need to lock in field of view remotely after the camera is bolted in place - the motorised varifocal removes the guesswork from commissioning at height or in difficult access positions.
• Car Park and Loading Dock Operators: Sites with overnight vehicle access where active deterrence via strobe and audio is required to interrupt unauthorised entry before damage or theft occurs, rather than simply recording it.
• Mining and Construction Site Security: High-value plant and equipment sites needing maximum resolution and AI-filtered alerts so after-hours staff or remote monitoring centres are not overwhelmed by environmental false triggers.

Honest Assessment

The DS-2CD36C7G3 Dual Illumination Motorised Varifocal Bullet earns its place on demanding perimeter installations. The 12MP sensor combined with a motorised varifocal lens is a practical combination - it means resolution does not drop as the installer zooms in on a distant target, and commissioning can be completed remotely. The DeepinView AI classification meaningfully cuts nuisance alerts compared to standard motion detection, and the dual illumination system gives the site both covert IR monitoring and an active strobe deterrent from a single camera head. Where this camera is not the right call: it is a fixed-direction device, so if coverage requires tracking moving targets across a wide arc, a PTZ camera will serve the application better. It is also a larger bullet form factor - unsuitable where a discrete ceiling or soffit mount is the priority. Security Australia stocks this model for sites where outdoor deterrence and resolution are the dominant requirements.

Before You Buy

Quick Fit Check

• Good match if: You are covering an extended outdoor approach - a driveway, perimeter fence, or yard entry - where the standoff distance is uncertain and you need to adjust field of view after mounting without returning to the camera physically.
• Good match if: Your site requires the camera to both monitor covertly at night using IR and actively respond to confirmed human or vehicle intrusions with a visible strobe and audio deterrent, without adding separate devices.
• You may need a different model if: Your coverage requirement involves tracking subjects across a wide area or following moving targets - a PTZ camera with auto-tracking gives you that pan, tilt, and continuous zoom capability that a fixed varifocal bullet cannot replicate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site needs high-resolution fixed coverage on a defined outdoor approach combined with active deterrence - the 12MP sensor, motorised varifocal, dual illumination, and DeepinView AI deliver all of that in a single outdoor bullet housing.
• You may need a different model if: Your coverage requirement involves tracking targets across a wide arc or following moving subjects - a PTZ camera with optical zoom and auto-tracking handles that use case in a way a fixed varifocal bullet cannot replicate.
• Pairs well with: A PoE+ managed switch or PoE+ NVR with sufficient per-port wattage, and a Hikvision-compatible VMS that supports DeepinView AI event rules and remote lens control.

Common Questions

1. Does this camera work with a standard PoE switch?

   No - not reliably. This camera draws more power than standard PoE (IEEE 802.3af, 15.4W maximum) can supply. The dual illumination system and motorised lens mechanism together require PoE+ (IEEE 802.3at, up to 30W per port). Running the camera on a standard PoE port may cause the illuminators to throttle back, the motorised lens to malfunction, or the camera to reboot under load. Confirm your switch or injector delivers PoE+ before installation.

2. Will the motorised varifocal lens adjust remotely after the camera is mounted?

   Yes. The motorised varifocal lens can be adjusted for zoom and focus remotely through a compatible Hikvision NVR interface or VMS without physically accessing the camera. This is particularly useful when the camera is mounted at height on a pole or wall bracket, as the installer can fine-tune the field of view from ground level after the unit is secured. One-push auto-focus is also typically available once the zoom position is set.

3. What is the difference between the IR illumination and the white-light strobe, and how do they work together?

   The two illuminators serve different purposes. The IR (infrared) illumination is invisible to the human eye and provides covert night-time imaging - the camera records clearly in darkness without alerting anyone to its presence. The white-light strobe is a visible deterrent that activates when the DeepinView AI confirms a human or vehicle target has entered a defined zone. The camera can operate in IR-only mode for routine monitoring, then switch on or supplement with the strobe only when a detection event meets the configured threshold. This means the site is not permanently flooded with visible light, which matters for properties adjacent to public areas.

4. How does DeepinView AI reduce false alarms compared to standard motion detection?

   Significantly better in outdoor environments. Standard pixel-based motion detection triggers on any movement within the frame - this includes swaying branches, rainfall, passing headlights, and small animals. DeepinView uses a deep learning model trained specifically to classify humans and vehicles. A detection event that cannot be confirmed as a person or vehicle does not trigger the alert or the deterrence output. For after-hours perimeter monitoring in Australian outdoor conditions, this classification step removes the majority of environmental false triggers that would otherwise overwhelm a monitoring centre or desensitise site staff to alerts.

5. Does this camera support two-way audio, and how is it used in practice?

   Yes. The camera has both a built-in microphone and a built-in speaker, which meets the requirement for two-way audio. In practice this allows a remote monitoring operator or site manager to listen to audio at the camera location and speak back through the speaker in real time. For active deterrence applications, it can also play a pre-recorded audio message - such as a trespass warning - automatically when a detection event is triggered, without requiring a live operator to be watching at that moment.

6. Is this camera suitable for use as part of a remote monitoring centre arrangement?

   Yes, provided the monitoring centre platform supports Hikvision ONVIF or SDK integration. The DeepinView AI event outputs - human and vehicle classification triggers - can be forwarded as structured alarms to a central monitoring platform, meaning operators receive pre-filtered, confirmed events rather than raw motion alerts. The two-way audio and strobe deterrence outputs give the operator tools to respond without requiring on-site presence. This model is available through Security Australia and is suited to sites where after-hours remote response is the primary security model.

7. What zoom ratio does the motorised varifocal lens cover, and how does this affect the effective detection range?

   The DS-2CD36C7G3 series uses a motorised varifocal lens - the exact focal length range should be confirmed against the Hikvision datasheet for your specific variant, but the series typically spans a meaningful wide-to-telephoto ratio suited to perimeter applications. At the telephoto end of the range, the 12MP sensor maintains sufficient pixel density per metre of scene width for the DeepinView AI to continue classifying humans and vehicles at extended distances. However, the effective AI detection range is directly tied to how many pixels a subject occupies in the frame - a narrower field of view at the same resolution produces more pixels on target at distance, which improves classification confidence. When commissioning, set the lens to the narrowest field of view that still covers the intended detection zone to maximise AI performance at range.
