Hikvision 10 Camera 8MP AcuSense Security Kit with DS-7616NI-M2/16P 16CH 16 PoE 8K NVR, 10x DS-2CD2086G2H-I2U/SL Fixed Bullet Cameras, 2-Way Audio, Active Strobe Light, No HDD Included

Model: DS-2CD2086G2H-I2U/SL / DS-7616NI-M2/16P (No HDD)

Who This Is For

For security installers and business owners who need active deterrence across multiple external zones, not just passive recording. This 10-camera kit pairs 10 Hikvision DS-2CD2086G2H-I2U/SL 8MP bullet cameras - each with a built-in strobe light, audible alarm, and 2-way audio - with a 16-channel DS-7616NI-M2/16P NVR that supports 8K decoding and delivers PoE to all 16 ports. That means every camera runs off a single Cat6 cable with no separate power supply required. The kit suits warehouses, construction yards, retail centres, and multi-tenancy commercial properties where the goal is to stop an incident before it happens rather than document it after. With 6 spare NVR channels, the system has room to grow as site requirements change.

What This System Actually Does

Who Buys This Model

• Commercial property managers: Multi-zone sites such as shopping centres or industrial estates where active deterrence at each camera replaces the need for dedicated guard patrols across open yards and loading areas.
• Construction site operators: High-theft environments where a visible strobe and voice warning at the point of intrusion is more effective than an alarm that only notifies a remote monitoring centre after the fact.
• Security integrators specifying scalable systems: Installers who want a fully PoE-managed 16-channel NVR they can hand over with 6 ports spare, giving the client a clear upgrade path without infrastructure changes.
• Warehouse and logistics operators: Sites with long perimeter fences, loading docks, and after-hours vehicle access where 8MP resolution is needed to identify drivers and vehicles, and where active alerts reduce response time.
• Schools and childcare facilities: After-hours protection of outdoor areas where audible warnings and 2-way audio allow staff or a monitoring station to respond verbally before a physical response is needed.

Honest Assessment

This kit does something most standard 8MP camera systems do not - it responds. The combination of AcuSense classification, per-camera strobe, and 2-way audio means detection can trigger a visible and audible response at the exact camera location without operator intervention. For high-risk outdoor sites, that is a meaningful operational difference. The DS-7616NI-M2/16P NVR is well-matched to the cameras, supporting 8K decoding and providing 16 PoE ports from a single managed device. H.265+ compression keeps storage requirements manageable, though buyers should note no HDD is included and should size storage based on their required retention period before ordering. This system is built for outdoor perimeter and deterrence use - it is not the right fit for indoor ceiling-mounted applications where a compact dome or turret camera is more appropriate. It also will not suit buyers who need PTZ tracking or wide-area panoramic coverage from fewer mounting points, where a PTZ or multi-sensor system available through Security Australia would be more suitable.

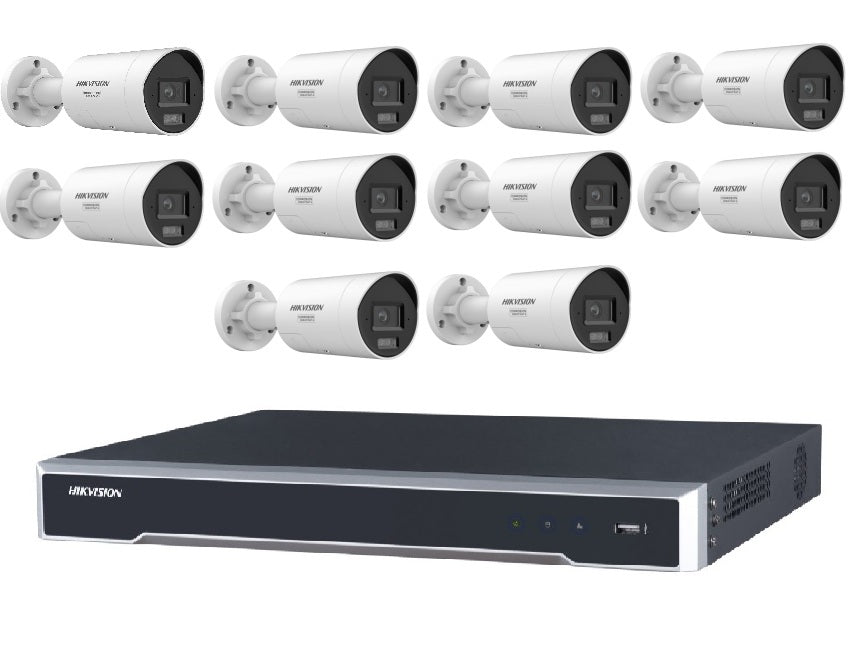

Complete Package Contents

• 10 x Hikvision DS-2CD2086G2H-I2U/SL - 8MP AcuSense Fixed Bullet Camera, Active Strobe, 2-Way Audio, IP67, H.265+
• 1 x Hikvision DS-7616NI-M2/16P - 16-Channel 16-Port PoE 8K NVR, 2 HDD Bays, No HDD Included

Before You Buy

Quick Fit Check

• Good match if: You are securing a commercial outdoor perimeter with multiple zones and want AcuSense classification to trigger per-camera strobe deterrence and 2-way audio without requiring operator action at each alert.
• Good match if: You are planning a scalable PoE system - 10 cameras now with confirmed plans to add more, and you want a 16-channel NVR with 6 spare powered ports ready to use without additional switching infrastructure.
• You may need a different model if: Your primary requirement is wide-area monitoring from fewer mounting points - a PTZ camera with optical zoom and auto-tracking, or a multi-sensor panoramic system, will cover significantly more ground per device and may be more cost-effective for that specific use case.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active per-camera deterrence - strobe, audible alarm, and 2-way audio - combined with AcuSense human/vehicle classification across 10 outdoor locations, all managed from a single 16-port PoE NVR.
• You may need a different model if: Your site has wide open areas where a single PTZ camera with optical zoom and auto-tracking would cover the same ground as 3 or 4 fixed cameras - a PTZ system will give you more flexible coverage per mounting point in that scenario.
• Pairs well with: A surveillance-grade SATA hard drive (4TB to 8TB recommended for this channel count) and a UPS battery backup to protect the NVR and PoE switch during power interruptions.

Common Questions

1. Does the strobe light trigger automatically or does someone have to activate it?

   It can trigger automatically. The DS-2CD2086G2H-I2U/SL is configured to activate the strobe and audible alarm when AcuSense classifies a detection event as human or vehicle within a defined zone. This is set up during commissioning via the NVR interface. Operators can also trigger the strobe and 2-way audio manually from the live view screen or via the Hik-Connect mobile app.

2. Will this kit work without a network connection or internet access?

   Yes, for local recording. The DS-7616NI-M2/16P records directly to the installed HDD without requiring an internet connection. All 10 cameras stream and record locally over the PoE network. Remote viewing via Hik-Connect does require an internet connection, but on-site recording and playback operate independently of any external network.

3. How much hard drive storage do I need for 10 cameras at 8MP?

   Plan for at least 4TB for approximately 14 days of continuous recording, or 8TB for closer to 30 days, assuming H.265+ compression at moderate bitrates. The DS-7616NI-M2/16P has 2 SATA bays, so you can install 2 drives independently or in a RAID 1 mirror configuration for redundancy. Hikvision's storage calculator is a useful tool for confirming your specific requirements before purchasing drives. This kit is supplied by Security Australia with no HDD included, so drives must be ordered separately.

4. Does AcuSense actually reduce false alarms compared to standard motion detection?

   Yes, significantly. Standard pixel-based motion detection triggers on any movement - wind-blown foliage, passing car headlights, animals. AcuSense uses deep learning to classify the moving object as human or vehicle before generating an alert. For outdoor sites with environmental movement, this reduces nuisance alerts substantially and means the strobe is not activating unnecessarily throughout the night.

5. Can I add more cameras to this system later?

   Yes. The DS-7616NI-M2/16P has 16 PoE ports and supports 16 channels, and this kit uses 10. The remaining 6 ports are immediately available to connect additional cameras without adding a PoE switch or replacing the NVR. Any Hikvision IP camera compatible with the NVR firmware can be added, including higher-resolution or specialist models.

6. Do all 10 cameras have 2-way audio, or only some?

   All 10 cameras include both a built-in microphone and a built-in speaker. Every DS-2CD2086G2H-I2U/SL in the kit supports 2-way audio independently - you can listen and speak through any individual camera from the NVR interface or the Hik-Connect app. There is no need for an external speaker or microphone at any camera location.

7. What is the maximum cable run length from the NVR to each camera?

   The standard PoE Ethernet limit is 100 metres per run using Cat5e or Cat6 cable from the NVR's PoE port to the camera. If camera positions are further than 100 metres from the NVR, a PoE extender or midspan injector will be required at the field end. This is a standard Ethernet limitation and applies to all PoE cameras regardless of brand.

8. Is the DS-7616NI-M2/16P NVR compatible with third-party IP cameras?

   Partially. The NVR supports ONVIF-compatible cameras from third-party brands, but AcuSense AI features, active deterrence triggers, and 2-way audio integration function fully only with Hikvision cameras. If third-party cameras are added, they will record and display normally but AI event management and strobe triggering will not be available for those channels.

Downloads & Resources

No downloads available for this product.
