Hikvision 10 Camera 8MP AcuSense DS-2CD2386G2H-IU Turret Kit with DS-7616NI-M2/16P 16CH PoE 8K NVR, No HDD Included

Model: DS-2CD2386G2H-IU / DS-7616NI-M2/16P NVR - No HDD - 10 Camera Kit

Who This Is For

Property managers specifying surveillance for medium-to-large sites - commercial premises, warehouses, schools, body corporate buildings, or multi-tenancy retail strips - will find this kit built around exactly the right combination of camera intelligence and recorder capacity. The DS-2CD2386G2H-IU is an 8MP AcuSense hybrid light turret that uses both infrared and warm white LEDs to produce full-colour footage after dark, while AcuSense AI filtering separates human and vehicle movement from animals and environmental noise before an alert is ever sent. Paired with the DS-7616NI-M2/16P 16-channel PoE NVR - which supports 8K decoding and offers 6 spare PoE channels after the 10 cameras are connected - this package is designed for sites that need a deployable system today with genuine room to expand. No HDD is included, allowing you to match storage capacity to your retention requirements.

What This System Actually Does

Who Buys This Model

• Commercial Fit-Out Installers: Integrators specifying a complete 10-camera system for offices, showrooms, or service centres where a single PoE cable run per position and AcuSense alert filtering reduces post-install callback rates.
• School and Childcare Facility Managers: Sites requiring audio capture at key positions such as gates, reception, and corridors, where the built-in microphone removes the need for separate audio cabling during fit-out.
• Warehouse and Logistics Operators: Facilities with long approaches, loading zones, and after-hours activity where human and vehicle classification from AcuSense ensures alerts are acted on rather than ignored.
• Body Corporate and Strata Managers: Multi-entry residential buildings that need a managed system covering car parks, lobbies, and lift areas, with room to add further cameras as the site requires.
• Retail Strip and Hospitality Venue Owners: Operators across multiple zones - shopfront, rear access, and car park - who need full-colour night footage for incident review and want a recorder with channel headroom for future expansion.

Honest Assessment

This kit does three things particularly well. The hybrid light cameras produce colour footage at night without requiring external lighting, the AcuSense classification on both cameras and NVR means alert fatigue is a genuine problem it addresses rather than ignores, and the 16-channel PoE NVR means you are not at capacity the day the system goes live. 8MP resolution gives you detail at distance that 4MP and 5MP systems cannot match for forensic review. Where this kit has limits: the turret form factor suits eave, soffit, and internal ceiling-edge mounting but is not the right choice for long-range narrow-corridor or perimeter detection where a bullet camera with a varifocal lens would be more appropriate. No HDD is included, so storage must be sourced and fitted before the system records. This kit is supplied by Security Australia and is suited to professional installation - DIY cabling at 10 camera positions across a commercial site carries meaningful risk of performance issues if cable runs, terminations, or PoE budgets are not correctly managed.

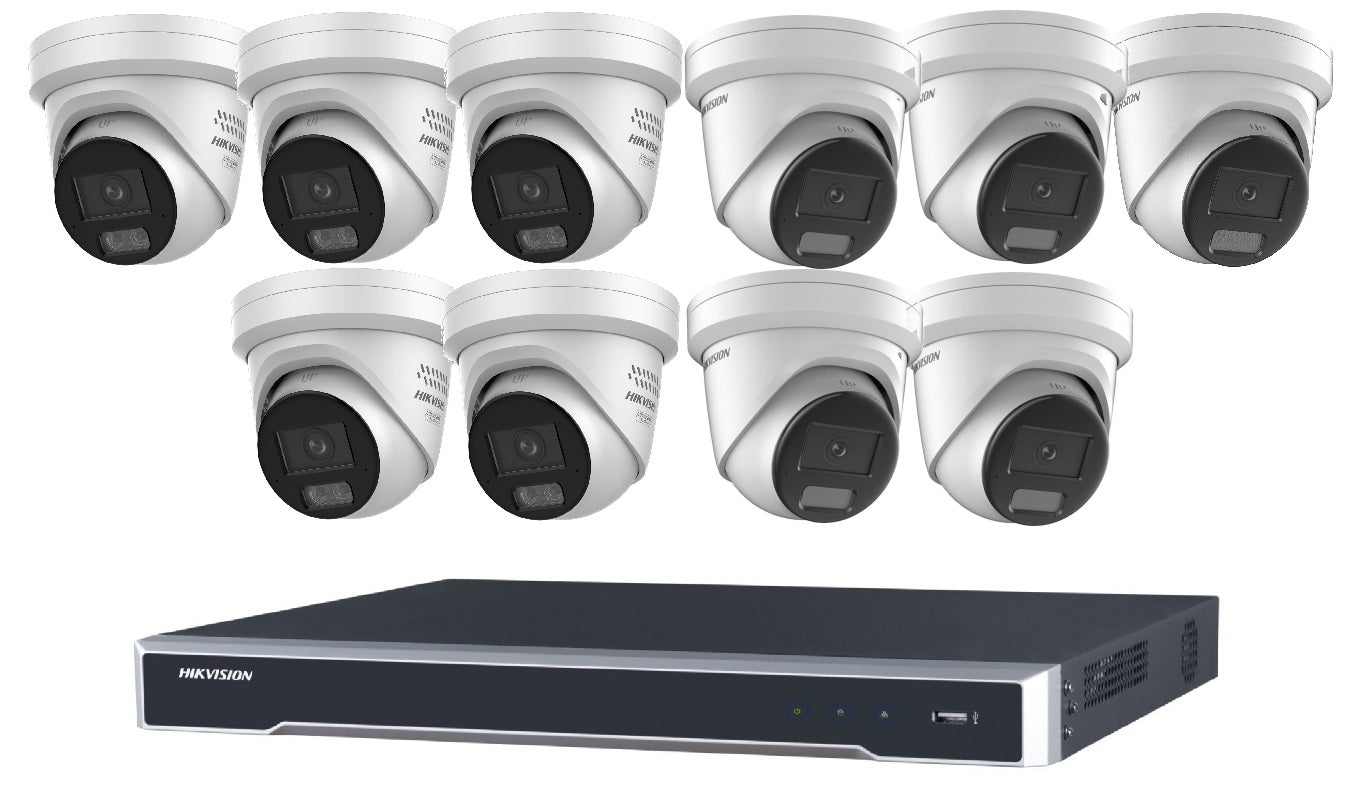

Complete Package Contents

• 10 x Hikvision DS-2CD2386G2H-IU - 8MP AcuSense Hybrid Light Turret Camera, Built-In Microphone
• 1 x Hikvision DS-7616NI-M2/16P - 16-Channel PoE NVR, 8K Decoding, 2 SATA Bays, No HDD Included

Before You Buy

Quick Fit Check

• Good match if: You are installing across a commercial site with 10 camera positions on eaves, soffits, or interior ceiling edges where a single Cat5e or Cat6 cable per camera is your preferred infrastructure and you need AcuSense alert filtering to manage notification volume.
• Good match if: Your site operates after dark and colour identification of people and vehicles at night is a requirement - the hybrid light turrets produce this without needing external lighting infrastructure at each position.
• You may need a different model if: Your primary requirement is long-range perimeter coverage along a fence line, driveway, or access road where a bullet camera with a varifocal or telephoto lens would provide far more effective coverage than a fixed-lens turret - explore bullet camera kits on securityaustralia.com.au for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a complete 10-camera system with AcuSense AI filtering, full-colour night vision, built-in audio, and a 16-channel PoE NVR that leaves room to grow - all in a single purchase.
• You may need a different model if: Your site requires long-range directional coverage along perimeter fence lines, driveways, or loading approaches greater than 40-50 metres - a bullet camera kit with varifocal lenses is a more appropriate solution for that application and is available on securityaustralia.com.au.
• Pairs well with: A surveillance-rated 3.5" SATA HDD (4TB or 8TB recommended for 10-camera continuous 8MP recording), a UPS for NVR power continuity, and a network switch if remote access via your router is required alongside the NVR's direct PoE connections.

Common Questions

1. Does this kit include a hard drive for recording?

   No. This kit does not include an HDD. The DS-7616NI-M2/16P NVR has 2 SATA bays ready to accept standard 3.5" surveillance-rated hard drives, but these must be sourced separately. Before purchasing a drive, calculate your required retention period - 10 cameras recording continuously at 8MP will consume significant storage, and a surveillance-rated drive is required for reliable 24/7 NVR operation.

2. Will these cameras record in colour at night without external lighting?

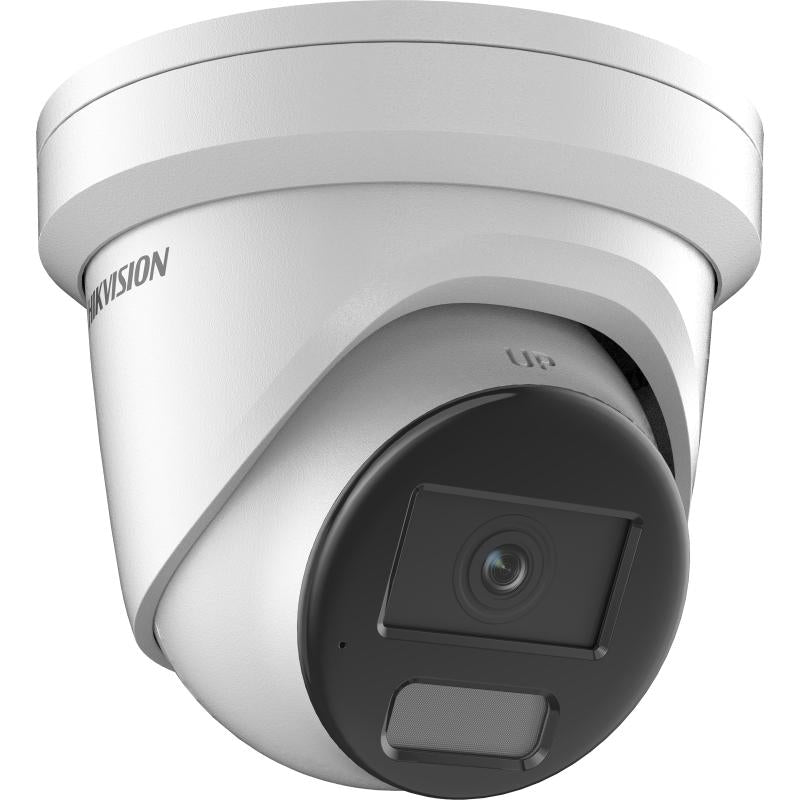

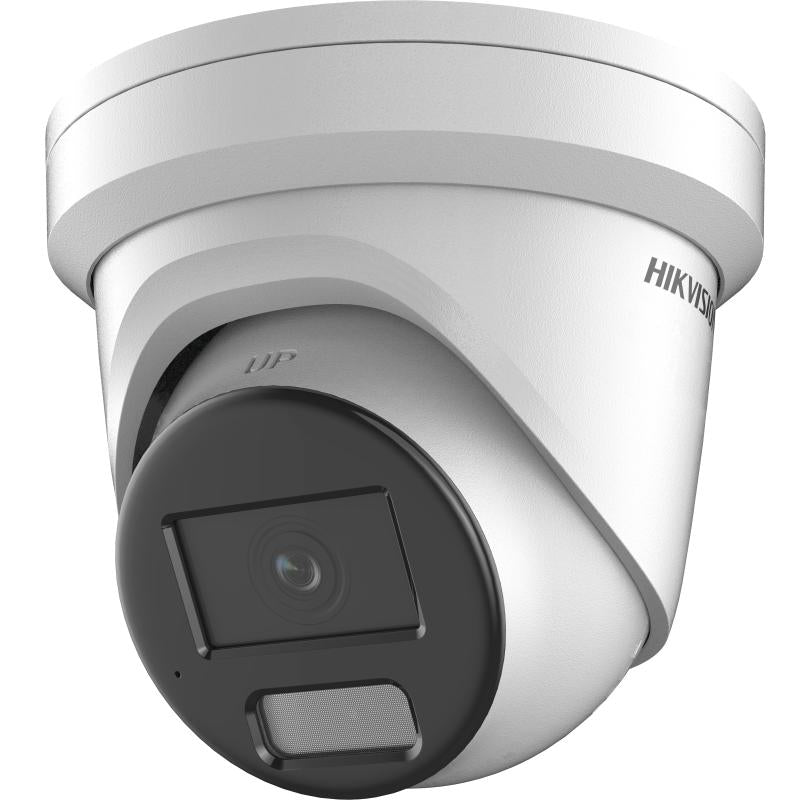

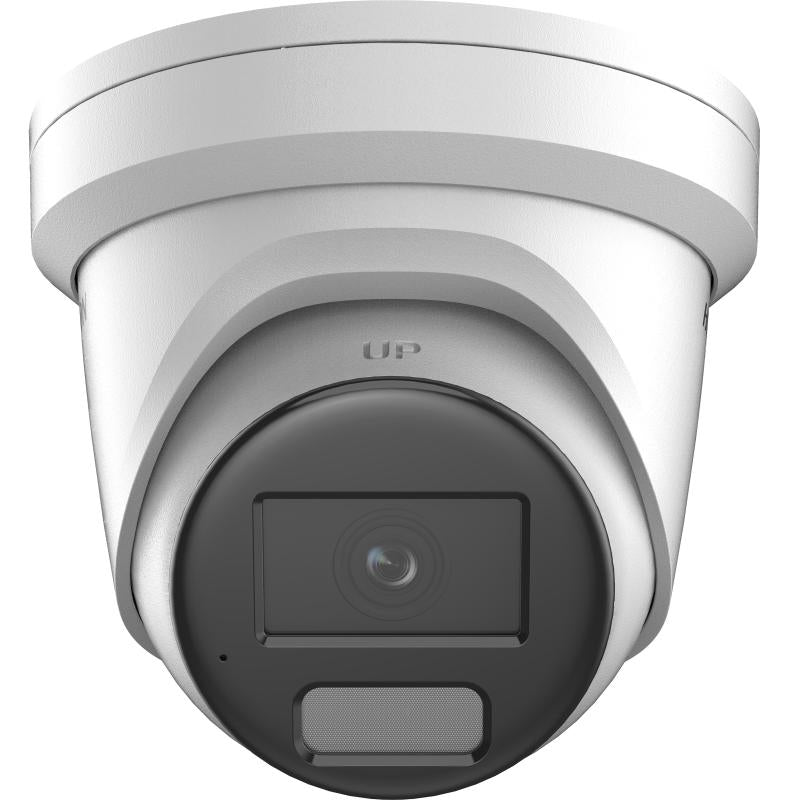

   Yes. The DS-2CD2386G2H-IU uses hybrid light technology, combining both infrared and warm white LEDs in each camera. When light levels drop, the warm white LED can activate to produce full-colour footage, allowing identification of clothing colour, vehicle colour, and other detail that standard IR-only cameras would render in monochrome. This operates without any additional lighting infrastructure.

3. What does AcuSense actually do on this system, and does it work on the NVR too?

   AcuSense works at both the camera and NVR level on this system. At the camera, deep-learning classification identifies whether motion in the frame is caused by a human or vehicle, and only those detections trigger alerts. The DS-7616NI-M2/16P NVR also supports AcuSense, meaning the search, playback, and smart event functions can filter recorded footage by human or vehicle target. This reduces both nuisance alerts during operation and the time required to locate specific events during a review.

4. Do the cameras in this kit have a built-in microphone?

   Yes. The "U" designation in the camera model number DS-2CD2386G2H-IU confirms a built-in microphone. Audio is captured at each camera position and recorded to the NVR via the PoE data connection - no separate audio cable is required. This is particularly useful at entry points, reception areas, or any position where verbal exchanges may be relevant to an incident review.

5. How many more cameras can I add to the NVR after this kit is installed?

   6 additional cameras. The DS-7616NI-M2/16P is a 16-channel NVR with 16 PoE ports. With 10 cameras connected from this kit, 6 PoE ports remain unused and available for future camera additions - up to the NVR's total channel limit and total PoE power budget. This makes the recorder a practical long-term platform for sites that are likely to expand their coverage over time.

6. What cable is required to connect the cameras to the NVR?

   Cat5e or Cat6 Ethernet cable - 1 run per camera position, connecting directly from the camera to a PoE port on the NVR. A single cable carries both power and data, so no separate power supply is needed at each camera location. Maximum recommended cable run is 100 metres. Cable and RJ45 connectors are not included in this kit and must be purchased separately based on your site's actual run lengths.

7. Is this system suitable for remote viewing on a phone or tablet?

   Yes. The DS-7616NI-M2/16P NVR supports remote access via Hikvision's Hik-Connect platform, allowing live viewing and playback from a smartphone or tablet. The NVR needs to be connected to your local network and internet router to enable remote access. Hikvision's app is available for both iOS and Android. Network configuration, including port forwarding or P2P setup, is typically completed during installation commissioning.

Cabling Considerations

• Cable Type: Cat5e or Cat6 Ethernet - shielded (STP) recommended for outdoor runs or environments with electrical interference such as industrial sites.
• Max Cable Run: 100 metres per camera run from NVR PoE port to camera. Runs approaching 100m should be tested for PoE voltage integrity before finalising camera placement.
• PoE Notes: All 10 cameras are powered directly from the NVR's 16 PoE ports - no separate injectors or switches required. Confirm the NVR's total PoE power budget is not exceeded when all 10 cameras are connected simultaneously.
• Wiring Tips: Run cable before finalising camera mounting positions. For outdoor runs in conduit, use UV-rated or direct-burial rated Cat6 where cable is exposed to sunlight or weather. Terminate all RJ45 connectors to T568B standard and test each run before connecting cameras to avoid fault-finding after installation is complete.

Downloads & Resources

No downloads available for this product.
