Hikvision 10 Camera 6MP AcuSense Security Kit with DS-7616NI-M2/16P 16CH 16 PoE 8K NVR, 10x DS-2CD2066G2H-IU Fixed Mini Bullet Cameras, Built-In Microphone, No HDD Included
- Sku: DS-2CD2066G2H-IU/DS-7616NI-M2/16P-NOHDD
- Vendor: SecurityAustralia
The Hikvision 10-camera 6MP AcuSense kit delivers intelligent perimeter protection for homes and businesses that need reliable AI-powered detection across a large number of entry points and outdoor zones. Each DS-2CD2066G2H-IU mini bullet includes a built-in microphone and AcuSense false alarm filtering, backed by a 16-channel NVR with full 16-port PoE built in. No HDD is included - budget for storage separately before installation.
Why This Model
- AcuSense AI filtering: Separates human and vehicle targets from animals and environmental movement, so alerts are actionable rather than constant noise.
- 16-port PoE NVR included: All 10 cameras draw power directly from the NVR over a single cable each, eliminating the need for a separate PoE switch or power supplies at every camera location.
- Built-in microphone on every camera: On-camera audio capture adds an evidentiary layer without requiring separate audio devices or additional cabling runs.

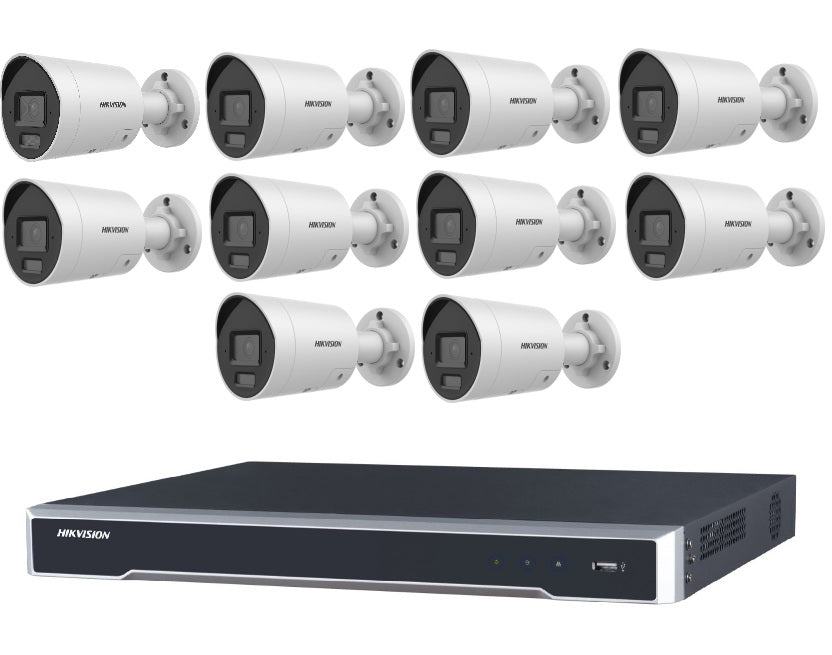

What's in the Box
- 10 x DS-2CD2066G2H-IU - 6MP AcuSense Fixed Mini Bullet Camera with Built-In Microphone
- 1 x DS-7616NI-M2/16P - 16-Channel 16-Port PoE 8K NVR
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: DS-2CD2066G2H-IU / DS-7616NI-M2/16P - No HDD
Who This Is For
When minimising false alarms across a multi-camera deployment is the priority, this kit is built for the job. Installers fitting out commercial premises, warehouses, schools, or mid-size residential estates will find the DS-2CD2066G2H-IU mini bullet cameras paired with the DS-7616NI-M2/16P NVR a well-matched combination. AcuSense classification filters events down to confirmed human and vehicle detections, which means the operator monitoring 10 cameras is not wading through alerts triggered by passing birds or wind-blown foliage. Each camera carries a built-in microphone, adding audio capture without additional hardware. The 16-channel, 16-port PoE NVR supports 8K recording and leaves 6 spare channels, so the system can grow as the site adds coverage zones. No HDD is included, allowing the installer or end user to specify storage capacity based on retention requirements.
What This System Actually Does
AcuSense Human & Vehicle Classification
The DS-2CD2066G2H-IU uses deep-learning AI to separate human and vehicle targets from background motion. This reduces nuisance alerts from animals, foliage, and lighting changes, so notifications sent to a phone or monitoring station correspond to events that actually warrant attention.
6MP Resolution
At 6 megapixels, these cameras capture wide scene coverage while retaining enough detail to identify individuals and read vehicle registration plates at moderate distances. The higher pixel count also supports digital zoom in playback without the image breaking down as quickly as a 2MP or 4MP frame would.
Built-In Microphone
Each camera has an integrated microphone, meaning audio is captured at every camera position without running separate audio cables or adding external microphones. This is useful for car parks, loading areas, or building entrances where ambient sound forms part of the recorded evidence.
16-Port PoE NVR with 6 Spare Channels
The DS-7616NI-M2/16P provides power and data to all 10 cameras over a single Cat cable each, with 6 channels remaining for future expansion. No separate PoE switch is required. The NVR supports up to 8K recording, so higher-resolution cameras added later are compatible with the existing recorder.

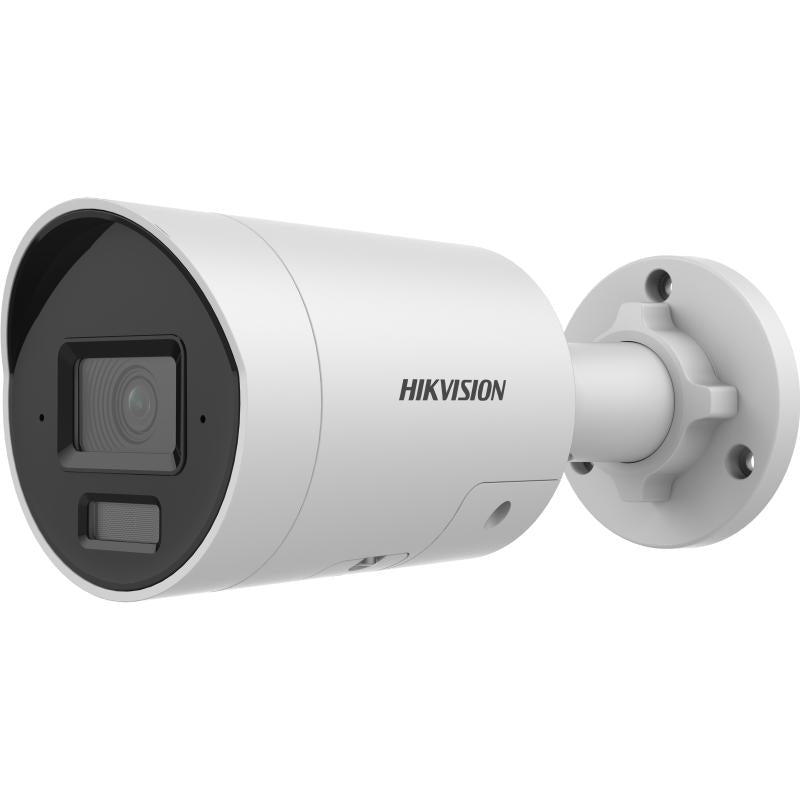

Mini Bullet Form Factor
The compact mini bullet housing mounts on walls, soffits, or eaves and directs the lens precisely at the target zone. The form factor provides a visible deterrent effect while fitting unobtrusively into commercial and residential exteriors where a larger bullet camera would look out of place.
No HDD - Installer-Specified Storage
The kit ships without a hard drive, which lets installers or buyers choose storage capacity based on actual retention needs - whether that is 7 days or 30 days across 10 cameras at 6MP. This avoids paying for undersized storage bundled into a fixed kit configuration.
Who Buys This Model
- Commercial property managers: Fitting out office buildings, retail precincts, or strata complexes where AcuSense-filtered alerts reduce the burden on staff responding to motion notifications around the clock.
- School and childcare facility operators: Deploying across multiple external zones - car parks, play areas, gate entries - where 6MP detail and audio capture are needed and the NVR's spare channels allow coverage to expand across stages.
- Warehouse and light industrial operators: Monitoring loading docks, perimeter fencing, and vehicle entry points where mini bullet cameras provide directional coverage and human/vehicle classification flags after-hours intrusions reliably.
- Security installers managing multi-site or staged deployments: Using the 16-channel NVR as a platform they can populate with 10 cameras now and add further cameras later without replacing the recorder.
- Buyers with specific storage retention requirements: Opting for this no-HDD configuration so they can fit a drive matched to their actual footage retention policy rather than accepting a bundled capacity that may be insufficient.
Honest Assessment
This kit does several things well. AcuSense classification across all 10 cameras is its strongest practical advantage - sites with genuine nuisance-alert problems benefit immediately from human and vehicle filtering without any additional licensing. The 6MP resolution provides useful image detail for identification, and the built-in microphone in each camera adds audio capture as standard. The 16-port PoE NVR simplifies cabling considerably and gives room to grow. The no-HDD configuration is genuinely useful for installers who size storage deliberately rather than accepting whatever is bundled. Where this kit is not the right fit: sites needing motorised zoom, long-range IR beyond what mini bullet cameras provide, or full-colour low-light performance at distance would be better served by a different camera type. The mini bullet is a focused, close-to-mid-range tool - not a wide-area or deep-perimeter solution. Available through Security Australia, this kit suits a broad range of commercial and semi-commercial deployments.
Complete Package Contents
- 10 x DS-2CD2066G2H-IU - 6MP AcuSense Fixed Mini Bullet Camera with Built-In Microphone
- 1 x DS-7616NI-M2/16P - 16-Channel 16-Port PoE 8K NVR, No HDD Included
Before You Buy
Installer Note: The DS-7616NI-M2/16P NVR supports up to 2 HDDs. Before commissioning, calculate your storage requirement based on 10 cameras at 6MP with H.265+ compression and your target retention period - most commercial sites running continuous recording will need at least a 6TB to 8TB drive for 14 days. Factor this cost into your quote. Also confirm your camera lens selection (typically 2.8mm or 4mm) before ordering, as the DS-2CD2066G2H-IU ships in different focal length variants and the lens cannot be changed in the field.
Network Note: With 10 cameras running at 6MP, your switch infrastructure feeding the NVR needs adequate uplink bandwidth if you are connecting to a central monitoring system or NAS. Each 6MP stream at H.265+ runs at approximately 2-4 Mbps typical, so plan your local network accordingly and ensure the NVR's uplink port is not saturated by simultaneous live view and recording traffic.
Quick Fit Check
- Good match if: You are equipping a commercial or semi-commercial site with 10 cameras now and want verified AcuSense filtering to keep alert volumes manageable across all positions from day one.
- Good match if: Your installer needs a staged deployment path - the 16-channel NVR accepts 6 additional cameras later without replacing the recorder, and all cameras run on existing Cat cabling via the built-in PoE ports.
- You may need a different model if: Your site has long perimeter runs, dark open areas requiring full-colour night imaging, or entry lanes needing ANPR-grade capture - in those scenarios a kit built around a different camera type from the Security Australia range would be a stronger match.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: You need AcuSense filtering across all 10 camera positions, built-in audio at every point, and a 16-channel PoE NVR platform that accepts future expansion without replacing the recorder.
- You may need a different model if: Your site requires full-colour night imaging, motorised zoom for distance monitoring, or ANPR-capable cameras - a kit built around a different camera type would be more appropriate for those requirements.
- Pairs well with: A surveillance-rated 3.5-inch NAS or desktop HDD (installed into the NVR's 2 drive bays) and a UPS to protect the NVR from power interruptions during storms or grid events.
Common Questions
-
Does this kit include a hard drive?
No. This kit ships with no HDD installed in the NVR. The DS-7616NI-M2/16P has 2 internal HDD bays, and you will need to supply and fit compatible surveillance-rated hard drives. For 10 cameras recording at 6MP with H.265+ compression, most installers fit at least a 6TB to 8TB drive to achieve a practical 14-day retention period under typical motion-triggered recording schedules. -
What does AcuSense actually do differently from standard motion detection?
AcuSense uses deep-learning classification to distinguish humans and vehicles from other movement in frame. Standard motion detection triggers on any pixel change - trees, rain, headlight sweep, animals. AcuSense filters those out and only sends an alert when the camera confirms a person or vehicle target. Across 10 cameras on a busy or semi-rural site, the difference in daily alert volume is substantial. -
Will these cameras work with an existing Hikvision NVR I already have on site?
Yes, in most cases. The DS-2CD2066G2H-IU cameras are standard Hikvision IP cameras and will connect to most Hikvision NVRs. However, AcuSense filtering and human/vehicle event classification require the NVR to support those features in its firmware. Older Hikvision NVRs may record the cameras but display them as standard motion channels without AI-based alerting. Using the included DS-7616NI-M2/16P ensures full AcuSense functionality. -
Do all 10 cameras have a built-in microphone?
Yes. The DS-2CD2066G2H-IU model includes a built-in microphone in each unit. Audio is recorded alongside video on the NVR without any additional microphone hardware or separate audio cabling. Note that recording audio in commercial or shared spaces may be subject to state and territory privacy legislation - confirm compliance requirements with your client before enabling audio recording. -
How many additional cameras can I add to this system later?
6 additional cameras. The DS-7616NI-M2/16P is a 16-channel NVR with 16 PoE ports. This kit uses 10 of those channels, leaving 6 ports and 6 recording channels free. Additional cameras connected later run on the same Cat cabling infrastructure - no separate PoE switch is needed provided the additional cameras fall within the NVR's total PoE power budget. -
Does the DS-7616NI-M2/16P NVR support remote viewing on a phone or tablet?
Yes. The DS-7616NI-M2/16P supports remote access via Hikvision's Hik-Connect and iVMS-4500 mobile applications. Live view, playback, and push notifications including AcuSense human/vehicle alerts are accessible remotely. A stable internet connection at the NVR's location and correct port forwarding or Hik-Connect cloud registration is required for remote access to function reliably. -
Is this kit suitable for outdoor installation in Australian weather conditions?
Yes. The DS-2CD2066G2H-IU mini bullet cameras carry an IP67 ingress protection rating, meaning they are rated against dust ingress and sustained water jets - suitable for exposed outdoor positions including eaves, fascia mounts, and external walls subject to direct rain. The NVR is designed for indoor installation in a cabinet, rack, or equipment room away from direct weather exposure. -
What lens options are available for the DS-2CD2066G2H-IU, and how do I choose the right one?
The DS-2CD2066G2H-IU is available in 2.8mm and 4mm fixed lens variants. The 2.8mm lens provides a wider field of view suitable for covering broad areas like car parks or building fronts at close range. The 4mm lens offers a narrower field of view with more reach, better suited to corridors, gate entries, or approaches where the target zone is further from the camera. Confirm the lens variant when ordering - the lens is fixed and cannot be swapped in the field. For further guidance on selecting the right variant for your site, the team at Security Australia can assist with coverage planning.
