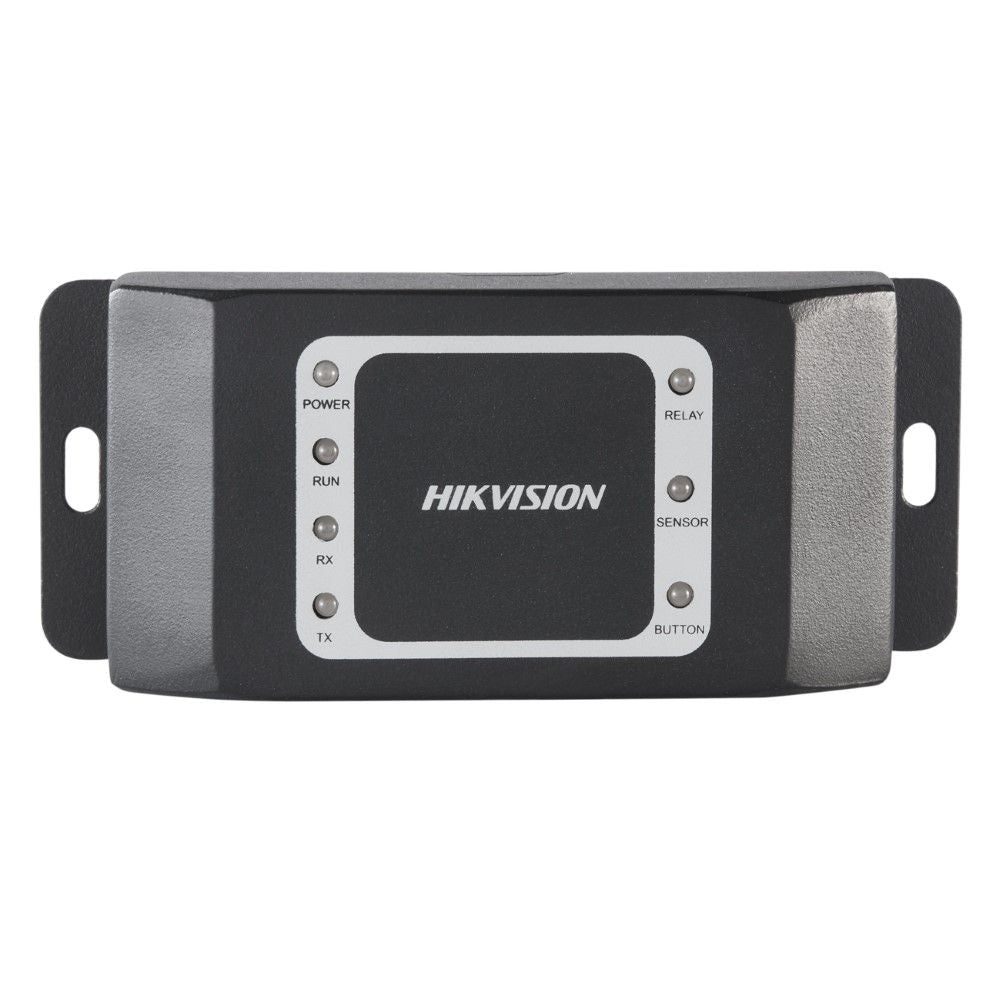

Hikivision DS-K2M060 Hikvision Secure Door Control Unit

Model: DS-K2M060

Who This Is For

When credential security and tamper-resistant door control are the priority, the Hikvision DS-K2M060 Secure Door Control Unit is built for installers specifying access control on sites where data integrity between the controller and readers matters. This unit is designed for commercial and institutional deployments - think corporate offices, government facilities, education campuses, and healthcare buildings - where standard Wiegand communication is considered a vulnerability. The DS-K2M060 addresses that directly by supporting encrypted, secure communication protocols between the control unit and connected card readers. For integrators building out a Hikvision access control system who need a hardened controller that reduces the risk of credential interception or card cloning at the reader-to-controller link, this unit fits that specification. It is not a standalone product - it works as part of a broader access control infrastructure.

What This Unit Actually Does

Who Buys This Model

• Security Integrators on Government or Corporate Fit-Outs: Sites with compliance requirements around credential protection specify secure communication controllers to meet standards that prohibit plain Wiegand on sensitive door points.
• Education and Healthcare Facility Managers: Campuses and health facilities controlling access to server rooms, medication stores, or restricted wings who need encrypted reader-to-controller links without moving to a full enterprise controller.
• Hikvision Access Control Installers: Integrators already deploying Hikvision card readers and management software who need a hardened door control module that slots into an existing platform rather than introducing a third-party controller.
• IT Managers Securing Server Rooms and Comms Rooms: Single-door control on high-value equipment rooms where credential cloning risk is taken seriously and a tamper-alarmed controller is the specified solution.

Honest Assessment

The DS-K2M060 does one thing that most basic door controllers skip: it encrypts communication between the reader and the panel. That matters on sites where Wiegand sniffing is a genuine threat, and it positions this unit above commodity controllers in security-conscious deployments. Door status feedback, lock relay control, and tamper detection are all handled cleanly within the Hikvision ecosystem. Where it will not serve you is in mixed-brand environments - this unit is designed for Hikvision infrastructure, and pairing it with third-party readers or non-Hikvision access software is not its intended use case. It is also a door-level controller rather than a multi-door access panel, so larger installations requiring centralised multi-door management will need to look at Hikvision's full access control panel range, also available through Security Australia. For a purpose-built, single-door secure controller in a Hikvision deployment, it covers the specification well.

Before You Buy

Quick Fit Check

• Good match if: You are installing a Hikvision access control system and need a single-door controller with encrypted reader communication to harden the credential path on a sensitive door point.
• Good match if: Your site specifies tamper-alarmed door controllers and you are already running Hikvision access management software for centralised event logging and user administration.
• You may need a different model if: You need to control multiple doors from a single panel - a Hikvision multi-door access control panel will serve that requirement more efficiently and at lower cost per door point.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single-door controller with encrypted reader-to-panel communication to close the Wiegand vulnerability gap on a Hikvision access control deployment.
• You may need a different model if: You are managing 4 or more doors from one location - a Hikvision multi-door access control panel will handle channel count more cost-effectively than deploying individual DS-K2M060 units per door.
• Pairs well with: A compatible Hikvision secure card reader, a Hikvision access control management server or NVR with access control capability, and an appropriate fail-safe or fail-secure electric lock for the door type.

Common Questions

1. Will this work with my existing Wiegand card readers?

   No - not in a way that uses the security feature. The DS-K2M060 is designed around Hikvision's secure encrypted reader protocol, not standard Wiegand. If you connect a plain Wiegand reader, you lose the encrypted communication that justifies choosing this unit over a standard door controller. Confirm your readers support Hikvision's secure reader interface before purchasing.

2. Does this unit manage more than 1 door?

   No. The DS-K2M060 is a single-door control unit. Each door point on your site requires its own DS-K2M060. For installations with 4 or more doors, a Hikvision multi-door access panel will be more practical and cost-efficient per door point.

3. Does this unit store access credentials locally, or does it require a server connection?

   The DS-K2M060 is designed to operate as part of a Hikvision access control platform. For confirmed offline storage capacity and fallback behaviour during network loss, refer to the product datasheet - the unit is documented to work within a managed Hikvision system rather than as a fully standalone offline controller.

4. What is the tamper alarm output used for?

   It triggers an alert when the unit's housing is physically interfered with - opened, moved, or damaged. In a managed Hikvision platform, this generates a logged event. On high-security sites, the tamper output can also be wired into an alarm panel input for immediate response, depending on your site's alarm infrastructure.

5. Does this support both fail-safe and fail-secure locks?

   Yes - the relay lock output is compatible with both fail-safe (unlocks on power loss) and fail-secure (remains locked on power loss) electric locks. The choice between fail-safe and fail-secure depends on your site's fire and safety requirements, not the DS-K2M060 itself. Confirm the correct lock type with your building's fire safety specification before installation. The DS-K2M060 is stocked by Security Australia alongside compatible Hikvision access control readers and management hardware.

6. Why does encrypted reader communication matter - isn't standard Wiegand secure enough?

   No - standard Wiegand transmits card credential data in plain text on the cable between the reader and controller. Anyone with physical access to that cable run can intercept and replay credentials using inexpensive tools. The DS-K2M060 replaces that plain-text signal with an encrypted communication channel, meaning intercepted data cannot be used to clone a credential. For general low-risk environments standard Wiegand is widely used, but for server rooms, healthcare, government, or any site with motivated threat actors, encrypted reader communication is a meaningful control.

Cabling Considerations

• Reader Cable: Use screened cable for the reader-to-controller run to minimise signal interference, particularly on runs longer than 10 metres or in environments with high electrical noise.
• Lock Output Cabling: Size your lock supply cable to the current draw of the lock being used. Voltage drop over longer runs can cause unreliable lock operation - calculate your run length against your lock's operating voltage and current specifications.
• Door Sensor and Exit Button: Standard 2-core alarm cable is suitable for door sensor and exit button inputs. Keep these runs as short as practical and protect them from physical access where possible.
• Power Supply: The DS-K2M060 requires an external power supply - confirm the correct voltage and current rating from the datasheet before selecting your power supply unit. Factor in the lock's power draw when sizing the supply.
• Conduit and Protection: All cable runs between the controller and door hardware should be run in conduit or cable tray where accessible. Exposed cable on a secure door point undermines the tamper protection the DS-K2M060 provides at the controller level.

Downloads & Resources

• DS-K2M060 Datasheet
• DS-K2M060 User Manual
