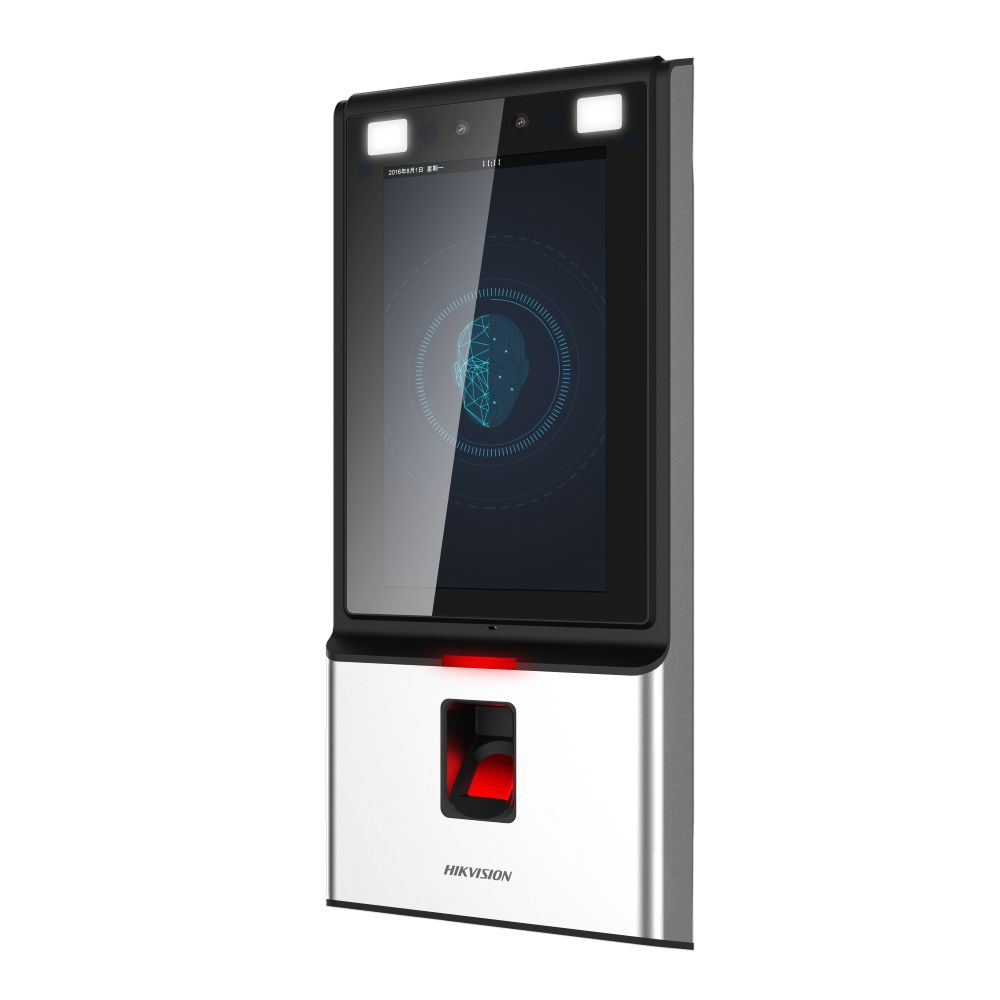

Hikivision DS-K1T604M Facial Recognition Terminal Access Control

Model: DS-K1T604M

Who This Is For

For facilities managers and access control installers who need touchless, credential-free entry at staffed buildings, corporate offices, financial premises, or high-traffic indoor entry points. The Hikvision DS-K1T604M is a wall-mounted face recognition terminal built around a deep learning algorithm that identifies enrolled faces in under 0.5 seconds with greater than 99% accuracy - removing the need for staff to carry cards or remember PINs. With a 10,000-face capacity, a 50,000-card database, and a 7-inch touch screen for on-screen interaction, it suits mid-to-large building deployments where credential management overhead is a genuine operational problem. The built-in Mifare card module means it can also fall back to card-based authentication where needed, giving installers a single device that handles both access methods from one mounting position.

Download Product Datasheet (PDF)

What This Product Actually Does

Who Buys This Model

• Corporate Building Managers: Mid-to-large offices with 50 or more staff where issuing and replacing access cards creates ongoing administrative overhead - the 10,000-face capacity covers large workforces without credential hardware.
• Access Control Installers: Integrators specifying a single wall-mount device that handles face recognition and card reading while wiring directly to an electric strike or magnetic lock via the built-in lock output - no separate controller enclosure required.
• Financial and Government Premises: Sites requiring a documented, time-stamped audit trail of entry events - the 50,000-event log and Gigabit network interface support centralised reporting to building management or security platforms.
• Multi-Tenancy Commercial Buildings: Property managers running mixed-occupancy buildings who need to support both face-enrolled permanent staff and Mifare card-carrying contractors or short-term tenants from one device.

Honest Assessment

The DS-K1T604M handles its core job well: fast, accurate face recognition at indoor entry points with the practical backup of Mifare card authentication. The confirmed 99% accuracy rate and sub-0.5-second recognition time are meaningful at high-traffic doors where throughput matters. The full I/O suite - RS-485, Wiegand, lock output, alarm connections - means experienced installers can wire it directly into most existing access control infrastructure without adding a separate controller. Available through Security Australia, this model is positioned for permanent indoor installation or outdoor use when fitted with an appropriate protective shell. It will not operate outdoors unprotected, and the 0.3 m to 1 m recognition range means it is not suitable for vehicle-mounted or barrier-approach scenarios where subjects are further away. Buyers requiring outdoor-rated standalone face recognition with a weatherproof housing should assess purpose-built outdoor terminals, and sites needing PIN-only or fingerprint authentication alongside face recognition should confirm whether a fingerprint-capable variant better suits their specification.

Before You Buy

Quick Fit Check

• Good match if: You are installing at an indoor corporate or commercial entry point with a large permanent workforce - the 10,000-face and 50,000-card capacity scales well beyond what most single-site installations require.
• Good match if: Your site has existing RS-485 or Wiegand-based access control infrastructure - the built-in interfaces allow direct integration without replacing the existing controller or wiring.
• You may need a different model if: The installation is fully exposed outdoors without a protective shell, or recognition distances beyond 1 m are required - an outdoor-rated face recognition terminal designed for longer-range or harsh-environment deployment would be a better fit; browse the access control range at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single wall-mount terminal that handles both face recognition and Mifare card authentication with full access control I/O built in - no separate controller enclosure required.
• You may need a different model if: The site requires fingerprint authentication as a primary or secondary factor alongside face recognition - a multi-biometric access control terminal combining face and fingerprint would be the more appropriate product type.
• Pairs well with: A compatible access control management platform or NVR-based security system to centralise event logs, manage face enrollment across multiple terminals, and integrate with video verification at the same entry point.

Common Questions

1. Does this terminal work without a network connection?

   Yes. The DS-K1T604M supports stand-alone operation, meaning locally enrolled face data and card credentials are stored on the device itself. Staff can authenticate and doors can be released even during a network outage. Network connectivity is used for enrollment sync, event uploads, and central management - not as a requirement for basic operation.

2. How accurate is the face recognition and will it false-accept unauthorised people?

   The confirmed accuracy rate is greater than 99% using a GPU-driven deep learning algorithm. In practical terms, false acceptance at that threshold is rare under normal indoor lighting conditions. The 1:N matching approach means the system searches the entire enrolled face database and returns the closest match above the confidence threshold - it does not simply compare two photos. Enrolment quality (clear, well-lit face images) directly affects real-world accuracy.

3. Will this terminal work with our existing Wiegand access controller?

   Yes. The DS-K1T604M includes a Wiegand input interface, allowing it to connect directly to an existing Wiegand-based access controller. In this configuration the terminal handles face recognition and card reading, then sends the credential signal downstream to the existing controller for door release decisions. This avoids rewiring the existing door hardware.

4. Does the DS-K1T604M support PoE power?

   No. This terminal requires 12 VDC at 3 A (36 W) supplied via a centralized power supply - PoE is not supported. A dedicated 12V power cable must be run to the mounting position in addition to the Cat5e or Cat6 network cable. Factor this into your cable route planning before installation, as both runs need to reach the wall mount point.

5. What is the maximum number of people that can be enrolled?

   The face capacity is 10,000 individuals stored in JPG or JPEG format, and the card database holds up to 50,000 Mifare card credentials separately. For most single-site commercial deployments this is well above what is needed. The event log retains the last 50,000 access events before the oldest records are overwritten, so regular export to a management platform is recommended on high-traffic sites. This terminal is part of the Security Australia access control range.

6. Can this terminal be installed outdoors?

   Not without an additional protective shell. The DS-K1T604M is rated for indoor use as a standard installation. Outdoor use is supported only when the unit is installed within a suitable weatherproof enclosure or shell. The operating temperature range of -20°C to +65°C is broad enough for most Australian climates, but direct exposure to rain or sunlight without housing protection is not supported by the standard unit.

7. What height range does the face recognition camera support?

   The dual-lens camera is optimised for individuals between 140 cm and 190 cm tall. This covers the realistic height range for most adult workplace populations. For installations with users consistently outside this range - such as environments serving children or requiring wheelchair-height recognition - mounting position adjustment alone will not resolve the limitation, and a different terminal type should be assessed.

Product Video Samples

Downloads & Resources

• Quick Start Guide - DS-K1T604 Series (PDF)
• User Manual - DS-K1T604 Series (PDF)
• Product Spec Sheet (PDF)
