  • Sku: QNV-8080R
  • Vendor: SecurityAustralia

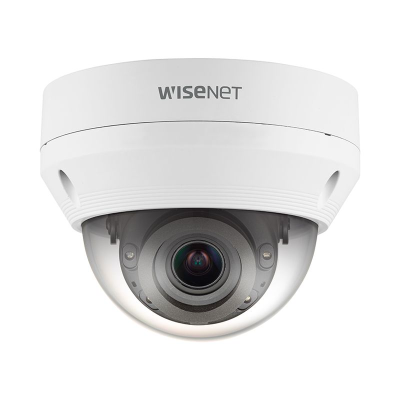

Hanwha Wisenet QNV-8080R NEW-Q 5MP Outdoor VF Dome Camera, H.265, 30m IR, IP66, IK10, 3.2-10mm

$560.00 AUD
 per
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

5M H.265 IR Dome Camera

The QNV-8080R also includes advanced video analytics like motion detection, tampering detection, and defocus detection, enhancing situational awareness. With a rugged IP66 and IK10-rated housing, this camera is well-protected against harsh weather and vandalism, making it suitable for outdoor installations. It also supports WiseStream II technology for improved bandwidth efficiency and offers multiple streaming options for flexible video management.

Key Features

  • Max. 5 Megapixel (2592 x 1944) resolution
  • 3.2~10mm (3.1x) motorized varifocal lens
  • 0.15 Lux (Color), 0 Lux (B/W, IR LED on)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Tampering, Motion detection, Defocus detection
  • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • IR Viewable length 30m (98.42ft)
  • IP66, IK10, PoE

Code/SKU: QNV-8080R
Quick Specs:

  • Edge Storage: Micro SD/SDHC/SDXC, 1 slot, 128GB
  • Memory: 512MB RAM, 256MB Flash

Specifications

Video
Imaging Device 1/2.8" CMOS
Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(@5MP Max. 2fps)
Min. Illumination Color: 0.15Lux(F1.6, 1/30sec, 30IRE)
BW: 0.015Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
Angular Field of View H: 101°(Wide)~31°(Tele)
V: 73°(Wide)~23°(Tele)
D: 134°(Wide)~38°(Tele)
Focus Control Simple focus
Lens Type DC auto iris(IR Corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset
Light Type IR LED (850nm)
Light Viewable Length 30m(98.42ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -30°C~+55°C(-22°F~+131°F) / 0~90% RH(non-condensing)
* Start up should be done at above -20°C
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~90% RH
Certification IP66, IK10
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 8.90W, typical 6.60W
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product Dimensions / Weight ø137.0x106.1mm(ø5.39x4.18"), 700g(1.54 lb)
Hanging Mount (Dome) SBP-301HMW2
Backbox SBV-136BW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 43.3m(141.94ft) / Tele: 185.7m(609.09ft)
Observe (63PPM/ 19PPF) Wide: 17.3m(56.78ft) / Tele: 74.3m(243.64ft)
Recognize (125PPM/ 38PPF) Wide: 8.7m(28.39ft) / Tele: 37.1m(121.82ft)
Identify (250PPM/ 76PPF) Wide: 4.3m(14.19ft) / Tele: 18.6m(60.91ft)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet QNV-8080R NEW-Q 5MP Outdoor VF Dome Camera, H.265, 30m IR, IP66, IK10, 3.2-10mm

$560.00 AUD
 per

The Hanwha Vision QNV-8080R is a robust 5MP H.265 IR Dome Camera designed for high-quality, reliable surveillance in various environments. It features a motorized varifocal lens with a 3.1x optical zoom, allowing for flexible monitoring over different distances. The camera supports multiple video codecs, including H.265, H.264, and MJPEG, providing efficient compression and bandwidth usage. Its day-and-night functionality, with an IR viewable length of up to 30 meters, ensures clear imaging in both well-lit and low-light conditions.

The QNV-8080R also includes advanced video analytics like motion detection, tampering detection, and defocus detection, enhancing situational awareness. With a rugged IP66 and IK10-rated housing, this camera is well-protected against harsh weather and vandalism, making it suitable for outdoor installations. It also supports WiseStream II technology for improved bandwidth efficiency and offers multiple streaming options for flexible video management. The camera’s operational temperature range from -30°C to 55°C and Power over Ethernet (PoE) capability make it versatile and easy to install. Additionally, the camera's support for edge storage via a microSD slot (up to 128GB) ensures continuous recording even in network outages.

Features

  • Max. 5 Megapixel (2592 x 1944) resolution
  • 3.2~10mm (3.1x) motorized varifocal lens
  • 0.15 Lux (Color), 0 Lux (B/W, IR LED on)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Tampering, Motion detection, Defocus detection
  • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • IR Viewable length 30m (98.42ft)
  • IP66, IK10, PoE
Technical Specifications:
Video
Imaging Device 1/2.8" CMOS
Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(@5MP Max. 2fps)
Min. Illumination Color: 0.15Lux(F1.6, 1/30sec, 30IRE)
BW: 0.015Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) motorized varifocal
Max. Aperture Ratio F1.6(Wide)~F2.9(Tele)
Angular Field of View H: 101°(Wide)~31°(Tele)
V: 73°(Wide)~23°(Tele)
D: 134°(Wide)~38°(Tele)
Focus Control Simple focus
Lens Type DC auto iris(IR Corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
