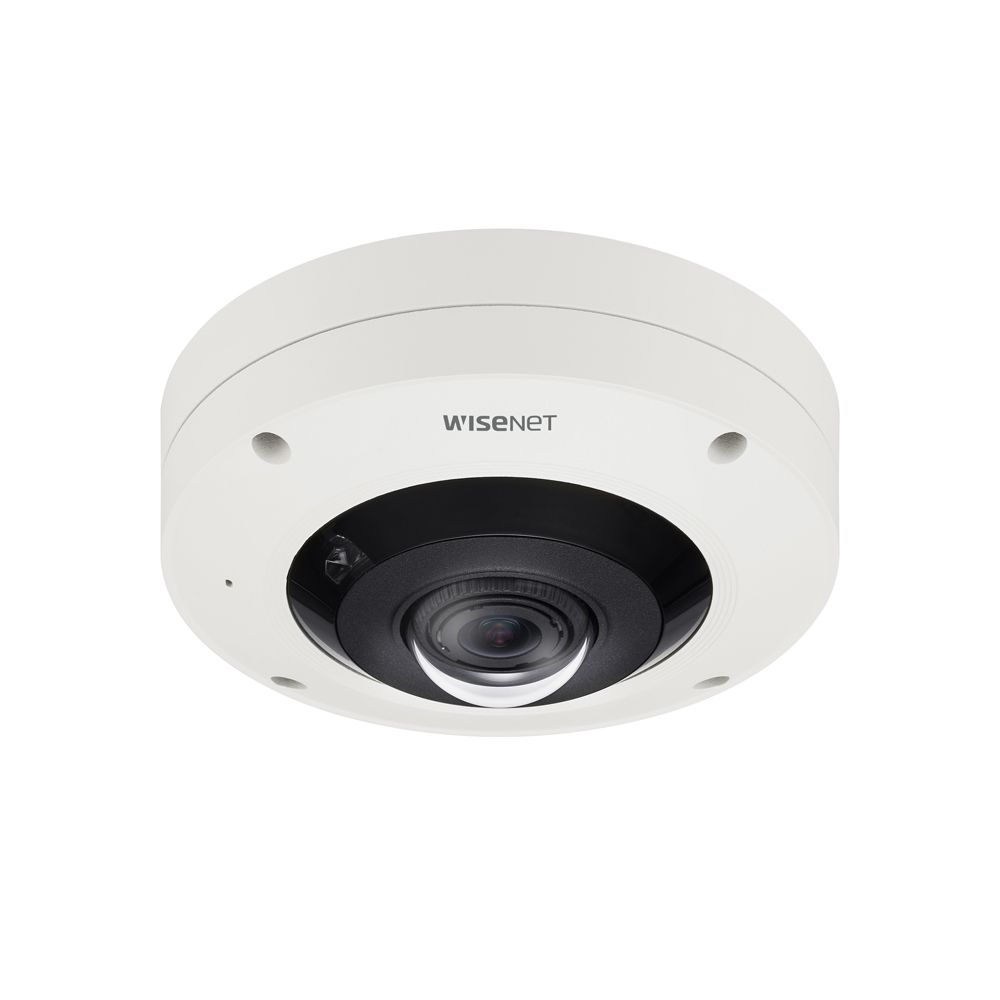

12MP IR Fisheye Camera
The device is built with high-performance encoding technology to deliver smooth and efficient video streams. Its user-friendly interface allows for easy configuration and remote management through compatible software. The XNF-9010RV is designed with a rugged, weather-resistant casing, ensuring longevity and durability in various environmental conditions.
Key Features
Code/SKU: XNF-9010RV
Quick Specs:
| Video | |
|---|---|
| Imaging Device | 1/2.3" CMOS |
| Resolution | Original view(1:1): 3008x3008~480x480 Double panorama(2:1): 3584x1792~640x320 Single panorama(4:1): 3584x896~640x160 Quad view: 3584x2688~640x480 Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480 |
| Max. Framerate | H.265/H.264: Original view-Max. 30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max. 30fps/25fps@3584x1792(60Hz/50Hz) Single panorama-Max. 30fps/25fps@3584x896(60Hz/50Hz) MJPEG: Max. 30fps(@9MP Max. 5fps) |
| Min. Illumination | Color: 0.39Lux(F2.2, 1/30sec, 30IRE) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.08mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control |
| Video Rotation | Flip, Mirror |
| Analytics | Analytics events - Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP/SFTP - File upload(video clip): FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 10m(32.8ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66, NEMA4X, IK10 |
| Input Voltage | PoE(IEEE802.3af, class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W |
| Mechanical | |
| Color / Material | White / Aluminum Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø160x72mm(ø6.30x2.83"), 1100g(2.43 lb) |
| Compatible Conduit hole / Gangbox | single, double, 4" octagon, 4" square |
| Hanging Mount (Dome) | SBP-167HMW |
| Ceiling Mount (Assy) | SBP-300CMW |
| Wall Mount | SBP-300WMW/WMW1, SBP-390WMW2 |
| Pole Mount | SBP-300PMW1 |
| In-ceiling Mount | SHD-1600FPW |
| Parapet Mount | SBP-300LMW |
| Corner Mount | SBP-300KMW1 |
| Tilt Mount | SBP-160TMW1 |
| Cabinet | SBP-300NBW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471 |
| Environment | EN IEC 63000 IEC 60529 IP66, IEC 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | 3.5m(11.48ft) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hanwha Wisenet HAN-XNF-9010RV 12MP Outdoor Fisheye Camera, H.265, 30fps, 120dB WDR, 10m IR
The Hanwha Vision 12MP IR Fisheye Camera, model XNF-9010RV, offers cutting-edge technology for comprehensive surveillance. With its 12-megapixel resolution, it provides ultra-high-definition image quality, capturing detailed and crisp visuals even in challenging lighting conditions. The camera's 180-degree fisheye lens ensures a panoramic view, eliminating blind spots and covering wide areas with a single unit. Its infrared capabilities enable effective night vision, allowing for clear imaging in total darkness up to 30 meters. Designed for versatile installation, it supports both wall and ceiling mounts, adapting to various surveillance needs. The XNF-9010RV features advanced video analytics, including motion detection and line crossing alerts, enhancing security by triggering notifications for suspicious activities. Its durable construction is suited for indoor and outdoor environments, ensuring reliability in diverse conditions.
The camera is equipped with an integrated microphone for audio capture, complementing its video recording capabilities. It also supports multiple streaming protocols, facilitating seamless integration with various network video recorders and management systems. The device is built with high-performance encoding technology to deliver smooth and efficient video streams. Its user-friendly interface allows for easy configuration and remote management through compatible software. The XNF-9010RV is designed with a rugged, weather-resistant casing, ensuring longevity and durability in various environmental conditions. The camera's built-in image stabilization feature helps maintain clear and steady footage, even in high-vibration settings. With its sleek and modern design, it blends well into both residential and commercial settings. This camera represents a robust solution for users seeking comprehensive coverage and high-resolution imaging in their surveillance systems.
Features
| Video | |
|---|---|
| Imaging Device | 1/2.3" CMOS |
| Resolution | Original view(1:1): 3008x3008~480x480 Double panorama(2:1): 3584x1792~640x320 Single panorama(4:1): 3584x896~640x160 Quad view: 3584x2688~640x480 Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480 |
| Max. Framerate | H.265/H.264: Original view-Max. 30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max. 30fps/25fps@3584x1792(60Hz/50Hz) Single panorama-Max. 30fps/25fps@3584x896(60Hz/50Hz) MJPEG: Max. 30fps(@9MP Max. 5fps) |
| Min. Illumination | Color: 0.39Lux(F2.2, 1/30sec, 30IRE) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.08mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Off / Max Gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control |
| Video Rotation | Flip, Mirror |
| Analytics | Analytics events - Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP/SFTP - File upload(video clip): FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 10m(32.8ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66, NEMA4X, IK10 |
| Input Voltage | PoE(IEEE802.3af, class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W |
| Mechanical | |
| Color / Material | White / Aluminum Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø160x72mm(ø6.30x2.83"), 1100g(2.43 lb) |
| Compatible Conduit hole / Gangbox | single, double, 4" octagon, 4" square |
| Hanging Mount (Dome) | SBP-167HMW |
| Ceiling Mount (Assy) | SBP-300CMW |
| Wall Mount | SBP-300WMW/WMW1, SBP-390WMW2 |
| Pole Mount | SBP-300PMW1 |
| In-ceiling Mount | SHD-1600FPW |
| Parapet Mount | SBP-300LMW |
| Corner Mount | SBP-300KMW1 |
| Tilt Mount | SBP-160TMW1 |
| Cabinet | SBP-300NBW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471 |
| Environment | EN IEC 63000 IEC 60529 IP66, IEC 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | 3.5m(11.48ft) |
