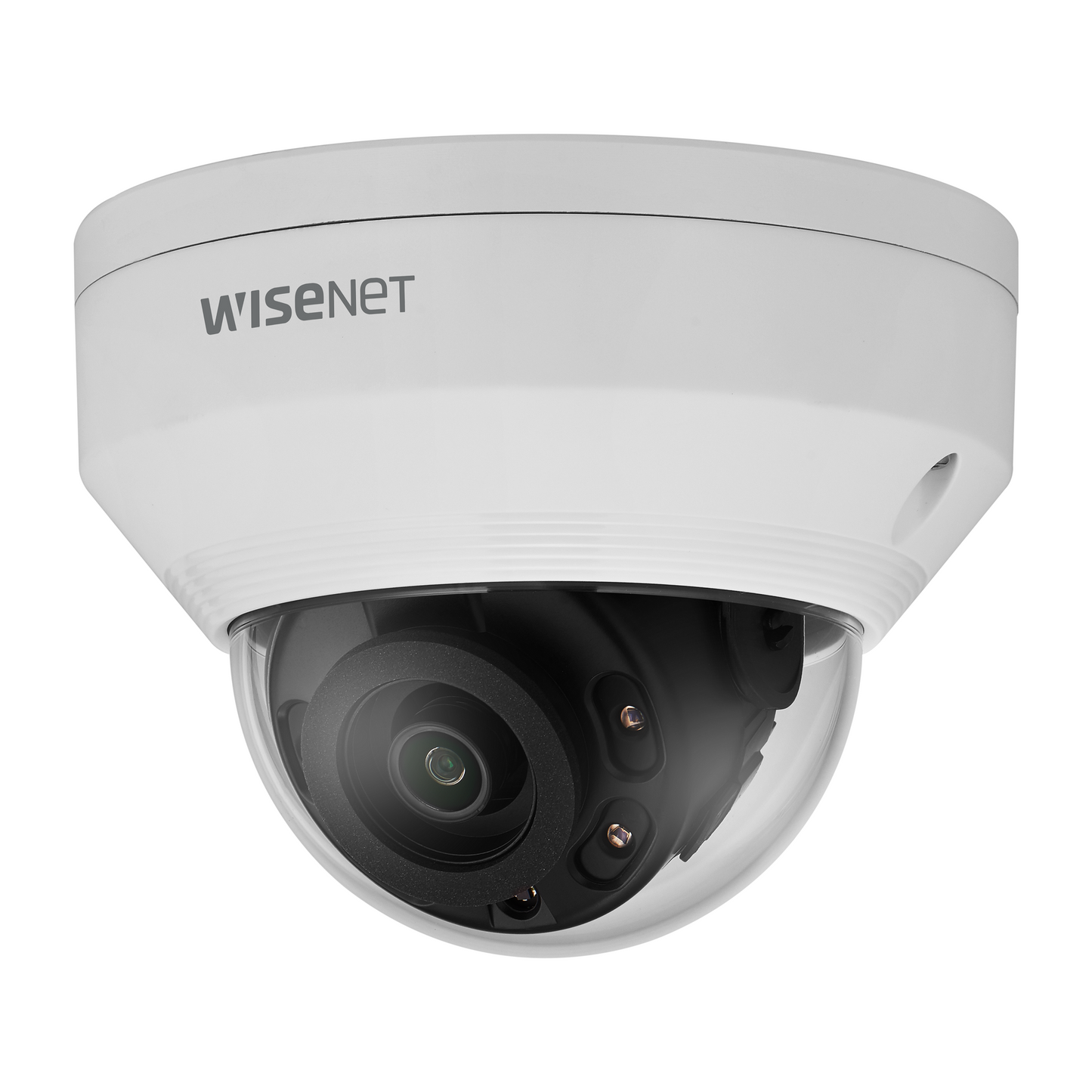

Hanwha Vision HV-ANV-L7012R 4MP H.265 NW IR Outdoor Vandal Dome Camera
4MP IR Outdoor Vandal Dome
The 4MP IR Outdoor Vandal Dome Camera, model ANV-L7012R, from Hanwha Vision offers high-resolution surveillance with its 4MP image sensor, ensuring clear and detailed footage. Designed for outdoor use, it features a robust vandal-resistant housing to withstand tampering and harsh environmental conditions. The camera is equipped with infrared LEDs for effective night vision, providing clear images even in complete darkness up to 30 meters. Its compact dome design allows for discreet installation, making it suitable for a variety of settings.
Key Features
- 4MP resolution, Up to 30fps(H.265/H.264)
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3mm lens with 107.5° HFoV
- IR viewable length: 20m
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot
- IP66, IK10
Code/SKU: ANV-L7012R
Quick Specs:
- Focal Length (Zoom Ratio): 3mm fixed focal
- Max. Aperture Ratio: F1.6
- Angular Field of View: H: 98.3° / V: 54.2° / D: 114.6°
- Min. Object Distance: 1.1m (3.6ft)
- Focus Control: Fixed
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The 4MP IR Outdoor Vandal Dome Camera, model ANV-L7012R, from Hanwha Vision offers high-resolution surveillance with its 4MP image sensor, ensuring clear and detailed footage. Designed for outdoor use, it features a robust vandal-resistant housing to withstand tampering and harsh environmental conditions. The camera is equipped with infrared LEDs for effective night vision, providing clear images even in complete darkness up to 30 meters. Its compact dome design allows for discreet installation, making it suitable for a variety of settings. The camera supports H.265 compression, optimizing storage and bandwidth efficiency while maintaining high image quality. With a 2.8mm fixed lens, it offers a wide field of view for comprehensive monitoring. The ANV-L7012R also includes advanced features such as motion detection and tampering alarms to enhance security. It supports both local and remote access, allowing for flexible monitoring options. The camera is easy to install with its included mounting accessories, making it a practical choice for both residential and commercial applications. Its durability and performance make it a reliable solution for effective surveillance.
Features
- 4MP resolution, Up to 30fps(H.265/H.264)
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3mm lens with 107.5° HFoV
- IR viewable length: 20m
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot
- IP66, IK10
Technical Specifications:
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions; MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.13Lux (F1.6, 1/30sec); B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 98.3° / V: 54.2° / D: 114.6° |
| Min. Object Distance | 1.1m (3.6ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect * Alarm input (with NW I/O Box) |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 20m (65.62ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265 : CBR or VBR; MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast; Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL), Login Authentication Digest, Login Authentication IP Address Filtering, User access Log, 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø120.3 x 91.7mm (Ø4.74 x 3.61"), 410g |
| DORI (EN62676-4 standard) | |
| Detect (25PPM / 8PPF) | 44.3m (145.25ft) |
| Observe (63PPM / 19PPF) | 17.7m (58.10ft) |
| Recognize (125PPM / 38PPF) | 8.9m (29.05ft) |
| Identify (250PPM / 76PPF) | 4.4m (14.53ft) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
4MP IR Outdoor Vandal Dome
The 4MP IR Outdoor Vandal Dome Camera, model ANV-L7012R, from Hanwha Vision offers high-resolution surveillance with its 4MP image sensor, ensuring clear and detailed footage. Designed for outdoor use, it features a robust vandal-resistant housing to withstand tampering and harsh environmental conditions. The camera is equipped with infrared LEDs for effective night vision, providing clear images even in complete darkness up to 30 meters. Its compact dome design allows for discreet installation, making it suitable for a variety of settings.
Key Features
- 4MP resolution, Up to 30fps(H.265/H.264)
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 3mm lens with 107.5° HFoV
- IR viewable length: 20m
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot
- IP66, IK10
Code/SKU: ANV-L7012R
Quick Specs:
- Focal Length (Zoom Ratio): 3mm fixed focal
- Max. Aperture Ratio: F1.6
- Angular Field of View: H: 98.3° / V: 54.2° / D: 114.6°
- Min. Object Distance: 1.1m (3.6ft)
- Focus Control: Fixed
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions; MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.13Lux (F1.6, 1/30sec); B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 98.3° / V: 54.2° / D: 114.6° |
| Min. Object Distance | 1.1m (3.6ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect * Alarm input (with NW I/O Box) |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 20m (65.62ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265 : CBR or VBR; MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast; Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL), Login Authentication Digest, Login Authentication IP Address Filtering, User access Log, 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø120.3 x 91.7mm (Ø4.74 x 3.61"), 410g |
| DORI (EN62676-4 standard) | |
| Detect (25PPM / 8PPF) | 44.3m (145.25ft) |
| Observe (63PPM / 19PPF) | 17.7m (58.10ft) |
| Recognize (125PPM / 38PPF) | 8.9m (29.05ft) |
| Identify (250PPM / 76PPF) | 4.4m (14.53ft) |
