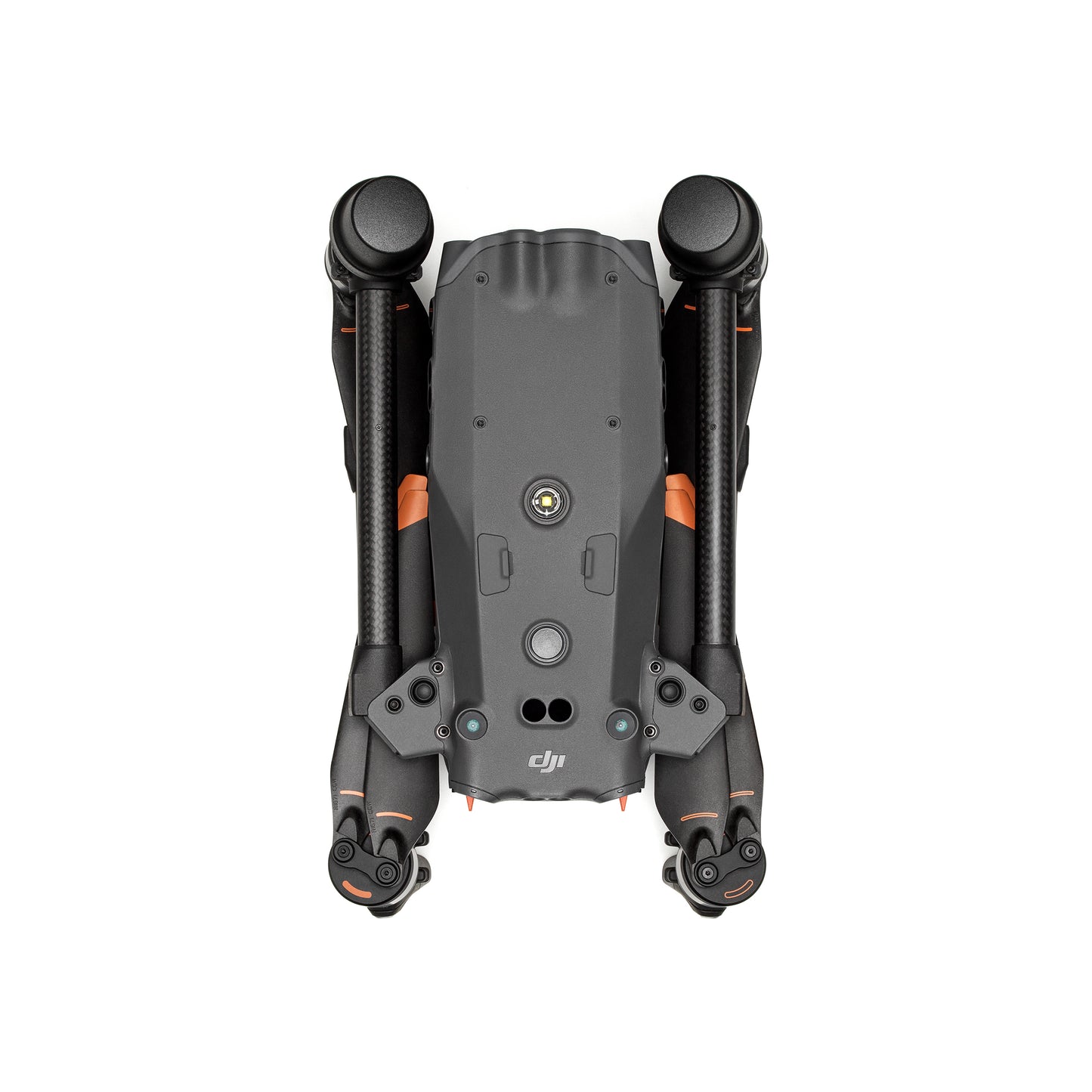

DJI Matrice 30T SP Plus with Care Enterprise Plus and Battery Station (No Battery)

AircraftDimensions(unfolded, excl. propellers)470×585×215 mm (L×W×H)Dimensions (folded)365×215×195 mm (L×W×H)Diagonal Wheelbase668 mmWeight (incl. two batteries)3770 ± 10 gMax Takeoff Weight4069 gMax Takeoff Weight for C2 Certification in EU3998 gOperation Frequency2.4000-2.4835 GHz; 5.725-5.850 GHzTransmitter Power (EIRP)2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)Hovering Accuracy(windless or breezy)Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)RTK Positioning Accuracy(fixed RTK enabled)1 cm+1 ppm (horizontal)1.5 cm+1 ppm (vertical)Max Angular VelocityPitch: 150°/sec.; Yaw: 100°/sec.Max Pitch Angle35° (N-mode and Forward Vision System enabled: 25°)Max Ascent/Descent Speed6 m/s, 5 m/sMax Tilt Descent Speed7 m/sMax Horizontal Speed23 m/sMax Service Ceiling Above Sea Level (without other payload)5,000 m (with 1671 propellers)7,000 m (with 1676 propellers)Max Wind Resistance12 m/sMax Hover Time36 minMax Flight Time41 minMotor Model3511Propeller Model16711676 High Altitude (not included)Ingress Protection RatingIP55GNSSGPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)Operating Temperature-20° to 50° C (-4° to 122° F)GimbalAngular Vibration Range±0.01°Controllable RangePan: ±90°Tilt: -120° to +45°Mechanical RangePan: ±105°Tilt: -135° to +60°Roll: ±45°Zoom CameraSensor1/2" CMOS, Effective pixels: 48MLensFocal length: 21-75 mm (equivalent: 113-405 mm)Aperture: f/2.8-f/4.2Focus: 5 m to ∞Exposure Compensation±3 ev (using 1/3 ev as step length)Electronic Shutter SpeedAuto Mode:Photo: 1/8000-1/2 sVideo: 1/8000-1/30 sM Mode:Photo: 1/8000-8 sVideo: 1/8000 -1/30 sISO Range100-25600Max. Video Resolution3840×2160Max Photo Size8000×6000Wide CameraSensor1/2" CMOS, Effective pixels: 12MLensDFOV: 84°Focal length: 4.5 mm (equivalent: 24 mm)Aperture: f/2.8Focus: 1 m to ∞Exposure Compensation±3 ev (using 1/3 ev as step length)Electronic Shutter SpeedAuto Mode:Photo: 1/8000-1/2 sVideo: 1/8000-1/30 sM Mode:Photo: 1/8000-8 sVideo: 1/8000-1/30 sISO Range100-25600Max. Video Resolution3840×2160Photo Size4000×3000Thermal CameraThermal ImagerUncooled VOx MicrobolometerLensDFOV: 61°Focal length: 9.1 mm (equivalent: 40 mm)Aperture: f/1.0Focus: 5 m to ∞Noise Equivalent Temperature Difference (NETD)≤50 mK@F1.0Infrared Temperature Measurement Accuracy[4]±2°C or ±2% (using the larger value)Video ResolutionInfrared Image Super-resolution Mode: 1280×1024Normal Mode: 640×512Photo SizeInfrared Image Super-resolution Mode: 1280×1024Normal Mode: 640×512Pixel Pitch12 umTemperature Measurement MethodSpot Meter, Area MeasurementTemperature Measurement RangeHigh Gain Mode: -20° to 150° C (-4° to 302° F)Low Gain Mode: 0° to 500° C (32° to 932° F)Temperature AlertSupportedPaletteWhite Hot/Black Hot/Tint/Iron Red/HotIron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2FPV CameraResolution1920×1080DFOV161°Frame Rate30 fpsLaser ModuleWavelength905 nmMax Laser Power3.5 mWSingle Pulse Width6 nsMeasurement Accuracy± (0.2 m + D×0.15%)D is the distance to a vertical surfaceMeasuring Range3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)Safety Regulation LevelClass 1MAccessible Emission Limit (AEL)304.8 nJReference Aperture18mm length, 18mm width (20.3mm diameter if equivalent to circular)Max Laser Pulse Emission Power Within 5 Nanoseconds60.96 WVision SystemsObstacle Sensing RangeForward: 0.6-38 mUpward/Downward/Backward/Sideward: 0.5-33 mFOV65° (H), 50° (V)Operating EnvironmentSurfaces with clear patterns and adequate lighting (> 15 lux)Infrared Sensing SystemsObstacle Sensing Range0.1 to 10 mFOV30°Operating EnvironmentLarge, diffuse, and reflective obstacles (reflectivity >10%)TB30 Intelligent Flight BatteryCapacity5880 mAhVoltage26.1 VBattery TypeLi-ion 6SEnergy131.6 WhNet WeightApprox. 685 gOperating Temperature-20° to 50° C (-4° to 122° F)Storage Temperature20° to 30° C (68° to 86° F)Charging Temperature-20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)Chemical SystemLiNiMnCoO2Auxiliary LightsEffective Illumination Distance5 mIllumination Type60 Hz, solid glowRemote ControllerScreen7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2Internal BatteryType: Li-ion (6500 mAh @ 7.2 V)Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)Charge Time: 2 hoursChemical System: LiNiCoAIO2External Battery(WB37 Intelligent Battery)Capacity: 4920 mAhVoltage: 7.6 VBattery Type: Li-ionEnergy: 37.39 WhChemical System: LiCoO2Operating TimeInternal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hoursIngress Protection RatingIP54GNSSGPS+Galileo+BeiDouOperating Temperature-20° to 50° C (-4° to 122° F)O3 EnterpriseOperating Frequency2.4000-2.4835 GHz, 5.725-5.850 GHzMax Transmission Distance (unobstructed, free of interference)15 km (FCC); 8 km (CE/SRRC/MIC)Max Transmission Distance (with interference)Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC)Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC)Transmitter Power (EIRP)2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)Wi-FiProtocolWi-Fi 6Operating Frequency2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHzTransmitter Power (EIRP)2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)BluetoothProtocolBluetooth 5.1Operating Frequency2.4000-2.4835 GHzTransmitter Power (EIRP)<10 dBmBS30 Intelligent Battery StationDimensions353×267×148 mmNet Weight3.95 kgCompatible Battery TypeTB30 Intelligent Flight BatteryWB37 Intelligent BatteryInput100-240 VAC, 50/60 HzOutputTB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)WB37 Intelligent Battery: 8.7 V, 6 AOutput Power525 WUSB-C portMax. output power of 65 WUSB-A portMax. output power of 10 W (5 V, 2 A)Power Consumption (when not charging battery)< 8 WOutput Power (when warming up battery)Approx. 30 WOperating Temperature-20° to 40° C (-4° to 104° F)Ingress Protection RatingIP55 (with the cover closed properly)Charging TimeApprox. 30 min (charging two TB30 batteries from 20% to 90%)Approx. 50 min (charging two TB30 batteries from 0% to 100%)Protection FeaturesAnti-Backflow ProtectionShort Circuit ProtectionOver Voltage ProtectionOver Current ProtectionTemperature Protection
