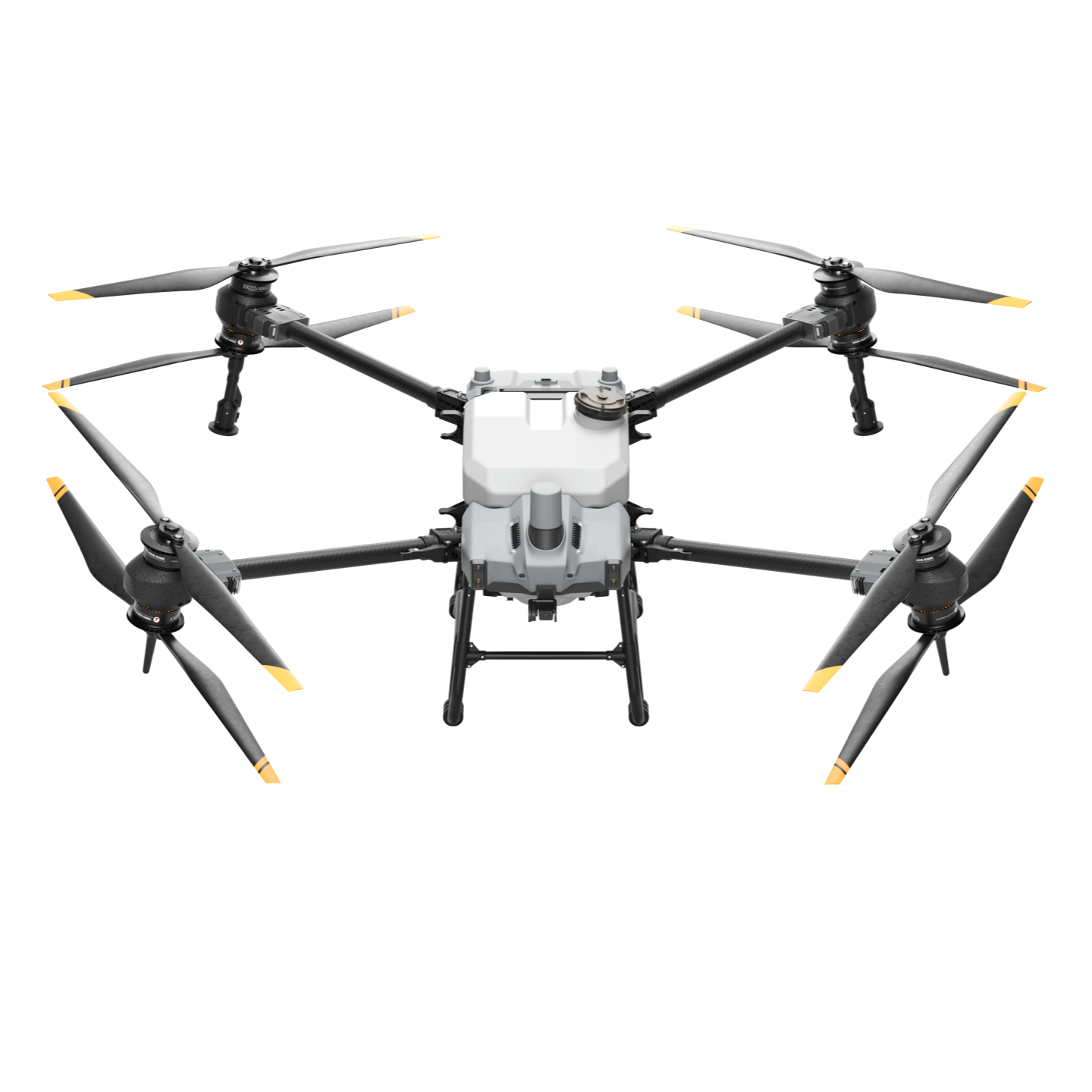

DJI Agras T40 Crop Protection UAS Ready To Use Kit

$45,999.00 AUD
$43,172.80 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

The AGRAS T40 is equipped with the revolutionary Coaxial Twin Rotor design, enabling it to carry a spray load of 40 kg and a spread load of 50 kg (70 L). The aircraft is built in with a Dual Atomized Spraying System, DJI Terra, Active Phased array Radar and Binocular Vision. It supports multiple missions from surveying, mapping, to spraying and spreading, helping you achieve ultimate precision in your agricultural operations.

Specifications

Aircraft ParametersTotal weight38 kg (without battery)50 kg (with battery)

Max Takeoff Weight

Max takeoff weight for spraying: 90 kg (at sea level)Maximum takeoff weight for spreading: 101 kg (at sea level)

Max Diagonal Wheelbase

2184 mm

Dimensions

2800 mm × 3150 mm × 780 mm (arms & propellers unfolded)1590 mm × 1930 mm × 780 mm (arms unfolded, propellers folded)1125 mm × 750 mm × 850 mm (arms folded)

Hovering Accuracy Range (with strong GNSS signal)

RTK positioning enabled:±10 cm horizontal, ±10 cm verticalRTK positioning disabled:±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)

RTK/GNSS Operating Frequency

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1

Hovering Time

Hovering without payload: 18 min (@30000 mAh & takeoff weight 50 kg)Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 90 kg)Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 101 kg)

Max flight radius can be set

2000 m

Max Wind Resistance

6 m/s

Propulsion System - Motor

Stator Size

100×33 mm

Motor KV Value

48 RPM/V

Motor Power

4000 W/rotor

Propulsion System - Propeller

Diameter

54 inch

Rotor Quantity

8

Dual Atomized Spraying System - Operation Box

Operation Box Capacity

Full load 40 L

Operating Payload

Full load 40 kg

Dual Atomized Spraying System - Sprinkler

Sprinkler Model

LX8060SZ

Sprinkler Quantity

2

Droplet Size

50-300 μm

Max Effective Spray Width

11 m (relative operating altitude 2.5 m, flight speed 7 m/s)

Dual Atomized Spraying System - Water Pump

Pump Model

Magnetic Drive Impeller Pump

Max Flow Rate

6 L/min*2

T40 Spreading System

Applicable Materials

Solid dry particles with a diameter of 0.5 to 5 mm

Spread Tank Volume

70 L

Spread Tank Internal Load

50 kg

Spread Width of Spreading System

7 m

Recommended Operating Temperature

0°C to 40°C (32°F to 104°F)

Active Phased Array Omnidirectional Radar

Model Number

RD2484R

Terrain Follow

Max incline: 30°

Obstacle Avoidance

Sensible distance (horizontal): 1.5-50 mFOV: 360° horizontal, ±45° verticalOperating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/sSafe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)Sensing direction: horizontal omnidirectional avoidance;Sensible distance (above): 1.5-30 mFOV: 45°Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraftSafe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking)Sensing direction: Upward

Active Phased Array Backward and Downward Radar

Model Number

RD2484B

Altitude Detection

Within the altitude detection range: 1-45 mFixed altitude range: 1.5-30 m

Rear Obstacle Avoidance

Sensible distance (rear): 1.5-30 mFOV: ±60° horizontal, ±25° verticalOperating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m behind the aircraft and the flight speed does not exceed 7 m/sSafe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)Sensing direction: backward

Binocular Vision System

Measurable Range

0.4-25 m

Effective Sensing Speed

≤7 m/s

FOV

Horizontal: 90; Vertical: 106°

Work Environment Requirements

Normal lighting with clearly textured surfaces

Intelligent Remote Controller

O3 Pro Operating Frequency

2.4000 to 2.4835 GHz5.725 to 5.850 GHz

O3 Pro Signal Effective Distance

SRRC: 5 kmMIC/KCC/CE: 4 kmFCC: 7 km(aircraft altitude at 2.5 m in an unobstructed environment with no interference)

Wi-Fi Protocol

WIFI 6

Wi-Fi Operating Frequency

2.4000 to 2.4835 GHz5.150 to 5.250 GHz5.725 to 5.850 GHz

Bluetooth Protocol

Bluetooth 5.1

Bluetooth Operating Frequency

2.4000-2.4835 GHz

Location

GPS + Galileo + BeiDou

Display Screens

7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness2

Supported Aircraft

AGRAS T40, AGRAS T20P

Operating temperature

-20°C to 50°C (-4°F to 122°F)

Storage Temperature Range

-30°C to 45°C (within one month)-30°C to 35°C (between one month and three months)-30°C to 30°C (between three months and one year)

Charging Temperature

5° to 40°C (41° to 104°F)

Internal Battery Life

3.3 hours

External Battery Life

2.7 hours

Charging Type

Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.

Charging Time

Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)

T40 Intelligent Flight Battery

Model

BAX601-30000mAh-52.22V

Weight

Approx. 12 kg

Capacity

30000 mAh

Voltage

52.22 V

D12000iE Multifunctional Inverter Generator

Output Channel

1. DC charging output 42-59.92V/9000W2.Power supply for air-cooled heat sink 12 V/6 A3.AC output 230V/1500W or 120V/750W.

Battery Charging Time

To fully charge one battery (T40 battery) takes 9-12 mins

Fuel Tank Capacity

30 L

Starting Method

Starting the Generator via the One-Button Start Switch

Max Power of Engine

12000 W

Fuel Type

Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)

Reference Fuel Consumption

500 ml/kWh

Engine Oil Model

SJ 10W-40

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

DJI Agras T40 Crop Protection UAS Ready To Use Kit

$45,999.00 AUD
$43,172.80 AUD

DJI Agras T40 Crop Protection UAS Ready To Use Kit
Package contents
  • UAS Body
  • Spray System
  • Remote Controller
  • 2 Channel Battery Charger for T40
  • 3 x DJI Intelligent Flight Batteries for T40
Quick Features
  • 50kg spreading payload | 40kg spraying payload
  • Active Phased Array Radar + Binocular Vision
  • Dual Atomized Spraying System
  • Supports flight spraying | Spreading and RC mapping
  • Core Modules IPX6K
  • EFI Generator 15% fuel saving
Hovering Time Hovering without payload: 18 min (@30000 mAh & takeoff weight 50 kg) Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 90 kg) Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 101 kg) Charging Time Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)
Max Effective Spray Width
11 m (relative operating altitude 2.5 m, flight speed 7 m/s)
Massive payload increase thanks to the coaxial twin rotor

The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg. Its foldable design reduces the aircraft size by 70% for greater portability.

Spraying System Dual atomization for even spraying

Enhanced spreading efficiency for superior performance

Active Phased Array Radar + Binocular Vision The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.

Fully enhanced remote controller for smoother, faster mapping

The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.

Robustly tested for ultimate reliability

The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.

DJI Agras Intelligent CloudBy pairing AGRAS T40 with the Phantom 4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision based on the farmland’s prescription map. The feature is useful for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.
