SaleFree Shipping

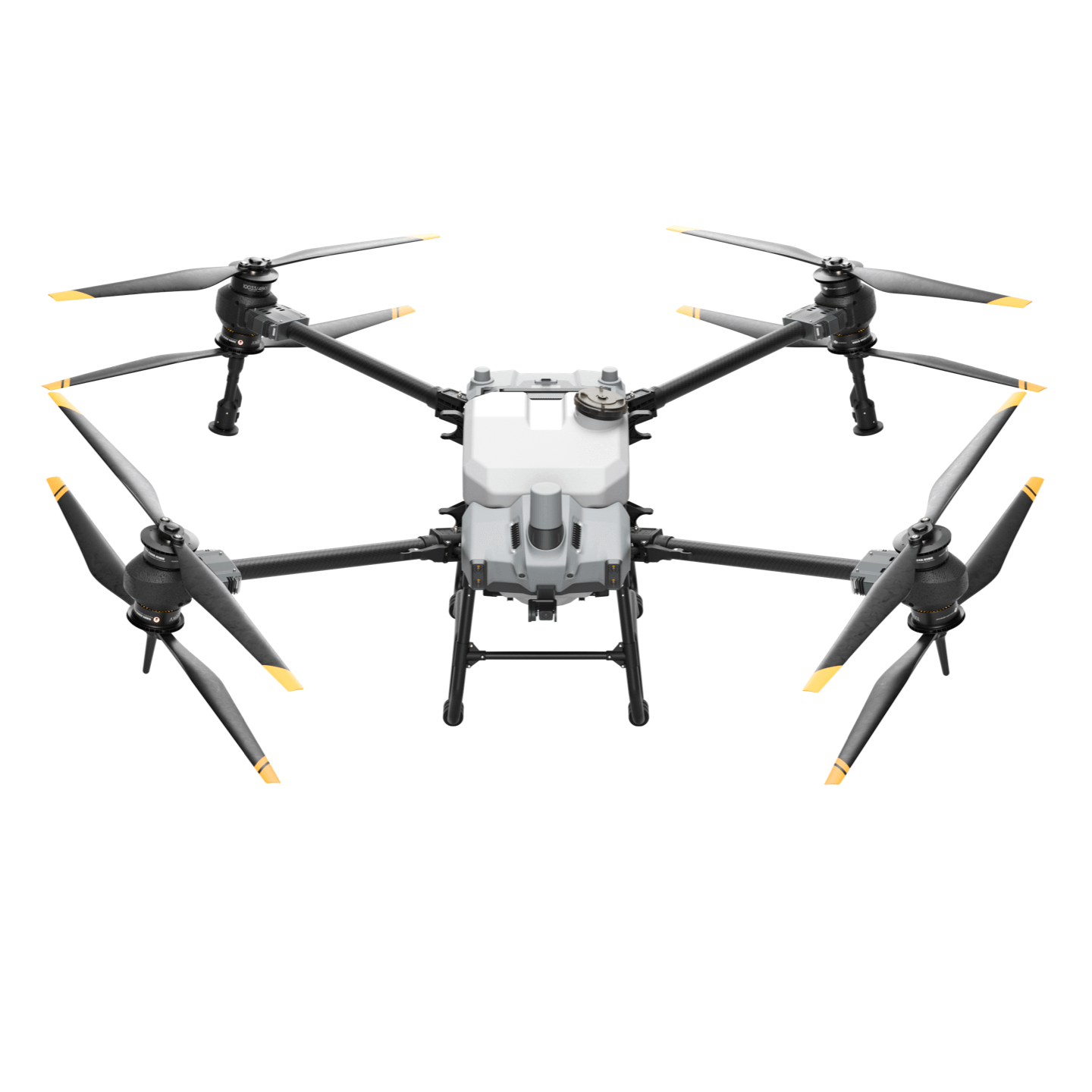

DJI Agras T40 Crop Protection UAS (Body Only)
- Sku: DJIAG-T40
- Vendor: SecurityAustralia
$31,999.00 AUD
$28,371.20 AUD
Tax included.
Shipping calculated at checkout.
Quick Buying Summary
The AGRAS T40 is equipped with the revolutionary Coaxial Twin Rotor design, enabling it to carry a spray load of 40 kg and a spread load of 50 kg (70 L). The aircraft is built in with a Dual Atomized Spraying System, DJI Terra, Active Phased array Radar and Binocular Vision. It supports multiple missions from surveying, mapping, to spraying and spreading, helping you achieve ultimate precision in your agricultural operations.
Body only kit. No Battery or Charger is included
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Body only kit. No Battery or Charger is included
Package contents
- UAS Body
- Spray System
- Remote Controller
- 50kg spreading payload | 40kg spraying payload
- Active Phased Array Radar + Binocular Vision
- Dual Atomized Spraying System
- Supports flight spraying | Spreading and RC mapping
- Core Modules IPX6K
- EFI Generator 15% fuel saving
Max Effective Spray Width
11 m (relative operating altitude 2.5 m, flight speed 7 m/s)
Massive payload increase thanks to the coaxial twin rotor
The AGRAS T40 features a coaxial twin rotor design that increases the payload capacity by 30% with a maximum payload of 50 kg. Its foldable design reduces the aircraft size by 70% for greater portability.
Spraying System Dual atomization for even sprayingEnhanced spreading efficiency for superior performance
Active Phased Array Radar + Binocular Vision The AGRAS T40 combines mapping, spraying and spreading functions, while its UHD camera and adjustable gimbal enable easy capture of your desired view. Farmland and orchard images can be captured in real time, and local maps can be generated using the remote controller with the D-RTK 2 Mobile Station. The system detects land boundaries and obstacles automatically, for quicker planning of flight routes over farmland and hilly orchards.Fully enhanced remote controller for smoother, faster mapping
The 8-core processor makes mapping of 6.67 hectares possible in 10 minutes. Minimizes wasted journeys with intelligent route planning, for greater efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. A wide range of custom physical buttons provides flexible control.Robustly tested for ultimate reliability
The core components are designed to withstand complex and harsh farmland environments. They have passed a host of rigorous tests such as corrosion prevention, high and low temperature, and aging tests, to ensure peace of mind for the user.DJI Agras Intelligent CloudBy pairing AGRAS T40 with the Phantom 4 Multispectral, the platform allows you to perform variable spraying/spreading operations with precision based on the farmland’s prescription map. The feature is useful for the spraying of fertilizers on rice, fertilizers and defoliants on cotton crops, and nutrient solutions on soybeans and corn.
Things to know before you fly
Before taking your new drone for a flight, it is crucial to adhere to the regulations set by the Civil Aviation Safety Authority (CASA) and ensure compliance with the Drone Safety Rules. To familiarise yourself with the important safety laws and information regarding drone flights in Australia, we recommend visiting knowyourdrone.gov.au. Additionally, you can download any of the recommended Drone safety apps to determine suitable flight locations. It’s important to note that the details provided in the Product Overview are subject to any prohibitions, restrictions, and limitations outlined in the CASA Rules.
Aircraft ParametersTotal weight38 kg (without battery)50 kg (with battery)
Max Takeoff Weight
Max takeoff weight for spraying: 90 kg (at sea level)Maximum takeoff weight for spreading: 101 kg (at sea level)
Max Diagonal Wheelbase
2184 mm
Dimensions
2800 mm × 3150 mm × 780 mm (arms & propellers unfolded)1590 mm × 1930 mm × 780 mm (arms unfolded, propellers folded)1125 mm × 750 mm × 850 mm (arms folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK positioning enabled:±10 cm horizontal, ±10 cm verticalRTK positioning disabled:±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
RTK/GNSS Operating Frequency
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5GNSS: GPS L1, GLONASS F1, Galileo E1, BeiDou B1
Hovering Time
Hovering without payload: 18 min (@30000 mAh & takeoff weight 50 kg)Hovering and spraying with full payload: 7 min (@30000 mAh & takeoff weight 90 kg)Hovering and speading with full payload: 6 min (@30000 mAh & takeoff weight 101 kg)
Max flight radius can be set
2000 m
Max Wind Resistance
6 m/s
Propulsion System - Motor
Stator Size
100×33 mm
Motor KV Value
48 RPM/V
Motor Power
4000 W/rotor
Propulsion System - Propeller
Diameter
54 inch
Rotor Quantity
8
Dual Atomized Spraying System - Operation Box
Operation Box Capacity
Full load 40 L
Operating Payload
Full load 40 kg
Dual Atomized Spraying System - Sprinkler
Sprinkler Model
LX8060SZ
Sprinkler Quantity
2
Droplet Size
50-300 μm
Max Effective Spray Width
11 m (relative operating altitude 2.5 m, flight speed 7 m/s)
Dual Atomized Spraying System - Water Pump
Pump Model
Magnetic Drive Impeller Pump
Max Flow Rate
6 L/min*2
T40 Spreading System
Applicable Materials
Solid dry particles with a diameter of 0.5 to 5 mm
Spread Tank Volume
70 L
Spread Tank Internal Load
50 kg
Spread Width of Spreading System
7 m
Recommended Operating Temperature
0°C to 40°C (32°F to 104°F)
Active Phased Array Omnidirectional Radar
Model Number
RD2484R
Terrain Follow
Max incline: 30°
Obstacle Avoidance
Sensible distance (horizontal): 1.5-50 mFOV: 360° horizontal, ±45° verticalOperating conditions: Flying higher than 1.5 m over the obstacle at a speed not exceeding 7 m/sSafe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)Sensing direction: horizontal omnidirectional avoidance;Sensible distance (above): 1.5-30 mFOV: 45°Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m above the aircraftSafe distance: 2.5 m (distance between the top of the aircraft and the obstacle when the aircraft is hovering after braking)Sensing direction: Upward
Active Phased Array Backward and Downward Radar
Model Number
RD2484B
Altitude Detection
Within the altitude detection range: 1-45 mFixed altitude range: 1.5-30 m
Rear Obstacle Avoidance
Sensible distance (rear): 1.5-30 mFOV: ±60° horizontal, ±25° verticalOperating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m behind the aircraft and the flight speed does not exceed 7 m/sSafe distance: 2.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)Sensing direction: backward
Binocular Vision System
Measurable Range
0.4-25 m
Effective Sensing Speed
≤7 m/s
FOV
Horizontal: 90; Vertical: 106°
Work Environment Requirements
Normal lighting with clearly textured surfaces
Intelligent Remote Controller
O3 Pro Operating Frequency
2.4000 to 2.4835 GHz5.725 to 5.850 GHz
O3 Pro Signal Effective Distance
SRRC: 5 kmMIC/KCC/CE: 4 kmFCC: 7 km(aircraft altitude at 2.5 m in an unobstructed environment with no interference)
Wi-Fi Protocol
WIFI 6
Wi-Fi Operating Frequency
2.4000 to 2.4835 GHz5.150 to 5.250 GHz5.725 to 5.850 GHz
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Frequency
2.4000-2.4835 GHz
Location
GPS + Galileo + BeiDou
Display Screens
7.02-inch touch LCD with 1920*1200 resolution and 1200cd/m brightness2
Supported Aircraft
AGRAS T40, AGRAS T20P
Operating temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range
-30°C to 45°C (within one month)-30°C to 35°C (between one month and three months)-30°C to 30°C (between three months and one year)
Charging Temperature
5° to 40°C (41° to 104°F)
Internal Battery Life
3.3 hours
External Battery Life
2.7 hours
Charging Type
Use a USB-C charger with a maximum rated power and voltage of 65 W and 20 V. The DJI Portable Charger is recommended.
Charging Time
Two hours for both internal and internal plus external batteries (to use the official charging method when the aircraft is off)
T40 Intelligent Flight Battery
Model
BAX601-30000mAh-52.22V
Weight
Approx. 12 kg
Capacity
30000 mAh
Voltage
52.22 V
D12000iE Multifunctional Inverter Generator
Output Channel
1. DC charging output 42-59.92V/9000W2.Power supply for air-cooled heat sink 12 V/6 A3.AC output 230V/1500W or 120V/750W.
Battery Charging Time
To fully charge one battery (T40 battery) takes 9-12 mins
Fuel Tank Capacity
30 L
Starting Method
Starting the Generator via the One-Button Start Switch
Max Power of Engine
12000 W
Fuel Type
Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
Reference Fuel Consumption
500 ml/kWh
Engine Oil Model
SJ 10W-40
