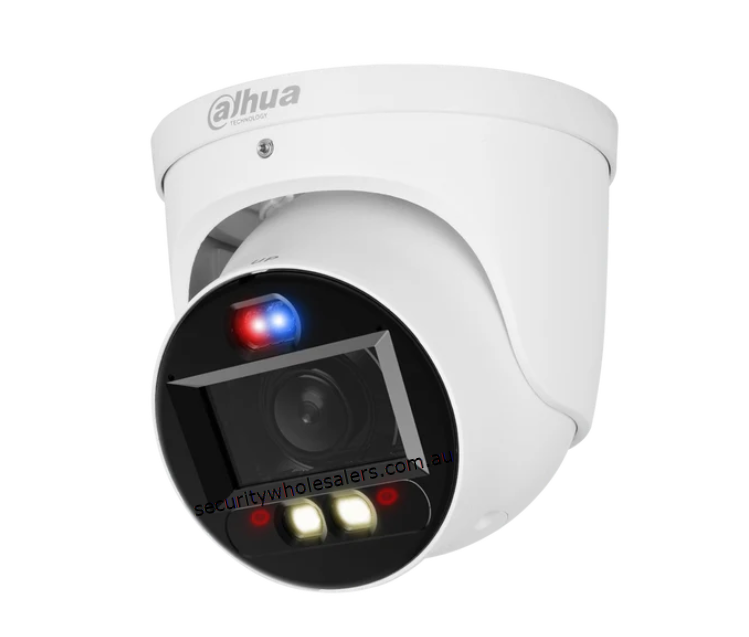

Dahua TIOC DH-IPC-HDW3849H-ZAS-PV-ANZ 8MP AI Active Deterrence Motorised Turret Camera

The 8 MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera (DH-IPC-HDW3849H-ZAS-PV-ANZ) from Dahua Security is equipped with a 1/2.8" CMOS image sensor, providing high-definition images even in low light conditions. This camera outputs a maximum resolution of 8 MP (3840 × 2160) at 25/30 fps, ensuring clear and detailed video capture.

The camera supports the H.265 codec, which offers a high compression rate and ultra-low bit rate, making it efficient in bandwidth and storage use. It features both built-in warm light and IR LED, with a maximum IR illumination distance of 50 meters and a warm light distance of 40 meters, enhancing visibility in various lighting conditions.

Key features include intelligent monitoring functions such as intrusion and tripwire detection, which can accurately classify and detect humans and vehicles. Additionally, it offers abnormality detection for motion, privacy masking, scene changes, and audio detection, among other alerts.

The camera is equipped with a motorized vari-focal lens (2.7 mm–13.5 mm), and supports flexible coding (ROI, SMART H.264+/H.265+, AI H.264/H.265). It includes advanced image processing features like WDR, 3D NR, HLC, BLC, and digital watermarking, making it suitable for various monitoring scenes.

It supports a maximum of 256 GB Micro SD card, features built-in dual microphones and a speaker for two-way talk, and is powered via 12 VDC/PoE. The camera also has an IP67 protection rating, indicating its durability against dust and water.

Additional functionalities include sound and light alarm with red and blue lights, SMD 4.0 for more precise detection, and the ability to set warm light areas for triggering alarms. The camera's power-efficient design and comprehensive monitoring capabilities make it a robust solution for security needs.

Features:

• 8MP 1/2.8'' CMOS image sensor, low luminance, and high definition image
• Outputs max. 8 MP (3840 x 2160)@25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk
• 12 VDC/PoE power supply
• IP67 protection
• Sound and light alarm (red and blue lights)
• SMD 4.0
• One-tap arming/disarming through alarm input

Functions:

Siren and Light Active Deterrence

The Dahua siren and light active deterrence network camera provides light and voice alarms when a perimeter event occurs, offering effective deterrence and intervention. The camera comes with multiple pre-recorded voices and allows for custom voice import.

Smart Dual Light

Dahua's Smart Dual Light technology uses an intelligent algorithm to detect targets. At night, the IR illuminator is typically active. When a target enters the monitoring area, the warm light turns on, enabling the camera to capture full-color video and key event information. This allows the camera to link snapshots and videos with full-color images. Once the target leaves the monitoring area, the warm light turns off and the IR illuminator resumes, effectively reducing light pollution.

SMD 4.0

Dahua’s Smart Motion Detection (SMD) technology employs intelligent algorithms to classify targets that trigger motion detection alarms, filtering out non-targets like small and large animals to reduce false alarms. When used with an AI NVR, Quick Pick technology allows for easy searching and identification of human and vehicle targets from SMD event videos, prioritizing the highest matches.

One-tap Disarming

The Dahua One-tap Disarming function is user-friendly and enables easy event linkage control via a mobile app. This feature allows users to enable or disable event linkage to suit various scenarios.

Cyber Security

Dahua network cameras utilize a range of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These features enhance the camera's defense against external cyber threats and protect against malicious programs.

Protection (IP67, wide voltage) IP67:

The camera has passed rigorous dust and water immersion tests, offering dust-proof functionality and the ability to operate normally after being submerged in 1 meter of water for 30 minutes.

Wide voltage: The camera supports a ±30% input voltage tolerance, making it suitable for outdoor environments with unstable voltage conditions.
