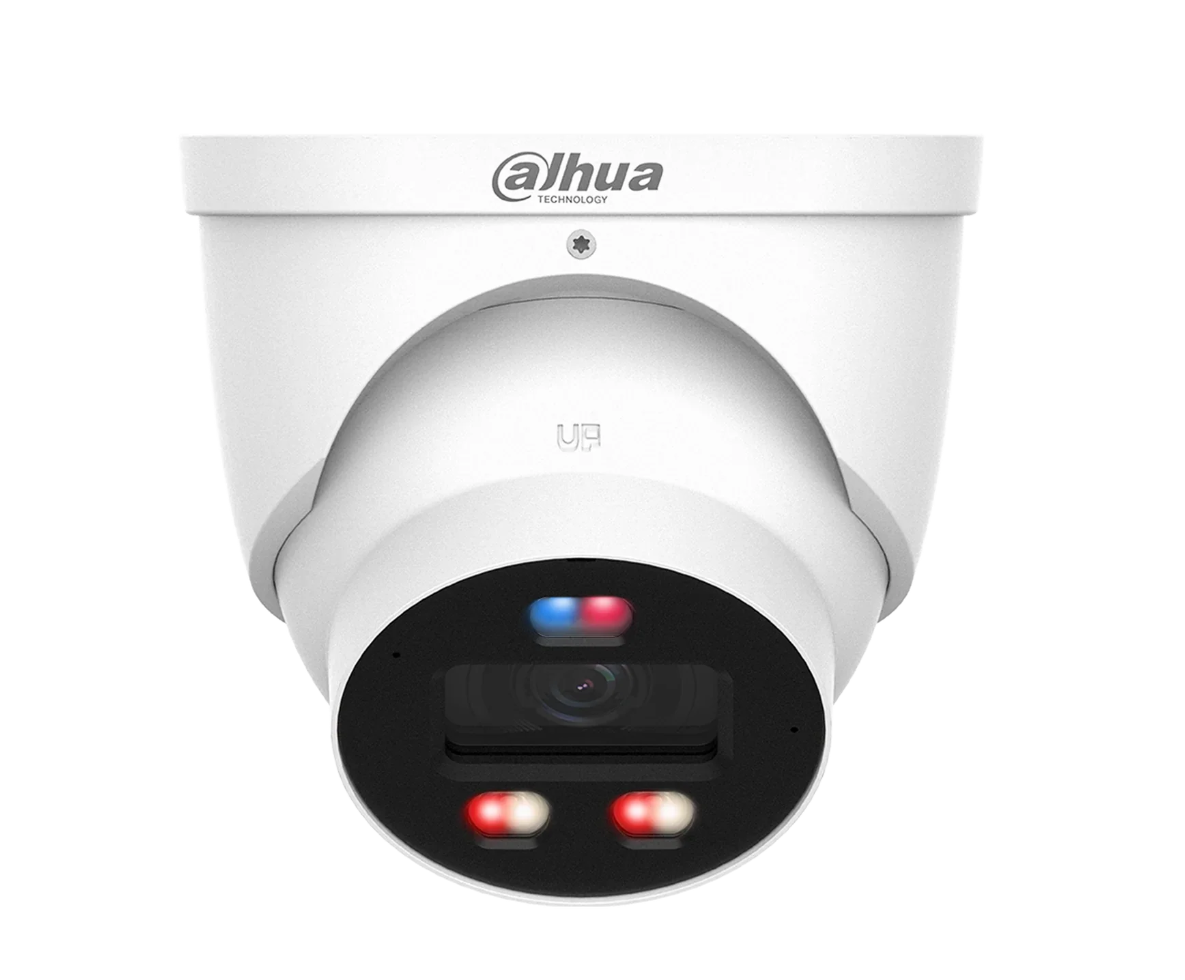

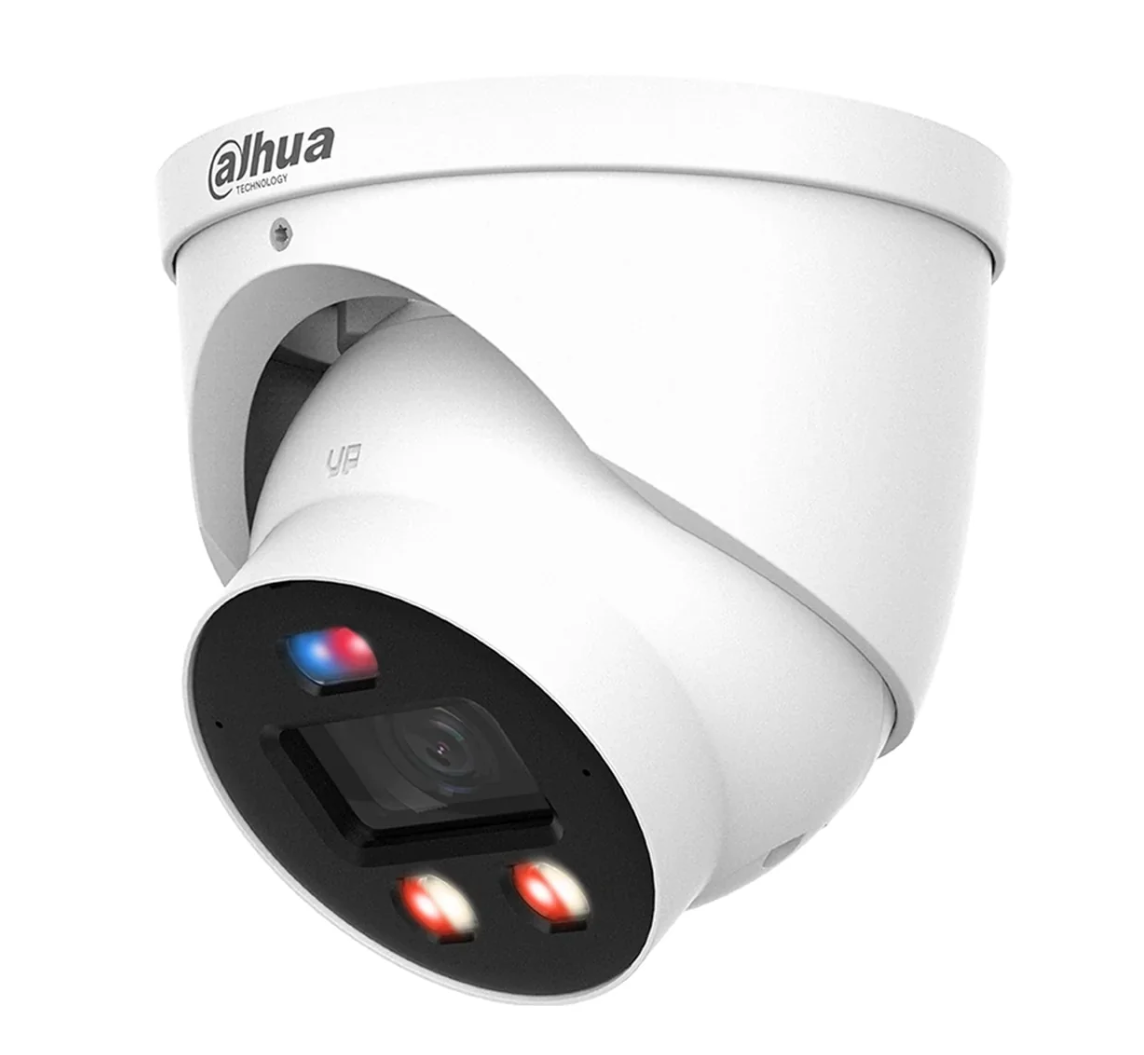

Dahua TIOC DH-IPC-HDW3849H-AS-PV-PRO-ANZ 8MP Acupick Active Deterrence Full color Starlight IP Turret Camera

Model: DH-IPC-HDW3849H-AS-PV-PRO-ANZ

Who This Is For

Property managers specifying active deterrence on car parks, common areas, and building perimeters will find the Dahua TIOC DH-IPC-HDW3849H-AS-PV-PRO-ANZ covers a lot of ground in a single compact turret body. This is an 8MP full-colour Starlight camera with a built-in red and blue strobe, white illuminator, and two-way audio - meaning it can visually challenge an intruder and broadcast a spoken warning the moment AI detects a person or vehicle, without requiring a control room operator to be watching. The AcuPick function lets operators pull up footage of a specific person or vehicle quickly, cutting through hours of review. It suits small-to-medium commercial premises, school entrances, retail car parks, and residential complexes where visible deterrence is wanted without the footprint of a bullet or floodlight camera. The turret form factor mounts cleanly on an eave, soffit, or wall, making it practical for installers working on sites where camera aesthetics still matter.

What This Camera Actually Does

Who Buys This Model

• Retail and hospitality managers: Installing over car parks, loading zones, or outdoor dining areas where after-dark colour footage and an audible deterrent are needed without a bulky housing that clashes with the building.
• School and childcare facility operators: Specifying cameras on perimeter fences, entry gates, and after-hours zones where AI-triggered deterrence reduces reliance on security patrols and SMD Plus cuts false alarm notifications to staff phones.
• Strata and property management companies: Deploying across common areas, basement entries, and bike storage where AcuPick speeds up post-incident footage review for body corporate reports or police requests.
• Small business owners on single-NVR systems: Wanting more than passive recording - the active strobe and audio warning provides a deterrence layer without adding a separate alarm siren or intercom device to the install.
• Security installers on mixed residential/commercial sites: The turret form factor and standard PoE power requirement mean it slots into the same cable run and switch infrastructure as any other IP camera in the system, reducing install complexity.

Honest Assessment

The DH-IPC-HDW3849H-AS-PV-PRO-ANZ is a genuinely capable all-in-one outdoor turret. The combination of 8MP full-colour Starlight imaging, on-camera active deterrence, SMD Plus 4.0 classification, and AcuPick search in a standard turret housing is not a common package at this price tier. For sites where a visible strobe response to a detected person matters - car parks, school gates, rear yards - it removes the need for separate siren accessories. The two-way audio adds communication utility without additional wiring. Available through Security Australia as part of the Dahua ANZ range, it is also backed by local firmware support and warranty.

Where it has limits: the fixed focal length lens means it is not suitable for long-approach coverage - a bullet camera with motorised zoom serves that need better. AcuPick and active deterrence features require a compatible Dahua WizSense NVR or recorder to function fully; they will not activate on a generic third-party NVR. If the priority is monitoring a wide open area or tracking movement across a large site, a PTZ or multi-sensor camera will outperform this model.

Before You Buy

Quick Fit Check

• Good match if: You need after-hours active deterrence on a car park, building entry, or outdoor common area and want colour footage at night without switching to black-and-white IR - the Starlight full-colour sensor and white illuminator handle low-light colour imaging without a separate floodlight.
• Good match if: Your site runs a compatible Dahua WizSense NVR and you want to reduce false alarm notifications - SMD Plus 4.0 classifies human and vehicle targets before triggering alerts, substantially cutting the notification volume that standard motion detection produces.
• You may need a different model if: Your primary requirement is monitoring a long driveway, road approach, or wide open perimeter at distance - a bullet camera with motorised zoom or a PTZ camera will provide the focal length and optical reach this fixed-lens turret cannot match.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence, full-colour night footage, two-way audio, and AI search capability in a single compact turret housing that installs on standard PoE - and you are running a compatible Dahua WizSense NVR to unlock the AI features.
• You may need a different model if: Your primary requirement is covering a long driveway, road approach, or extended perimeter - a bullet camera with motorised zoom or a PTZ camera provides the optical reach and focal flexibility that a fixed-lens turret cannot match.
• Pairs well with: A Dahua WizSense or Pro AI NVR with SMD Plus and AcuPick support - this unlocks all AI deterrence, search, and filtering functionality. A PoE switch with sufficient wattage per port to support the active deterrence functions is also recommended.

Common Questions

1. Does the active deterrence trigger automatically, or does someone have to activate it manually?

   Automatically - when connected to a compatible Dahua WizSense NVR. The camera's SMD Plus 4.0 AI classifies detected targets as human or vehicle and triggers the red/blue strobe, white illuminator, and audio alarm without operator input. Rules-based schedules can be configured on the NVR so deterrence only activates during specific hours, such as after business close, to prevent false triggers during the day.

2. Will this camera work on a non-Dahua NVR?

   Partially. The DH-IPC-HDW3849H-AS-PV-PRO-ANZ will stream and record at full 8MP resolution on any ONVIF-compatible NVR. However, AcuPick person/vehicle search, SMD Plus 4.0 AI filtering, and the TiOC active deterrence trigger all require a compatible Dahua WizSense or Pro AI NVR to function. On a third-party recorder, the camera records video but operates as a standard IP camera with no AI alarm, no deterrence automation, and no smart search capability.

3. What does AcuPick actually do in practice, and how accurate is it?

   AcuPick is an AI-powered forensic search tool. An operator selects a person or vehicle from a recorded snapshot, and the system searches all footage from connected cameras for matching body features and vehicle characteristics - returning results in seconds rather than hours. It works on appearance attributes such as clothing colour, body build, and vehicle type captured in the 8MP footage. AcuPick functions on-NVR and does not require a cloud connection. Accuracy is dependent on image quality, camera angle, and lighting conditions at the time of capture.

4. Does this camera produce colour footage at night without any external lighting?

   Yes. The Starlight sensor is designed to produce colour images at very low ambient light levels - streetlight, signage, or spill lighting is often sufficient. In full darkness the built-in white illuminator activates to supplement the sensor. Unlike traditional IR cameras, footage does not switch to black-and-white at night, which preserves clothing colour, vehicle colour, and skin tone detail in after-dark recordings. The white illuminator does briefly illuminate the scene when active, which is a visible light source, not invisible IR.

5. What is the difference between SMD Plus 4.0 and standard motion detection on this camera?

   SMD Plus 4.0 uses on-camera AI to classify moving objects as human, vehicle, or non-target before generating an alert. Standard pixel-change motion detection triggers on any movement - wind-blown branches, insects, lighting changes, or passing car headlights. On a site with significant environmental movement, standard detection can generate dozens of false alerts per night. SMD Plus 4.0 ignores non-target movement and only alerts on confirmed human or vehicle classification, which is why this model is specified on sites where notification fatigue from false alarms is a problem.

6. How much storage does 8MP H.265+ recording actually consume, and how long will footage last on a typical NVR?

   Storage consumption depends on scene complexity, frame rate, and bitrate settings. At 8MP with H.265+, a single camera recording continuously at a typical bitrate of 4-6 Mbps uses approximately 50-75 GB per day. On a 4TB NVR with 4 cameras, continuous recording typically provides 10-14 days of retention. In practice, SMD Plus 4.0 event-based recording - only storing footage when a human or vehicle is detected - can extend retention significantly compared to continuous recording, which is a common configuration for TiOC installs. The team at Security Australia can assist with storage planning based on your camera count and retention requirements.

7. What PoE standard does this camera require, and will a standard PoE switch power it?

   The DH-IPC-HDW3849H-AS-PV-PRO-ANZ supports IEEE 802.3af/at PoE. When the active deterrence strobe and white illuminator are firing simultaneously, power draw increases above the 15.4W limit of standard 802.3af. A PoE+ (802.3at) switch or injector rated to at least 25.5W per port is recommended to ensure stable operation during active deterrence events. Standard 802.3af switches may work in passive recording mode but can cause instability or camera resets when the TiOC strobe and illuminator activate together. Confirm your switch's per-port wattage before finalising the install.

8. Will this camera work for capturing number plates on a vehicle entry point?

   In some scenarios, yes, but with important limitations. At 8MP resolution with a wide-angle lens, number plate legibility depends heavily on the distance to the vehicle, the angle of approach, and the speed of travel. The full-colour Starlight sensor performs well in low light and the white illuminator helps at night, but this is not a dedicated ANPR camera. For a tight entry barrier or driveway where vehicles slow to near-stop within 4-6 metres of the camera, plate capture is achievable. For free-flow vehicle approaches at speed, a dedicated ANPR or bullet camera with a longer focal length and specialised ANPR configuration is a more appropriate choice.
