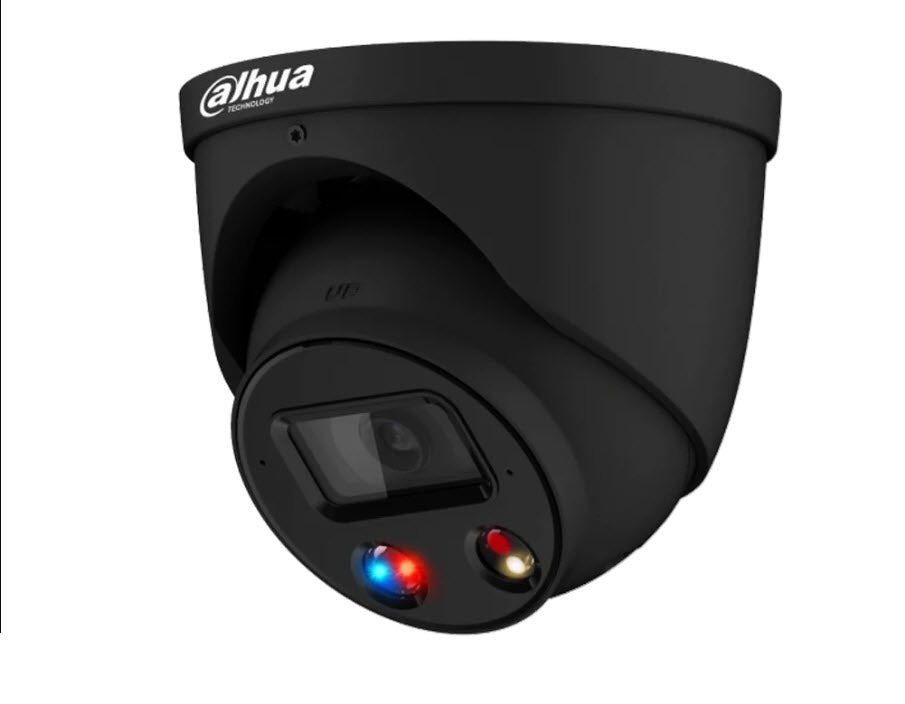

Dahua TIOC Advanced 2.0 DH-IPC-HDW3849H-AS-PV-ANZ 8MP AI Active Deterrence Full color.

Model: DH-IPC-HDW3849H-AS-PV-ANZ-1

Who This Is For

When active deterrence alongside full-colour night vision is the priority, the Dahua TIOC Advanced 2.0 DH-IPC-HDW3849H-AS-PV-ANZ delivers both in a compact eyeball housing. This camera is built for residential and small commercial installations where passive monitoring is not enough - think driveways, rear access gates, retail car parks, and side entries where after-hours intrusions are a recurring concern. The 8MP sensor captures 3840 x 2160 resolution footage, while the dual illuminator system switches from IR to warm white light the moment a person or vehicle enters the scene. At that point the red and blue strobe activates alongside a built-in siren, making it immediately clear to any intruder that they have been detected. Two-way audio with dual microphones and a built-in speaker allows real-time communication or pre-recorded voice warnings. SMD 4.0 filters out false triggers from animals and environmental movement, so the deterrence response fires on confirmed human and vehicle targets only.

What This Camera Actually Does

Who Buys This Model

• Residential installers with repeat break-in concerns: Properties that have experienced or are at risk of after-hours entry benefit directly from the automatic strobe and siren response tied to confirmed human detection rather than generic motion alerts.
• Small retail and hospitality operators: Bottle shops, convenience stores, and cafes needing after-hours deterrence at rear entries and car parks without the complexity or cost of a PTZ or multi-sensor system.
• Property managers overseeing multiple sites: The DMSS mobile app integration combined with two-way audio and push notifications tied to SMD 4.0 events means remote verbal intervention is possible without dispatching security personnel.
• Electricians and security integrators building Dahua ecosystems: PoE powering, standard M12 lens mount, and compatibility with Dahua AI NVRs for Quick Pick event search make this camera straightforward to add to existing Dahua infrastructure.
• Childcare and aged care facilities: The ability to distinguish human targets from animals and trigger a voice warning through a pre-recorded message gives facility managers a monitored deterrence layer at external gates and car parks without requiring 24/7 staffing.

Honest Assessment

The DH-IPC-HDW3849H-AS-PV-ANZ does its best work in scenarios where deterrence matters as much as recording. The combination of AI-classified target detection, automatic strobe activation, and smart illumination switching genuinely changes the camera's role from passive observer to active intervention tool. 8MP resolution with Smart H.265+ compression gives strong detail for evidence without inflating storage consumption, and IP67 weatherproofing is appropriate for Australian outdoor conditions. The onboard 256GB SD capacity and alarm I/O add real standalone flexibility. Where this camera does not serve well is in wide-area monitoring across large car parks or perimeter fencing that exceeds 30 metres - at those distances a bullet camera with longer IR throw or a PTZ with optical zoom would cover the ground more effectively. It also uses a fixed focal lens, so applications needing adjustable zoom after installation require a varifocal model instead. Both options are available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You need a camera that both records and physically responds to confirmed intrusions at driveways, rear entries, or outdoor areas within 30 metres, and you want full-colour footage of every triggered event rather than greyscale IR imagery.
• Good match if: The installation uses PoE and a Dahua AI-capable NVR - SMD 4.0 event classification and Quick Pick search work most effectively in a matched Dahua system, making post-event review significantly faster than with a generic recorder.
• You may need a different model if: Your monitored area extends beyond 30 metres, covers a wide open perimeter, or requires optical zoom to focus on distant targets - a long-range IR bullet camera or PTZ with motorised zoom would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence with full-colour night imaging and SMD 4.0 false alarm filtering in a single eyeball housing - no add-on strobe lights or external speakers are required at the install point.
• You may need a different model if: Your monitored area is a long open approach beyond 30 metres, or you need variable zoom after installation - a varifocal bullet camera or PTZ with optical zoom will serve those scenarios more effectively.
• Pairs well with: A Dahua AI-capable NVR with Quick Pick search enabled, which allows SMD 4.0 event clips to be filtered and reviewed by human or vehicle classification directly on the recorder without third-party software.

Common Questions

1. Does the strobe and siren activate automatically, or does someone need to trigger it manually?

   Automatically, once configured. When the camera's AI detects a person or vehicle crossing a defined intrusion or tripwire zone, the red and blue strobe lights and siren trigger without any operator input. The deterrence response is linked to the AI event rather than generic motion, which means it does not fire on animals, moving foliage, or other non-target movement. Manual trigger via the app is also possible for real-time intervention.

2. Will this camera record full-colour footage at night, or only when something triggers it?

   Full-colour is event-triggered at night, not continuous. The camera runs IR illumination by default after dark, producing standard night vision footage. When the AI detects a person or vehicle entering the scene, the warm white illuminator activates and the recording switches to full colour for the duration of that event. Once the target leaves, the camera returns to IR mode. This is the intended behaviour of Dahua's Smart Dual Illuminator design - it captures full-colour detail on the events that matter without running warm light all night.

3. Does this camera support two-way audio without adding an external microphone or speaker?

   Yes. Both a built-in speaker and dual built-in microphones are confirmed in the hardware specifications, so two-way talk is fully functional without any external audio accessories. Audio input and output interfaces (1-in/1-out) are also available on the body if you want to add a higher-quality external microphone or a louder external speaker to the installation.

4. How does SMD 4.0 differ from standard motion detection, and why does it matter for deterrence cameras?

   SMD 4.0 classifies objects before triggering an event, while standard motion detection responds to any pixel change. Standard motion triggers on cats, birds, headlights, and wind-blown objects. SMD 4.0 analyses the shape and movement pattern of detected objects and only raises an event when it confirms the target as a human or vehicle. For a deterrence camera, this distinction is critical - if the strobe and siren fired on every motion event, the deterrence value would erode quickly and neighbours or tenants would demand the feature be disabled. SMD 4.0 keeps activations meaningful.

5. What is the recognition distance on the 2.8mm lens, and how does that affect where I position the camera?

   The confirmed DORI recognition distance for the 2.8mm lens is 18.2 metres. Recognition - the distance at which a person can be identified by facial features - sits at 18.2m, while detection (confirming something is present) reaches 91m and identification (confirming an individual) narrows to 9.1m. For practical positioning: if you need footage useful for identification purposes, the subject needs to be within approximately 9 metres of the camera. For triggering AI events reliably, the intrusion zone should be configured within the first 30 metres where both illuminators reach.

6. Does the camera work if the NVR or network goes offline?

   Yes, with limitations. A Micro SD card up to 256GB supports local continuous or event-based recording independent of any network connection or NVR. Alarm I/O also continues to operate on local triggers. However, remote viewing, push notifications, and two-way audio via the mobile app all require an active network connection. For sites where network outages are a risk, installing a Micro SD card and configuring local event recording during commissioning is strongly recommended.

7. What are the TiOC trigger conditions - will the deterrence activate during the day as well as at night?

   Yes, the AI-linked deterrence response operates 24 hours a day. The TiOC (Targeting, Illuminating, and Outdoor Colour) system triggers the strobe and siren whenever the intrusion or tripwire AI event fires, regardless of time of day. The dual illuminator switching - IR to warm white - only has a visible effect after dark, but the alarm output, strobe activation, and voice warning are not restricted to night hours. If daytime-only or night-only deterrence is needed, this can be configured through scheduled arming in the camera's interface or via the DMSS app's one-tap arming and disarming function. The team at Security Australia can advise on scheduling setup during pre-sales.

8. Does the PoE supply on this camera require a PoE+ switch, or will a standard 802.3af switch work?

   A standard 802.3af PoE switch is confirmed as compatible. The camera supports IEEE 802.3af PoE, which has a maximum power delivery of 15.4W - this is the common standard found in most PoE NVRs and unmanaged PoE switches. PoE+ (802.3at, up to 30W) is not required for this model. A single Cat5e or Cat6 cable carries both data and power, with no separate power adapter needed at the camera end, provided the cable run stays within the standard 100-metre Ethernet limit.

Downloads & Resources

No downloads available for this product.
