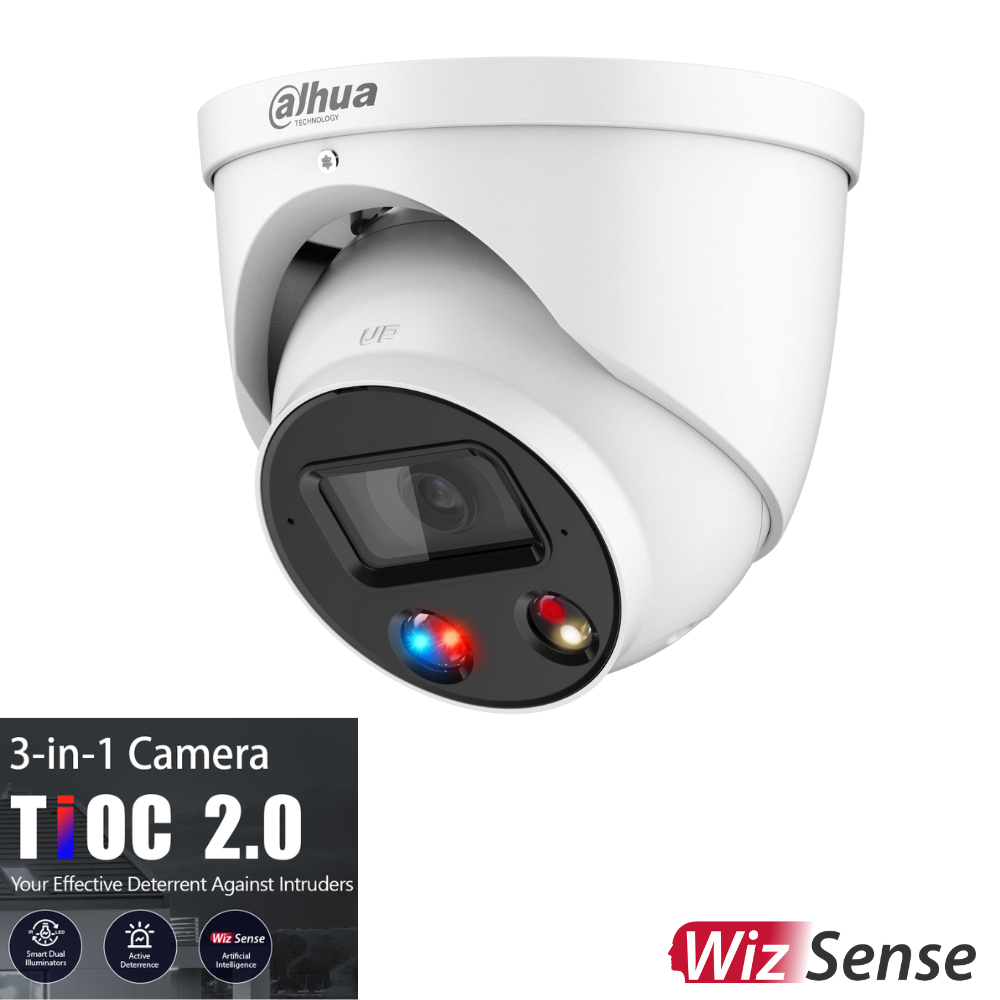

Dahua TIOC Advanced 2.0 DH-IPC-HDW3549HP-AS-PV-0280B-S3 Dahua 5MP AI Active Deterrence Full color Starlight IP Turret Camera

Model: DH-IPC-HDW3549HP-AS-PV-0280B-S3

Who This Is For

Property managers specifying outdoor cameras for residential complexes, small commercial sites, or retail carparks where passive recording is no longer enough will find the Dahua IPC-HDW3549HP-AS-PV a strong candidate. This is a 5MP TiOC Advanced 2.0 turret camera built around the idea that a camera should respond to an intruder, not just document one. When the SMD 3.0 engine confirms a human or vehicle has crossed a defined perimeter line, the camera switches from IR to full-colour warm light, fires a red and blue strobe, and triggers a built-in audio alarm - all from a single turret housing. The 2.8mm fixed lens covers a 97-degree horizontal field of view, making it suited to eave and soffit mounting on building corners, driveway approaches, and entry gates where a wide view and an active deterrent response both matter. The camera runs on standard PoE or 12VDC and requires no additional controller to activate its deterrence functions.

What This Camera Actually Does

Who Buys This Model

• Small business owners protecting after-hours premises: Retail shops, cafes, and trade yards that want a visible deterrent camera at the front entrance or rear carpark - one that fires a strobe and voice warning before an intruder reaches the door.
• Residential property managers and strata: Apartment blocks and townhouse complexes specifying cameras at basement entries, pool gates, or bike storage areas where trespass is a recurring problem and passive recording has not reduced it.
• Installers replacing standard turrets with active deterrence: Technicians upgrading existing Dahua PoE systems who need a TiOC camera in the same turret form factor - the IPC-HDW3549HP-AS-PV drops into the same eave or soffit mounting positions without a new bracket.
• Site supervisors requiring remote verbal intervention: Construction sites and storage facilities where a monitoring operator needs to speak directly to someone on-site via two-way audio without a separate intercom at every camera point.

Honest Assessment

The IPC-HDW3549HP-AS-PV does the combination of full-colour night imaging, AI-filtered alerts, and active deterrence well for a turret at this price point. The SMD 3.0 classification is genuinely useful - separating human and vehicle events from environmental triggers reduces the noise that makes most alert systems impractical to act on. The smart illuminator behaviour - IR by default, warm light only on detection - is a reasonable compromise between light pollution and colour detail when it matters most. IP67 weatherproofing and wide voltage tolerance make it a workable choice for outdoor installations in variable conditions. What this camera will not do: the 2.8mm fixed lens cannot be adjusted for longer approaches - if you need to identify a person at 20 metres or more, a 3.6mm variant or a camera with motorised zoom is more appropriate. The deterrence functions are also intended as a first response, not a substitute for alarm monitoring or physical response. Available through Security Australia, this model suits sites where the goal is interruption and diversion, not just post-event review.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on a building corner or eave at 2.5 to 4 metres height and need a wide 97-degree field of view combined with a strobe and audio deterrent that fires automatically on human or vehicle detection.
• Good match if: Your site is already running a Dahua PoE NVR and you want to upgrade specific camera positions to TiOC without changing the recorder, switches, or cabling infrastructure.
• You may need a different model if: The installation requires coverage of a long driveway or carpark aisle where targets need to be identified at 25 metres or more - a motorised zoom turret or a bullet camera with a longer focal length would serve that scenario better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a turret camera that combines 5MP full-colour night imaging, SMD 3.0 human/vehicle classification, and an active strobe and audio deterrent in one PoE housing - particularly where mounting positions and cable runs are already sized for a standard turret.
• You may need a different model if: Your priority is identifying faces or licence plates at distance beyond 13 metres - a motorised zoom turret or a dedicated ANPR camera with a longer effective focal length will produce more usable detail for identification purposes at those ranges.
• Pairs well with: A Dahua PoE NVR with SMD and TiOC event management support, which allows centralised perimeter rule configuration, alarm linkage scheduling, and two-way audio access across all camera positions from a single interface.

Common Questions

1. Will the strobe and audio alarm fire on any motion, or only on people and vehicles?

   Only on confirmed human or vehicle detections. The IPC-HDW3549HP-AS-PV uses SMD 3.0 to classify targets before triggering the active deterrence response. Generic motion - a swaying branch, a cat, rain on the lens - will not trigger the strobe or speaker unless you have also enabled standard motion detection as an alarm linkage, which is not the default TiOC configuration. The practical result is far fewer spurious activations than a camera relying on pixel-change motion detection alone.

2. Does the warm light stay on all night, or does it only activate when someone is detected?

   It only activates on detection. The Smart Dual Illuminators system runs the IR LED as the default night illuminator. When SMD 3.0 confirms a human or vehicle has entered the monitored area, the warm light switches on to produce full-colour footage and links that colour image to the event record. Once the target exits the zone, the warm light turns off and the camera returns to IR. This reduces ongoing light pollution and keeps the full-colour detail tied specifically to the events that triggered it.

3. Does this camera support PoE, and what switch or injector is needed?

   Yes. The IPC-HDW3549HP-AS-PV supports IEEE 802.3af PoE, so a single Cat5e or Cat6 cable from a standard 802.3af PoE switch or injector carries both power and data. It also accepts 12VDC if a PoE switch is not available. The camera does not require PoE+ (802.3at) - standard 15.4W 802.3af ports are sufficient. Maximum recommended cable run for PoE is 100 metres per the Ethernet standard.

4. What does the DORI distance mean for this camera in practice?

   The DORI ratings for the 2.8mm lens are: Detect at 66m, Observe at 26.4m, Recognise at 13.2m, and Identify at 6.6m. In practical terms: the camera can confirm something is moving at 66m, determine it is a person at roughly 26m, distinguish facial features enough for recognition at 13.2m, and produce footage usable for positive identification at 6.6m. For most entry-point and corner-mounting scenarios, the identification zone of 6.6m will cover the target area comfortably. If identification at greater distances is required, the 3.6mm lens variant extends the identify distance to 7.8m and the detect range to 78m.

5. How accurately does the TiOC deterrence classify targets, and will it false-alarm on vehicles passing in the background?

   The SMD 3.0 engine in this camera is designed to reduce false alarms from non-target movement, but classification accuracy depends heavily on how the perimeter rules are drawn. A narrow tripwire or tightly bounded intrusion zone focused on the actual approach path - rather than a broad zone that includes a road or carpark lane in the background - will significantly reduce background vehicle triggers. The camera's AI runs on-device, so there is no cloud dependency for event classification. For sites with heavy background traffic, drawing exclusion zones around the road portion of the frame during rule configuration is the recommended practice. Security Australia recommends testing tripwire placement during the day before relying on overnight deterrence activation.

6. Can I use a custom audio message instead of the default alarm sound?

   Yes. The IPC-HDW3549HP-AS-PV supports import of custom audio files to replace the pre-recorded deterrence alert. The camera ships with multiple built-in voice options, and custom audio can be uploaded via the camera's web interface. This allows site-specific warnings - a message identifying the property, directing someone to leave, or referencing monitoring - rather than a generic alarm tone. Check the camera's web interface under the audio deterrence settings for the supported audio file format and maximum file size for your current firmware version before preparing custom audio.

7. Does this camera work with non-Dahua NVRs?

   It will function as a standard ONVIF IP camera with a non-Dahua NVR for basic recording, but the TiOC deterrence features, SMD 3.0 event filtering, smart dual illuminator triggering, and two-way audio management are fully supported only on Dahua-compatible NVR platforms with TiOC firmware. If your recorder cannot process Dahua smart events, the camera will record video but the strobe and audio deterrence will need to be triggered by rules configured in the camera itself rather than managed centrally from the recorder.
