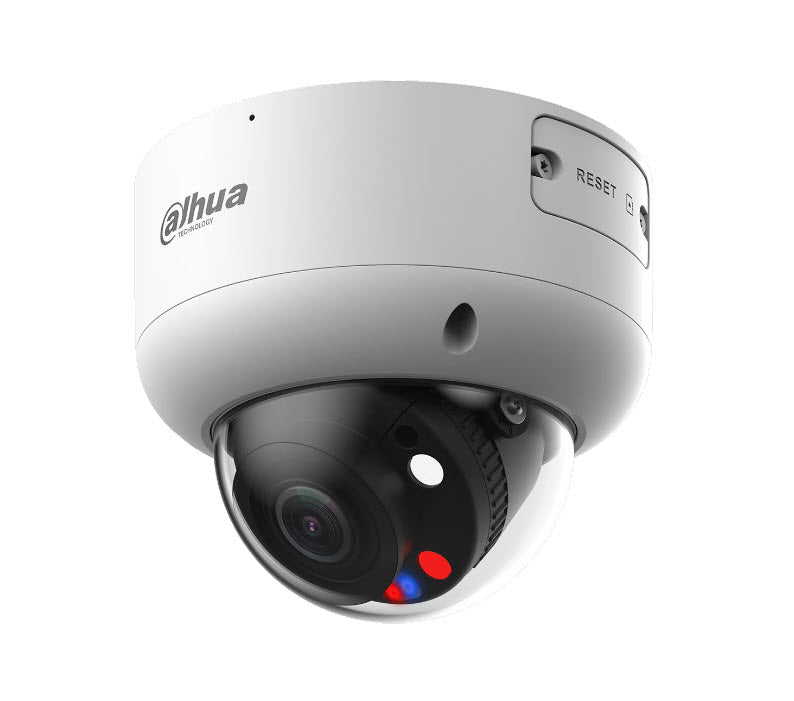

Dahua TIOC DH-IPC-HDBW3849R1-ZAS-PV 8MP Starlight IP Dome Motorised 2.7-13.5mm

$545.00 AUD
In stock!
Spend $100.00 to FREE SHIPPING

8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera

The IPC-HDBW3849R1-ZAS-PV is an 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera designed for high-resolution surveillance. It features an 8-megapixel resolution, dual illumination technology combining white and infrared light, and a vari-focal lens for flexible zoom adjustments.

Key Features

  • 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 8 MP (3840 × 2160)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67, IK10 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • One-tap arming/disarming through alarm input.

Code/SKU: DH-IPC-HDBW3849R1-ZAS-PV
Quick Specs:

Angle Adjustment

  • Pan: 0°–360°
  • Tilt: 0°–90°
  • Rotation: 0°–360°

Field of View

  • Horizontal: 108°–34°
  • Vertical: 56°–19°
  • Diagonal: 130°–39°

Specifications



Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 lux@F1.0 (Color, 30 IRE)

0.0004 lux@F1.0 (B/W, 30 IRE)

0 lux (illuminator on)

S/N Ratio

﹥56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)

Up to 40 m (131.23 ft) (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ16

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.0

Field of View

Horizontal: 108°–34°

Vertical: 56°–19°

Diagonal: 130°–39°

Iris Type

Fixed

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

89.9 m (294.95 ft)

36.0 m

(118.11 ft)

18.0 m

(59.06 ft)

9.0m

(29.53 ft)

T

257.4 m (844.49 ft)

103.0 m

(337.93 ft)

51.5 m

(168.96 ft)

25.7 m

(84.32 ft)

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

SMD 4.0

Less false alarm, longer detection distance

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3840 × 2160@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream:1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–8192 kbps

H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Built-in MIC

Yes, built-in dual Mic

Built-in speaker

Yes, built-in speaker

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S;Profile G;Profile T); CGI

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Phone

iOS; Android

Certification

Certification

CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3V–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic: 4.4 W (12 VDC); 5.8 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.9 W (12 VDC); 10.1 W (PoE)

Environment

Operating Conditions

–30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Protection Grade

IP67, IK10

Structure

Casing

Metal

Dimensions

105 mm × Φ126.0 mm (4.13" × Φ4.96" )

Net Weight

0.73 kg (1.61 lb)

Gross Weight

0.9 kg (1.98 lb)

Documentation

IPC-HDBW3849R1-ZAS-PV_S0_datasheet_20221207.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua TIOC DH-IPC-HDBW3849R1-ZAS-PV 8MP Starlight IP Dome Motorised 2.7-13.5mm

$545.00 AUD

The DH-IPC-HDBW3849R1-ZAS-PV is an 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera designed for high-resolution surveillance. It features an 8-megapixel resolution, dual illumination technology combining white and infrared light, and a vari-focal lens for flexible zoom adjustments. Its active deterrence capabilities include visual and audio warnings to deter intruders.

With advanced AI functions like face detection and intrusion detection, the camera offers enhanced security. It uses H.265+ video compression for efficient bandwidth and storage management and is housed in a durable, weather-resistant enclosure for both indoor and outdoor use. The built-in microphone and wide dynamic range (WDR) functionality ensure clear images and audio recording. Remote access and management are supported through Dahua's app or web interface, and PoE capability simplifies installation. Its compact dome design is discreet and integrates seamlessly with other Dahua products, backed by Dahua's quality and reliability.

Features

  • 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 8 MP (3840 × 2160)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67, IK10 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • One-tap arming/disarming through alarm input.



Functions

Siren and Light Active Deterrence

The Dahua network camera with siren and light active deterrence features both a light and voice alarm system to effectively address perimeter breaches. It provides audible alerts with multiple built-in voice options and supports the import of customized voice messages.

Smart Dual Light

Equipped with Dahua's Smart Dual Light technology, the camera utilizes an intelligent algorithm to detect targets. The IR illuminator is active during the night, but when a target enters the monitored area, the warm light activates to capture full-color video and key event details. When the target leaves, the warm light turns off, and the IR illuminator resumes operation to minimize light pollution.

SMD 4.0

Dahua's Smart Motion Detection (SMD) 4.0 technology uses advanced algorithms to differentiate between various types of motion, filtering out non-targets such as animals to reduce false alarms. With an AI NVR, Quick Pick technology enables easy identification of human and vehicle targets from SMD event videos, prioritizing the most relevant matches.

One-tap Disarming

The One-tap Disarming feature simplifies event linkage control, allowing users to enable or disable event responses via a mobile app. This functionality accommodates various scenarios and enhances user convenience.

Cyber Security

Dahua network cameras incorporate comprehensive security measures, including authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These features strengthen the camera's defenses against cyber threats and malicious attacks.

Protection (IP67, IK10, Wide Voltage)

  • IP67: The camera is dustproof and withstands submersion in up to 1 meter of water for 30 minutes.
  • IK10: The enclosure is impact-resistant, capable of withstanding blows from a 5 kg hammer dropped from 40 cm (20J impact energy).
  • Wide Voltage: It supports an input voltage tolerance of ±30% (for certain power supplies), making it suitable for outdoor use in environments with unstable voltage.
Technical Specifications:

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.004 lux@F1.0 (Color, 30 IRE)

0.0004 lux@F1.0 (B/W, 30 IRE)

0 lux (illuminator on)

S/N Ratio

﹥56 dB

Illumination Distance

Up to 50 m (164.04 ft) (IR)

Up to 40 m (131.23 ft) (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ16

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.0

Field of View

Horizontal: 108°–34°

Vertical: 56°–19°

Diagonal: 130°–39°

Iris Type

Fixed

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

89.9 m (294.95 ft)

36.0 m

(118.11 ft)

18.0 m

(59.06 ft)

9.0m

(29.53 ft)

T

257.4 m (844.49 ft)

103.0 m

(337.93 ft)

51.5 m

(168.96 ft)

25.7 m

(84.32 ft)
