  • Dahua TIOC 2.0 Advanced DH-IPC-HFW3649T1-AS-PV-ANZ 6MP AI Active Deterrence Fixed Lens Bullet Camera
  • tioc20bullet
  • Sku: DH-IPC-HFW3649T1-AS-PV-ANZ
  • Vendor: SecurityAustralia

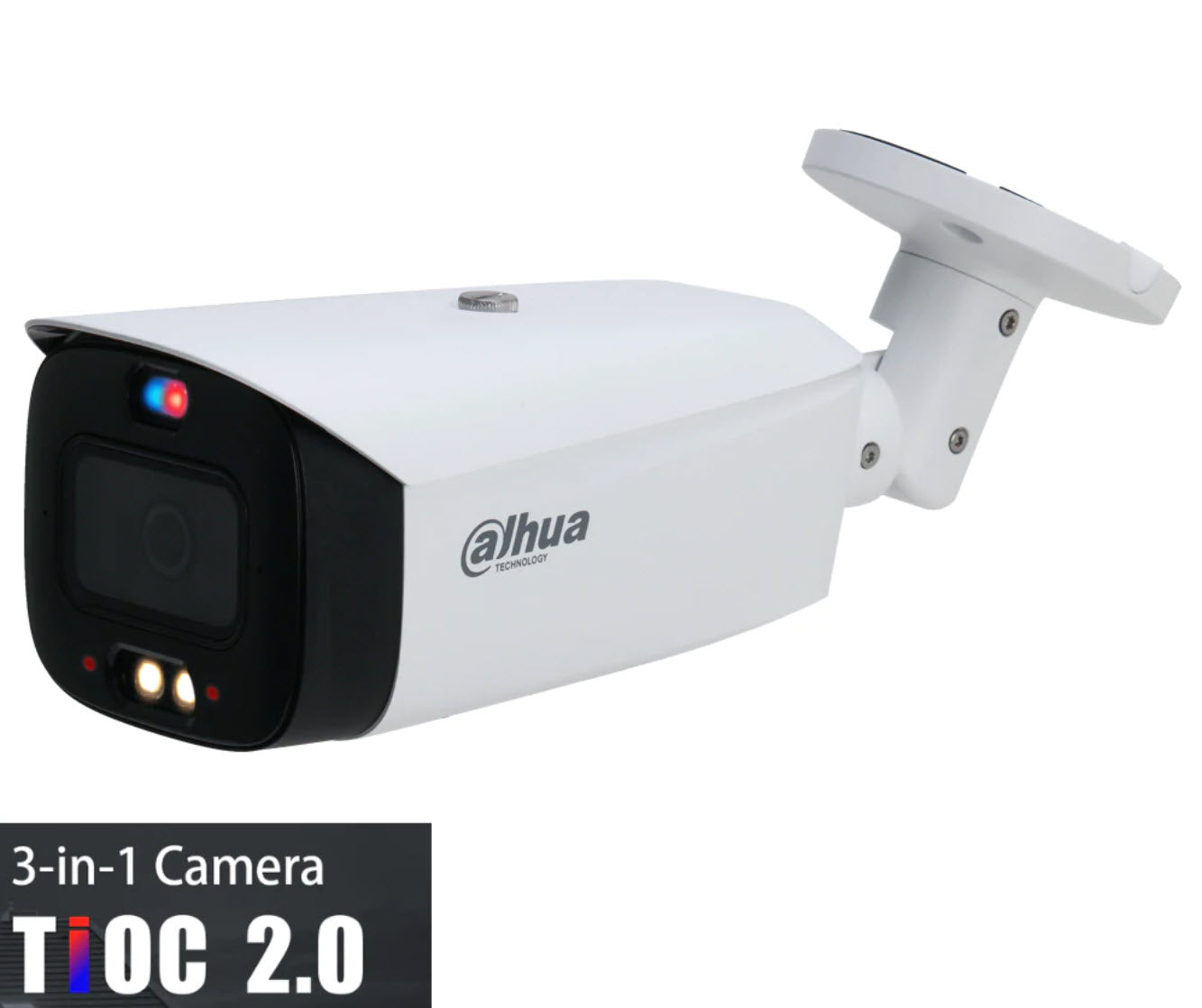

Dahua TIOC 2.0 Advanced DH-IPC-HFW3649T1-AS-PV-ANZ 6MP AI Active Deterrence Fixed Lens Bullet Camera

$369.00 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

6MP Smart Dual Illumination Active Deterrence Fixed-focal Bullet WizSense Network Camera

The camera features built-in warm light and IR LEDs with a maximum illumination distance of 30 meters for both. It includes intelligent functions such as perimeter protection and smart motion detection, supported by advanced deep learning algorithms.

Key Features

  • 6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 6 MP (3200 x 1800) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, Tripwire
  • 256G Micro SD Card
  • IP67 protection.
  • Built-in dual MICs Sound and light alarm (red and blue lights). Two-way talk.
  • SMD 4.0
  • One press arming/disarming through alarm input

Code/SKU: DH-IPC-HFW3649T1-AS-PV-ANZ
Quick Specs:

Pan/Tilt/Rotation Range

  • Pan: 0°–360°
  • Tilt: 0°–90°
  • Rotation: 0°–360°

Field of View

  • 2.8 mm: H: 101°; V: 53°; D: 120°
  • 3.6 mm: H: 82°; V: 44°; D: 96°

Specifications



Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3200 (H) × 1800 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Field of View

2.8 mm: H: 101°; V: 53°; D: 120°

3.6 mm: H: 82°; V: 44°; D: 96°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m (216.54 ft)

26.4 m

( 86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

3.6 mm

78.0 m (255.91 ft)

31.2 m

( 102.36 ft)

15.6 m

(51.18 ft）

7.8 m

(25.59 ft)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

SMD 4.0

Less false alarm, longer detection distance

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3200 × 1800@(1 fps–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)

Third stream:1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

6M (3200 × 1800); 5M (2880 × 1620);4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32kbps–8192 kbps

H.265: 12kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP

User/Host

20 (Total bandwidth: 72 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

Certification

CE-LVD: EN 62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5 VDC

Alarm Output

1 channel out: 300mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 3.3 W (12 VDC); 4.4 W (PoE)

Max. (pulling stream+warning light+speaker+warm light on): 6.8 W (12 VDC); 8.2 W (PoE)

Environment

Operating Conditions

–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH

Storage Conditions

–40 °C to +60 °C (–40 °F to +140 °F)

Protection Grade

IP67

Structure

Casing

Metal + plastic

Dimensions

288.4 mm × 94.4 mm × 84.7 mm
(11.35" × 3.72" × 3.33") (L × W × H)

Net Weight

1.0 kg (2.20 lb)

Gross Weight

1.23 kg (2.71 lb)

Documentation

Dahua-Bullet-Network-Camera_QSG_V1.0.1_d23f671a-331c-4810-af5b-bd75a7835745.pdf
Dahua-6mp-TIOC-Bullet-Camera-DH-IPC-HFW3649T1-AS-PV-ANZ-datasheet.pdf
DH-IPC-HFW3649T1-AS-PV-ANZ_datasheet_20220926.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua TIOC 2.0 Advanced DH-IPC-HFW3649T1-AS-PV-ANZ 6MP AI Active Deterrence Fixed Lens Bullet Camera

$369.00 AUD

The Dahua 6 MP Smart Dual Illumination Active Deterrence Fixed-focal Bullet WizSense Network Camera (DH-IPC-HFW3649T1-AS-PV-ANZ) is equipped with a 6-MP 1/2.7" CMOS image sensor, offering high-definition images with low luminance. This camera can output a maximum resolution of 3200 × 1800 at 25/30 fps. It uses the H.265 codec for high compression and ultra-low bit rates, making it efficient for various bandwidth and storage environments.

The camera features built-in warm light and IR LEDs with a maximum illumination distance of 30 meters for both. It includes intelligent functions such as perimeter protection and smart motion detection, supported by advanced deep learning algorithms. It also offers intelligent monitoring with intrusion and tripwire functions that accurately detect vehicles and humans.

For anomaly detection, it can identify motion, privacy masking, scene changes, audio issues, and more. It supports alarms and audio input/output, with a maximum support of a 256 GB micro SD card. It is built with dual microphones and a speaker, allowing two-way talk, and is powered by 12 VDC or PoE.

The camera is rated IP67 for protection against dust and water and includes sound and light alarms (red and blue lights). Additionally, it supports SMD 4.0 for enhanced monitoring and offers one-click arming/disarming through an alarm input​

Features:

  • 6MP 1/2.7'' CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 6 MP (3200 x 1800) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, Tripwire
  • 256G Micro SD Card
  • IP67 protection.
  • Built-in dual MICs Sound and light alarm (red and blue lights). Two-way talk.
  • SMD 4.0
  • One press arming/disarming through alarm input



Functions:

Siren and Light Active Deterrence

The Dahua siren and light active deterrence network camera provides light and voice alarms when a perimeter event occurs, offering effective deterrence and intervention. The camera comes with multiple pre-recorded voices and allows for custom voice import.

Smart Dual Light

Dahua's Smart Dual Light technology uses an intelligent algorithm to detect targets. At night, the IR illuminator is typically active. When a target enters the monitoring area, the warm light turns on, enabling the camera to capture full-color video and key event information. This allows the camera to link snapshots and videos with full-color images. Once the target leaves the monitoring area, the warm light turns off and the IR illuminator resumes, effectively reducing light pollution.

SMD 4.0

Dahua’s Smart Motion Detection (SMD) technology employs intelligent algorithms to classify targets that trigger motion detection alarms, filtering out non-targets like small and large animals to reduce false alarms. When used with an AI NVR, Quick Pick technology allows for easy searching and identification of human and vehicle targets from SMD event videos, prioritizing the highest matches.

One-tap Disarming

The Dahua One-tap Disarming function is user-friendly and enables easy event linkage control via a mobile app. This feature allows users to enable or disable event linkage to suit various scenarios.

Cyber Security

Dahua network cameras utilize a range of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These features enhance the camera's defense against external cyber threats and protect against malicious programs.

Protection (IP67, wide voltage) IP67:

The camera has passed rigorous dust and water immersion tests, offering dust-proof functionality and the ability to operate normally after being submerged in 1 meter of water for 30 minutes.

Wide voltage: The camera supports a ±30% input voltage tolerance, making it suitable for outdoor environments with unstable voltage conditions.

Technical Specifications:

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3200 (H) × 1800 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

﹥ 56 dB

Illumination Distance

30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Field of View

2.8 mm: H: 101°; V: 53°; D: 120°

3.6 mm: H: 82°; V: 44°; D: 96°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m (216.54 ft)

26.4 m

( 86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

3.6 mm

78.0 m (255.91 ft)

31.2 m

( 102.36 ft)

15.6 m

(51.18 ft）

7.8 m

(25.59 ft)
