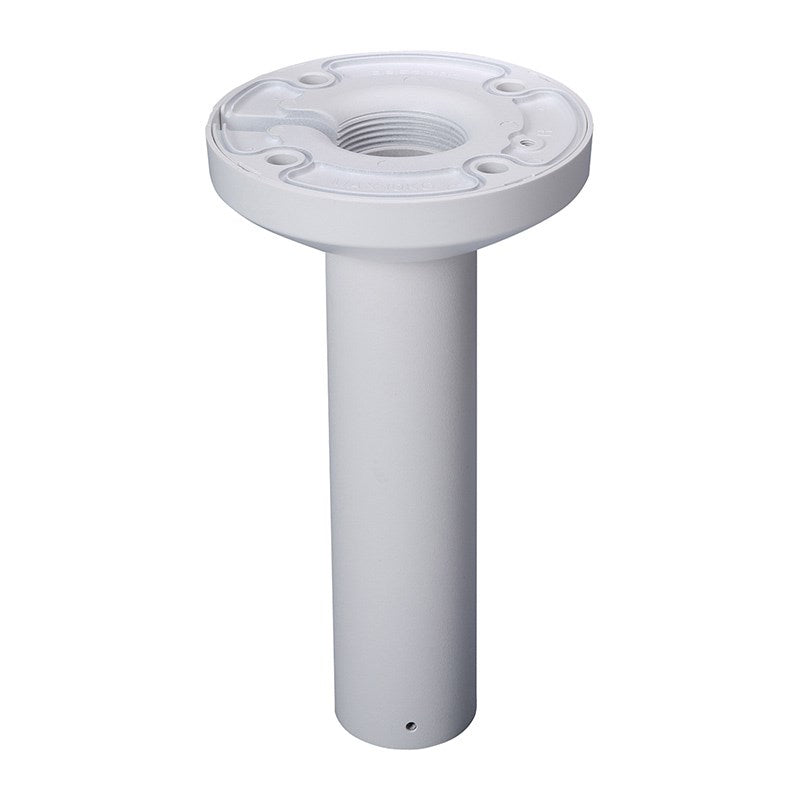

Dahua PFB300C Ceiling Mount Dropper Bracket

Model: PFB300C

Who This Is For

For installers and integrators who need a clean, low-profile dropper solution when mounting Dahua dome or turret cameras from a flat ceiling, the PFB300C Ceiling Mount Bracket provides the drop and angle clearance that a direct flush-mount cannot. It suits scenarios where ceiling voids, conduit routing, or structural slab depth require the camera body to hang below the ceiling surface rather than sit against it. The G1 1/2" pipe thread accommodates standard conduit drops, and the aluminum alloy and PC construction keeps weight well under the 7.0 kg load bearing rating for typical compact camera models. With a white finish and a diameter of 133.6 mm, it maintains a tidy ceiling profile in office fit-outs, retail environments, aged care facilities, and commercial lobbies where visible cable management and aesthetic finish matter to the end client.

Download Product Datasheet (PDF)

What This Bracket Actually Does

Who Buys This Model

• Security Installers on Commercial Fit-Outs: Need a clean conduit dropper for dome cameras in office or retail ceilings where flush-mounting is not practical due to slab depth or ceiling void constraints.
• Integrators Specifying Dahua Systems: Matching the PFB300C to compatible Dahua camera models ensures bracket and camera housings are designed to the same interface standard, avoiding fitment issues on site.
• Facilities and Project Managers: Specifying accessories alongside camera orders for aged care, hospitality, or education builds where a consistent white ceiling aesthetic across all camera positions is part of the project brief.
• Electricians Running Conduit Installations: The G1 1/2" pipe thread connects directly to standard electrical conduit drops, making this a practical choice for sites where conduit is being surface-run or dropped from concrete slab ceilings.

Honest Assessment

The PFB300C does its job well as a straightforward ceiling dropper bracket. The aluminum alloy and PC construction is light enough to handle easily on site at 0.78 kg, the G1 1/2" thread suits common conduit drops, and the 7.0 kg load rating is adequate for every compact Dahua dome or turret in the current range. The wide operating temperature range means it handles environments from cool stores to covered outdoor areas without issue. What it will not do is accommodate heavy PTZ cameras or larger housing-style cameras that exceed the load rating - for those applications a heavy-duty wall or pole bracket is a more appropriate choice. It is also a fixed-length dropper, so installations needing an adjustable drop height will require a different mounting solution. Supplied by Security Australia as part of the Dahua accessories range, it is best ordered at the same time as the camera to confirm interface compatibility before attending site.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Dahua dome or turret camera from a flat ceiling using a G1 1/2" conduit drop and need a clean, low-profile dropper at a fixed 235.5 mm length.
• Good match if: Your installation environment requires a bracket rated to -40°C to +60°C, such as a cool-room ceiling, covered external area, or a building with significant temperature variation.
• You may need a different model if: Your camera exceeds 7.0 kg, requires an adjustable drop length, or you are mounting to a wall, pole, or corner surface - a heavy-duty or multi-axis bracket type will serve those installations better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a ceiling dropper with a G1 1/2" threaded conduit connection and a fixed 235.5 mm drop length for compatible Dahua dome or turret cameras in commercial or covered environments.
• You may need a different model if: Your camera exceeds the 7.0 kg load rating, or you need an adjustable-length drop - a heavy-duty pendant bracket or adjustable drop arm type will better suit those installations.
• Pairs well with: Compact Dahua dome and turret network cameras, PoE switches or NVRs with structured Cat6 cabling routed through the conduit drop.

Common Questions

1. Will this bracket fit my Dahua camera?

   Not all Dahua cameras are compatible - you need to check the Dahua Camera Accessories Selection guide to confirm your specific camera model is listed as compatible with the PFB300C. The bracket is designed for a defined range of Dahua dome and turret cameras with matching base interface dimensions. Using it with an unlisted model may result in a fitment mismatch or insecure installation.

2. What thread size does the PFB300C use and will it fit my conduit?

   The PFB300C uses a G1 1/2" pipe thread. This is a standard BSP (British Standard Pipe) thread size commonly used in commercial electrical conduit systems in Australia. If your conduit is threaded to G1 1/2", it connects directly. Non-standard conduit sizes or metric threads will require a suitable adaptor.

3. How much weight can the PFB300C safely hold?

   The confirmed load bearing rating is 7.0 kg (15.43 lb). This exceeds the weight of virtually every compact Dahua dome and turret camera in the current range. The bracket itself weighs 0.77 kg, so combined installed weight is well within standard ceiling anchor and conduit load ratings for this application.

4. Can I use the PFB300C in an outdoor or covered external area?

   Yes, in covered or sheltered outdoor positions. The operating temperature range of -40°C to +60°C and the humidity rating of less than 90% RH mean it handles Australian outdoor conditions under an eave or in a covered walkway. It is not rated for direct rain exposure, so fully exposed outdoor positions will need a weatherproof housing over the camera mount.

5. Is the drop length adjustable?

   No. The PFB300C has a fixed installed length of 235.5 mm and is not adjustable. If your installation requires a longer or shorter drop - for example on very high ceilings or where camera height relative to foot traffic is critical - you will need a different bracket type that offers adjustable pendant length. Check the full range available through Security Australia to find a suitable alternative.

6. Does the bracket conceal the camera cabling?

   Yes, when used with a conduit drop. The bracket's design routes cabling internally through the G1 1/2" conduit connection, keeping cables concealed from the ceiling to the camera body. Surface cabling or cable-tray installations may still require additional cable management depending on the ceiling configuration.

Downloads & Resources

• Product Spec Sheet (PDF)
