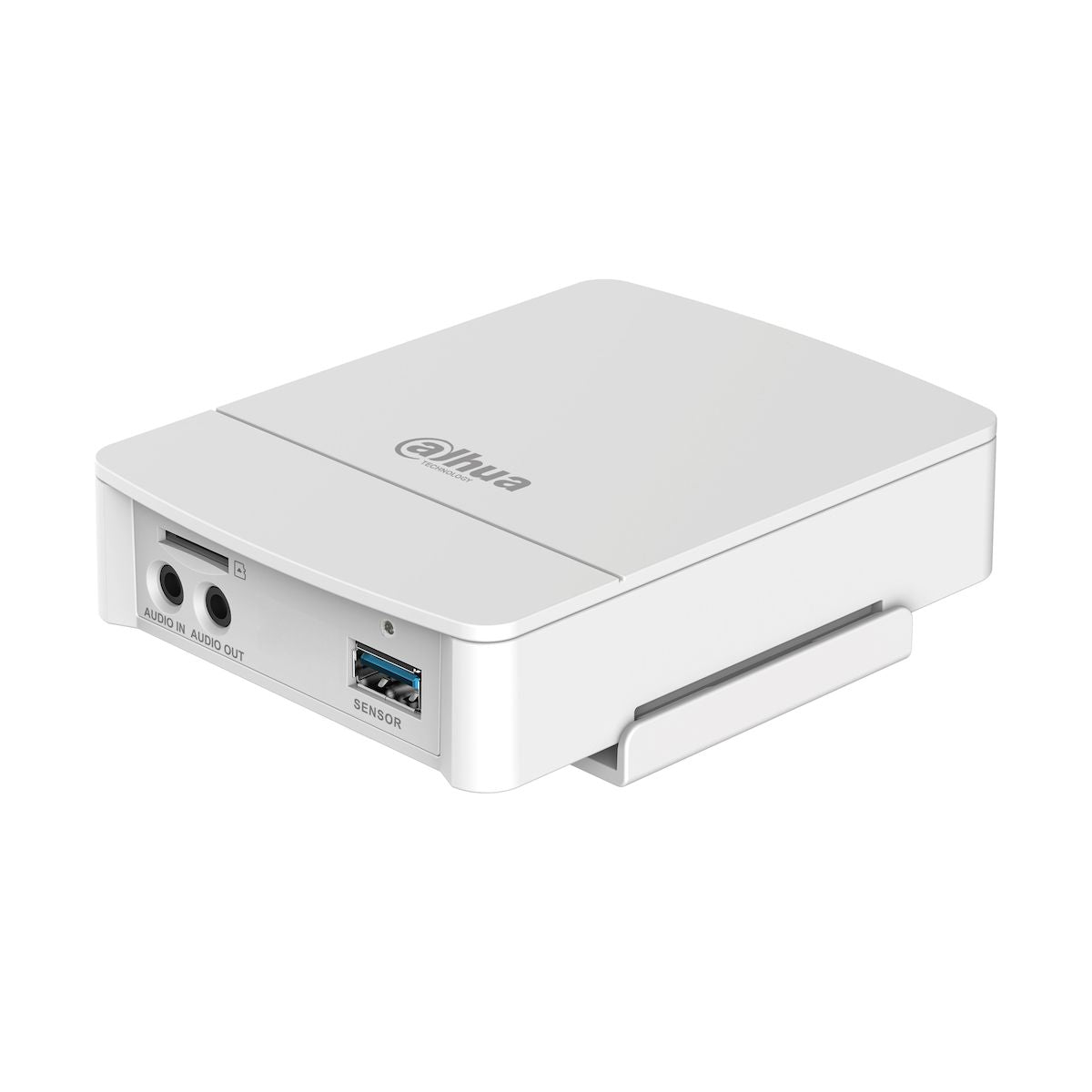

Dahua 4MP IPC-HUM8441-E1-L3 Covert Pinhole Network Camera-KIT

Model: IPC-HUM8441-E1-L3

Who This Is For

For investigators, loss prevention teams, and specialist installers who need a camera that collects evidence without announcing its presence. The Dahua IPC-HUM8441-E1-L3 is a modular covert pinhole camera designed for environments where overt surveillance would alter subject behaviour or compromise an investigation - ATMs, back-office areas, hotel rooms, retail counters, and executive suites. The key differentiator here is the modular build: a miniature sensor head connects to the main processing unit via an 8-metre cable, allowing the lens to be concealed inside a fixture, fitting, or purpose-built housing while the electronics sit out of sight. At 4MP with WDR and 0.01 Lux sensitivity, it captures usable detail in the mixed or dim lighting that covert locations typically present. If discreet placement and clean evidentiary footage are the brief, this is the product category to be specifying.

What This System Actually Does

Who Buys This Model

• Loss Prevention Installers: Retail environments where a visible camera changes shoplifter behaviour. The pinhole lens fits inside shelving units, mirror housings, or ceiling tiles without detection.
• Banking and ATM Security Teams: ATM fascia and teller counter applications where subject proximity is close and facial detail is critical evidentiary data - the 4MP resolution at short range delivers this.
• Corporate Investigation Specialists: Back-office or executive-area monitoring where overt cameras would tip off a subject under internal investigation. The 8-metre sensor cable allows flexible concealment within standard office fittings.
• Hotel Security Managers: Service corridors, concierge areas, and cash-handling points where a traditional dome camera would look out of place or be tampered with. The IP67 rating also handles cleaning routines.
• Government and Facility Security Contractors: Sensitive areas requiring covert monitoring as part of a layered surveillance strategy alongside overt cameras - the on-camera analytics reduce monitoring overhead at unmanned positions.

Honest Assessment

The IPC-HUM8441-E1-L3 does a specific job well: it puts 4MP imaging capability into a form factor that can be hidden in places a conventional camera cannot go. The modular sensor-and-cable architecture is genuinely useful, the WDR handles the challenging mixed lighting common in ATM and retail counter applications, and H.265+ keeps storage requirements manageable for installations running lean on infrastructure. On-camera analytics including tripwire and face detection add monitoring value without requiring a separate AI server. Where this camera is not the right fit: it does not produce audio (no confirmed built-in microphone or speaker), it is not a wide-area coverage tool, and the pinhole field of view is intentionally narrow by design. If the goal is general perimeter coverage or broad-area monitoring, a turret or PTZ from the Security Australia range will serve better. This is a specialist covert tool, and it should only be deployed in jurisdictions and scenarios where covert surveillance is legally permitted and appropriately authorised.

Before You Buy

Quick Fit Check

• Good match if: You need to conceal a camera inside an existing fixture or fitting where a standard dome or bullet would be visible - the modular 8-metre cable separating the pinhole sensor from the main unit is purpose-built for exactly this.
• Good match if: Your application is an ATM, teller counter, or cash-handling point where 4MP resolution at short range is required to capture usable facial and transaction detail, and WDR is needed to handle mixed lighting.
• You may need a different model if: Your requirement is wide-area outdoor perimeter coverage or broad-scene monitoring - a turret or PTZ camera type will provide the field of view, IR range, and mounting flexibility that a pinhole camera is not designed to deliver.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your primary requirement is concealment inside an existing fixture or fitting, and a standard dome or turret camera would be visible or identifiable - the modular pinhole architecture with an 8-metre sensor cable is the confirmed reason to specify this camera over any other type.
• You may need a different model if: General indoor coverage, wide-angle monitoring, or visible deterrence is the goal - a ceiling-mounted dome or turret camera type offers broader field of view, higher visible deterrence value, and greater placement flexibility for those use cases.
• Pairs well with: A compatible Dahua NVR with H.265+ decoding and sufficient channel capacity for the number of covert cameras deployed, connected via a PoE switch for single-cable runs to each camera position.

Common Questions

1. How far can the sensor head be from the main unit?

   The sensor head and main processing unit are connected by a fixed 8-metre cable supplied as part of the modular kit. This is not a user-extendable run - the 8-metre length is the designed maximum separation. Plan your concealment cavity and main unit location before installation so both sit within that distance.

2. Does this camera work with standard PoE switches and NVRs?

   Yes. The IPC-HUM8441-E1-L3 accepts both 12V DC power and standard PoE, so it connects directly to an 802.3af PoE switch or PoE NVR without a separate power supply. It is also compatible with Dahua NVR platforms that support H.265+ decoding, which is where the bandwidth reduction benefit is realised.

3. Will this camera record in complete darkness?

   Yes, with conditions. The camera includes 2 IR LEDs rated to 30 metres, so it will switch to monochrome IR imaging in zero ambient light. However, in a covert installation the IR LEDs may be partially or fully blocked depending on how the pinhole lens is concealed. The 0.01 Lux minimum illumination rating means very low ambient light - a standby indicator, an exit sign, or spill from an adjacent room - is generally sufficient for colour imaging without activating IR.

4. Does the face detection on this camera identify people by name?

   No. The IPC-HUM8441-E1-L3 performs face detection, not face recognition. It detects and captures images of faces and uploads them to a server on trigger - it does not match faces against a database or identify individuals by name. Face recognition requires a separate AI server or VMS platform configured with a face library, which is a different product category available through Security Australia.

5. Is it legal to install a covert camera in a workplace in Australia?

   It depends on your state or territory and the specific location being monitored. Australian surveillance device legislation varies by jurisdiction, but in most states covert monitoring of private spaces - including workplaces - requires specific authority, formal consent, or in some cases a warrant. Installing this camera in a toilet, change room, or similar private space is illegal without exception in all Australian jurisdictions. Confirm your legal obligations with a qualified legal advisor before deployment - this is a specialist product that requires authorised use.

6. How much storage does 4MP continuous recording use with H.265+?

   Significantly less than older compression standards. H.265+ reduces storage requirements by up to 70% compared to standard H.265 and considerably more compared to H.264. As a practical reference point, 4MP H.265+ at typical surveillance frame rates for a single camera running 24 hours will typically require between 12GB and 30GB of storage per day depending on scene activity level. Motion-triggered recording reduces this further. Size your NVR storage based on your required retention period and the number of camera channels.

7. Does this camera have two-way audio?

   No. There is no confirmed built-in microphone or speaker on the IPC-HUM8441-E1-L3. It is a video-only camera. If audio capture is a requirement for your investigation or monitoring application, a separate audio device or a different camera model with confirmed audio hardware would need to be specified.

Downloads & Resources

No downloads available for this product.
