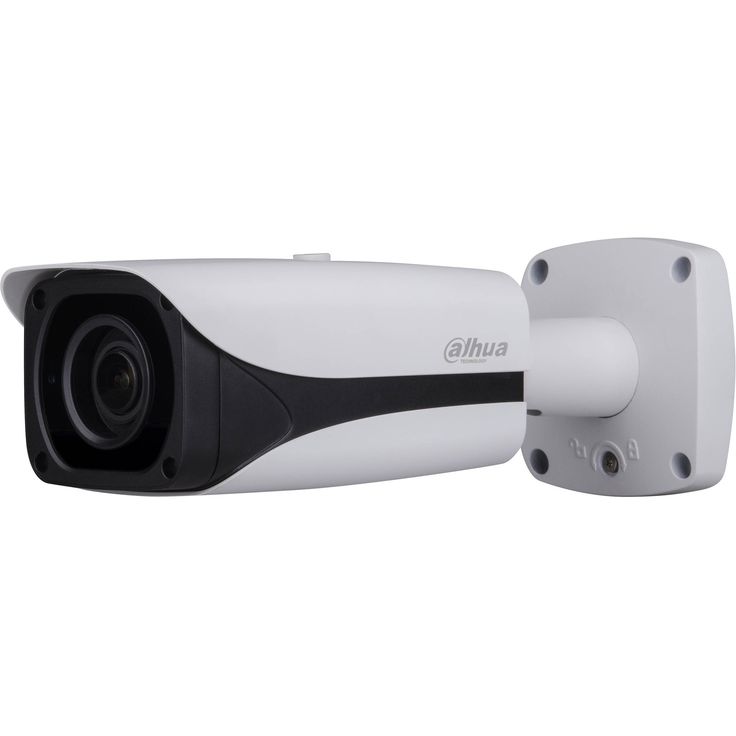

Dahua IPC-HFW81230E-ZE 12MP Motorized Varifocal Bullet Network Camera

Model: IPC-HFW81230E-ZE

Who This Is For

For installers and site managers who need to cover long approaches, wide perimeters, or high-detail outdoor zones without committing to a fixed focal length, the Dahua IPC-HFW81230E-ZE delivers 12MP resolution through a motorized varifocal lens that can be adjusted remotely after mounting. That combination matters on sites like logistics yards, construction compounds, commercial car parks, and industrial facilities where the exact coverage zone often can't be confirmed until the camera is physically on the wall. At 12 megapixels, a single camera can capture the kind of scene width and facial or plate detail that would require multiple lower-resolution units elsewhere. The ePoE capability extends the usable cable run well beyond standard PoE limits, making it practical for large sites where camera positions sit far from the switch room. This is a specification-led buy - typically made by integrators, commercial installers, and site security managers who know exactly what resolution and lens flexibility they need.

Download Product Datasheet (PDF)

What This Camera Actually Does

Who Buys This Model

• Commercial Security Integrators: Specifying cameras for large sites where variable camera-to-switch distances make ePoE's extended cable reach a practical necessity rather than a bonus feature.
• Industrial Facility Managers: Covering loading docks, yard perimeters, and entry roads where 12MP detail allows a single camera to cover a wide zone while still providing enough resolution for forensic review.
• Construction Site Security Coordinators: Mounting cameras on temporary structures or fencing where the exact angle and coverage zone cannot be confirmed until the camera is in place - motorized varifocal solves that problem without a return visit.
• Car Park and Transport Operators: Monitoring entry and exit lanes or open car park areas where the combination of wide coverage and high resolution in a single bullet unit reduces overall camera count and cabling cost.

Honest Assessment

The IPC-HFW81230E-ZE does two things genuinely well: it delivers 12MP image data from an outdoor bullet housing that holds up against weather and physical impact, and it gives installers lens flexibility after mount via motorized varifocal adjustment. The ePoE capability is a real practical advantage on large sites where pulling cable to a centrally located switch is not always feasible. These are not marketing features - they materially reduce install complexity and improve coverage outcomes on the right sites. Where this camera is not the right tool: indoor environments where ceiling mounting and a discreet profile matter more than IR range or weatherproofing, in which case a dome or turret form factor serves better. At 12MP the file sizes are substantial, so storage planning needs to account for higher bitrates per channel compared to 4MP or 8MP cameras. The IPC-HFW81230E-ZE is available through Security Australia and is best suited to professional installations rather than DIY setups.

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 12MP outdoor coverage on a site with long cable runs, and you want to fine-tune the field of view remotely after mounting without returning to physically adjust a fixed lens.
• You may need a different model if: Your application is primarily indoor or requires a ceiling-mount profile - a dome or turret form factor with the same resolution will blend better and offer more flexible pan adjustment during install without the exposed bullet housing.
• Pairs well with: An ePoE-capable NVR with sufficient storage capacity for 12MP streams - ensure the NVR supports the ePoE standard to take full advantage of the extended cable distance this camera enables.

Common Questions

1. Does this camera work over cable runs longer than 100m?

   Yes, when connected to a compatible ePoE switch or NVR. The IPC-HFW81230E-ZE supports Dahua's ePoE standard, which extends power and data transmission well beyond the 100m ceiling of standard IEEE 802.3af PoE. This requires an ePoE-capable device at the other end of the cable - a standard PoE switch will power the camera normally but will not extend the cable distance.

2. How does the motorized varifocal lens work in practice?

   The focal length is adjusted remotely through the camera's web interface or a compatible NVR, not manually at the lens barrel. Once the camera is mounted and connected, the installer can zoom in or out to frame the exact coverage zone without needing physical access to the camera again. Focus is also adjusted motorized, which is particularly useful at height or in difficult access positions.

3. Will this camera perform outdoors in harsh Australian conditions?

   Yes. The IP67 rating provides full dust ingress protection and resistance to temporary water immersion, covering heavy rain and hosing-down scenarios. The operating temperature range of -30 degrees C to +60 degrees C covers extreme Australian summer heat as well as cold-climate sites. The IK10 impact rating adds protection in accessible mounting positions where physical contact with the housing is a risk.

4. What video analytics does this camera support?

   The IPC-HFW81230E-ZE includes IVS (Intelligent Video Surveillance), which covers Tripwire line-crossing detection and Intrusion Detection for defined zone monitoring. It also supports SMD (Smart Motion Detection), which filters motion events by human and vehicle classification to reduce nuisance alerts from environmental triggers like moving trees or lighting changes. These are camera-side features that do not require a separate analytics server.

5. How much storage does a 12MP camera require compared to lower-resolution models?

   Significantly more than a 4MP or 8MP camera at equivalent settings. While H.265+ compression reduces bitrate compared to H.264, a 12MP stream still produces larger files per channel. For sites recording multiple 12MP cameras continuously, storage requirements should be calculated specifically using 12MP bitrate figures - applying averages from lower-resolution installs will result in undersized NVR drives. Security Australia recommends confirming storage calculations before specifying the NVR for any 12MP deployment.

6. Does the camera have local storage if the network goes down?

   Yes. The IPC-HFW81230E-ZE includes a built-in Micro SD card slot supporting cards up to 256GB. This allows the camera to record locally to the card if the NVR or network connection is unavailable, providing a backup recording layer. Footage stored on the SD card can be retrieved via the camera's web interface once connectivity is restored.
