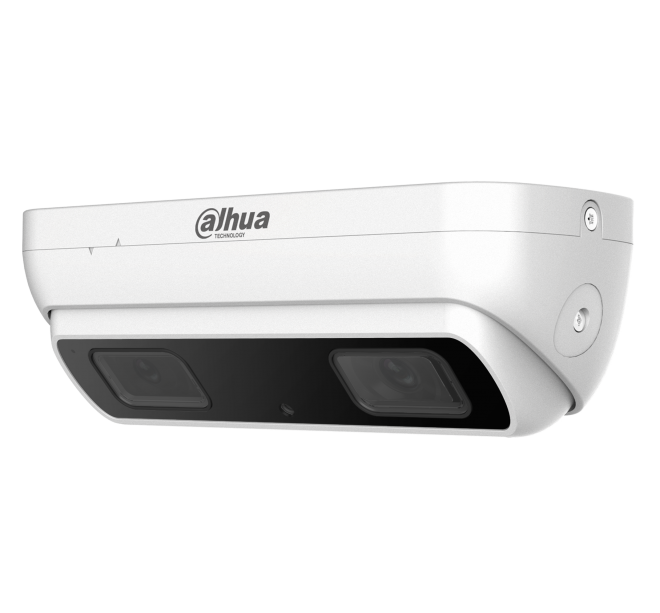

Dahua IPC-HDW8441X-BV-3D | 4MP Dual-Lens Stereo Analysis Network Camera

Model: IPC-HDW8441X-BV-3D

Who This Is For

For integrators and security managers who need behavioural detection that goes beyond standard motion triggers - this is where the Dahua IPC-HDW8441X-BV-3D earns its place. Built around a binocular stereo vision system with dual lenses and deep learning processing, it is designed for environments where accurately classifying what a person is doing matters as much as simply detecting movement. Think retail loss prevention, controlled access zones, warehousing, aged care facilities, and any monitored space where queue depth, crowd density, or specific physical behaviours need to be logged and acted on. The stereo lens arrangement enables genuine depth perception, which means the camera can filter detections by subject height - cutting false triggers from trolleys, forklifts, or low-profile objects that routinely fool single-lens AI cameras. With IK10 impact resistance, IP67 weatherproofing, a 20m IR range, and a built-in mic and speaker for real-time two-way audio, it suits both indoor and outdoor deployments where a camera needs to do considerably more than record.

Download Product Datasheet (PDF)

What This Camera Actually Does

Who Buys This Model

• Loss Prevention Teams in Retail: The combination of height filtering and 8-type behavioural analysis makes this camera practical for monitoring high-theft zones, fitting room corridors, and exits where distinguishing between normal browsing and specific suspicious actions is the core requirement.
• Aged Care and Healthcare Facility Managers: Automatic privacy masking allows monitoring of communal areas and corridors while protecting resident dignity and supporting compliance obligations - without needing to manually configure static privacy zones that shift as people move.
• Warehouse and Logistics Integrators: Height self-adaptation filters out forklift traffic and low pallet movements so alerts are generated only for human presence in restricted zones - cutting through the noise that makes AI alerting impractical in busy industrial environments.
• Security System Designers for Controlled Access Zones: Sites that need both active verbal deterrence and precise behavioural detection in the same camera position benefit from the built-in speaker and microphone combined with onboard deep learning - reducing the number of separate devices required at each point.

Honest Assessment

The IPC-HDW8441X-BV-3D does a specific job well: it brings depth-aware behavioural analysis into a single camera housing that is tough enough for demanding environments. The binocular stereo approach addresses a genuine weakness in conventional AI cameras by allowing height-based subject filtering, which meaningfully reduces false alarm rates in mixed-traffic spaces. The IK10 and IP67 ratings mean it can be mounted in locations where lighter cameras would not last, and the confirmed two-way audio removes the need for a separate intercom at monitored points. Where this camera is not the right fit: if wide-area or long-range coverage is the priority, a PTZ or high-zoom bullet will serve better. The 20m IR range is suited to close-to-medium distances rather than large open yards or perimeter fencelines. It is also a purpose-built analysis tool - buyers looking for a straightforward 4MP outdoor camera without the AI overhead will find simpler and more cost-effective options in the Security Australia range. This model is best specified when the behavioural analysis and stereo detection capabilities are actively going to be used.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring a space with mixed traffic - people, trolleys, forklifts, or animals - and need AI alerts that only trigger on human subjects within a specified height range to keep false alarm rates manageable.
• Good match if: The site has privacy compliance requirements, and you need faces or bodies automatically obscured in the live stream without manually drawing static privacy zones that become redundant as people move through the scene.
• You may need a different model if: Your primary requirement is long-range outdoor perimeter coverage or wide-area yard monitoring - a PTZ or long-range bullet camera will provide the optical reach and field coverage that a fixed dual-lens stereo camera at 20m IR range cannot match.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need depth-aware behavioural analysis with height filtering in a single vandal-resistant housing - particularly where mixed human and non-human traffic causes false alarm problems with standard AI cameras.
• You may need a different model if: Wide-area outdoor coverage over long distances is the priority - a PTZ camera with optical zoom or a long-range IR bullet will provide substantially greater reach than this fixed dual-lens camera's 20m IR range allows.
• Pairs well with: A WizMind-compatible NVR with AI event management support, ensuring the behavioural analysis metadata and event triggers from this camera are fully surfaced at the recording and monitoring level rather than being captured as video only.

Common Questions

1. Does this camera work as a standard IP camera if I do not use the AI features?

   Yes. The IPC-HDW8441X-BV-3D will operate as a 4MP IP camera on any ONVIF-compatible NVR without the stereo analysis features being active. However, the behavioural event detection, height filtering, and privacy masking functions require a compatible Dahua WizMind NVR or VMS to configure and use. Purchasing this model purely as a 4MP camera without utilising the stereo analytics means paying for capabilities that are not being used - a standard WizSense camera at lower cost would likely suit that use case better.

2. Will this camera reduce false alarms compared to a single-lens AI camera?

   Yes, specifically in environments with mixed traffic. The binocular stereo system enables height-based filtering that a single-lens camera cannot perform accurately. By setting a subject height range corresponding to adult humans, the camera dismisses triggers from trolleys, forklifts, animals, and low objects at the sensor level. In warehousing, retail, and industrial sites where non-human movement is constant, this distinction makes AI-based alerting operationally practical in a way standard cameras often are not.

3. What does the automatic privacy masking actually do in practice?

   It applies a live mosaic overlay to faces or full bodies in the video stream rather than drawing a fixed static zone. The masking follows subjects as they move through the frame, which means it remains effective when people are in different positions within the scene. This is useful for facilities that need ongoing CCTV monitoring but must also satisfy privacy obligations - common in healthcare, aged care, and any environment where footage may be accessed by operators who should not view identifying details of the people recorded.

4. Does the two-way audio require any external hardware?

   No. Both the microphone and speaker are built into the camera body, confirmed in the product specification. Two-way audio operates through a connected NVR or VMS that supports audio streaming from the camera. No separate intercom panel or audio pickup device is needed at the camera location. This makes it practical for locations where running additional cabling for a separate intercom would be costly or impractical.

5. What does IK10 actually mean for day-to-day durability?

   IK10 is the highest rating in the IEC 62262 impact protection standard, confirming the housing can withstand a 20-joule impact - equivalent to a 5kg mass dropped from 400mm. In practical terms, this means the camera housing is resistant to deliberate strikes with a blunt object as well as accidental impacts from equipment in industrial or retail environments. Combined with IP67 sealing against dust ingress and sustained water jets, it is rated for demanding locations where a standard camera housing would not hold up.

6. How does the stereo vision system determine subject height?

   The dual lenses create a stereo image pair from slightly offset viewpoints, similar to how human binocular vision works. The camera's onboard processing calculates the depth position of detected subjects by comparing the disparity between the two images - a standard principle in stereo photogrammetry. From the depth data and the camera's known mounting height and angle, the system derives an estimated physical height for each subject in the scene. This is why correct mounting height and angle are important during installation - the accuracy of the height estimation depends on the geometry being calibrated to the actual mounting conditions. More detail on setup requirements is available through Security Australia when specifying this model for a site.

7. Will the IR illumination perform adequately in a partially lit outdoor environment?

   Yes, within its confirmed 20m range. The built-in IR LEDs are designed for low-light and zero-light conditions at close-to-medium distances. In a partially lit outdoor space such as a covered walkway, carpark entry, or building perimeter with ambient lighting, the IR will supplement existing light and maintain image quality after dark. For larger outdoor areas - open yards, long approaches, or carparks requiring coverage beyond 20m - a dedicated long-range IR bullet or PTZ with extended IR reach would be more appropriate.

Downloads & Resources

• Product Spec Sheet (PDF)
