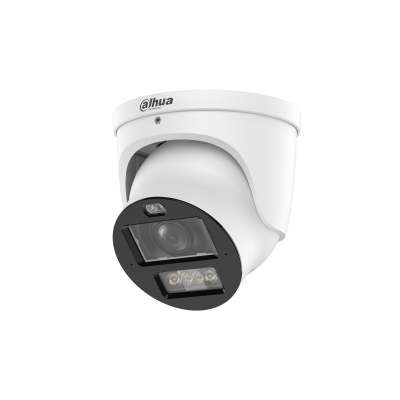

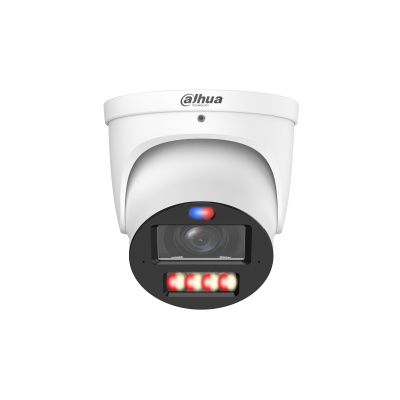

Dahua IPC-HDW3849H-ZAS-PV-PRO-ANZ 8MP 4K WizSense TiOC PRO Vari-Focal Eyeball Network Camera

Model: DH-IPC-HDW3849H-ZAS-PV-1

Who This Is For

Installers working on sites where passive recording simply is not enough will find the Dahua IPC-HDW3849H-ZAS-PV-PRO a practical step up. This is an 8MP 4K WizSense TiOC PRO eyeball camera with a motorised vari-focal lens - meaning you can dial in the field of view after mounting without touching the lens physically. The TiOC PRO system combines a built-in white-light spotlight for full-colour night footage, a strobe light, and an audible siren triggered by verified AI detections. That combination is aimed squarely at locations where you want to stop an intrusion before it progresses, not just document one after the fact. Small commercial premises, residential properties with monitored boundaries, and light industrial sites with defined perimeter lines are the environments this camera is built for. The SMD 4.0 AI engine reduces nuisance alerts by separating human and vehicle movement from animals, foliage, and other false triggers.

What This Camera Actually Does

Who Buys This Model

• Residential security integrators: Installing on homes where the client wants active deterrence on the driveway or side gate, not just passive recording. The full-colour spotlight and on-camera siren replace a separate alarm sounder in low-complexity installs.
• Small retail and hospitality operators: Fitting cameras on outdoor areas - car parks, beer gardens, loading bays - where staff have left for the night and an automated deterrent response is needed without a manned guard.
• Light industrial facilities: Monitoring yard perimeters, fuel storage areas, or plant entry points where vehicle and human classification accuracy matters more than raw motion sensitivity.
• Remote monitoring centres: Operators using verified alert feeds who need the camera to handle immediate deterrence (strobe, siren) while the operator decides on voice-down or escalation - the built-in speaker supports this workflow directly.
• Installers specifying difficult mounting positions: The motorised vari-focal lens means the field of view can be adjusted from software after mounting, making it practical for awkward eave, soffit, or corner positions where re-accessing the camera for lens tweaks would be time-consuming.

Honest Assessment

The IPC-HDW3849H-ZAS-PV-PRO does three things well: it classifies intrusions accurately using SMD 4.0 AI before triggering any alert, it delivers full-colour footage at night via the built-in spotlight rather than monochrome IR, and the motorised lens makes post-install framing adjustments fast without needing to physically re-access the camera. For outdoor perimeter positions on homes and small commercial sites, that combination is genuinely useful rather than a spec-sheet tick. This camera is available through Security Australia as part of the Dahua WizSense TiOC PRO range. Where it will not suit: indoor environments where a spotlight and siren activation would be disruptive or inappropriate, applications requiring long-range identification at distances beyond what an eyeball housing can achieve (a bullet camera with longer IR reach is a better fit), or applications needing continuous 360-degree coverage where a panoramic or multi-sensor camera would be the correct choice.

Before You Buy

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence with full-colour night footage and AI-verified alerts in a single outdoor eyeball housing, and the motorised vari-focal lens is important for post-mount framing flexibility.
• You may need a different model if: Your site requires long-range IR coverage along a wide approach road - a bullet-style camera with extended IR range and a longer focal length is better suited to that geometry than an eyeball form factor. Similarly, if indoor installation is the requirement, TiOC active deterrence (strobe and siren) is not appropriate and a standard WizSense dome will perform better in that context.
• Pairs well with: A Dahua WizSense-compatible NVR with PoE+ ports, so TiOC alarm linkage rules can be configured centrally and recordings are managed with AI event search capability.

Common Questions

1. Does the strobe and siren activate on every motion event, including birds and wind-blown trees?

   No. The active deterrence triggers are linked to SMD 4.0 AI classification, not raw motion detection. The camera must classify the detected object as a human, vehicle, or non-motor vehicle before the strobe or siren fires. Standard motion from animals, foliage, lighting changes, and insects does not trigger the deterrence output. This classification step is the primary reason TiOC PRO cameras are specified over basic TiOC models in environments with high background motion.

2. Will this camera work as a standalone deterrence device without a recorder or cloud service?

   Yes, for deterrence triggering. The SMD 4.0 detection and the on-camera strobe and siren linkage operate at the camera level and do not require a connected NVR or cloud service to activate when an intrusion is detected. However, for recording footage, remote alerts to a phone, and event history, you will need an NVR or an active cloud/DMSS connection. The deterrence is autonomous; the monitoring and recording are not.

3. What PoE standard does this camera require, and will any PoE switch work?

   IEEE 802.3at (PoE+) is recommended. Standard 802.3af ports are rated at a maximum of 15.4W delivered, which may be insufficient when the white-light spotlight and siren are active simultaneously with the camera's normal operating draw. Before specifying switch hardware, confirm that each port allocated to a TiOC PRO camera can deliver the required wattage and that the switch's total PoE budget accommodates all connected devices simultaneously - not just per-port maximums.

4. Can I adjust the zoom and focus of this camera after it has been physically installed?

   Yes. The ZAS motorised lens allows remote zoom and auto-focus adjustment via the camera's web interface, SmartPSS, or a compatible Dahua NVR without physically accessing the camera. This is particularly useful on roof, eave, or elevated wall mounts where re-accessing the camera after initial install adds labour cost. Zoom and focus adjustments are made through software after the camera is locked into its mounting position.

5. Does this camera record in colour at night, or is it black and white like a standard IR camera?

   It records in full colour at night. The built-in white-light spotlight activates in low-light conditions to illuminate the scene with visible light, producing colour footage rather than the monochrome image generated by standard infrared cameras. The practical difference is that clothing colour, vehicle colour, and facial detail are visible in night recordings. Note that the spotlight is visible to anyone in the scene - this is by design, as the light itself acts as a deterrence signal in addition to enabling colour imaging. Stocked by Security Australia, this camera is suited to outdoor positions where colour night evidence is a priority.

6. How does TiOC PRO differ from standard TiOC in terms of AI detection accuracy?

   The PRO designation indicates SMD 4.0, which adds non-motor vehicle classification (bicycles, motorcycles) on top of the human and vehicle categories available in earlier SMD versions. SMD 4.0 also provides improved accuracy in complex scenes with overlapping movement - for example, a pedestrian passing in front of a parked vehicle. In practical terms, SMD 4.0 reduces the rate of misclassified events compared to earlier WizSense generation cameras, which translates directly to fewer incorrect deterrence activations in mixed-traffic outdoor environments. The PRO variant is the correct specification for sites where false alarm reduction is a contractual or operational requirement.

7. Is the two-way audio useful in practice, or is it mainly a specification feature?

   It is operationally useful in specific workflows. The built-in speaker allows a remote operator or property owner to deliver a live voice challenge to someone in the camera's view via DMSS or SmartPSS - without needing a separate intercom device at that location. Combined with the strobe, siren, and real-time alert, this gives a 3-stage response capability from a single camera. It is most effective when someone is actively monitoring alerts; it does not function as an automated voice deterrence without additional configuration or third-party VMS integration.

Downloads & Resources

No downloads available for this product.
