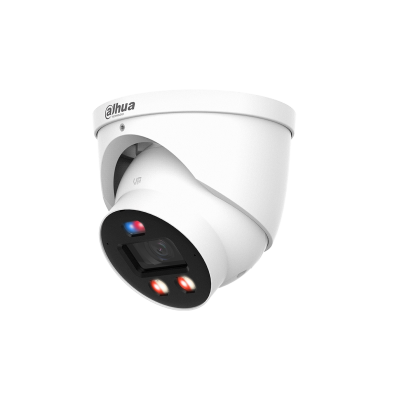

Dahua IPC-HDW3649H-AS-PV-PRO TIOC Acupick 6MP AI Active Deterrence IP Turret Camera

Model: IPC-HDW3649H-AS-PV-PRO-ANZ

Who This Is For

When active deterrence and forensic-grade search capability are both on the brief, the Dahua IPC-HDW3649H-AS-PV-PRO covers that ground in a single turret housing. This is the camera installers specify when a client has already had an incident and wants the system to respond visibly, not just record passively. The full-colour WizColor imaging means there is no switching to greyscale IR at night - every event is captured in colour, which directly supports evidence quality and the AcuPick search function. The built-in red and blue warning lights combined with an audible alarm trigger on confirmed human or vehicle detections, giving the system an active deterrent layer without additional hardware. It suits eave and soffit installs on commercial premises, small warehouses, childcare centres, and residential properties where a single camera position needs to do real work after hours.

Download Product Datasheet (PDF)

What This Camera Actually Does

Who Buys This Model

• Commercial property managers: Specifying a single camera at a main entry or car park that must deter, record in colour, and support quick post-incident review - AcuPick handles the last part without operator training overhead.
• Security installers on retail fit-outs: Where after-hours theft is the primary concern and the client wants the system to respond visibly on detection rather than record silently - the active deterrence lights and alarm deliver that without extra hardware.
• Childcare and school facility managers: Needing full-colour coverage at entry/exit points for after-hours perimeter monitoring, where AI-filtered alerts reduce false callouts and two-way audio can support staff communication at gates.
• Small warehouse and logistics operators: Mounting on eaves over loading dock approaches where IP67 durability, full-colour vehicle capture, and active deterrence address both theft and vandalism without requiring a separate outdoor sounder.

Honest Assessment

The IPC-HDW3649H-AS-PV-PRO does three things genuinely well: it maintains full-colour imaging at night through WizColor rather than falling back to monochrome IR, it responds to confirmed AI detections with on-board lights and audio without requiring ancillary hardware, and the AcuPick function makes post-incident search practical in environments that cannot justify a dedicated monitoring operator. For a fixed-focal turret at this resolution, the feature density is high relative to its size and price point. Where it will not perform as well: coverage range is limited by the fixed focal lens, so wide-area scenes or long approaches to a property require a camera with optical zoom or a bullet housing with longer IR throw. It is also not designed for licence plate capture - if ANPR is a requirement, a dedicated ANPR camera is the right specification. Available through Security Australia with full Dahua warranty support.

Before You Buy

Quick Fit Check

• Good match if: You need a single turret position to both deter and record in full colour overnight - the WizColor imaging and built-in red/blue warning lights with audible alarm handle both without additional hardware.
• Good match if: Post-incident review speed matters and your paired NVR supports AcuPick - operators can filter recorded events by human or vehicle target type and retrieve relevant clips in seconds rather than scrubbing timelines manually.
• You may need a different model if: Your site requires long-range IR coverage of 40+ metres, wide-area pan/tilt/zoom capability, or dedicated ANPR licence plate capture - a bullet camera with extended IR, a PTZ, or a dedicated ANPR camera will be better suited to those scenarios. Browse the full range at securityaustralia.com.au to compare options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires full-colour night imaging, on-camera active deterrence with lights and audio, and AcuPick search capability - all in a single fixed-focal turret housing without additional deterrence hardware.
• You may need a different model if: The scene requires coverage of long approaches beyond 30 metres, pan/tilt/zoom to follow movement across a wide area, or dedicated licence plate capture - a bullet camera with extended IR range, a PTZ camera, or a purpose-built ANPR camera will each serve those scenarios more effectively.
• Pairs well with: A Dahua WizSense-compatible NVR with AcuPick support - this unlocks the full AI event processing, smart search functionality, and active deterrence trigger management the camera is built around.

Common Questions

1. Does the active deterrence on this camera trigger automatically or does an operator have to manually activate it?

   Automatically - no operator action is required for the deterrence to fire. The IPC-HDW3649H-AS-PV-PRO uses on-board deep learning AI to classify detected targets as human or vehicle. When a confirmed classification occurs within the configured detection zone, the red and blue warning lights and audible alarm activate without any manual trigger. This is distinct from cameras where a sounder or strobe must be triggered by a monitoring station. The AI classification step is what separates this from standard motion-triggered deterrence - reducing false activations from animals, foliage, and passing vehicle headlights.

2. Will this camera record in colour at night or does it switch to black and white like a standard IR camera?

   It records in full colour at night. The WizColor technology in the TiOC PRO series is designed to maintain colour imaging in low-light conditions rather than switching to monochrome infrared. This is a key functional difference from standard IR turret cameras, which sacrifice colour information to achieve night visibility. For identification purposes - clothing colour, vehicle colour, distinguishing individuals - the full-colour night output provides directly more useful footage than greyscale IR imaging.

3. Does this camera support two-way audio?

   Yes. The IPC-HDW3649H-AS-PV-PRO has both a built-in dual microphone array and a built-in speaker, which together provide genuine two-way audio capability. This allows live voice communication from a compatible NVR interface or client application - operators can speak to and hear a person at the camera location without any external audio hardware. This suits entry points, gates, and delivery zones where verbal instruction is preferable to triggering the deterrence response.

4. What NVR do I need to get AcuPick working with this camera?

   You need a Dahua NVR that supports WizSense AI event processing and AcuPick functionality. Not all Dahua NVRs support the full AI feature set - entry-level recorders may accept the camera's video stream but will not process AI metadata or enable the smart search interface. Confirm that the NVR model you are pairing specifies AcuPick or WizSense smart search support. The active deterrence trigger also depends on the NVR correctly receiving and actioning the AI event classifications from the camera, so recorder compatibility is important for both features to operate as intended.

5. Will this camera work in a coastal or dusty outdoor environment?

   Yes. The IP67 rating confirms complete dust ingress protection and resistance to water submersion up to 1 metre for 30 minutes - the housing is sealed against the conditions typical of coastal spray, industrial dust, and direct rain. For coastal installs, verify that mounting hardware and conduit entries are also appropriately rated, as the camera body itself is sealed but exposed cable entries and brackets can introduce corrosion points over time in salt-air environments.

6. How does the TiOC PRO active deterrence differ from standard TiOC in terms of AI trigger accuracy?

   The TiOC PRO variant incorporates Xinghan Vision processing, which enhances target detection accuracy by optimising the AI classification and imaging pipeline together rather than independently. In practical terms, this is intended to reduce false deterrence activations - the camera is less likely to fire the warning lights and alarm in response to non-human, non-vehicle motion events such as animals, shadows, or environmental movement. Standard TiOC uses deep learning SMD classification, and TiOC PRO builds on this with the Xinghan Vision engine for improved perceptual input to the classification process. For sites where false alarm management is a key concern, this is the meaningful difference between the PRO and standard TiOC variants. Security Australia stocks both series for direct comparison.

7. Is this camera suitable for capturing licence plates?

   No - not as a dedicated ANPR function. The IPC-HDW3649H-AS-PV-PRO is a general-purpose 6MP full-colour turret camera with fixed-focal lens and AI classification for humans and vehicles. While 6MP resolution provides more detail than lower-resolution cameras, this model does not have ANPR (automatic number plate recognition) processing, dedicated low-depth-of-field licence plate optics, or the narrow field of view typically required for reliable plate capture. If licence plate capture is a site requirement, a dedicated ANPR camera designed specifically for that application will return far more consistent and actionable results than a general surveillance turret.
