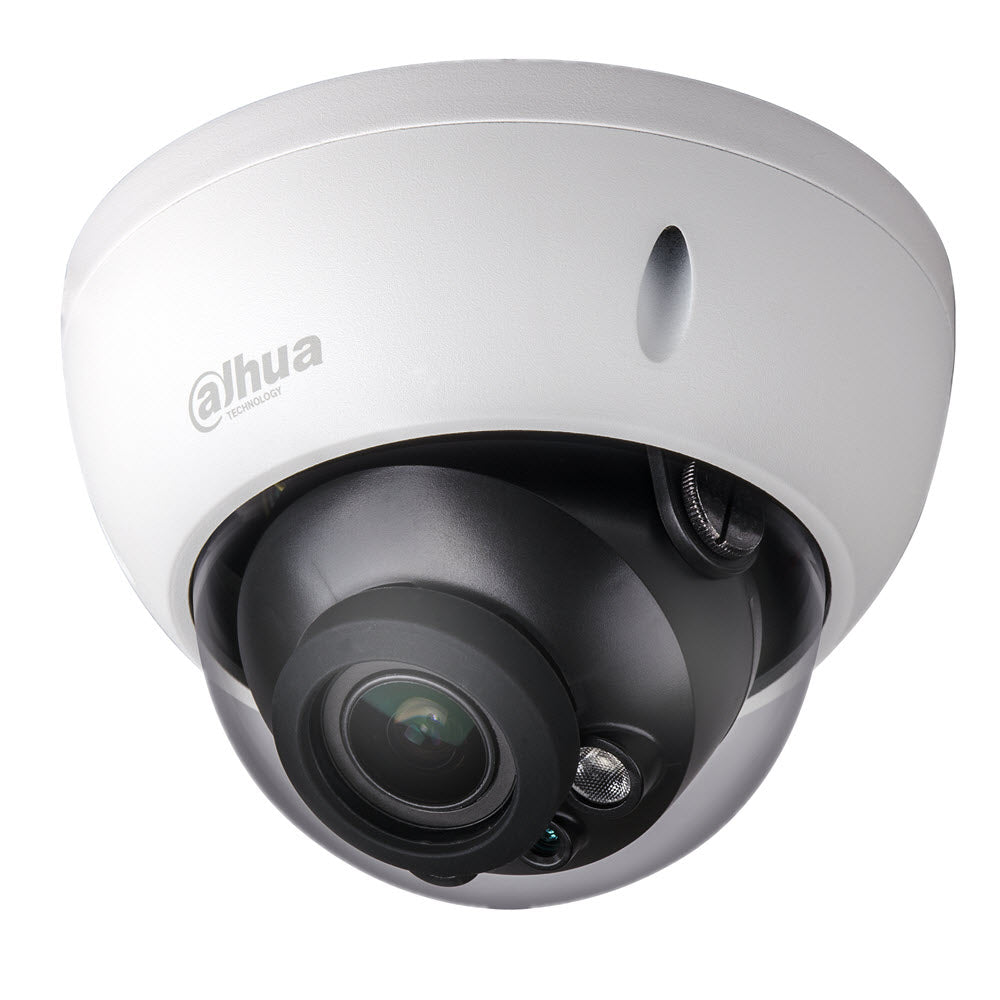

Dahua IPC-HDBW5631RP-ZE-27135 6MP Dome Motorised Network Camera, Zoom Function, WDR 50m IR

Model: DH-IPC-HDBW5631RP-ZE-27135

Who This Is For

For security installers and facility managers who need a single ceiling-mounted dome to handle a wide range of scene widths without repositioning or swapping lenses, the Dahua IPC-HDBW5631RP-ZE delivers exactly that. The motorised 2.7mm-13.5mm varifocal lens means focal length and focus are both set remotely after the camera is physically mounted - ideal for locations where post-install access is awkward, such as high ceilings in retail stores, commercial lobbies, car park interiors, and warehouses. The 6MP sensor resolves fine detail across that full zoom range, and the IK10 vandal-resistant housing means it can stay in place wherever foot traffic or deliberate interference is a concern. Installers specifying a camera that needs to serve multiple zones from a single mounting point - say, a reception desk and the corridor behind it - will find the 5x optical zoom range gives them that flexibility without compromising image quality.

What This Camera Actually Does

Who Buys This Model

• Commercial fit-out installers: Specifying ceiling domes for retail showrooms or corporate lobbies where the final camera angle cannot be confirmed until furniture and fixtures are in place - the motorised lens allows field-of-view adjustment post-install without a ladder return visit.
• Facilities managers at multi-use venues: Halls, function centres, and mixed-use commercial spaces where a single camera position needs to cover different zones depending on the event - the 5x optical zoom range handles this without a second camera.
• Car park and stairwell operators: The IK10 rating and IP67 weatherproofing make this suitable for semi-exposed car park structures and stairwells where impact and moisture are ongoing risks, and 50m IR covers long unlit lanes.
• Security integrators replacing analogue domes: Sites upgrading from legacy fixed-lens domes benefit from the motorised zoom, which compensates for mounting positions inherited from the old camera layout without requiring new conduit runs.

Honest Assessment

The IPC-HDBW5631RP-ZE does its best work where a fixed-lens dome falls short - sites with uncertain mounting positions, high ceilings, or scenes that combine bright and dark zones in the same frame. The 6MP sensor, motorised varifocal lens, and 120dB WDR are a practical combination for demanding indoor-to-outdoor transitional zones. Smart H.265+ compression meaningfully reduces storage overhead, and onboard IVS analytics add event-based alerting without relying on an analytics-capable NVR. Available through Security Australia, this camera suits mid-to-upper tier commercial installs where image quality and install flexibility are both priorities. It will not serve applications requiring continuous pan and tilt tracking of moving subjects across large open areas - a PTZ camera is the right tool for that. It also does not offer full-colour night vision; IR illumination produces monochrome footage after dark, so sites requiring colour identification at night should consider a full-colour sensor alternative.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on a ceiling 4m or higher and need to set the field of view remotely after the camera is fixed - the motorised varifocal lens handles zoom and focus adjustment without physical access.
• Good match if: The scene includes a bright entry point and a shadowed interior in the same frame - the 120dB true WDR processes both simultaneously and produces a usable image where a standard WDR camera would lose detail in one zone.
• You may need a different model if: You need to actively track a subject moving across a large open area in real time - a PTZ camera with auto-tracking is the appropriate product type for that requirement. Browse the PTZ range at securityaustralia.com.au to compare coverage options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a ceiling dome with a motorised varifocal lens that can be adjusted remotely after mounting, combined with 6MP resolution and onboard IVS analytics that do not require an analytics-licensed NVR.
• You may need a different model if: Your primary requirement is full-colour night-time footage - a full-colour dome camera with white-light illumination is a better product type for scenes where colour identification at night is operationally important.
• Pairs well with: A PoE NVR with compatible Dahua IVS support and sufficient storage for 6MP streams, or an ePoE network switch for installations with cable runs beyond 100m.

Common Questions

1. Does the motorised lens mean I can adjust zoom and focus without a ladder?

   Yes. Both zoom and focus are set electronically via the camera's web interface or a compatible Dahua NVR - no physical access to the camera is required after it is mounted. This is the main practical advantage of a motorised varifocal lens over a manual varifocal. You mount the camera, log in remotely, and dial in the exact field of view and focus point from the ground or a control room.

2. What does the 5x optical zoom actually give me in terms of coverage distance?

   At the wide end (2.7mm), detection distance is 79m. At the telephoto end (13.5mm), detection extends to 256m, with recognition distance at 51m and identification at 25m. These are the confirmed DORI distances for this camera. In practical terms, a single camera zoomed to telephoto can watch an approach or aisle at a distance where a wide-angle camera would not resolve sufficient detail to identify a subject.

3. Will this camera work for an installation more than 100m from the network switch?

   Yes, with the right switch. The ePoE capability supports up to 800m at 10Mbps or 300m at 100Mbps over Cat5 or coaxial cable, but this requires a compatible Dahua ePoE switch at the other end of the run. Standard IEEE 802.3af PoE switches are limited to 100m cable runs. If your run is under 100m, any 802.3af switch or injector works. Confirm your switch compatibility before ordering if you are planning an extended run.

4. Does this camera record in colour at night?

   No. Night-time illumination is provided by 2 infrared LEDs, which produce monochrome footage in low-light and zero-light conditions. The camera does capture colour down to 0.03 Lux, so in dimly lit but not completely dark environments - such as a car park with ambient lighting - colour footage may be retained. Once IR activates in full darkness, footage is black and white. If colour identification at night is a requirement, a full-colour camera with white-light LEDs is the appropriate product type. Security Australia stocks full-colour alternatives if this is a concern for your site.

5. Do the IVS analytics need a special NVR to work?

   No. Tripwire, intrusion detection, abandoned object, missing object, face detection, and tamper detection all run on the camera's own processor. The camera generates the alert independently. A compatible Dahua NVR can receive and display those alerts and may offer additional configuration options, but the analytics engine itself is onboard - not offloaded to the recorder.

6. How much storage does a 6MP stream actually consume?

   Smart H.265+ reduces bitrate and storage requirements by up to 70% compared to standard H.265, and further versus H.264. The exact storage figure depends on scene complexity, motion frequency, and encoding settings, but Smart H.265+ makes 6MP recording practical on standard NVR configurations. The camera also supports dual-stream encoding, so a lower-resolution sub-stream can be used for live viewing and remote access while the main 6MP stream is written to storage.
