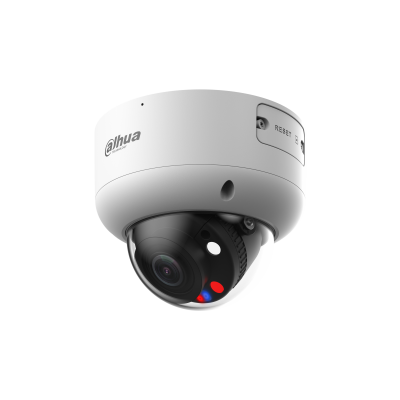

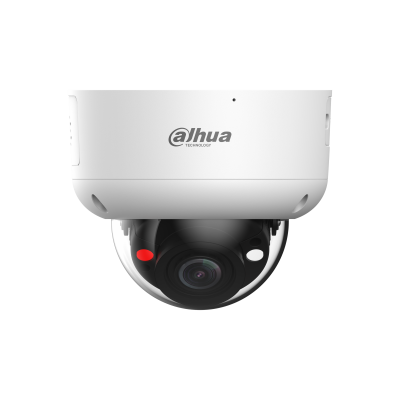

Dahua IPC-HDBW3549R1-ZAS-PV 5MP Smart Dual Light TIOC Motorised Dome WizSense Network Camera

Model: IPC-HDBW3549R1-ZAS-PV

Who This Is For

For installers and property managers who need a single camera to both detect threats and actively respond to them - without adding a separate siren or strobe. The Dahua IPC-HDBW3549R1-ZAS-PV is a 5MP motorised dome with TiOC 2.0, meaning it combines SMD 4.0 human and vehicle detection, built-in red and blue warning lights, audible alarm sounds, two-way audio, and switchable IR or warm-light illumination in one vandal-resistant housing. The motorised varifocal lens makes it practical for installations where the exact field of view cannot be confirmed at the planning stage - a car park entry, a side gate, or a covered loading area where the mounting position is fixed but the scene needs fine-tuning after install. It suits small business owners, strata managers overseeing common areas, and security integrators specifying perimeter-facing domes that do more than record.

Download Product Datasheet (PDF)

What This Camera Actually Does

Who Buys This Model

• Small Business Owners: Retail and hospitality sites where an after-hours deterrent is needed but a full alarm system is not in scope - the red/blue lights and audible warnings handle the deterrence role without a separate panel or monitoring contract.
• Strata and Property Managers: Common-area coverage at car park entries, bin enclosures, or pedestrian gates where full-colour night footage and active deterrence reduce incident frequency and provide strong post-event evidence.
• Security Integrators: Installers specifying perimeter domes on projects where the final field of view will be confirmed on-site - the motorised varifocal lens avoids return visits for lens adjustments after commissioning.
• Industrial and Warehouse Sites: Loading dock and yard-facing positions where two-way audio lets a control room operator communicate with delivery drivers or contractors through the camera without a separate intercom device.
• Childcare and Education Facilities: Sites that need colour footage at dusk and dawn for duty-of-care obligations, combined with SMD 4.0 detection that filters out false alarms from wind and foliage movement in outdoor play areas.

Honest Assessment

The IPC-HDBW3549R1-ZAS-PV genuinely earns its place on perimeter-facing positions where a camera that can both detect and deter is more practical than adding separate hardware. The combination of SMD 4.0 classification, dual-light switching, remote motorised zoom, and on-board two-way audio is a strong feature set for a dome at this price point. The 50m illumination range is sufficient for most residential and small commercial approaches. Where this camera is not the right answer: it will not replace a high-power bullet on a 60m-plus driveway or a long industrial fence line where throw distance matters more than deterrence features. It is also not a PTZ - there is no pan or tilt motor, so it covers a fixed scene. If wide-area tracking or an adjustable patrol pattern is required, a PTZ camera available through Security Australia would be the more appropriate direction. For fixed perimeter dome applications, this is a well-specified unit.

Before You Buy

Quick Fit Check

• Good match if: You need a perimeter-facing dome that actively responds to human or vehicle detections with visible and audible deterrents - the TiOC 2.0 red/blue lights and alarm sounds fire directly from the camera without a separate device.
• Good match if: The install position is fixed but the required field of view will not be confirmed until the camera is on the wall - the motorised varifocal lens allows remote zoom and focus adjustment from the NVR or VMS after cabling is complete.
• You may need a different model if: The monitored area changes frequently or requires active patrol across a wide scene - a PTZ camera would better serve sites that need pan, tilt, and optical zoom tracking rather than a fixed-scene deterrence dome.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a fixed-scene perimeter dome with on-board deterrence - the TiOC 2.0 lights and sounds, SMD 4.0 classification, dual-light switching, motorised varifocal lens, and two-way audio are all confirmed in this single housing.
• You may need a different model if: The monitored scene changes frequently or spans a very wide horizontal area - a PTZ camera with optical zoom and pan/tilt motors would cover that requirement better than any fixed-orientation dome.
• Pairs well with: A Dahua WizSense compatible NVR with SMD event recording - pairing with a matching NVR allows human/vehicle event search by timeline and reduces storage use by only recording classified events in full detail.

Common Questions

1. Does this camera actually produce colour footage at night, or only black-and-white?

   Yes - in warm-light mode it produces full-colour footage at night. The 2 built-in warm-light LEDs illuminate the scene with visible white light, giving colour output regardless of ambient lighting. In IR-only mode the image will be black-and-white as with any standard IR camera. The camera can also switch between modes automatically based on scene brightness, letting you balance colour output against how conspicuous the illumination is.

2. Will this camera work for a site where the lights and siren need to be on a schedule, not just triggered by motion?

   Yes. TiOC 2.0 active deterrence is configurable with schedules and detection zones. You can define time periods during which the strobe and alarm sounds are active - for example, only after business hours - so the deterrence response does not fire during staffed operating hours when human detections are expected and legitimate. Zone masking and sensitivity settings can be adjusted per installation.

3. How accurate is SMD 4.0 at separating humans and vehicles from other motion sources?

   SMD 4.0 is materially more accurate than standard pixel-based motion detection. It uses the on-board AI to classify targets by shape and movement pattern before triggering. In typical outdoor conditions, insects at close range, leaves, and passing headlights through a fence are generally excluded from triggering events. The practical outcome is fewer nuisance notifications and cleaner event logs - though no AI detection eliminates false positives entirely, and detection zone configuration on commissioning directly affects real-world performance.

4. Does the motorised varifocal lens on this model mean it can pan and tilt like a PTZ camera?

   No. The motorised varifocal lens adjusts zoom level and focus remotely - it does not pan or tilt the camera. The dome housing is physically oriented at mounting time and stays fixed on that scene. Remote motor control via the NVR or VMS interface handles zoom and focus after installation, which saves return visits for lens adjustments, but it does not provide directional movement across the scene. For pan and tilt tracking, a dedicated PTZ camera is the appropriate product type.

5. What NVR or recorder is this camera compatible with?

   This camera is compatible with Dahua WizSense NVRs that support SMD event recording and TiOC camera management. For full feature access - including SMD 4.0 event search, TiOC deterrence configuration, and remote varifocal lens adjustment - a Dahua WizSense compatible NVR is the confirmed pairing. It will also operate as a standard IP camera on any ONVIF-compliant recorder, though AI features and deterrence configuration may not be accessible outside the Dahua platform. Security Australia stocks compatible Dahua NVR options.

6. What triggers the TiOC active deterrence - any motion, or only confirmed human and vehicle detections?

   By default, TiOC 2.0 active deterrence on this model is tied to SMD 4.0 classification - the strobe and alarm sounds fire when a human or vehicle is confirmed in the defined detection zone, not on any pixel-level motion. This is a meaningful distinction from older TiOC 1.0 implementations where deterrence was triggered by any motion event. The result is fewer false deterrence activations from wind, animals, and passing vehicles outside the zone, and a more targeted response to the threat types that matter.

7. Is the two-way audio on this camera usable remotely, or only from an on-site NVR screen?

   Two-way audio is accessible both locally via the NVR and remotely via the Dahua DMSS mobile app or DSS/DSS Express platform, subject to network configuration. The built-in dual microphone and built-in speaker are hardware-confirmed. Remote audio requires the camera to be reachable over your network - either through direct IP access or via a Dahua cloud or VPN connection. Local network latency and codec settings affect audio quality in practice.

Downloads & Resources

• Product Spec Sheet (PDF)
