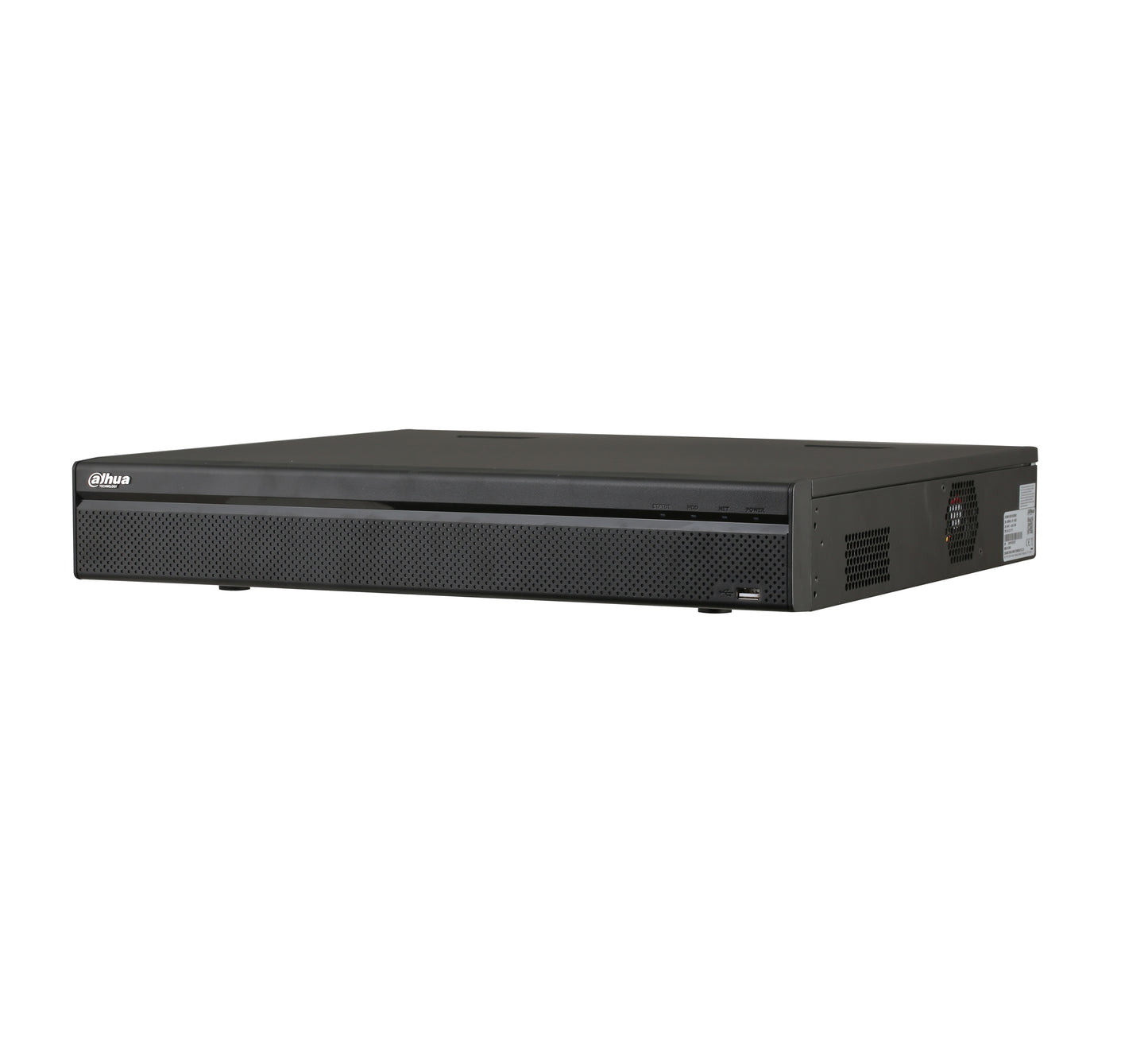

32 Channel 1.5U 16PoE 4K & H.265 Pro Network Video Recorder
The 32 Channel 1.5U 16PoE 4K & H.265 Pro Network Video Recorder, model DHI-NVR5432-16P-4KS2E, is a powerful solution for high-definition video surveillance needs. It supports up to 32 IP cameras, offering extensive coverage for large areas. The device features 16 Power over Ethernet (PoE) ports, simplifying the installation process by eliminating the need for separate power cables. With 4K resolution support, the NVR delivers ultra-clear video, ensuring detailed monitoring. It uses advanced H.265 video compression, reducing storage requirements without compromising video quality.
Key Features
Code/SKU: DHI-NVR5432-16P-4KS2E
Quick Specs:
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 16/32/64 Channel |
| Two-way Talk | 1 Channel Input, 2 Channel Output, RCA |
| Display | |
| Interface | 2 HDMI, 2 VGA |
| Resolution | HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 VGA1: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 HDMI2/VGA2: 1920 × 1080 |
| Decoding Capability | 4-ch@8MP(30fps), 16-ch@1080P(30fps) |
| Multi-screen Display | 1st Screen: 16CH: 1/4/8/9/16 32CH: 1/4/8/9/16/25/36 64CH: 1/4/8/9/16/25/36/64 2nd Screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input | 16 Channel |
| Relay Output | 6 Channel |
| Playback and Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/eSATA Device |
| Third-party Support | |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Network | |
| Interface | 1 RJ-45 Ports (10/100/1000Mbps) |
| PoE | 16 ports (IEEE802.3af/at) 1-8 ports support ePoE & EoC |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 4 SATA III Ports, Up to 10 TB capacity for each HDD |
| eSATA | 1 eSATA |
| Auxiliary Interface | |
| USB | 3 USB Ports (2 Rear USB 3.0, 1 Front USB 2.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | Single, AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: <17.5W (Without HDD) PoE: Max 25.5W for single port 150W total rated power, 80% control for protection |
| Fan | Smart fan, automatically adjust running speed |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Operating Humidity | 10% ~ 90% |
| Installation | Desktop/rack-mounted |
| Construction | |
| Dimensions | 1.5U, 440 mm × 411 mm × 76 mm (17.3'' × 16.2'' × 3.0'') |
| Net Weight | 5.7 kg (12.6 lb) (without HDD) |
| Gross Weight | 8.2 kg (18.1 lb) (without HDD) |
| Certifications | |
| Certifications | CE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL 60950-1 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Dahua DHI-NVR5432-16P-4KS2E 32 Channel 1.5U 16 Channel PoE 4k Pro Network Video Recorder NVR
The 32 Channel 1.5U 16PoE 4K & H.265 Pro Network Video Recorder, model DHI-NVR5432-16P-4KS2E, is a powerful solution for high-definition video surveillance needs. It supports up to 32 IP cameras, offering extensive coverage for large areas. The device features 16 Power over Ethernet (PoE) ports, simplifying the installation process by eliminating the need for separate power cables. With 4K resolution support, the NVR delivers ultra-clear video, ensuring detailed monitoring. It uses advanced H.265 video compression, reducing storage requirements without compromising video quality. The NVR is equipped with intelligent video system (IVS) analytics, enhancing security through features like intrusion detection and facial recognition. It supports RAID configurations, providing data redundancy and improving system reliability.
The recorder offers a maximum incoming bandwidth of 320 Mbps, allowing smooth video streaming even with multiple high-resolution cameras. It also supports ePoE, enabling long-distance power transmission up to 800 meters. The NVR includes multiple backup options, including USB and network, ensuring data protection. Its user-friendly interface simplifies configuration and management. Additionally, the device is compatible with mobile applications, providing remote access for live viewing and playback.
Features
Functions
Smart H.265+: Smart H.265+ is an enhanced version of the H.265 codec, designed to optimize video encoding through a scene-adaptive strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction. This technology delivers high-quality video while significantly reducing network strain. Compared to standard H.265 compression, Smart H.265+ reduces bit rate and storage requirements by up to 70%.
ePoE & EoC: The NVR supports 800m ePoE and EoC technology, making it suitable for a wide range of applications. ePoE technology simplifies long-distance surveillance setups by eliminating the need for additional network repeaters, enhancing system reliability and ease of deployment. EoC technology allows for high-definition IP surveillance upgrades using existing coaxial cables, facilitating seamless system transitions.
Smart Fan: The NVR features a smart fan that efficiently cools the system by automatically adjusting its speed based on CPU and ambient temperature. This fan is durable, operates quietly, reduces maintenance costs, and enhances the overall user experience.
DMSS: The DMSS app, available on both the iOS App Store and Google Play, streamlines surveillance management. It allows users to remotely access NVR devices, view live video, receive event push notifications, and search recorded videos from an iPhone, iPad, or Android device, providing flexibility and convenience from virtually anywhere.
Fisheye Dewarping: Fisheye dewarping addresses the issue of distortion in circular panoramic views. The NVR provides various dewarping modes tailored to different installation configurations, enhancing video quality in both live and playback modes. Each mode offers adjustable scene options for improved visual accuracy.
ANPR: The Automatic Number Plate Recognition (ANPR) feature facilitates efficient entrance and exit management. When paired with a Dahua ITC camera, it supports license plate recognition, allowing for black/white list import/export, addition/deletion of list numbers, and searching recorded video based on recognized plates.
Point of Sale (POS): Ideal for retail environments, the optional POS solution allows the NVR to receive transaction data along with corresponding video footage. This feature enables merchants to analyze specific transactions using a Fuzzy search algorithm, enhancing operational insights.
Automatic Network Replenishment (ANR) Technology: NVRs equipped with ANR technology automatically store video data on an IP camera's SD card when the network is disconnected. Once the network is restored, the NVR retrieves the stored video data, ensuring continuous and complete surveillance coverage.
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 16/32/64 Channel |
| Two-way Talk | 1 Channel Input, 2 Channel Output, RCA |
| Display | |
| Interface | 2 HDMI, 2 VGA |
| Resolution | HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 VGA1: 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 HDMI2/VGA2: 1920 × 1080 |
| Decoding Capability | 4-ch@8MP(30fps), 16-ch@1080P(30fps) |
| Multi-screen Display | 1st Screen: 16CH: 1/4/8/9/16 32CH: 1/4/8/9/16/25/36 64CH: 1/4/8/9/16/25/36/64 2nd Screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input | 16 Channel |
| Relay Output | 6 Channel |
| Playback and Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/eSATA Device |
| Third-party Support | |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Network | |
| Interface | 1 RJ-45 Ports (10/100/1000Mbps) |
| PoE | 16 ports (IEEE802.3af/at) 1-8 ports support ePoE & EoC |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 4 SATA III Ports, Up to 10 TB capacity for each HDD |
| eSATA | 1 eSATA |
| Auxiliary Interface | |
| USB | 3 USB Ports (2 Rear USB 3.0, 1 Front USB 2.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | Single, AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: <17.5W (Without HDD) PoE: Max 25.5W for single port 150W total rated power, 80% control for protection |
| Fan | Smart fan, automatically adjust running speed |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Operating Humidity | 10% ~ 90% |
| Installation | Desktop/rack-mounted |
| Construction | |
| Dimensions | 1.5U, 440 mm × 411 mm × 76 mm (17.3'' × 16.2'' × 3.0'') |
| Net Weight | 5.7 kg (12.6 lb) (without HDD) |
| Gross Weight | 8.2 kg (18.1 lb) (without HDD) |
| Certifications | |
| Certifications | CE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL 60950-1 |
