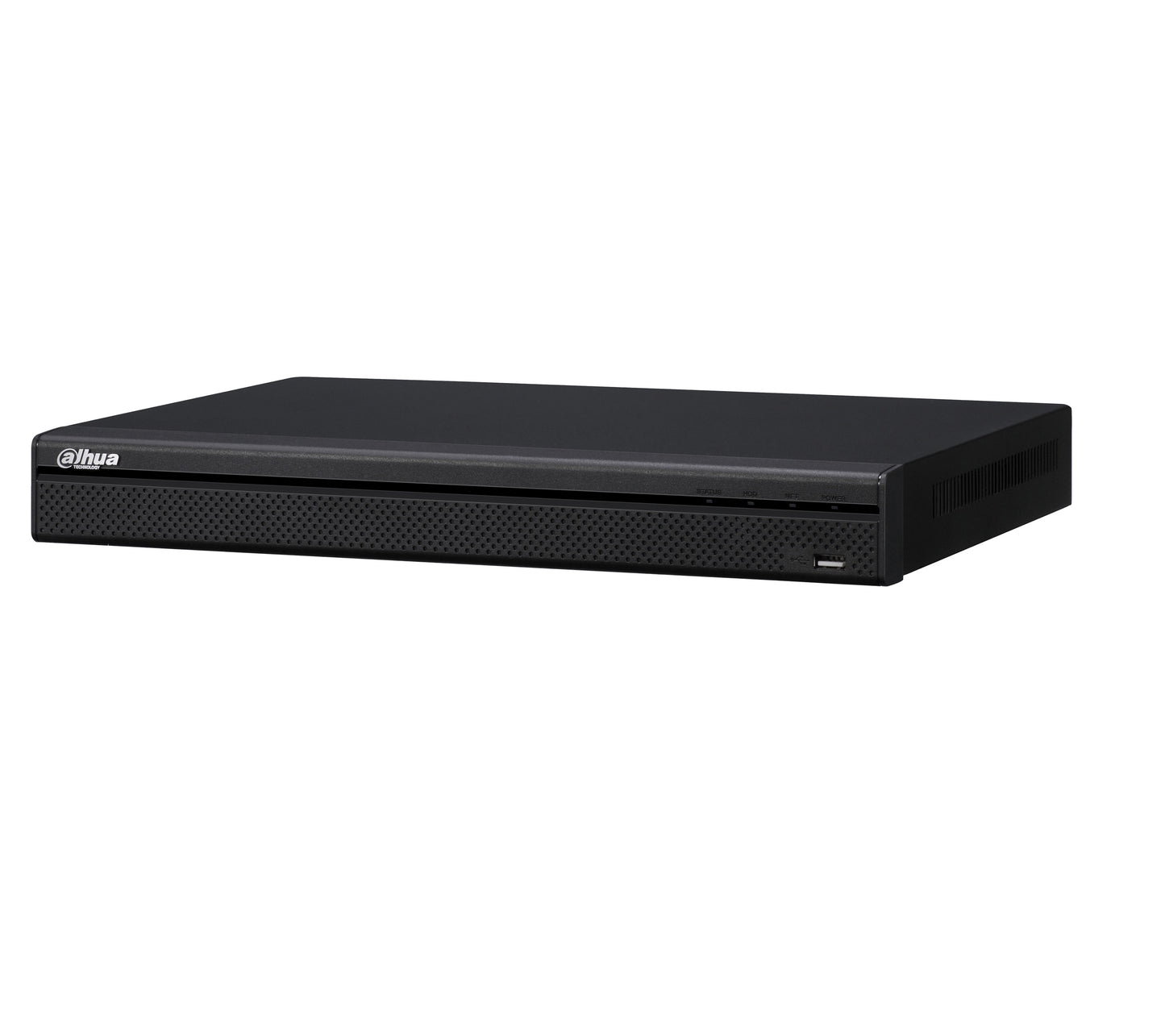

Dahua DHI-NVR4216-16P-4KS2/L 16 Channel 1U 16PoE 4K H265 Lite Network Video Recorder

Model: DHI-NVR4216-16P-4KS2/L

Who This Is For

For installers and system integrators who need a single-unit recording solution capable of driving a full 16-camera IP deployment without a separate PoE switch. The Dahua DHI-NVR4216-16P-4KS2/L is built for small to medium commercial sites - think multi-tenancy retail strips, light industrial buildings, childcare centres, and school campuses - where clean cabling and centralised management matter. Every camera connects directly to the NVR via a single Cat5e or Cat6 run, eliminating the need for intermediate switching hardware. The unit records up to 8MP resolution across all 16 channels, outputs to a 4K display via HDMI, and processes AI functions including SMD Plus across 12 channels and perimeter protection across 8 channels - all handled by the camera, with the NVR aggregating results. Dual HDD bays and support for drives up to 10TB each give you meaningful storage headroom without outgrowing the unit quickly.

What This NVR Actually Does

Who Buys This Model

• Security installers building 16-camera commercial sites: The integrated 16-port PoE switch eliminates a separate switching layer, keeping the head-end enclosure clean and the bill of materials tight on standard retail or office fit-outs.
• Body corporates and strata managers: Multi-tenancy residential and commercial buildings benefit from centralised 16-channel recording with remote access for building management, without requiring on-site monitoring staff.
• Schools and childcare operators: Face detection across 4 channels and people counting support align with safeguarding and attendance reporting requirements. Remote access via DMSS lets management review footage from off-site.
• Light industrial and logistics sites: Perimeter protection across 8 channels supports after-hours yard monitoring with human and vehicle classification, reducing the false alarm burden on security response teams.
• IT managers integrating into existing networks: ONVIF Profile T/S/G compatibility and a full network protocol stack including IPv6, SNMP, and DDNS allows the unit to integrate into managed network environments with existing third-party cameras already on-site.

Honest Assessment

The DHI-NVR4216-16P-4KS2/L does the core job of a 16-channel PoE NVR competently. The integrated switching, dual HDD bays, and AI alarm aggregation make it a practical all-in-one head-end for sites that have outgrown an 8-channel unit but do not yet justify a rack NVR with separate switching infrastructure. SMD Plus across 12 channels is a genuine operational benefit - sites running this unit with compatible Dahua SMD cameras will see a noticeable reduction in nuisance motion alerts compared to standard motion detection setups. The 117W total PoE budget requires some planning: running 16 high-power cameras simultaneously will approach that ceiling, so camera power draw should be confirmed before finalising camera selection. This unit will not suit sites needing more than 16 channels, RAID storage redundancy across more than 2 drives, or more than 20TB of local storage - for those applications, a larger rack NVR is the appropriate step up. Available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You are deploying up to 16 IP cameras at a single site and want to avoid a separate PoE switch - the 16 integrated PoE ports handle power and data in one run per camera, keeping the install straightforward.
• Good match if: Your site uses compatible Dahua cameras with SMD Plus or perimeter protection and you need filtered AI alarms rather than raw motion events - the NVR aggregates and searches those results across up to 12 and 8 channels respectively.
• You may need a different model if: Your site requires more than 16 camera channels, storage across more than 2 HDDs, or RAID protection beyond basic disk grouping - a higher-channel rack NVR with more HDD bays would better suit that deployment scale.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a self-contained 16-channel recording and switching solution in a single 1U unit - the integrated 16-port PoE switch removes the need for a separate switching layer in the head-end.
• You may need a different model if: Your site requires more than 16 channels, more than 2 HDD bays, or higher AI channel counts for perimeter or face detection - a higher-channel rack NVR with expanded storage bays is the appropriate next step up.
• Pairs well with: Dahua 8MP turret or bullet cameras with SMD Plus or perimeter protection capability, particularly those drawing under 13W each to stay within the 117W total PoE budget across all 16 ports.

Common Questions

1. Does this NVR need a separate PoE switch to power the cameras?

   No. The DHI-NVR4216-16P-4KS2/L has 16 PoE ports built in, so each camera connects directly to the NVR with a single Cat5e or Cat6 run carrying both power and data. No intermediate switch is required. The total PoE budget is 117W across all 16 ports, with a maximum of 25.5W available per individual port.

2. Will this NVR work with non-Dahua cameras?

   Yes, with limitations. The NVR supports ONVIF Profile T/S/G and RTSP, so most standards-compliant third-party IP cameras can be added for basic recording and live view. However, AI functions including SMD Plus, perimeter protection, and face detection are AI by Camera features - they require compatible Dahua cameras to function. Third-party cameras connected via ONVIF will record normally but will not pass AI event data to the NVR's intelligent alarm system.

3. How much storage can I fit in this NVR?

   A maximum of 20TB raw capacity. The unit has 2 SATA III bays, each supporting a single drive up to 10TB. HDDs are not included with the NVR and must be purchased separately. Dahua recommends surveillance-grade HDDs rated for 24/7 operation. Disk group configuration is supported, allowing you to assign specific drives to specific camera groups or recording modes.

4. Does the SMD Plus feature on this NVR actually reduce false alarms compared to standard motion detection?

   Yes, meaningfully - when paired with compatible Dahua cameras. SMD Plus runs the AI classification on the camera itself, categorising motion as human or vehicle before the event reaches the NVR. The NVR then triggers alarms only for the target types you have configured. This eliminates most false alerts caused by lighting changes, foliage movement, and small animals that standard pixel-based motion detection cannot distinguish from people. SMD Plus supports up to 12 simultaneous channels on this unit.

5. Can I access footage remotely on a phone or tablet?

   Yes. The NVR supports remote access via the Dahua DMSS app on both iOS and Android. P2P connectivity simplifies setup in most network environments without requiring manual port forwarding. Live view, event notifications, and video playback are all available through the app. Web browser access is also supported via Chrome, Firefox, or IE9 and later for desktop access.

6. What are the AI channel limits I need to plan around before buying?

   There are 3 separate limits to note. Perimeter protection (intrusion and tripwire) is supported on up to 8 channels. SMD Plus human and vehicle classification is supported on up to 12 channels. Face detection is supported on up to 4 channels. These limits are concurrent - a camera assigned to perimeter protection is drawing from that pool of 8, separate from the SMD pool. If your site requires more than 8 perimeter protection channels, a higher-tier NVR with a larger AI channel allocation is the right step. The team at Security Australia can assist with channel planning for mixed AI deployments.

7. Is this NVR rack-mountable or does it only sit on a bench?

   The official installation specification is desktop mounted. The unit's 1U form factor and dimensions of 375 x 327.4 x 53.8mm are compatible with a standard 19-inch rack shelf, but it is not supplied with rack ears and is not specified as rack-mountable by Dahua. If your installation requires rack mounting, a rack shelf accessory would be needed, and the unit's depth of 327.4mm should be measured against your rack enclosure before purchasing.
