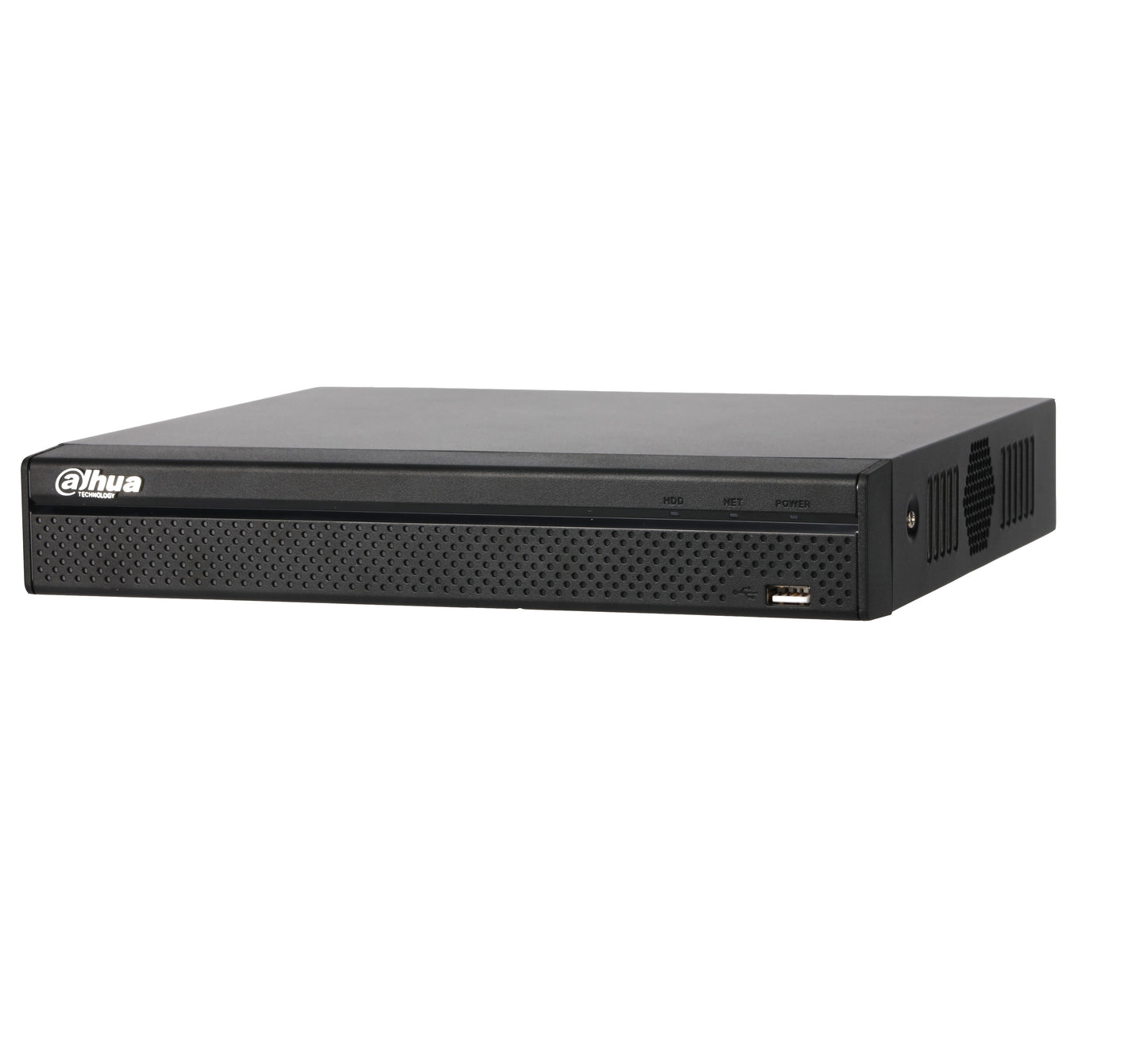

Dahua DHI-NVR4108HS-8P-4KS2 8 Channel Compact 8PoE 4K H.265 Lite Network Video Recorder

Model: DHI-NVR4108HS-8P

Who This Is For

When keeping cabling tidy and the equipment footprint small is the priority, the Dahua DHI-NVR4108HS-8P-4KS2 is the recorder most installers reach for on 4 to 8 camera jobs. Its 8 built-in PoE ports mean every camera runs off a single Cat cable with no separate switch or injector required, and the compact 1U chassis at 260 mm x 232.5 mm fits in tight cabinet spaces where a full-rack unit simply won't go. Supporting up to 8MP resolution with Smart H.265+ compression, it suits small commercial premises, retail shopfronts, childcare centres, and residential properties where the owner wants 4K-capable recording without investing in a larger system. The NVR pulls AI metadata directly from compatible Dahua cameras - perimeter protection, SMD Plus, people counting, and heat map - so intelligent search and alarm filtering work without any additional hardware or software licence.

What This NVR Actually Does

Who Buys This Model

• Security installers on small commercial jobs: The self-contained 8-port PoE switch removes the need to quote a separate PoE switch, keeping bill-of-materials tight on 4 to 8 camera retail and office installs.
• Childcare and education operators: Scheduled recording with intelligent alarm filtering via SMD Plus reduces false notifications during business hours while keeping a full audit trail for compliance purposes.
• Property managers upgrading from analogue: ONVIF Profile S/T/G support and third-party camera compatibility with Axis, Sony, Panasonic, and Samsung means existing non-Dahua cameras can often be integrated without a full rip-and-replace.
• Residential owners wanting 4K recording: The compact chassis fits in a home network cabinet, supports a single HDD up to 10TB, and the DMSS app gives direct mobile access without needing a monitoring subscription.
• IT managers handling light-touch surveillance requirements: The embedded Linux OS, IP filtering, login lock, and network security anomaly alerts address basic cybersecurity obligations without requiring a dedicated server or complex configuration.

Honest Assessment

The DHI-NVR4108HS-8P-4KS2 does its core job well: it consolidates 8 PoE camera connections and a 4K-capable recorder into one compact unit that draws under 8.3W without a drive fitted. Smart H.265+ genuinely reduces storage footprint, and the AI search functions - when used with compatible Dahua cameras - make finding specific events significantly faster than scrubbing timelines. The 80 Mbps incoming bandwidth comfortably handles 8 channels of high-resolution footage without dropping frames. Where it falls short is in scalability. With 1 HDD bay and no RAID option, there is no redundancy for storage, and the channel count is fixed at 8 - sites that may grow beyond 8 cameras should consider a larger NVR from the range available through Security Australia rather than planning a swap later. The 72W total PoE budget also needs checking against camera loads before specifying PTZ or multi-sensor cameras on the same unit.

Before You Buy

Quick Fit Check

• Good match if: You are installing up to 8 IP cameras and want a single-unit solution with no external PoE switch - the 8 onboard IEEE 802.3at/af ports handle both power and data within the 72W shared budget.
• Good match if: You are using AI-capable Dahua cameras and want SMD Plus human/vehicle search or perimeter protection alarms managed and searchable from the NVR interface without additional software.
• You may need a different model if: Your site has more than 8 cameras now or is likely to expand - a 16-channel or higher NVR will serve that requirement without requiring a hardware replacement down the track.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need an all-in-one 8-channel PoE NVR in a compact chassis that supports up to 8MP recording with Smart H.265+ compression and AI event search from compatible cameras, without a separate switch or additional hardware.
• You may need a different model if: Your site requires more than 8 camera positions, multiple HDD bays for extended retention or redundancy, or higher total PoE wattage - a larger-channel NVR with multi-bay storage will be a more appropriate fit.
• Pairs well with: Dahua SMD Plus or AI-enabled IP cameras (turret, bullet, or dome) that pass intelligent metadata back to the NVR for human/vehicle classification and perimeter alarm filtering.

Common Questions

1. Does this NVR include a hard drive?

   No. The DHI-NVR4108HS-8P-4KS2 ships without a hard drive fitted. It accepts 1 x SATA III drive up to 10TB. You will need to purchase a surveillance-grade HDD separately - standard desktop drives are not recommended for continuous 24/7 recording due to the different workload demands.

2. Will this NVR work with non-Dahua cameras?

   Yes, with limitations. The NVR supports ONVIF Profile S/T/G and has confirmed compatibility with Axis, Sony, Samsung, Panasonic, Pelco, and Canon cameras for basic recording and live view. However, AI functions including SMD Plus human/vehicle classification, perimeter protection alarms, and heat map data are only available when using compatible Dahua AI cameras - these features rely on metadata generated by the camera itself.

3. What is the total PoE power available across all 8 ports?

   The total shared PoE budget is 72W across all 8 ports, with a maximum of 25.5W available on any single port. This is sufficient for most standard fixed IP cameras drawing 6-12W each. If you plan to connect cameras with high-power IR, PTZ motors, or built-in heaters, calculate your total camera draw before finalising the installation to confirm it stays within the 72W ceiling.

4. Does this NVR support remote viewing on a mobile phone?

   Yes. The DMSS app for iOS and Android connects to the NVR via P2P, which works in most network environments without manual port forwarding. From the app you can view live footage across all channels, receive push notifications for motion and alarm events, and search recorded footage by time or event type.

5. How does Smart H.265+ actually affect my storage?

   Smart H.265+ uses adaptive encoding that allocates higher bitrate only to moving or changing areas of the frame, reducing the overall file size compared to fixed-bitrate H.265 or H.264 recording. In practice this can cut storage consumption by up to 70% versus standard H.265, which means a 4TB drive can hold significantly more days of footage at equivalent visual quality - particularly on sites with long periods of low activity. This feature is available through Security Australia on this NVR model.

6. What happens to recordings if the network goes down?

   Recordings on the NVR itself are unaffected by internet outages - the NVR continues to record from connected cameras regardless of internet connectivity. If the local network between a specific camera and the NVR drops, ANR (Automatic Network Replenishment) will save footage to the camera's onboard SD card during the outage and automatically transfer it back to the NVR once the link is restored, preventing gaps in the archive.

7. Can the NVR display all 8 cameras on screen at once?

   Yes. The multi-screen display supports 1, 4, 8, and 9-channel layout options on the local HDMI or VGA output. For playback, simultaneous multi-channel review is available in 1, 4, and 9-channel layouts. The HDMI output supports up to 3840 x 2160 resolution for display on a 4K monitor.
