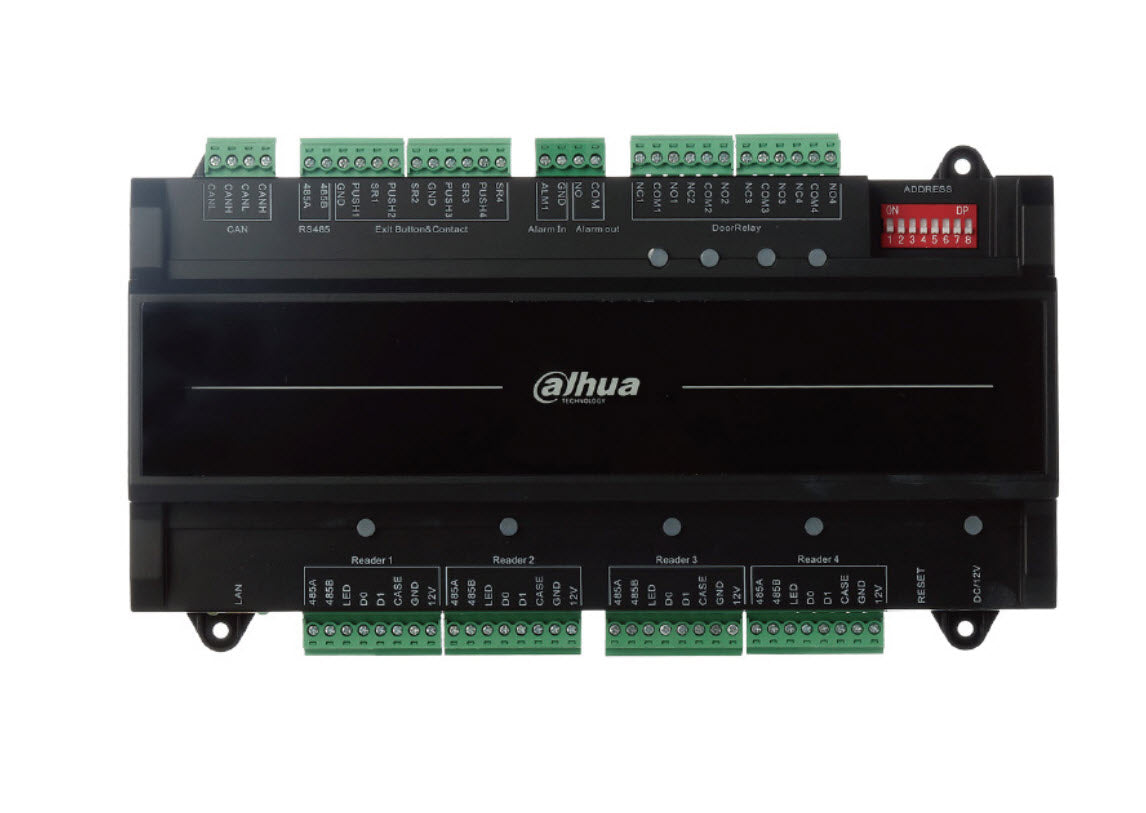

Dahua DHI-ASC2104B-T Four Door Slave Access Control Module

$195.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

Four Door Slave Access Control Module

The ASC2104B-T Four Door Slave Access Control Module from Dahua Security is designed to expand access control systems by managing up to four doors simultaneously. This module enhances security by integrating seamlessly with existing control panels, providing reliable access management.

Key Features

  • Supports 20,000 valid cards and 30,000 records.
  • Supports card, password, fingerprint, and combination access.
  • Compatible only with ASC2204-H with CAN bus.
  • Features Wiegand or RS-485 interface to readers.
  • Includes door time out alarm, intrusion alarm, duress alarm, and tamper alarm.
  • Offers anti-passback, multi-door interlock, and multi-personal open functionality.
  • Supports 128 efficient time and holiday schedules.
  • Equipped with a watch dog function to ensure the device remains operational.
  • Designed for surface mounted installation.

Code/SKU: ASC2104B-T
Quick Specs:

  • RTC: Yes
  • Power Supply: DC 9-15V/500mA
  • Operating Temperature: –30°C to +60°C
  • Working Humidity: ≤95%
  • Dimension (W × D × H): 116.0mm × 155.6mm × 51.2mm
  • Weight: 0.5 kg

Specifications

System

Main Processor

32bit

Memory

16M

Input/Output Ports

Input

Inputs x 9 ( door sensor x 4, exit button x 4, alarm x 1)

Output

Relay x 5(door lock x 4, alarm x 1 )

Reader

Reader x 4

Capacity

Card holders/Events

20,000/30,000

Function

Access control

Anti-pass back, Multi-interlock, Multi-personal unlock

User Management

General, VIP, Guest, Patrol, Blocklist, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Period

Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period

Interface

To Master controller

CAN H, CAN L

To Reader

Wiegand/ RS485

Genreal

RTC

Yes

Power Supply

DC 9-15V/500mA

Operating Temperature

–30°C to +60°C

Working Humidity

≤95%

Dimension(W × D × H)

116.0mm×155.6mm×51.2mm

Weight

0.5 kg

Working Environment

Indoor

Certificates

CE

Yes

FCC

Yes

Documentation
