Dahua DHI-7INBLK3211D-P 7inch Touch Screen IP Intercom Kit

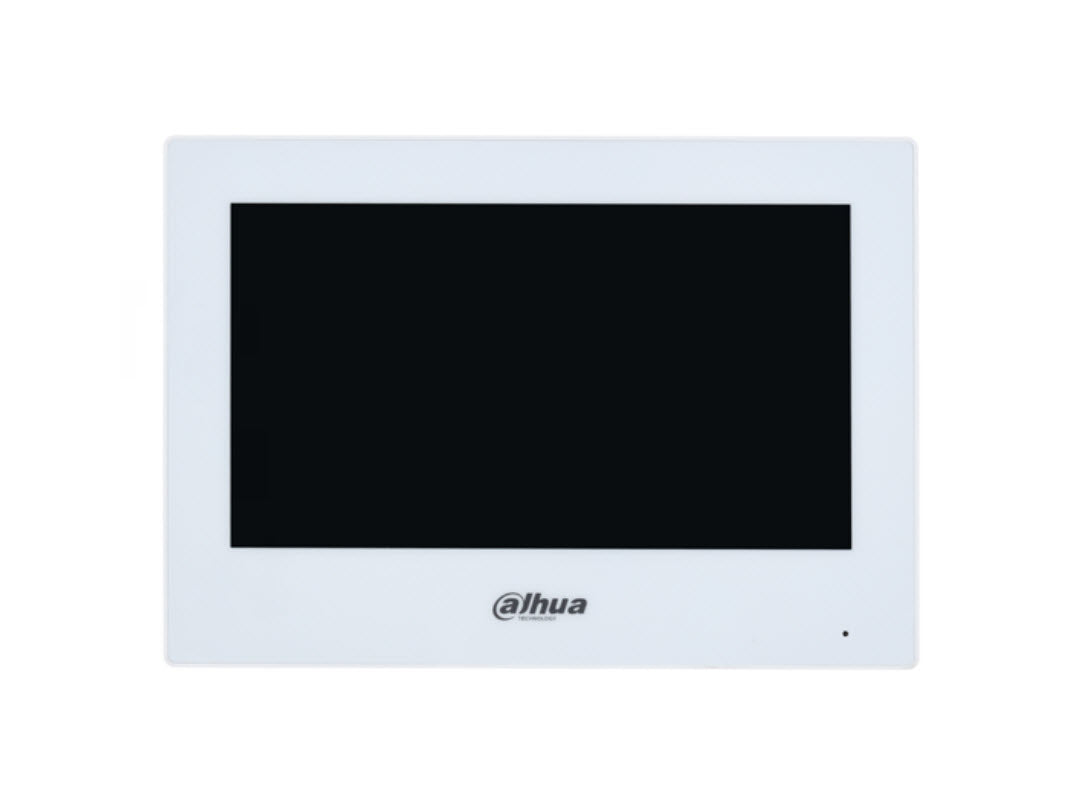

The Dahua IP Indoor Monitor VTH2621G(W)-P is a sleek and modern device designed for high-quality video intercom communication. It features a 7-inch capacitive touchscreen with a resolution of 1024×600, offering clear and vibrant visuals. The monitor supports two-way audio communication with noise suppression and echo cancellation, ensuring crystal-clear conversations. It can be connected to a network via PoE, simplifying installation by combining power and data through a single cable.

The VTH2621G(W)-P integrates seamlessly with other Dahua security devices, allowing for remote unlocking, alarm integration, and video surveillance. It also supports standard SIP protocol for interoperability with third-party systems. The monitor has a built-in microphone and speaker, providing hands-free operation. Its compact design with a slim profile fits well in any indoor environment. Users can also customize ringtones and adjust volume settings to their preference. The VTH2621G(W)-P is an ideal choice for enhancing security and communication within residential or commercial properties.

Features

• 7" TFT capacitive touch screen, 1024 × 600.
• 6-channel alarm input and 1-channel alarm output.
• Standard PoE.
• Door station and IPC monitor.
• H.265 and H.264 video decoding.
• High performance & cost-effective.

Technical Specifications:

The DHI-VTO3211D-P IP 1/2/4-button Villa Door Station from Dahua Security is a versatile and advanced intercom solution designed for residential use. It features a high-resolution 2MP camera, providing clear video quality for secure monitoring of visitors. The unit supports up to four buttons, allowing for flexible configuration and easy interaction with multiple entry points. Integrated with an IP-based system, it ensures seamless connectivity and remote access through mobile devices or computers.

The door station includes built-in infrared LEDs for effective night vision, enhancing security even in low-light conditions. Its rugged, weatherproof design ensures durability and reliable performance in various environmental conditions. The device supports two-way audio communication, enabling users to speak with visitors from anywhere. Additionally, it is compatible with Dahua's VTO series, allowing for integration with other security systems for a comprehensive solution. The user interface is intuitive, making it simple for residents to manage access and monitor their property. Overall, the DHI-VTO3211D-P combines advanced technology with user-friendly features to offer enhanced security and convenience for villa residents.

Features

• 2MP HD CMOS camera
• Aluminum panel, IP65, IK08
• ICR Night vision & Voice indication
• Video & Audio messaging
• Remote intercom with mobile APP
• Surface mounted

Technical Specifications:

The DH-PFS3006-4ET-60 is a versatile 6-port unmanaged desktop switch designed for small to medium-sized network environments. It features four PoE (Power over Ethernet) ports, which provide power and data connectivity to compatible devices such as IP cameras, VoIP phones, and wireless access points. With a 10/100Mbps speed, it ensures reliable data transmission for everyday networking needs. The switch is compact and easy to install, making it ideal for both home and office use. It supports a total bandwidth of 1.2Gbps, ensuring smooth data flow and minimal network congestion.

The device is designed for plug-and-play operation, requiring no configuration to get started. Its sturdy build and reliable performance make it a cost-effective solution for expanding network connectivity. The DH-PFS3006-4ET-60 also features LED indicators for easy monitoring of network status and power usage. Its unmanaged design offers simplicity and ease of use, without the need for complex setup or management. Overall, this switch is a practical choice for enhancing network infrastructure with additional PoE capabilities.

Features

• Layer two commercial switch
• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards
• MDI/MDIX self-adaptation
• RJ-45 port supports 10/100 Mbps self-adaptation and conforms to 802.3at and 802.3af power supply standards
• Port 1 supports Hi-PoE 60W power supply
• 250 m PoE power supply
• Wall mounting and mechanical anti-theft
• 53V DC power supply
• Supports PoE watchdog

Functions

Intelligent PoE The system adopts a PoE power consumption management strategy that prioritizes power supply to critical ports first. If the total power consumption surpasses the system's set threshold, it reduces power from ports starting with the highest numbered port to the lowest. Smart detection mechanisms are employed to prevent outages. The system supplies power within an ultra-wide power range, accommodating IPC power consumption fluctuations even in harsh environments.

Hi-PoE 60W (Orange Port) In addition to supporting IEEE802.3af and IEEE802.3at standards, the orange port provides a maximum output of 60W.

Long Distance PoE The device surpasses the IEEE 100 m transmission limit, supporting PoE transmission distances up to 250 m, offering more flexibility in network setups.

All Metal Design The device features an all-metal design, ensuring efficient heat dissipation and reliable operation in extreme conditions.

POE Watchdog The PoE watchdog function minimizes the need for manual maintenance and device restarts, enabling intelligent management and reducing operational costs.

Technical Specifications:

•
