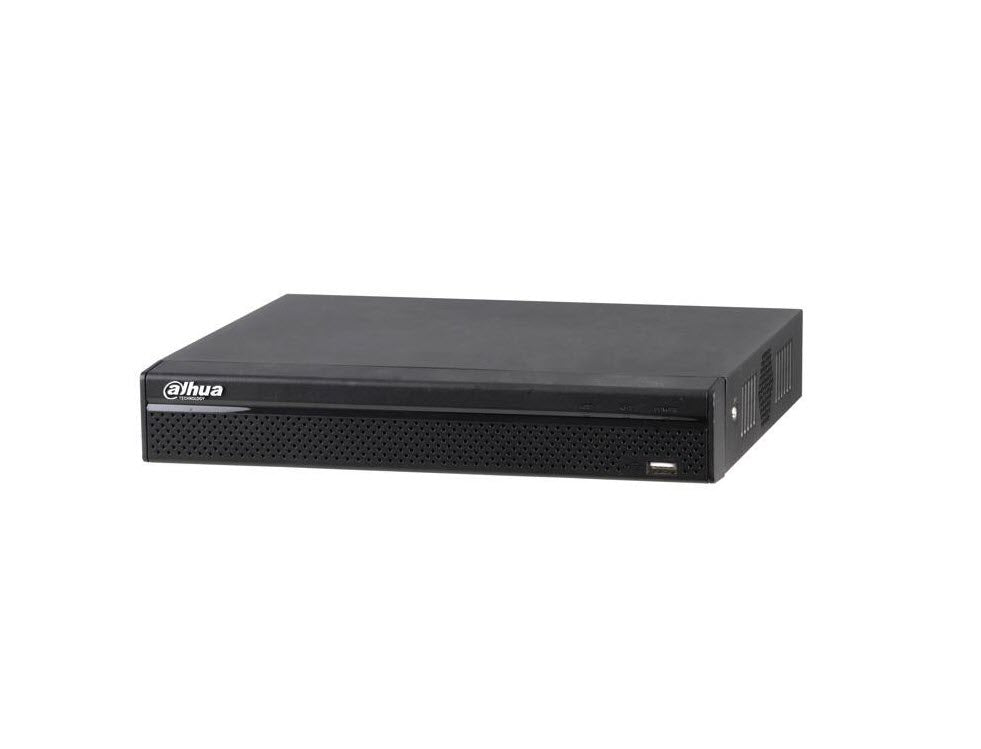

Dahua DH-XVR5104HS-4KL-X 4 Channel Penta-brid 4K Compact 1U DVR

Model: DH-XVR5104HS-4KL-X

Who This Is For

Property managers specifying recorder upgrades for sites that already have coaxial cable runs will find the Dahua DH-XVR5104HS-4KL-X a practical bridge between legacy analog infrastructure and modern IP cameras. This compact 1U DVR accepts HDCVI, AHD, TVI, CVBS, and IP inputs across 4 analog BNC channels, with the ability to expand to 6 IP channels when IP extension mode is enabled. That means existing coaxial cabling stays in place while newer IP cameras can be added as budgets allow. The recorder captures at true 4K resolution from compatible HDCVI cameras, stores up to 10TB on a single internal SATA drive, and outputs 4K via HDMI. Remote access via iPhone, iPad, and Android is supported over P2P without complex port-forwarding setup. At 260 x 236 x 48mm and under 10W power draw without a drive fitted, it installs neatly in a cabinet, back-of-house cupboard, or on a desktop shelf.

What This NVR Actually Does

Who Buys This Model

• Small business owners upgrading legacy CCTV: Existing coaxial cable stays in place while the recorder unlocks 4K resolution from new HDCVI cameras - no rewiring cost, measurable image quality improvement.
• Installers specifying compact recorder solutions: At 260 x 236 x 48mm and under 10W draw, this unit fits cleanly into tight back-of-house or cabinet installations where a full 1U rackmount DVR would be oversized.
• Retail and hospitality operators managing mixed camera brands: The penta-brid auto-detection handles HDCVI, AHD, TVI, CVBS, and IP cameras from multiple manufacturers on one recorder, reducing the need for a fleet-wide camera replacement.
• Property managers needing remote oversight: P2P mobile access via Android and iOS lets site managers review footage or check live feeds from any location without on-site IT support to configure network access.

Honest Assessment

The DH-XVR5104HS-4KL-X handles mixed-signal environments well. The automatic HDCVI/AHD/TVI/CVBS/IP detection removes the guesswork from channel configuration, and H.265+ compression meaningfully extends how long 4 channels of footage can be retained on a single 10TB drive. The 4K HDMI output and IVS analytics - tripwire and abandoned object detection - are capabilities that were previously found only in higher-tier recorders. For sites with existing coaxial infrastructure, this is one of the more cost-effective ways to bring recording quality up to 4K without a full cabling overhaul. The limitations worth noting: there is only 1 SATA bay, so storage cannot be expanded internally beyond 10TB. There are no alarm inputs or relay outputs, which rules this unit out for any application requiring integration with door contacts, PIR sensors, or third-party alarm panels. Sites with more than 4 analog cameras or those requiring dedicated alarm I/O should look at a higher-channel or full-featured DVR available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You have an existing coaxial cable installation and want to upgrade recording quality to 4K using new HDCVI cameras, or continue using current AHD or TVI cameras, without replacing cabling.
• Good match if: Your site has 4 or fewer analog cameras and you want to gradually add up to 6 IP cameras later, since the recorder supports up to 6 IP channels in extension mode at up to 8MP each.
• You may need a different model if: Your installation requires alarm input connections, relay output triggers, or more than 1 internal storage bay - a higher-specification DVR with dedicated alarm I/O and multiple SATA ports would be more appropriate for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site has coaxial cable already installed and you need a compact recorder that handles HDCVI, AHD, TVI, and CVBS cameras in any combination while offering a path to add IP cameras later, all at 4K recording quality.
• You may need a different model if: Your installation requires alarm inputs, relay outputs, or more than 1 internal HDD bay - a higher-channel or enterprise-grade DVR with dedicated alarm I/O and multi-drive storage would be the correct product type for those requirements.
• Pairs well with: Dahua HDCVI cameras at 4K or 4MP resolution for the BNC channels, and any ONVIF-compliant IP camera (up to 8MP) added via the network port for the IP channel extension.

Common Questions

1. Can I keep my existing analog cameras and still use this recorder?

   Yes. The DH-XVR5104HS-4KL-X accepts HDCVI, AHD, TVI, and CVBS signals on its 4 BNC inputs and detects the signal type automatically per channel. If your current cameras are AHD or TVI, they will be recognised and recorded without any manual signal-type configuration. You do not need to replace working cameras to use this recorder.

2. Does this recorder support IP cameras, and how many?

   Yes. In standard mode it supports 4 IP channels alongside the 4 BNC inputs. When IP extension mode is enabled, the IP channel count increases to 6, each accepting cameras up to 8MP, with a total incoming bandwidth of 24Mbps. Note that enabling full IP extension mode affects the multi-screen display layout options.

3. What is the maximum storage capacity, and can I add a second drive?

   The maximum internal capacity is 10TB on a single SATA drive. There is only 1 SATA port on this unit - no second bay, no eSATA expansion port. If you need storage beyond 10TB or any form of drive redundancy, a multi-bay DVR is the correct product type. Footage can be backed up externally via USB device or over the network.

4. How does H.265+ actually affect how many days of footage I can store?

   H.265+ can reduce the bit rate and storage footprint by up to 90% compared to H.264 at equivalent visual quality. In practical terms, a storage budget that would hold 10 days of H.264 footage could hold significantly more under H.265+, without any hardware change. The actual saving depends on scene complexity and motion level - static camera views with low movement see the largest gains because the codec skips encoding unchanged regions of the frame between keyframes.

5. What frame rate does 4K recording actually run at on this DVR?

   4K main stream recording is limited to 1-7fps on this model. This is a specification of the DVR's processing capability at that resolution, not a camera limitation. If smooth 4K motion capture is a priority - for example at a pedestrian entry point - recording at 5MP or 4MP enables higher frame rates (up to 12fps and 15fps respectively) while still delivering substantially more detail than 1080P. Plan resolution and frame rate together based on what each camera position actually needs to capture.

6. Will this recorder work with non-Dahua IP cameras?

   Yes, for ONVIF-compliant cameras. The unit supports ONVIF 16.12 and CGI, and Dahua lists third-party brand compatibility including Axis, Bosch, Panasonic, Sony, Pelco, Samsung, Vivotek, and others. Camera features beyond basic live view and recording - such as IVS analytics or remote PTZ control - are most reliably supported when pairing with Dahua HDCVI or Dahua IP cameras. Third-party cameras that support ONVIF will connect but may have limited feature integration depending on firmware version. The full range of compatible models is available through Security Australia.

7. Does this DVR have alarm inputs for connecting door sensors or PIR detectors?

   No. Alarm inputs and relay outputs are both listed as N/A on this model. The DH-XVR5104HS-4KL-X has no terminals for connecting external alarm devices such as door contacts, PIR sensors, or sirens. Event triggers are limited to video-based detection - motion detection, video loss, and tampering. If your site requires integration with physical alarm inputs, you need a DVR that includes dedicated alarm I/O terminals.

8. How does the IVS tripwire detection work, and does it require specific cameras?

   The Intelligent Video System tripwire runs on the recorder itself and triggers when a detected object crosses a user-defined line in the camera's field of view. It also supports abandoned and missing object detection. IVS analytics work with compatible HDCVI and IP cameras - results are most accurate when the camera resolution is sufficient to clearly define moving objects in the monitored scene. The Smart Search feature uses IVS motion data to let operators draw a region on the playback screen and jump directly to events in that zone, rather than reviewing full timeline recordings manually.
