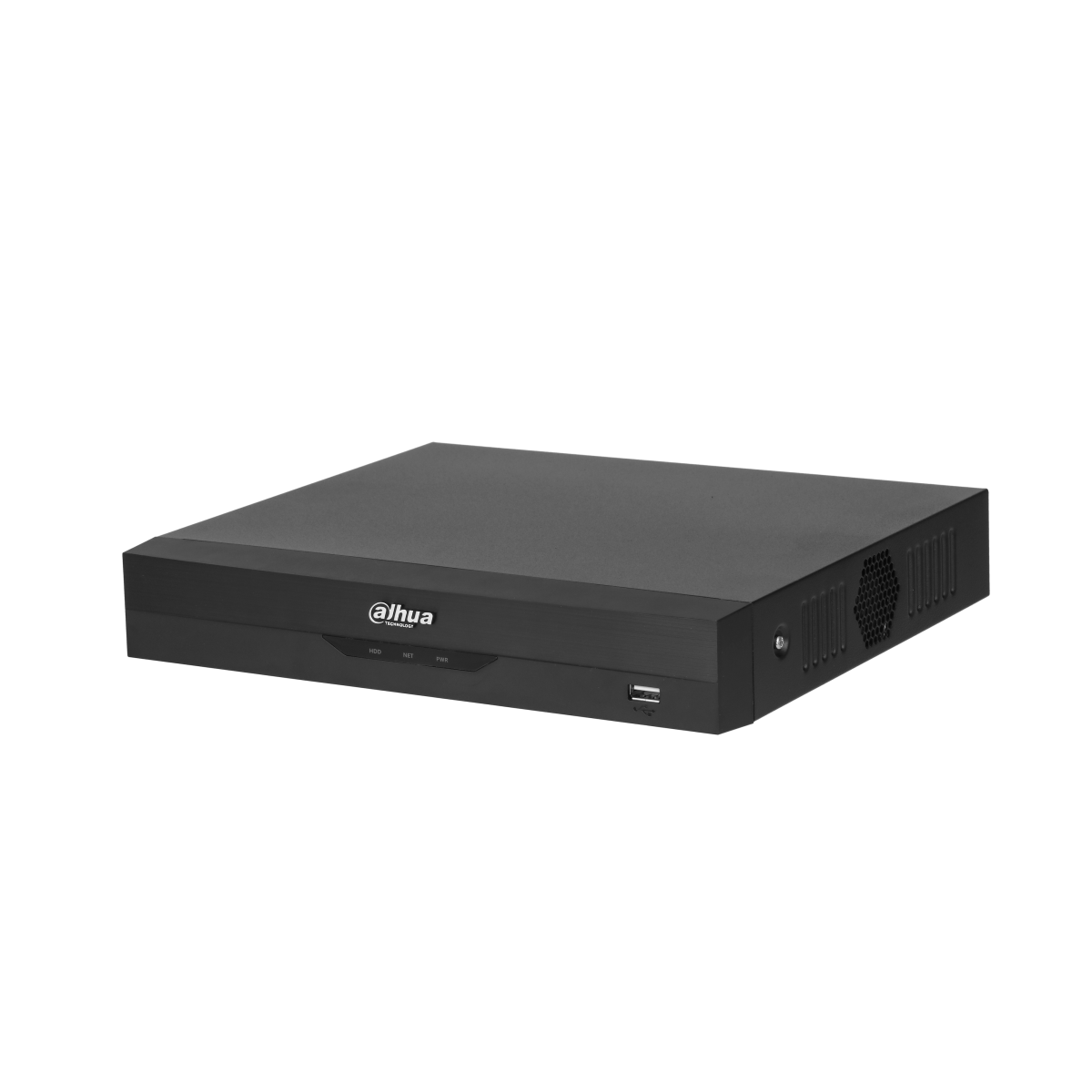

Dahua DH-XVR5104HS-4KL-I3 4 Channel Penta-brid 4K Compact 1U DVR

$441.00 AUD
$200.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

4CH Penta-brid 4K Value/5MP Compact 1U 1HDD WizSense Digital Video Recorder

The 6MP WDR IR Dome Network Camera DH-IPC-HDBW5631R-ZE from Dahua Security delivers exceptional image quality with its 6MP resolution, ensuring detailed surveillance footage. It features a motorized vari-focal lens with a range of 2.7mm to 13.5mm, allowing flexible coverage for various monitoring needs. The camera’s advanced Wide Dynamic Range (WDR) technology enables it to capture clear images in environments with strong contrast lighting. Equipped with Smart IR technology, it ensures optimal illumination in low-light conditions, extending visibility up to 50 meters.

* The information below only applies to hardware version 3.0. of the product.

Key Features

  • 2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
  • 1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time.
  • 4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
  • 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
  • 2-channel face recognition for analog channels which supports face comparison.
  • 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
  • Supports HDCVI, AHD, TVI, CVBS and IP video input.
  • Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps.
  • Smart H.265+ and H.265 dual-stream video compression.

Code/SKU: DH-IPC-HDBW5631R-ZE
Quick Specs:

  • Main Processor: Industrial-grade processor
  • Operating System: Embedded Linux
  • Operating Interface: Web; Local GUI

Specifications

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Quick Pick

QuickPick 2.0 AI by Recorder (Number of Channels)

2 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Mode: 2 channels, 10 IVS rules for each channel

General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels(up to 8 face images/s each channel)

Privacy Protection

Privacy Protection Performance of AI by Recorder (Number of Channels)

1 channel

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

8 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio and Video

Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.

2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 8 channels of IPC access

4 IP channels by default + 4 channels (analog channels are converted to IP channels)

Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.

Encoding Capacity

Encode Enhancement disabled:

Main stream:

4K@(1 fps–7 fps); 6 MP@(1 fps–10 fps); 5 MP@(1 fps–12 fps); 4K-N/4 MP/3 MP@(1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)

Sub stream:

960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)

Encode Enhancement enabled:

Main stream:

the 1st channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);

the 1st channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);

the 1st channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);

the 1st channel 4K-N/4 MP/3 MP@(1 fps–25/30 fps), others 4K-N/4 MP/3 MP@(1 fps–15 fps);

4K/6 MP@(1 fps–10 fps);5 MP@(1 fps-12 fps); 4K-N/4 MP/3 MP@(1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)

Sub stream:

960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)

*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA

HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/8/9

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General; alarm; motion detection; intelligent; POS

Recording Playback

1/4

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Alarm

General Alarm

Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Audio Input

1-channel RCA

4-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

Disk Interface

1 SATA port. up to 16 TB. This limit varies depending on the environment temperature.

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 2 A

Power Consumption

<7 W (without HDD)

Net Weight

0.96 kg (2.12 lb)

Gross Weight

1.37 kg (3.03 lb)

Product Dimensions

260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.37" × 1.87") (W × D × H)

Packaging Dimensions

333.0 mm × 89.0 mm × 315.0 mm (13.12" × 3.51" × 12.41") (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Installation

Desktop

Certifications

CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035

Documentation
