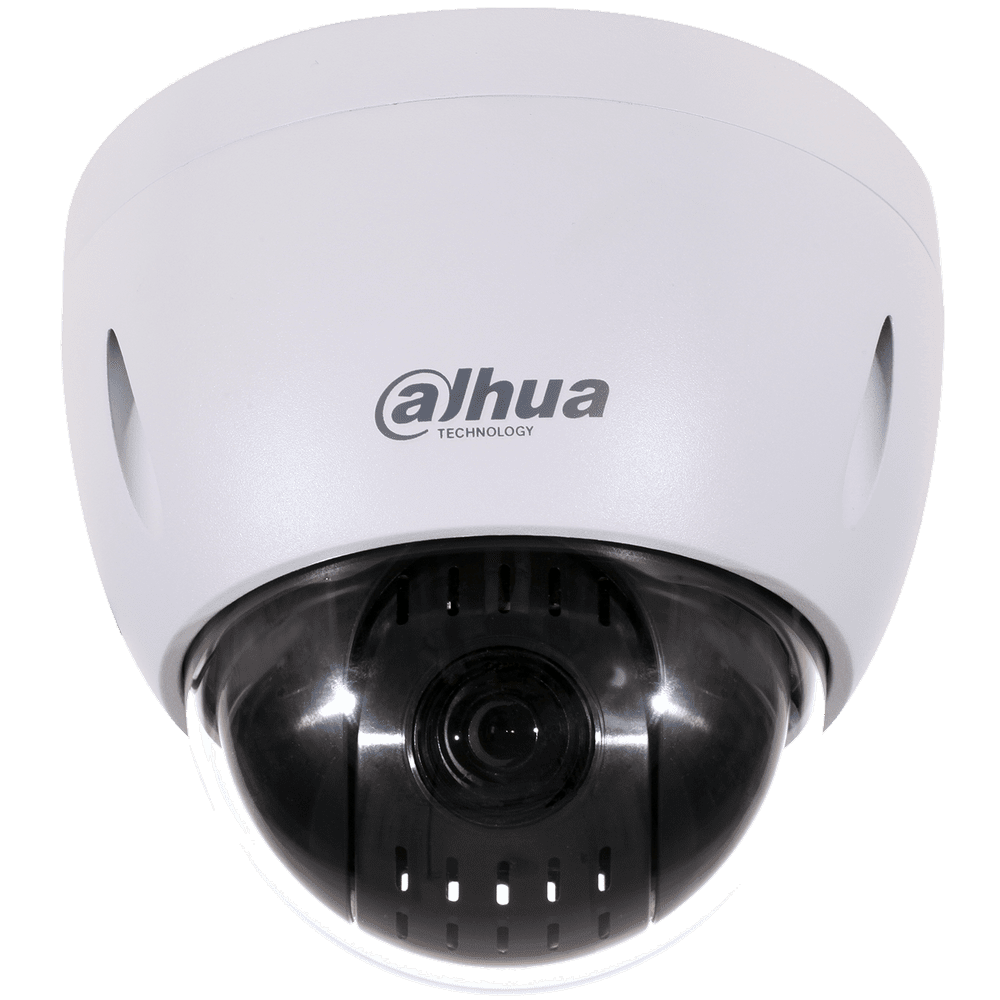

Dahua DH-SD42212T-HN-S2 2MP 12x Starlight PTZ Network Camera

Model: DH-SD42212T-HN-S2

Who This Is For

When wide-area coverage from a single camera position is the priority, the Dahua DH-SD42212T-HN-S2 is the PTZ built for the job. Installers specifying cameras for car parks, school ovals, large retail forecourts, or industrial yards will find its 12x optical zoom and full pan-tilt movement reduce the number of fixed cameras needed to cover the same ground. The Starlight sensor handles low-light conditions down to 0.005 lux in colour, making it a practical choice for sites without full perimeter lighting. IK10 vandal resistance and IP66 weatherproofing mean it handles both exposed outdoor mounting and the occasional impact risk at ground-level positions. PoE+ powering keeps cabling straightforward, and ONVIF compliance means it integrates cleanly with most NVR brands already on site. This is a mid-range PTZ suited to installers and facilities managers who need genuine optical zoom and low-light capability without stepping into high-cost PTZ territory.

What This Camera Actually Does

Who Buys This Model

• Security Installers on Commercial Sites: Replacing 3 or 4 fixed cameras with a single PTZ at a junction point - the 12x optical zoom and preset tour function covers multiple zones from one cable run.
• School and Education Facility Managers: Ovals, playgrounds, and open carparks benefit from the wide-to-tight zoom range and IVS perimeter alerts without requiring a dense fixed camera grid.
• Industrial and Warehouse Operations: Loading dock supervisors and site managers use the auto-tracking and preset positions to monitor vehicle movements and yard activity across large footprints in variable lighting.
• Strata and Property Managers: Apartment complex carparks, driveways, and communal areas where a single vandal-resistant PTZ (IK10) needs to cover ground that would otherwise require multiple fixed units.
• Integrators Adding to Existing ONVIF Systems: Sites already running third-party NVRs or VMS platforms - ONVIF and PSIA compliance means this camera connects without brand-locked software.

Honest Assessment

The DH-SD42212T-HN-S2 delivers genuine optical zoom capability, strong low-light colour performance, and IK10-rated physical resilience at a price point well below higher-tier PTZ units. The Starlight sensor genuinely performs in dim conditions, the Smart H.265+ compression keeps storage requirements manageable, and PoE+ installation is straightforward for any competent installer. The 120 dB WDR handles mixed-lighting scenes that trip up lesser sensors. What this camera will not do: it does not carry a laser IR illuminator for long-range night vision beyond its ambient light performance, so sites with no external lighting at the distances you need to zoom into may not get usable night footage at full zoom. It is also a 2MP unit - if your application demands 4MP or 8MP resolution at maximum zoom for licence plate capture or facial identification in evidential use, a higher-resolution PTZ would be a better fit. Available through Security Australia, it suits the majority of commercial and semi-industrial PTZ applications where zoom range and all-weather build quality are the primary requirements.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to patrol a large open area - carpark, schoolyard, or industrial yard - using preset tours and 12x optical zoom to cover multiple zones without running cable to multiple fixed positions.
• Good match if: Your site has low or inconsistent lighting and you need colour footage after dark - the 0.005 lux Starlight sensor delivers colour images in near-darkness without requiring additional IR illuminators in most ambient-light environments.
• You may need a different model if: Your primary goal is evidential licence plate capture or facial identification at range - a dedicated ANPR camera or a higher-resolution PTZ (4MP or above) will give you more usable detail at maximum zoom distance than this 2MP unit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to replace multiple fixed units across a large outdoor space, with genuine 12x optical zoom, Starlight low-light colour, and IK10 vandal resistance all in one PoE+ unit.
• You may need a different model if: Your application centres on evidential identification at range - a higher-resolution PTZ (4MP or 8MP) or a dedicated ANPR camera will return more usable pixel density at maximum zoom than this 2MP sensor allows.
• Pairs well with: A PoE+ managed network switch and a compatible NVR or VMS platform that supports PTZ preset scheduling and IVS event recording to get the most out of the camera's automated patrol and analytics capabilities.

Common Questions

1. Will a standard PoE switch power the DH-SD42212T-HN-S2?

   No. This camera requires PoE+ (IEEE 802.3at), which delivers up to 30W per port. Standard PoE (IEEE 802.3af) provides a maximum of 15.4W and will not supply enough power for a PTZ with motorised pan, tilt, and zoom mechanisms operating simultaneously. Confirm your switch carries 802.3at-rated ports before installation, or use a dedicated PoE+ injector on that run.

2. Does this camera work with non-Dahua NVRs and VMS platforms?

   Yes, in most cases. The DH-SD42212T-HN-S2 supports ONVIF and PSIA standards, which means it will connect to any recorder or VMS that supports those protocols. Basic functions including live view, recording, and PTZ control will work across compatible platforms. Note that advanced Dahua-specific features such as Smart H.265+ compression and IVS analytics may only be fully accessible through Dahua-native software or compatible Dahua NVRs.

3. How many preset positions does this PTZ support, and how does the patrol tour work?

   The preset and patrol tour count is configured through the camera's web interface or connected VMS - the exact maximum preset count for this model should be confirmed against the full datasheet. In practice, you define a numbered position for each area of interest (entry gate, parking row, fence corner), then build a patrol tour that sequences through those presets with configurable dwell times at each stop. The camera rotates to each position in order, holds for the defined period, and continues to the next. This runs continuously or on a schedule without operator involvement once programmed.

4. Does the 12x optical zoom affect image quality compared to digital zoom?

   No - optical zoom preserves full resolution at every zoom level. The 5.3mm to 64mm lens physically adjusts its focal length, so the camera delivers full 1080p at both wide angle and maximum telephoto. Digital zoom, by contrast, crops and enlarges a portion of the sensor's image, which reduces effective resolution proportionally. For any application where you need useful detail at distance - reading signage, identifying a person at 50 metres, or watching a vehicle at the far end of a yard - optical zoom is the only type that maintains image quality.

5. Will the Starlight sensor give colour footage at night without any external lighting?

   It depends on the ambient light present. The Starlight sensor is rated to 0.005 lux in colour mode, which corresponds to heavily overcast night sky or a dimly lit street - not complete darkness. In a genuinely unlit outdoor environment with zero ambient light, the camera will switch to black and white mode using the 0.0005 lux monochrome threshold. If colour footage after dark is a firm requirement, some level of ambient or supplementary lighting at the scene is recommended to keep the sensor in colour mode.

6. How does the IVS intrusion detection on this PTZ differ from standard motion detection?

   IVS (Intelligent Video Surveillance) uses defined geometric rules rather than pixel-change analysis. You draw a tripwire line or polygon zone in the camera's configuration interface and set the crossing direction or entry condition that triggers an alert. Standard motion detection responds to any pixel change in a region - wind-blown trees, changes in light, insects near the lens. IVS targets specific crossing events, which substantially reduces false alarm rates in outdoor environments. The tradeoff is that IVS rules require commissioning time to set up correctly, and performance can degrade if the camera is mid-patrol and the defined zone is not in the current field of view.

7. Is the DH-SD42212T-HN-S2 rated for Australian summer temperatures and coastal environments?

   Yes. The operating temperature range is -30 to +60 degrees Celsius, which exceeds typical Australian summer conditions in all but extreme outback environments. The IP66 rating protects against dust ingress and water jets, making it suitable for exposed coastal installations where salt air and driven rain are concerns. The IK10 vandal resistance rating and 2 kV lightning protection rating add further durability for exposed pole or rooftop mounting common on Australian commercial sites. This model is part of the Security Australia range and is stocked for Australian installation conditions.

Downloads & Resources

No downloads available for this product.
