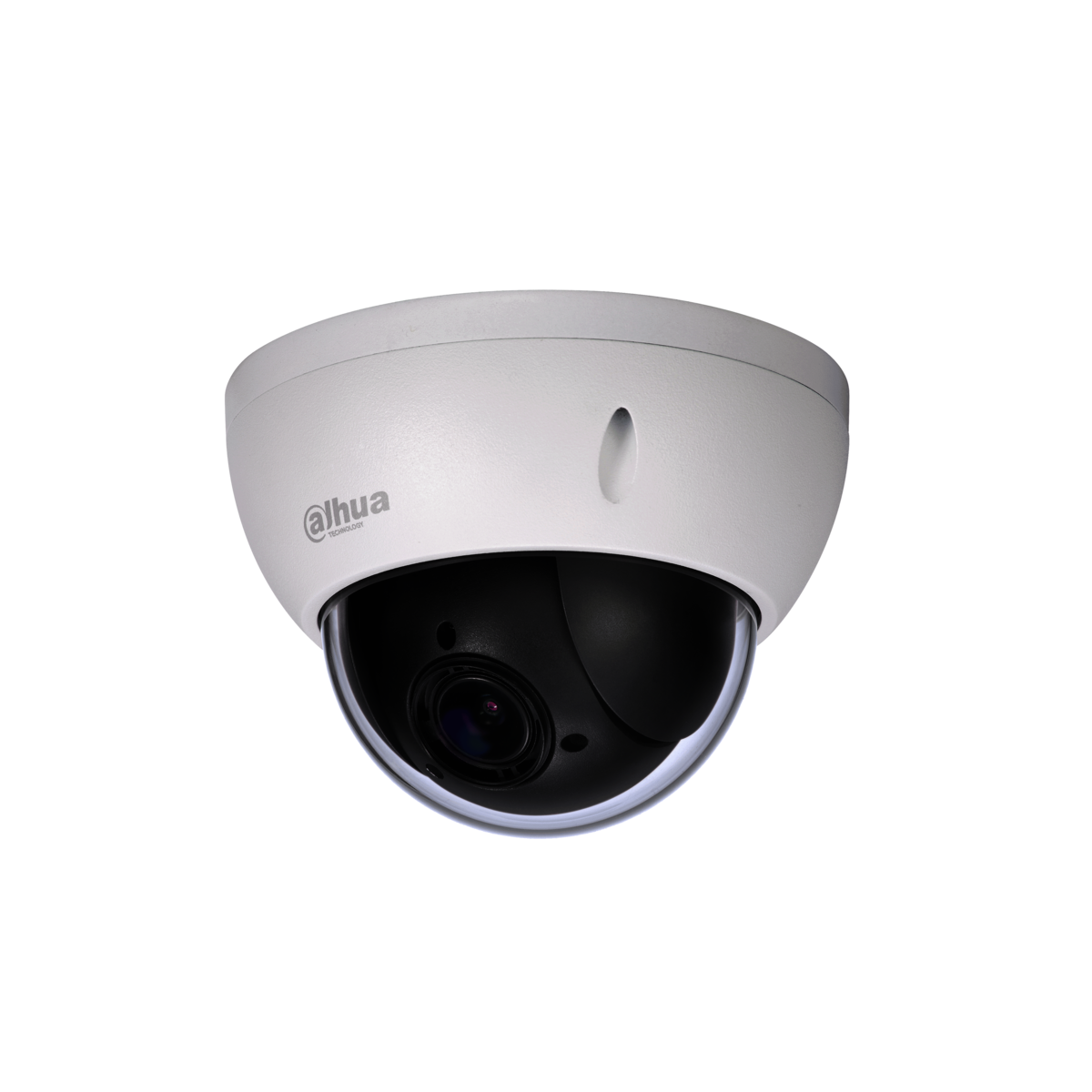

Dahua DH-SD22404T-GN 4MP 4x PTZ Network Camera

Model: DH-SD22404T-GN

Who This Is For

For site managers and integrators who need flexible optical zoom coverage without committing to multiple fixed cameras, the Dahua DH-SD22404T-GN delivers 4MP resolution across a 4x optical zoom range in a compact, IP66-rated PTZ housing. It suits medium-scale installations where a single camera must cover a wide entry zone at 112.5 degrees then tighten to 30 degrees for detail - think retail forecourts, school grounds, building entrances, and car park access points. The Starlight-grade low-light sensitivity (0.05 Lux colour) handles environments that drop well below standard lighting levels, making it a practical choice where ambient light is inconsistent but full IR illumination is not required. PoE support keeps the install clean, and IK10 vandal resistance adds a level of physical durability suited to semi-exposed mounting positions.

What This Camera Actually Does

Who Buys This Model

• Retail and commercial integrators: Installing a single PTZ to cover a wide car park entry or forecourt, then zoom in to document a specific bay or vehicle - replacing 2 or 3 fixed cameras with one flexible position.
• School and childcare facility managers: Monitoring large open areas such as playgrounds or drop-off zones where the wide-angle view covers general activity and operators can zoom to follow a specific area of concern.
• Building and strata managers: Covering shared entry foyers, lobby approaches, or car park access ramps where a compact PTZ with IK10 vandal resistance fits a wall or column mount without the bulk of a full-size PTZ dome.
• Small industrial sites: Sites needing a PTZ at a perimeter gate or loading dock entry where the operator can zoom to check a vehicle or person without dispatching staff - supported by on-camera tripwire analytics for after-hours alerting.

Honest Assessment

The DH-SD22404T-GN does several things well for a compact PTZ at this resolution. The 4MP sensor gives meaningful detail at telephoto, the 120dB WDR handles contrast-heavy entrances, and Starlight sensitivity at 0.05 Lux means the camera holds colour in low ambient light without IR. IK10 vandal resistance is a genuine specification confirmed by testing, not a marketing claim. H.265 at 25/30fps keeps storage requirements manageable across multi-channel NVR setups. It is supplied by Security Australia and integrates with Dahua-compatible NVRs via ONVIF for broader system compatibility. Where it will not perform: this camera has no IR illuminators, so in true darkness it will not produce a usable image without external lighting. It also carries a 4x zoom ratio, which suits medium-range applications - buyers needing long-range optical zoom (20x or greater) for large perimeters or wide open spaces should look at a larger PTZ dome instead.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to cover a wide zone (up to 112.5 degrees) and also zoom in optically to 30 degrees for detail - such as a school drop-off zone or retail car park entrance where one flexible view replaces multiple fixed cameras.
• Good match if: The installation site has consistent ambient lighting (indoor with overhead lighting, or outdoor with existing flood or street lighting) where the 0.05 Lux Starlight sensitivity is sufficient and IR illumination is not required.
• You may need a different model if: The site has unlit outdoor areas that go to near-zero light after hours - a PTZ dome with built-in IR illumination will serve that scenario far better, and Security Australia carries models with IR ranges suited to extended outdoor coverage.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact, PoE-powered PTZ with 4MP resolution, genuine IK10 vandal resistance, and Starlight low-light capability for a medium-range site where 4x optical zoom covers the required detail distance.
• You may need a different model if: The installation requires long-range optical zoom (20x or greater) for wide open areas such as large perimeter fences, sports fields, or industrial yards - a higher-zoom PTZ dome will cover those distances more effectively.
• Pairs well with: A Dahua-compatible PoE NVR with IVS support to make full use of on-camera tripwire analytics, local recording, and remote viewing via mobile app.

Common Questions

1. Does this camera work in complete darkness?

   No. The DH-SD22404T-GN has no IR LEDs. It relies entirely on ambient light. At 0.005 Lux (B/W mode) it will produce an image in very low light, but in a fully unlit environment it will produce a black image. If the site has no ambient lighting after hours, specify a PTZ model with built-in IR illumination instead.

2. Will this camera work with a non-Dahua NVR?

   Yes, in most cases. The DH-SD22404T-GN supports ONVIF and PSIA standards, which allows integration with third-party NVRs that are compliant with those protocols. However, some advanced features - including full IVS analytics integration and PTZ control via NVR interface - may only function fully when paired with a Dahua-native NVR.

3. What does the 4x optical zoom actually cover in practice?

   At wide angle (2.7mm), the horizontal field of view is 112.5 degrees - broad enough to cover a driveway entry, a car park row, or a building frontage from a moderate distance. At full telephoto (11mm), the field narrows to 30 degrees, which allows the camera to read detail - signage, faces, or a vehicle area - at a useful range without digital quality loss. The transition is motorised and controlled via the NVR or PTZ controller.

4. Does the tripwire function reduce false alerts compared to standard motion detection?

   Yes. IVS tripwire only triggers when a subject crosses a defined line in the set direction, rather than responding to any movement in a zone. This significantly reduces alerts caused by swaying vegetation, lighting changes, or animals passing through the frame. The rule runs on the camera itself, so no additional NVR processing is required for the alert logic to function.

5. What PoE standard does this camera require and does it need PoE+?

   The confirmed specification states PoE support, but does not specify whether this model requires standard IEEE 802.3af (15.4W) or IEEE 802.3at PoE+ (30W). PTZ cameras with motorised lens mechanisms can draw more than a standard fixed camera. Before deploying, check the camera's power consumption specification in the Dahua datasheet and confirm your switch or NVR provides sufficient per-port wattage. Underpowering a PTZ can cause erratic pan/tilt behaviour or lens focus issues. The team at Security Australia can confirm the power draw requirement before you purchase.

6. How does the pan-and-tilt range affect placement planning for this model?

   The confirmed specification data for this model does not publish pan/tilt degree ranges in the available documentation. For PTZ placement planning purposes - including coverage arc calculations and whether the camera can achieve full 360-degree pan or has mechanical limits - consult the full Dahua datasheet for the DH-SD22404T-GN before confirming a mount position. This is particularly important if you are relying on the camera to cover a wide sweep from a single fixed point rather than monitoring a defined forward zone.

7. Is H.265 recording compatible with older Dahua NVRs?

   Not always. H.265 requires the NVR to support H.265 decoding on the relevant channels. Older Dahua NVR models may only support H.264. If you are adding this camera to an existing system, check that your NVR firmware and hardware support H.265 on the channel you plan to assign it to. If not, the camera can fall back to H.264 encoding, but you will lose the bandwidth and storage efficiency benefit that H.265 provides.
